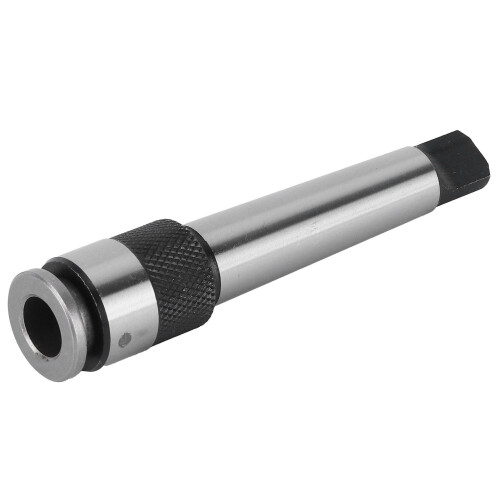

MT2-M16 Tapping Chuck 40Cr Metal, 17.78mm Tap Handle Diameter
Similar Products we think you'll like
Would you like us to let you know when it's back?
Summary
- This morse taper shank tapping chuck come with exquisite workmanship, guaranteed quality
- Accuracy is guaranteed to ensure work accuracy and improve processing and production efficiency, very reliable
- The product is made with standard production, so that easy to disassemble and clamp
- Used for tapping hole of spindle hole of the lathe, tail hole of the lathe, drilling machine, milling machine, and various cutting machine tools
- Tapping chuck haraware come with stable structure, excellent performance and long service life
MT2-M16 Tapping Chuck 40Cr Metal, 17.78mm Tap Handle Diameter Description
Tapping Chuck Morse Taper Shank Tap Machine Tool Hardware Industrial Supplies MT2M16
Item Type: Tapping Chuck
Specification: MT2
Model Example Description: "MT2-M10"
"MT2" Means: The model of the tool holder is Morse taper conversion tool holder
"M10" Means: The clampable taps are M10 type
Material: 40Cr
Uses: Used for tapping hole of spindle hole of the lathe, tail hole of the lathe, drilling machine, milling machine, and various cutting machine tools
Model
D1(approx.)
d(approx.)
w(approx.)
MT2-M6-8
17.780mm / 0.7in
6.3mm / 0.2in
5mm / 0.2in
MT2-M10
17.780mm / 0.8in
8mm / 0.3in
6.3mm / 0.2in
MT2-M12
17.780mm / 0.9in
9mm / 0.4in
7.1mm / 0.3in
MT2-M14
17.780mm / 0.10in
11.2mm / 0.4in
9mm / 0.4in
MT2-M16
17.780mm / 0.11in
12.5mm / 0.5in
10mm / 0.4in
Tap Handle Diameter(D): Approx. 17.780mm / 0.7in
Details
| OPC | PSW299G |
|---|---|
| Codes | 9431391858542 (EAN) |
