MT6826S High Precision High Speed Magnetic Encoder Magnetic Induction Angle Measurement Sensors Module ABZ UVW Description

The MT6826S is a member of the fourth-generation magnetic angle encoder IC family. It utilizes anisotropic magnetoresistive (AMR) technology and proprietary signal processing techniques to achieve 0 to 360 angle measurement.
The chip consists of a pair of for AMR Wheatstone bridges and a signal processing ASIC circuit.
As the magnetic field parallel to the chip surface rotates, the chip can output angular signals such as ABZ, UVW, and PWM.
To overcome the precision loss caused by magnets and installation, MT6826S provides. A simple client self calibration function that can achieve an angle accuracy of Less than 0.07 after calibration is completed.
The MT6826S chip is suitable for various application scenarios with high-speed and high-precision control requirements, such as closed circuits Loop stepper motor.

1. Based AMR technology, provide absolute angle measurement from 0 to 360
2. Working voltage: 3.3-5.0V
3. Working temperature -40 C-125 C
4. The system delay is as low as 2US and can support speeds to 120000 revolutions per minute
5. Incremental output ABZ supports 1 ^ 1024 lines of arbitrary resolution
6. Incremental output UVW supports any polarity from 1 to 16
7. Applications: Industrial sewing machines, closed-loop stepper motors
Color: Black
Material: PCB

Package Contents:

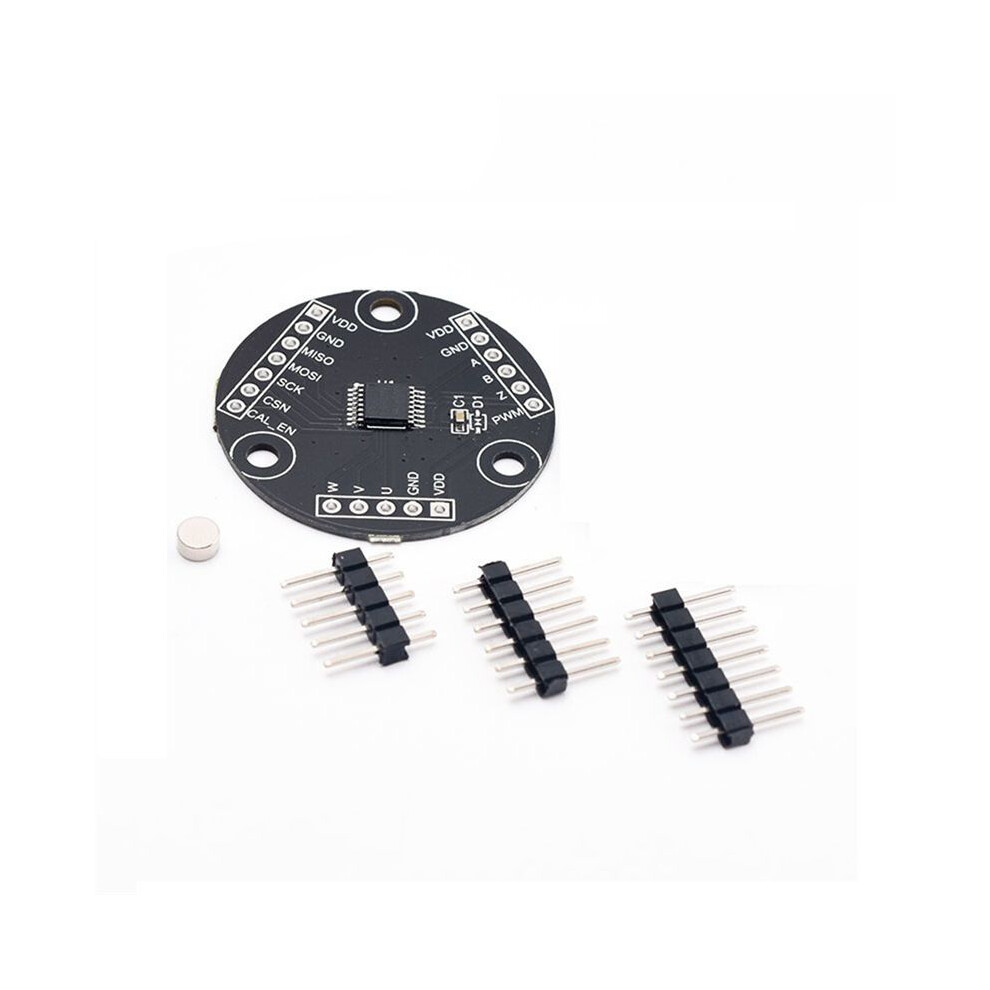

1 x Magnetic encoder
1 x Magnet
3 x pin
