MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048

MT6835 Magnetic Encoder Module PWM/SPI Brushless Motor 21BIT Encoder Can Replace AS5048 Description

Based on technology, it provides absolute angle measurement from 0 to 360

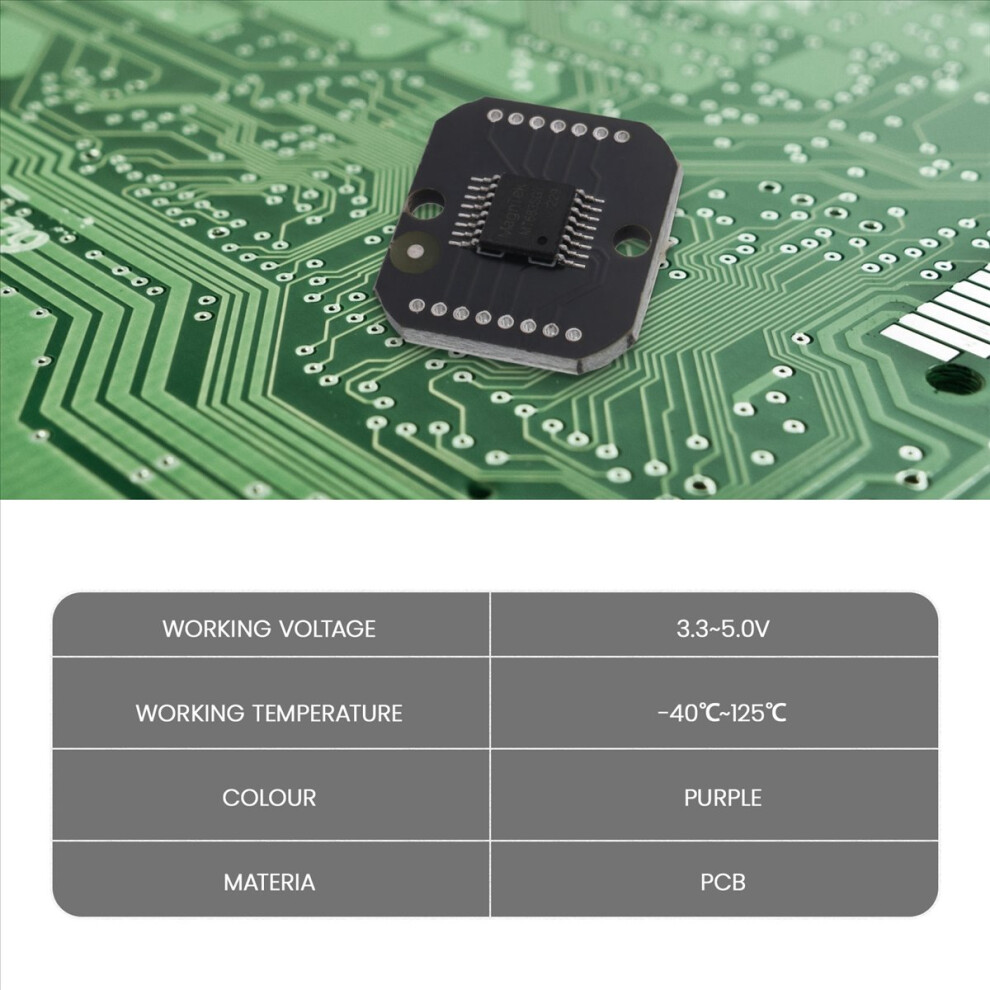

Working voltage 3.3~5.0V
Working temperature -40~125
Typical value of linearity deviation Less than 0.5 (factory value), typical value of linearity deviation Less than 0.07 (typical value self-calibration), typical value of linearity deviation Less than 0.02 (typical self-calibration)

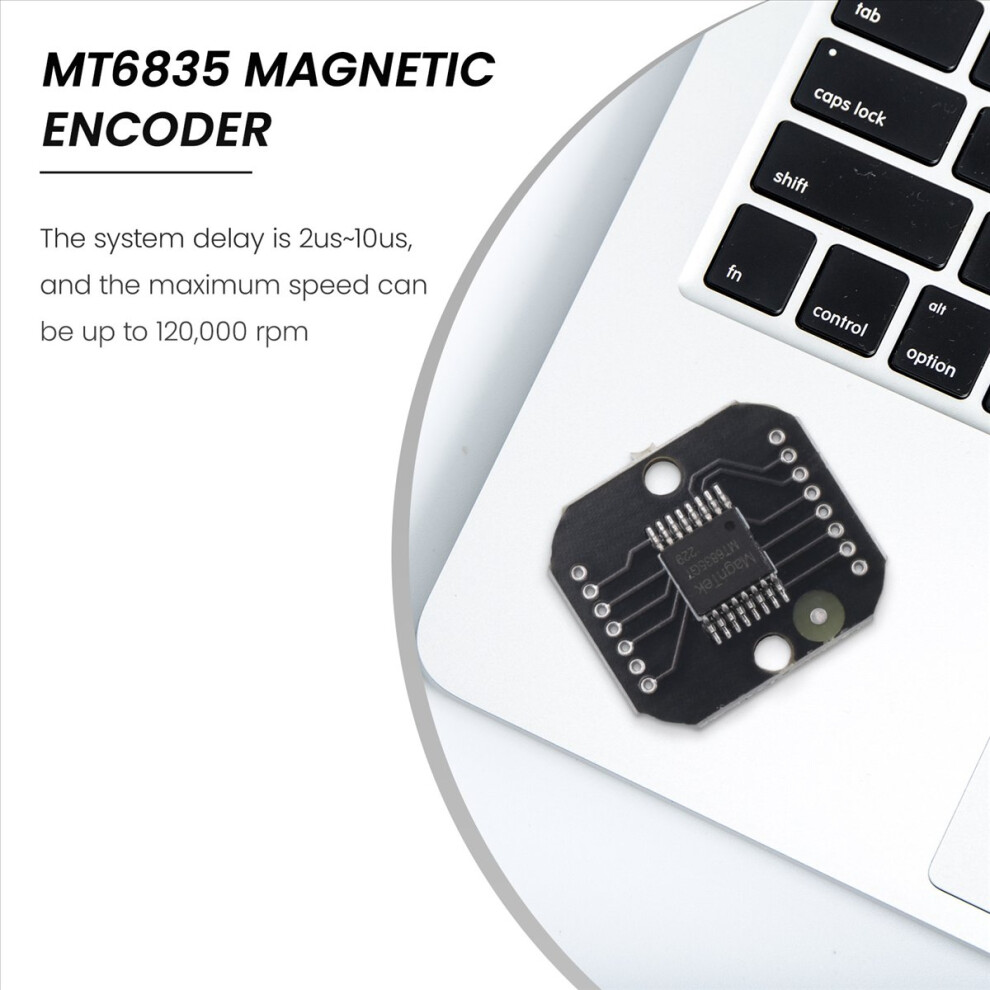

The system delay is 2us~10us, and the maximum speed can be up to 120,000 rpm

Provide standard 4-wire SPI interface (maximum clock 16MHz) to read 21-bit angle data inside the chip
Incremental output ABZ supports any resolution from 1 to 16384 lines
Incremental output UVW supports 1~16 arbitrary pole pairs
Support up to 5 times online zero programming
The output is SPI
Colour:
Material:PCB

Package Contents:

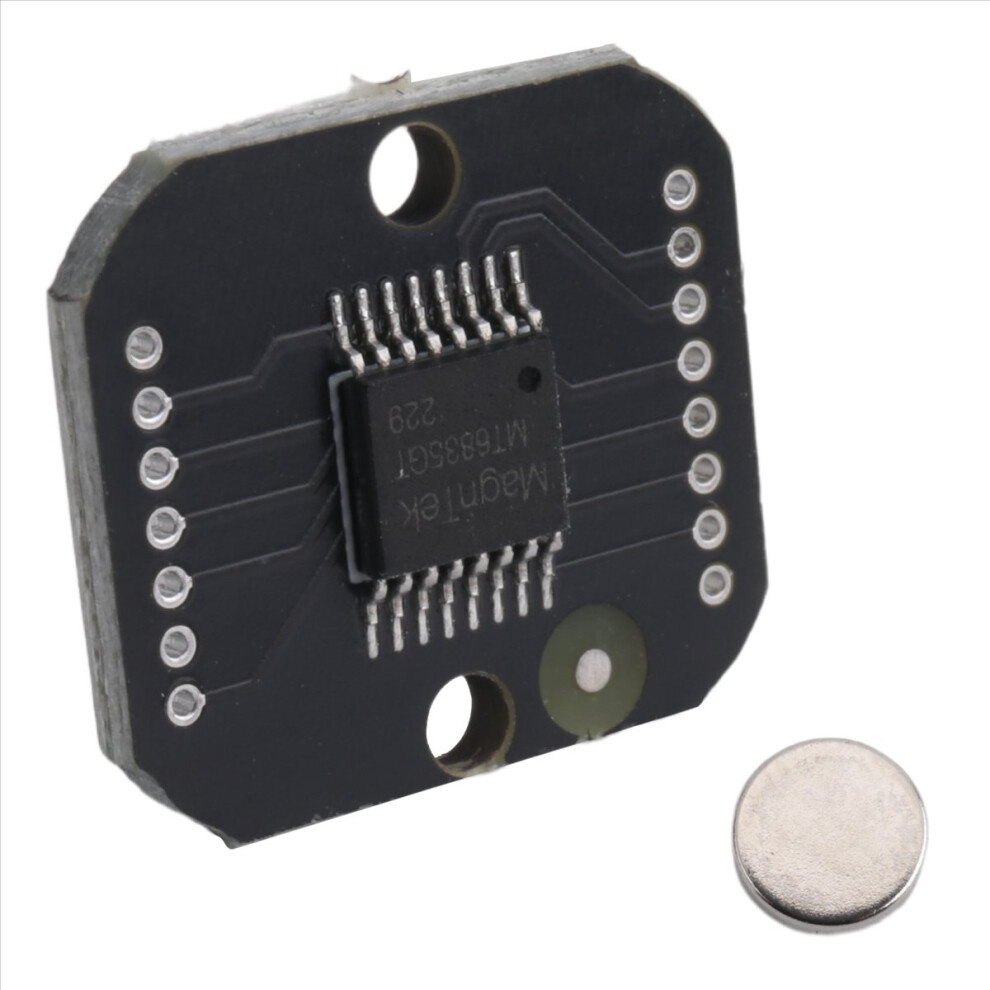

1 x Magnetic encoder
1 x Magnet

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
