Multi-function AC Power Meter PZEM-020 Digital Voltage & Current Tester 10A

Multi-function AC Power Meter PZEM-020 Digital Voltage & Current Tester 10A Description

PEACEFAIR PZEM-020 AC Multifunction Digital Meter Power Energy Voltage Current Tester 10A

Features:


Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).


Power alarm threshold preset function (can set power alarm threshold).


The energy can be reset use the key.


Store data when power off.


Large-screen LCD


Backlight function.



Specification:
Brand:PEACEFAIR
Model:PZEM-020
Current: 10A
Rated power:10A/2200W
Operating frequency: 45-65Hz
Measurement accuracy: 1.0 grade
Size: 9*5*2.5cm/3.5*2*1in
Weight: Approx.85g/3oz

Package list:
1 * Digital Meter

Appearance and Key function
I.Display Interface

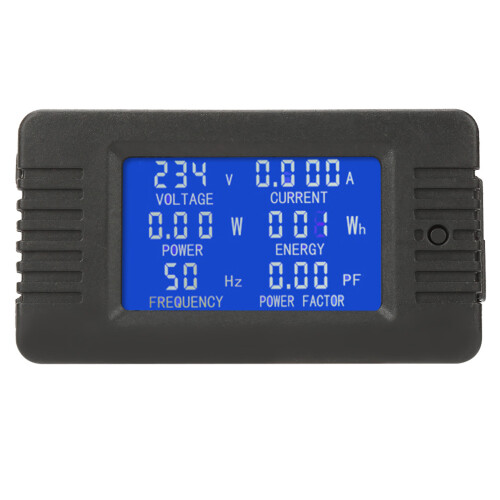

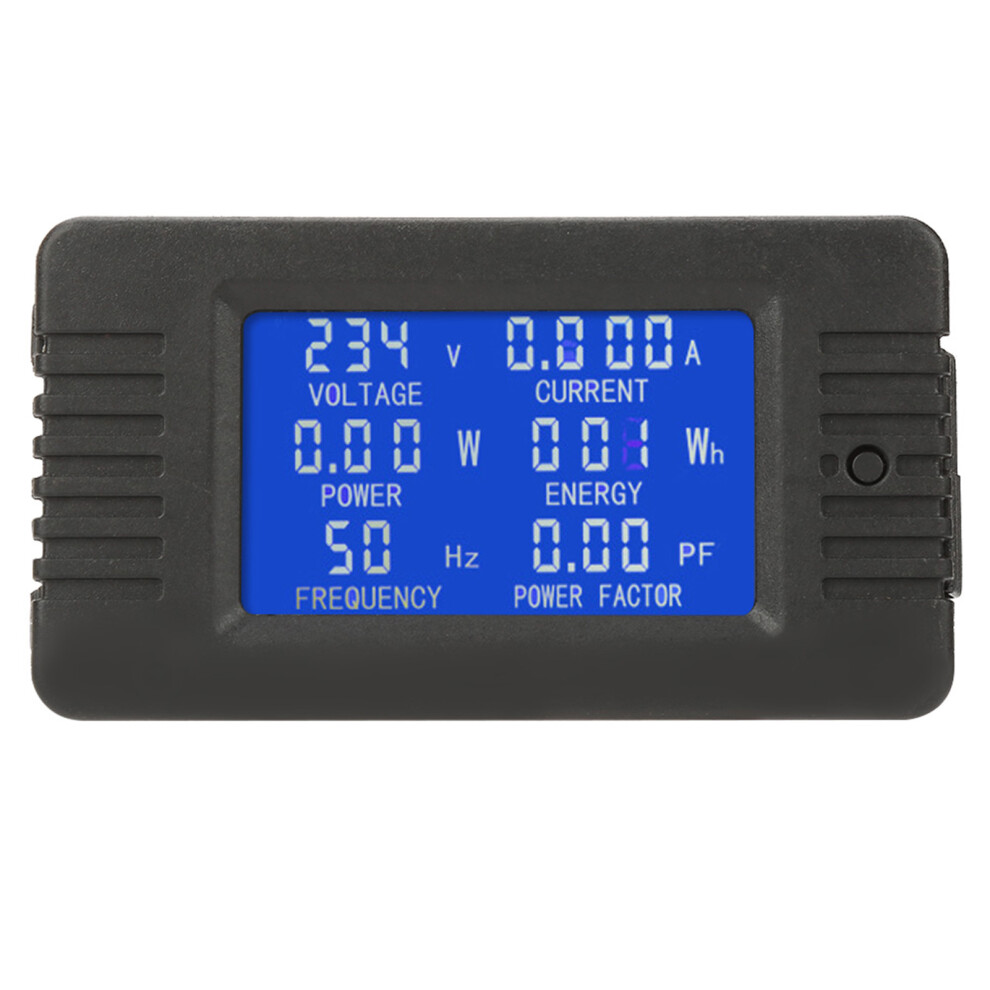

Display interface is large-screen LCD, it can display six parameters at the same time.
II.Display format
1. Power: test range: 0~2200W, Starting measure power: 0.2W
10W    display format:1.00~9.99W
100W   display format:10.0~99.9W
1000W  display format:100~999W
   1000W  display format:1.00~2.30kW
2. Energy: test range: 0~999kWh
1kWh   display format:0~999Wh
10kWh  display format:1.00~9.99kWh
10kWh  display format: 10~999kWh
Display format: 80~260V
4. Current: test range: 0~10A,Starting measure current: 0.001A
Display format: 0.000~10.00
5. Frequency: test range: 45~65Hz
    Display format: 45~65Hz
6. Power factor: test range: 0~1PF
    Display format: 0.00~1.00PF
 Key functions
1. Backlight control
Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
2. Reset energy
Step1: Long press the key for 5 seconds until the energy value flash, then release the key.
Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state.
Step3:If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.
3. Set power alarm threshold
Step1: Long press the key until the LCD screen display"SET CLr", then release the key to enter the setting state
Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above.
Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~2.5kW.

Note:
1. This module is suitable for indoor, please do not use outdoor.
2. Applied load should not exceed the rated power.
3. Wiring order can't be wrong.
