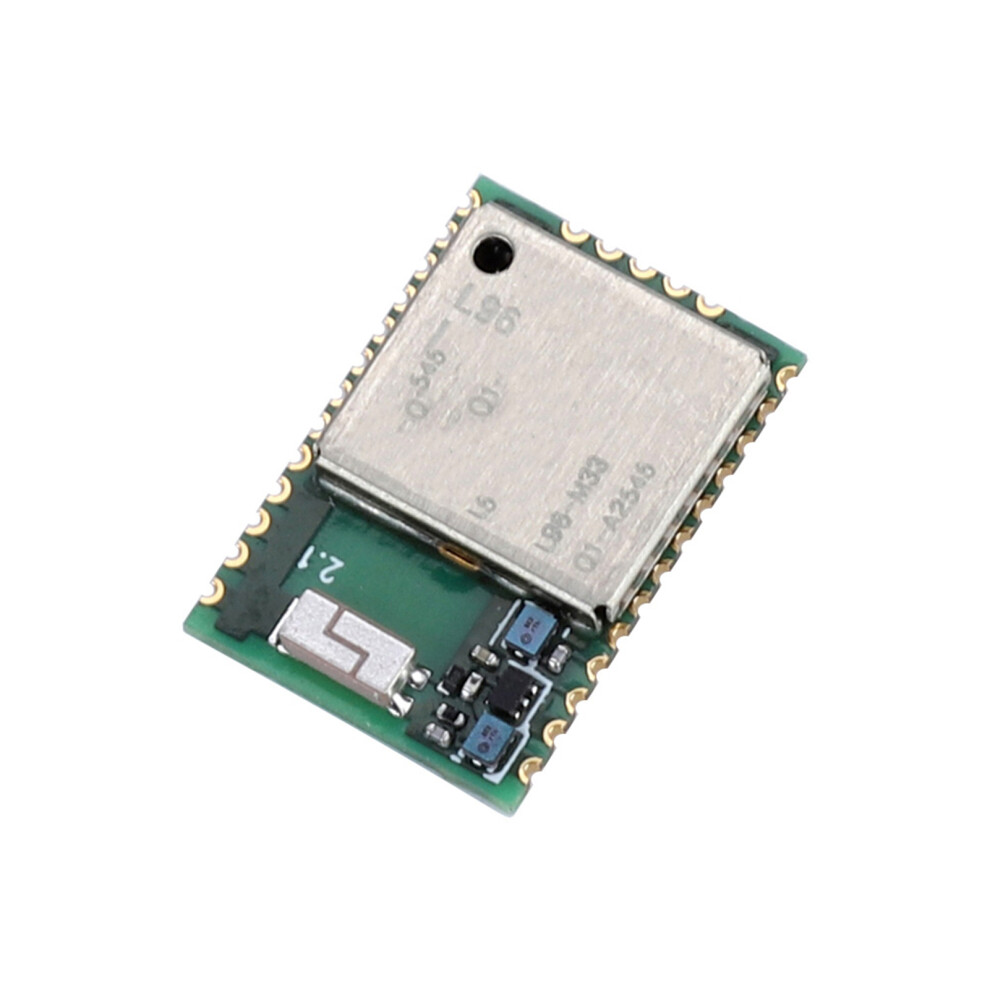

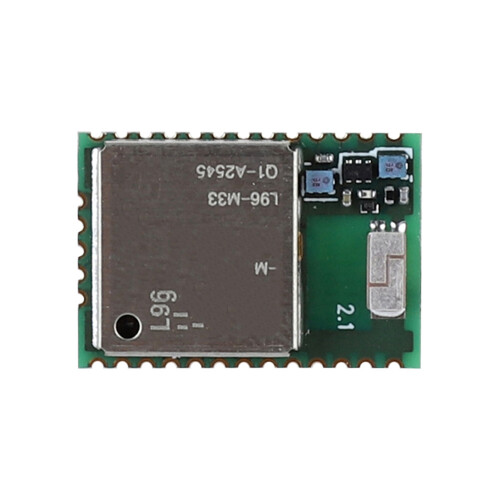

Multi Satellite GPS/GNSS Module Low Power DGPS/SBAS

Multi Satellite GPS/GNSS Module Low Power DGPS/SBAS Description

1、Built-in omnidirectional Chip antenna, greatly reducing customer design size. 2、Built-in LNA, providing higher sensitivity. 3、Built-in dual surface acoustic filter (SAW Filter) to enhance noise cancellation performance. 4、Support AGPS functions such as EASYTM and EPO without any external memory. 5、AlwaysLocate mode for intelligent control of cycle mode. The module is a concurrent receiver module that integrates for GPS, GLONASS, BeiDou, Galileo and QZSS multi-satellite positioning systems. It is ultra-small and has 33 tracking channels, 99 acquisition channels and 210 PRN channels to support concurrent reception of up to three GNSS systems (GPS+GLONASS+Galileo). The module is packaged in an LCC for easy soldering. The built-in LNA ensures better performance in weak signal environments. The module integrates an internal antenna to greatly reduce the size of customer applications, while the module also supports an external antenna interface to meet different application needs of customers. Features: 1. Built-in omnidirectional Chip antenna, greatly reducing customer design size. 2. Built-in LNA, providing higher sensitivity. 3. Built-in dual surface acoustic filter (SAW Filter) to enhance noise cancellation performance. 4. Support AGPS functions such as EASYTM and EPO without any external memory. 5. AlwaysLocate mode for intelligent control of cycle mode. 6. LOCUS technology, support automatic recording and saving of log information. 7. Support DGPS/SBAS (WAAS/EGNOS/MSAS/GAGAN). 8. Multi-band active interference cancellation technology to enhance anti-interference ability. 9. Support Balloon mode, the height is up to 80km. 10. Support GLP, geofence, interference detection and mileage counting functions. 11. Support SDK commands to meet customized requirements. Specification: Support for multiple satellite systems: For GPS, GLONASS, BeiDou, Galileo (Support RLM) and QZSS Time service: Support PPS and NMEA synchronization Work current consumption: Tracking mode 20mA Ultra-small size: Approx. 14 * 9.6 * 2.0 mm/ 0.55 * 0.38 * 0.08 in Package Weight: 3 g Package list: 1 * GPS Module
