Multifunction Smart CMDA 980AA 900MHz Antenna Mobile Phone Signal Amplifier

Multifunction Smart CMDA 980AA 900MHz Antenna Mobile Phone Signal Amplifier Description

Multifunction Smart CMDA 980AA 900MHz Antenna Mobile Phone Signal Amplifier

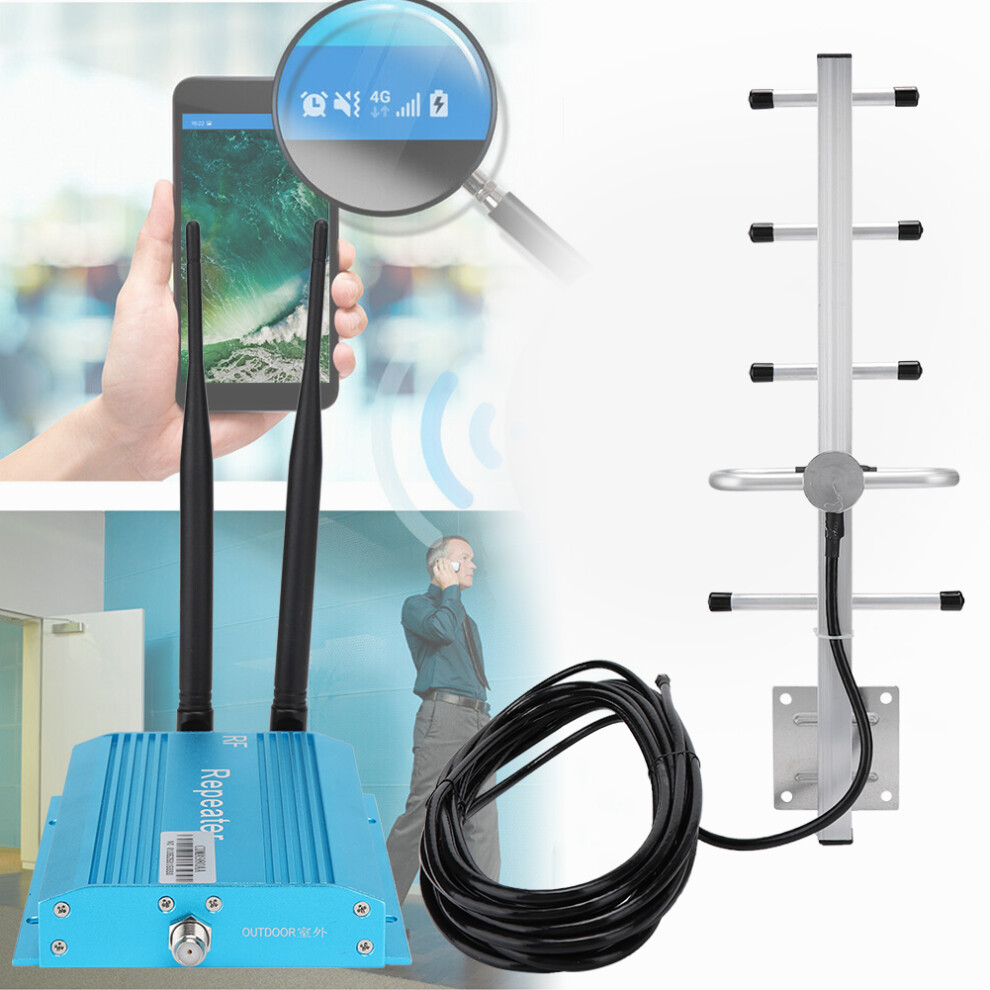

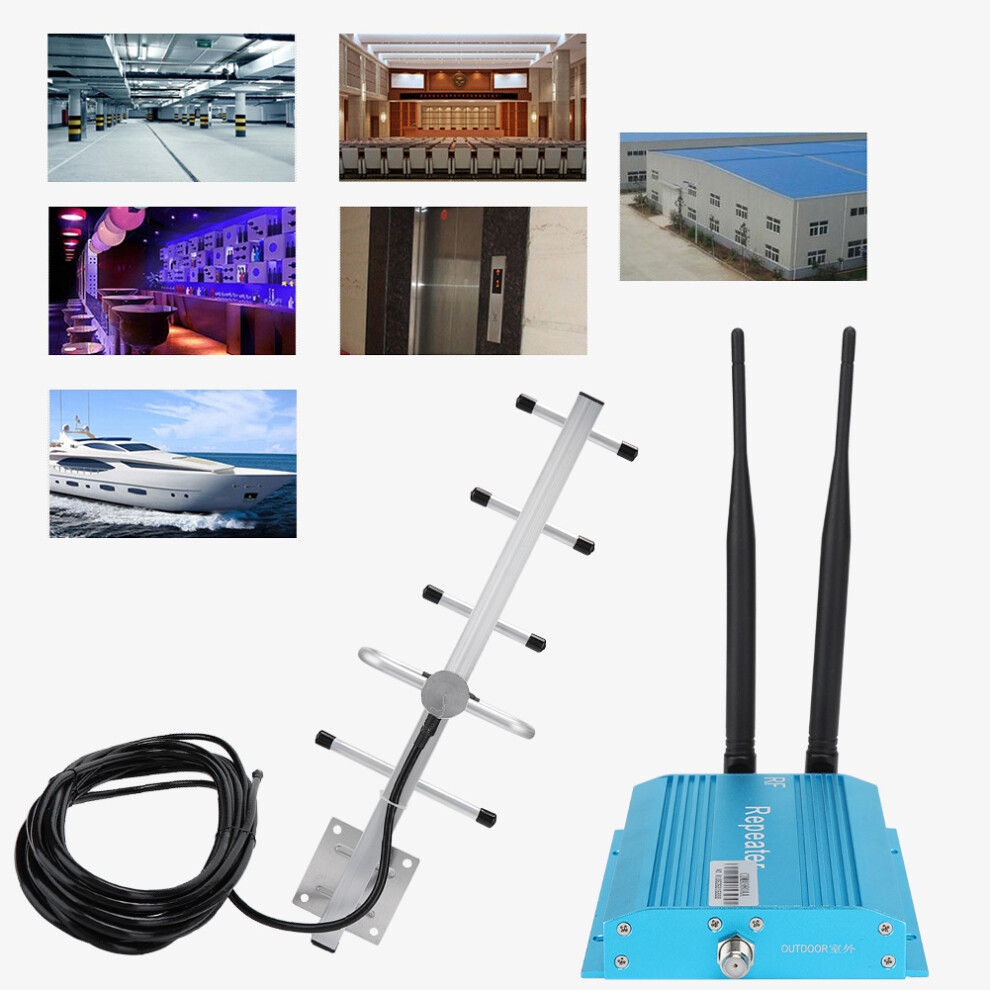

It is not a transmitter but can accept the signal of the mobile phone. There is no signal at home, no sound from the other party, no disconnection for no reason, it can easily solve your troubles. It is the most effective equipment to make up for the lack of coverage of mobile communication networks, expand the coverage of base stations, and eliminate blind spots. (Applicable scene: hotel shopping malls, villas, large households)


Features:

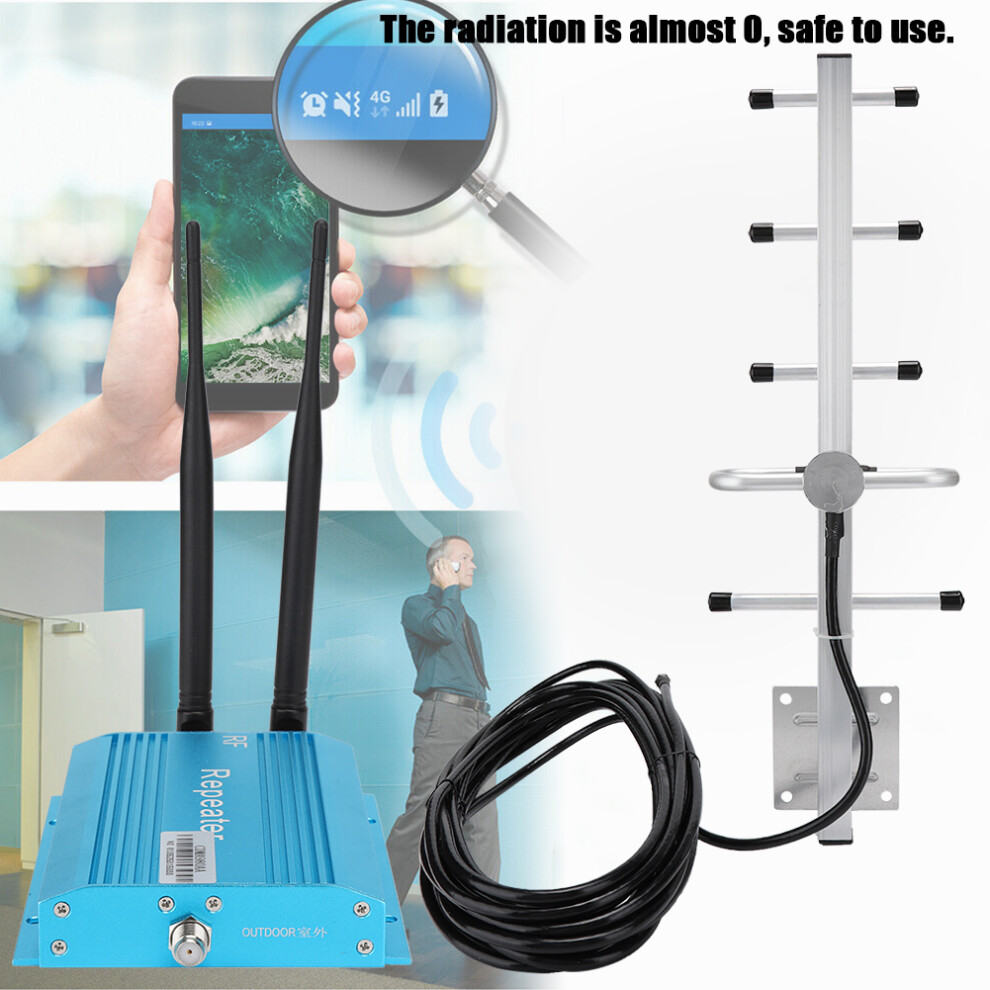

1.The radiation is almost 0, safe e.

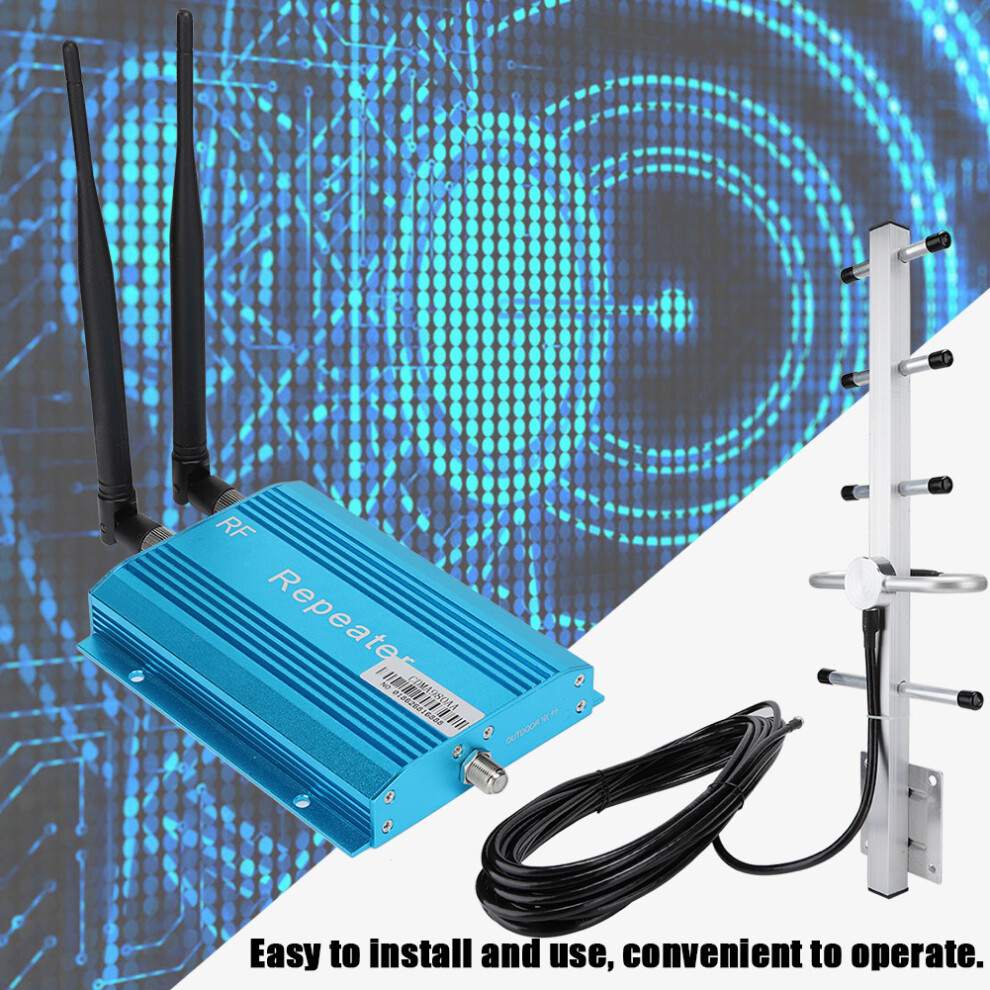

2.Easy to install and use, convenient to operate.

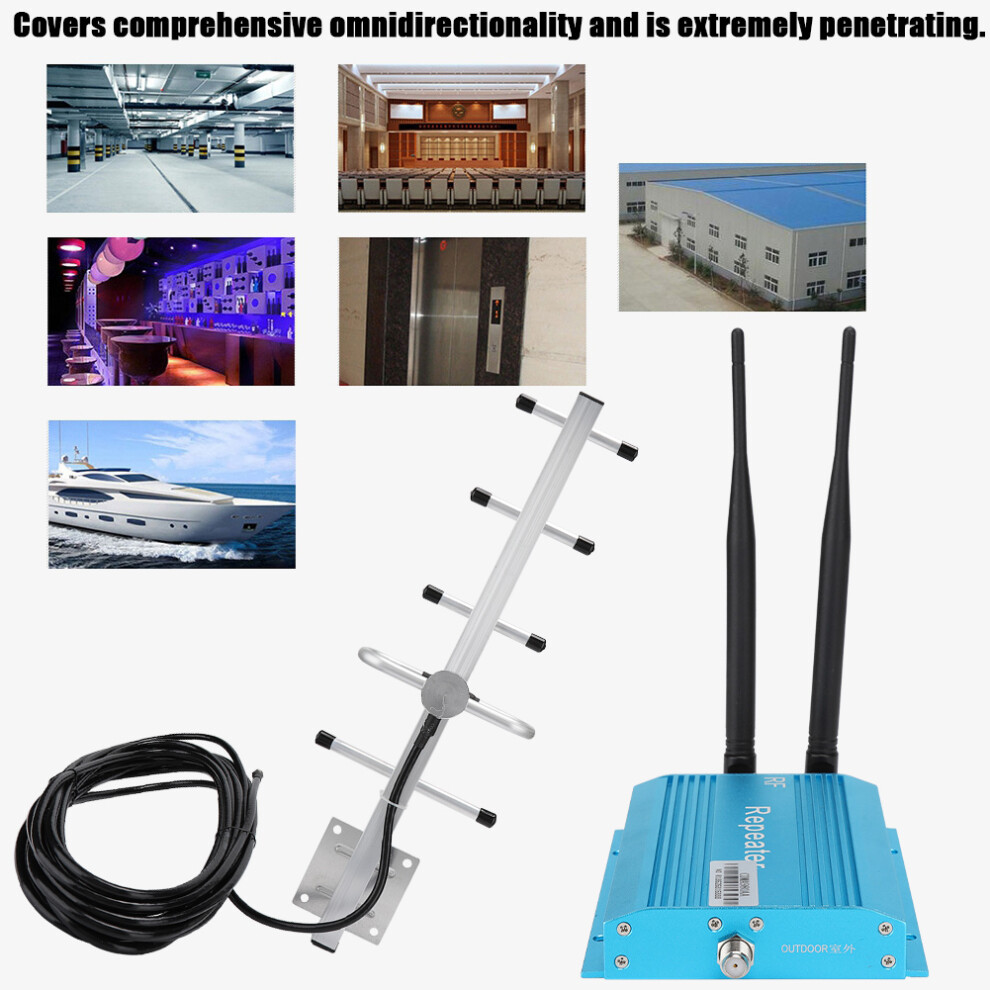

3.Covers comprehensive omnidirectionality and is extremely penetrating.

4.Stable performance, durable, perfect quality.

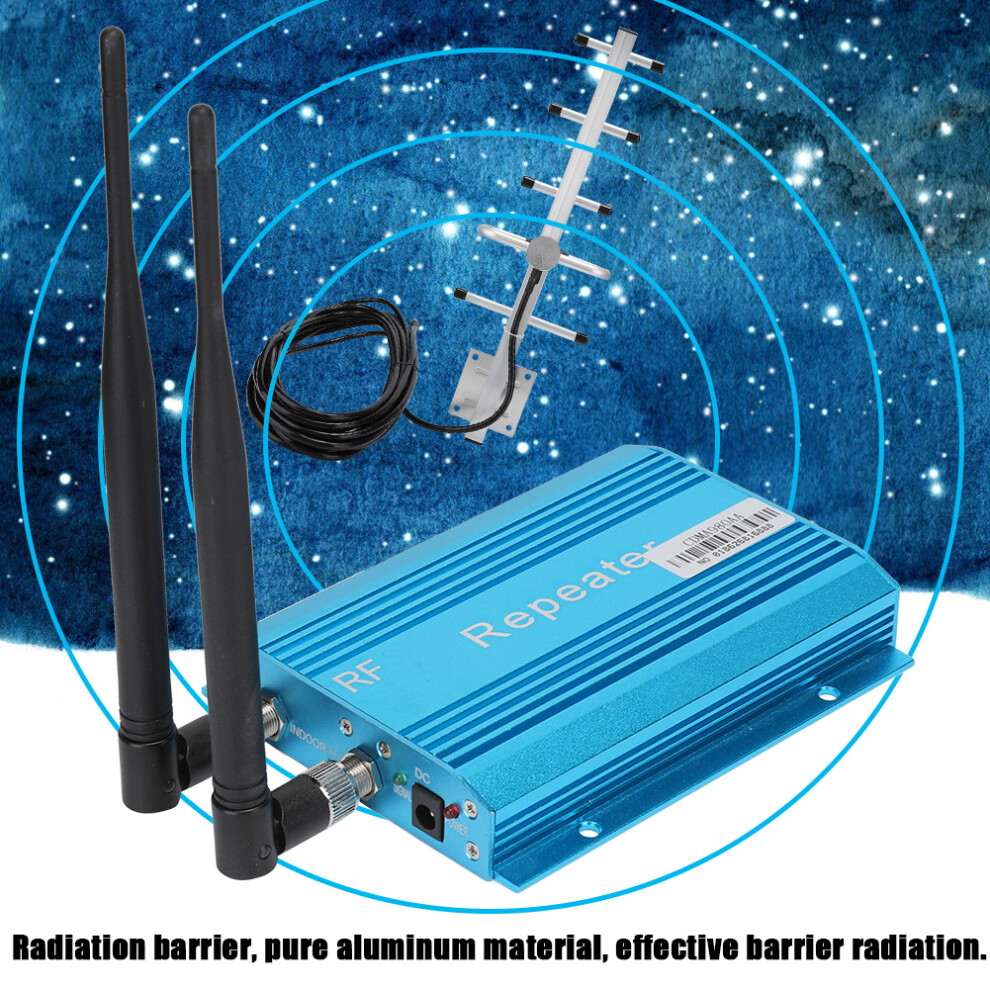

5.Radiation barrier, pure aluminum material, effective barrier radiation.

6.Adopt intelligent chip production, enhance signal.


Specifications:

Item type: Signal Amplifier

Material: metal

Color: blue

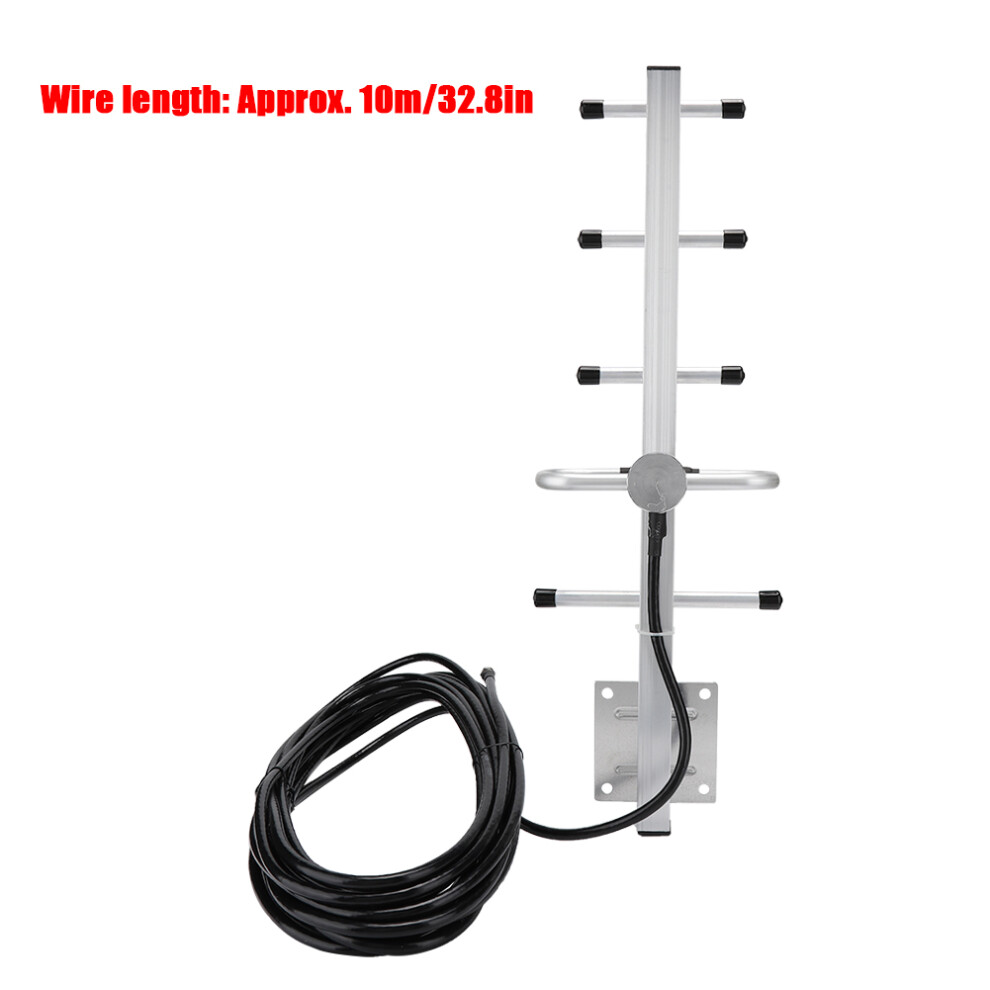

Wire length: Approx. 10m/32.8in

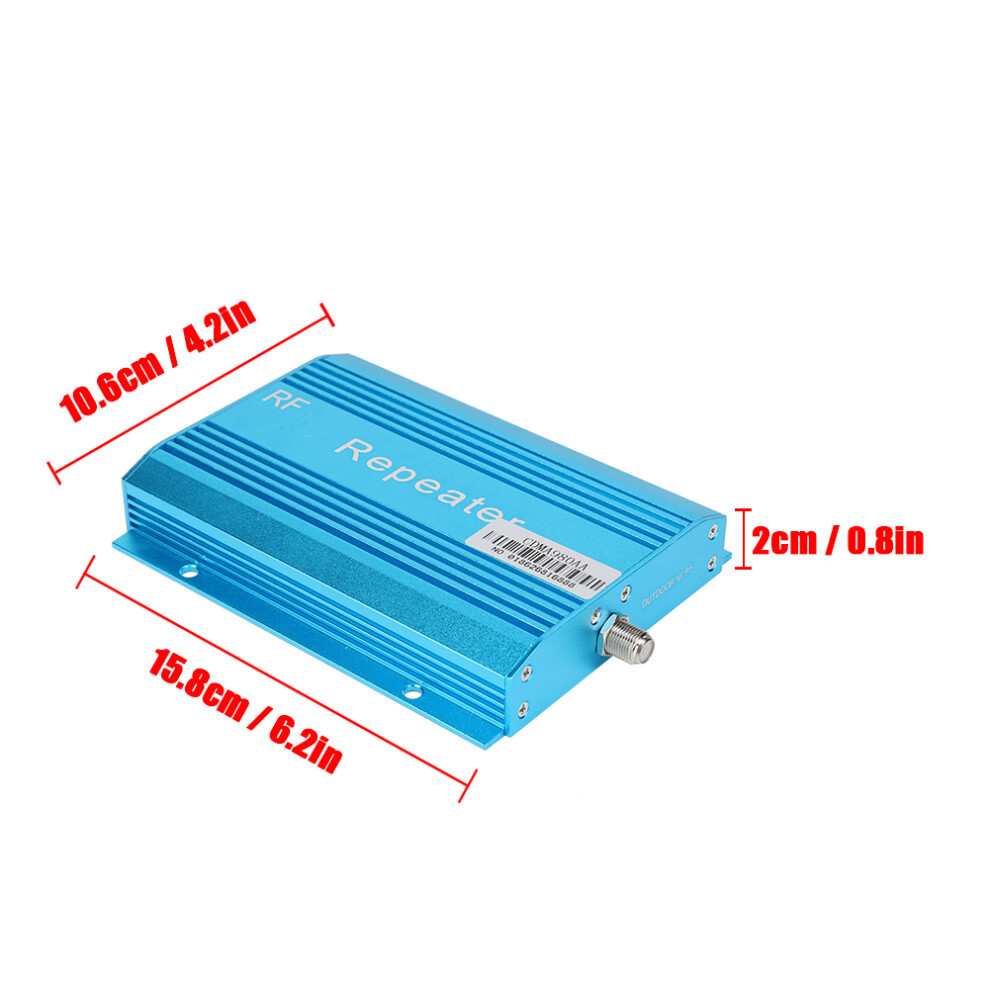

Size: Approx. 15.8x2x10.6cm/6.2x0.8x4.2in

Working frequency: Uplink 824-849MHZ, Downlink 869-894MHz

Gain: Uplink Gp60, Downlink Gp 65

Flatness: 3dB

Output power (Po) 22dBm3

Impedance 50Ω/N

Noise figure 4dB

Connector type: F-female

Transmission delay 0.5μs

Ambient temperature -10 C ~ 60 C

EMC ETSI  EN  301 489-1 V1.9.2

EMC ETSI  EN  301 489-8 V1.2.1

Covering area 100-800m2 (multiple indoor antenna sets are required for large areas)

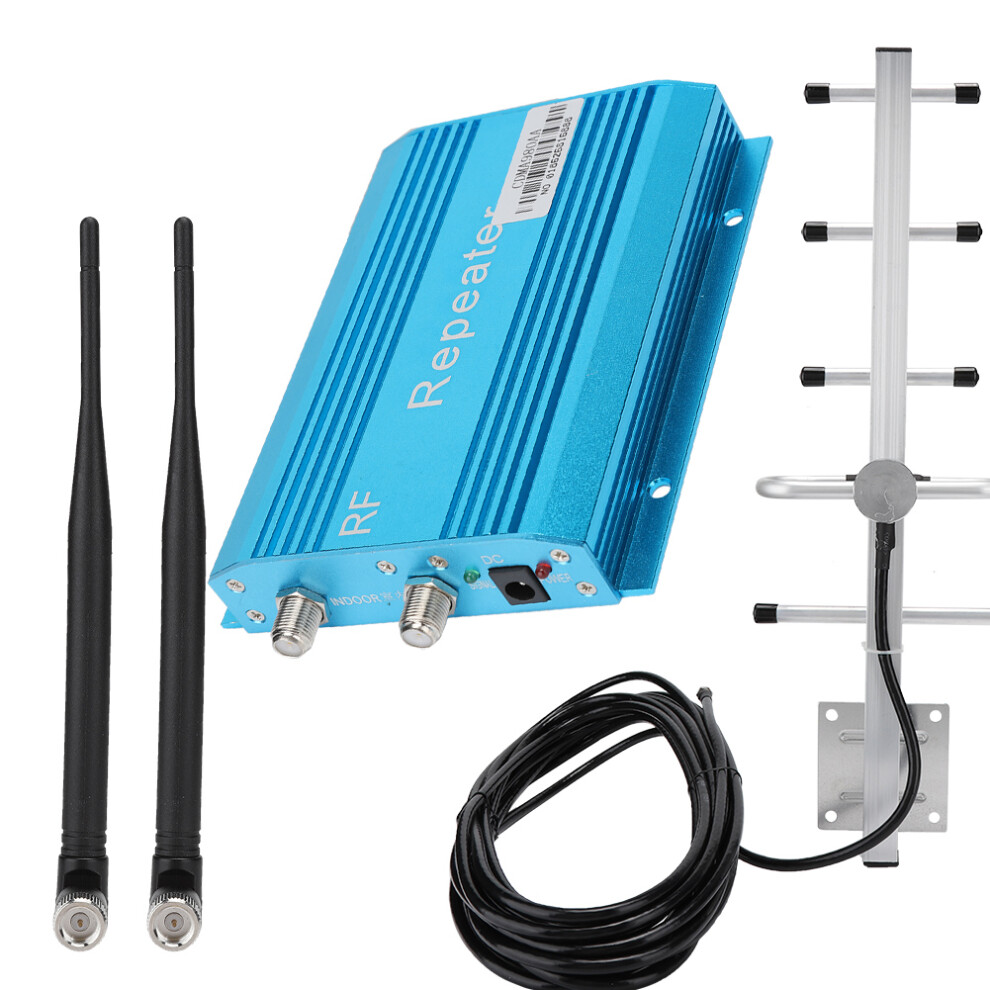

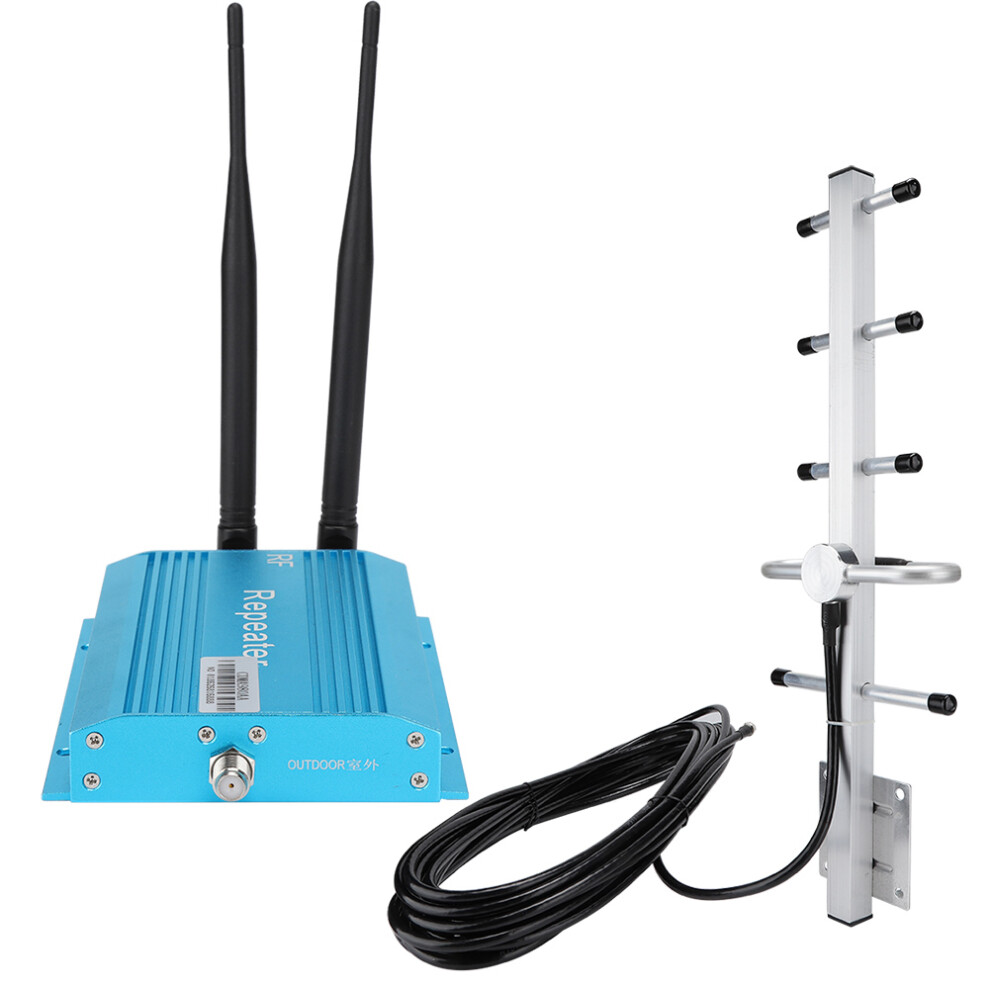

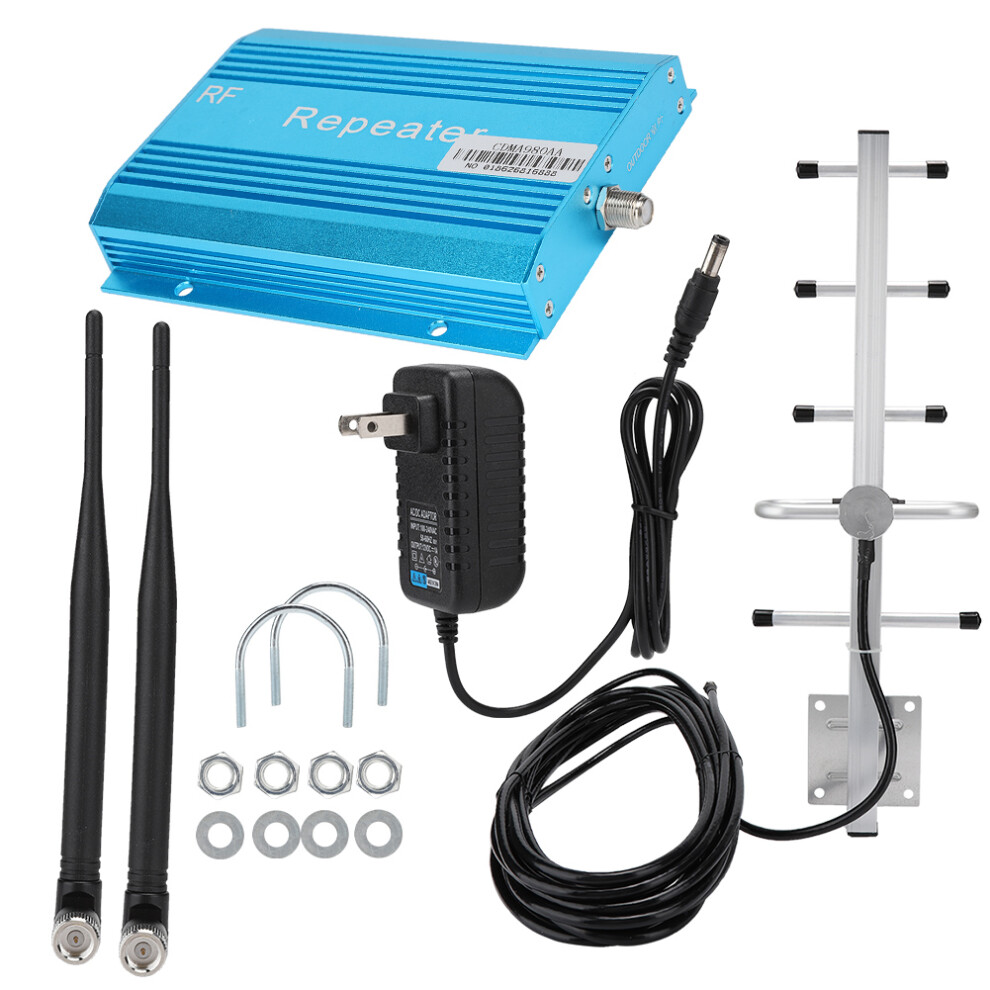

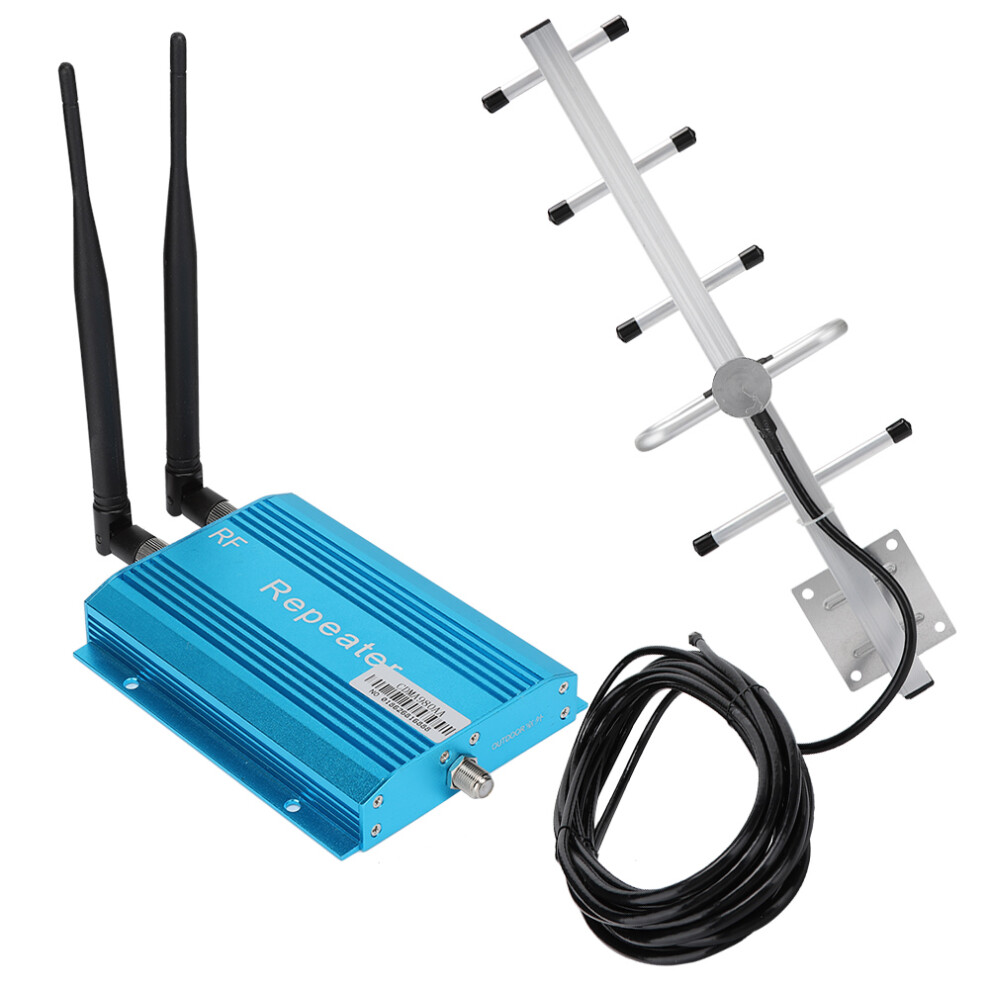

Packing List:

1 x Host

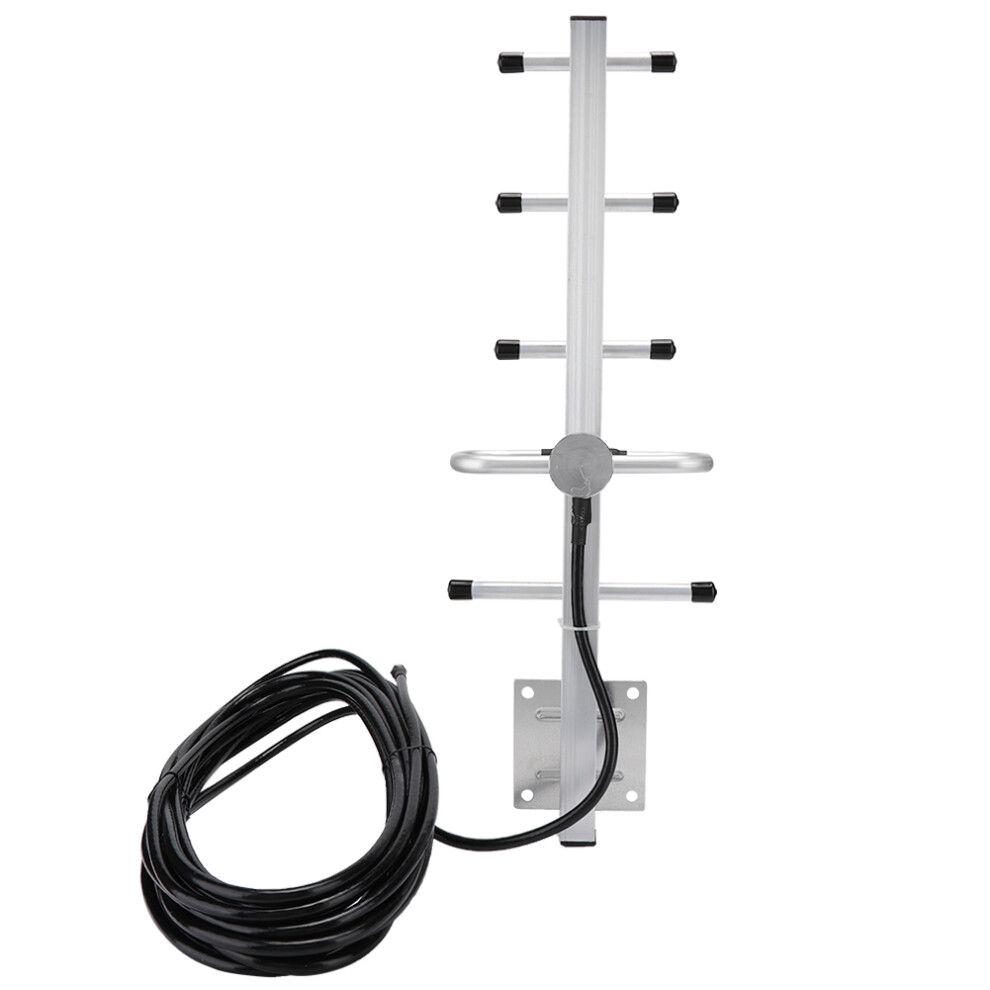

1 x Outdoor flat plate antenna

1 x 10m wire

1 x Indoor antenna

1 x Accessory bag

1 x Instruction


Note:

1. Only supports 2G calls of 2G3G4G mobile phones, supports 2G3G Internet access in some areas, and does not support 4G Internet access. Therefore, when installing the amplifier, remember to turn off the 3G4G signal of the mobile phone or you can't see the signal change, and mistakenly think that the amplifier is useless.

2. The outdoor uses a high-gain 800-960MHZ directional antenna, and the indoor uses an 800-2700M HZ omnidirectional ceiling antenna or a high-gain panel antenna. Power splitter, connector is N-K or F type, signal transmission line uses 50 Ω-7 or 75 Ω-7 double shielded coaxial cable.

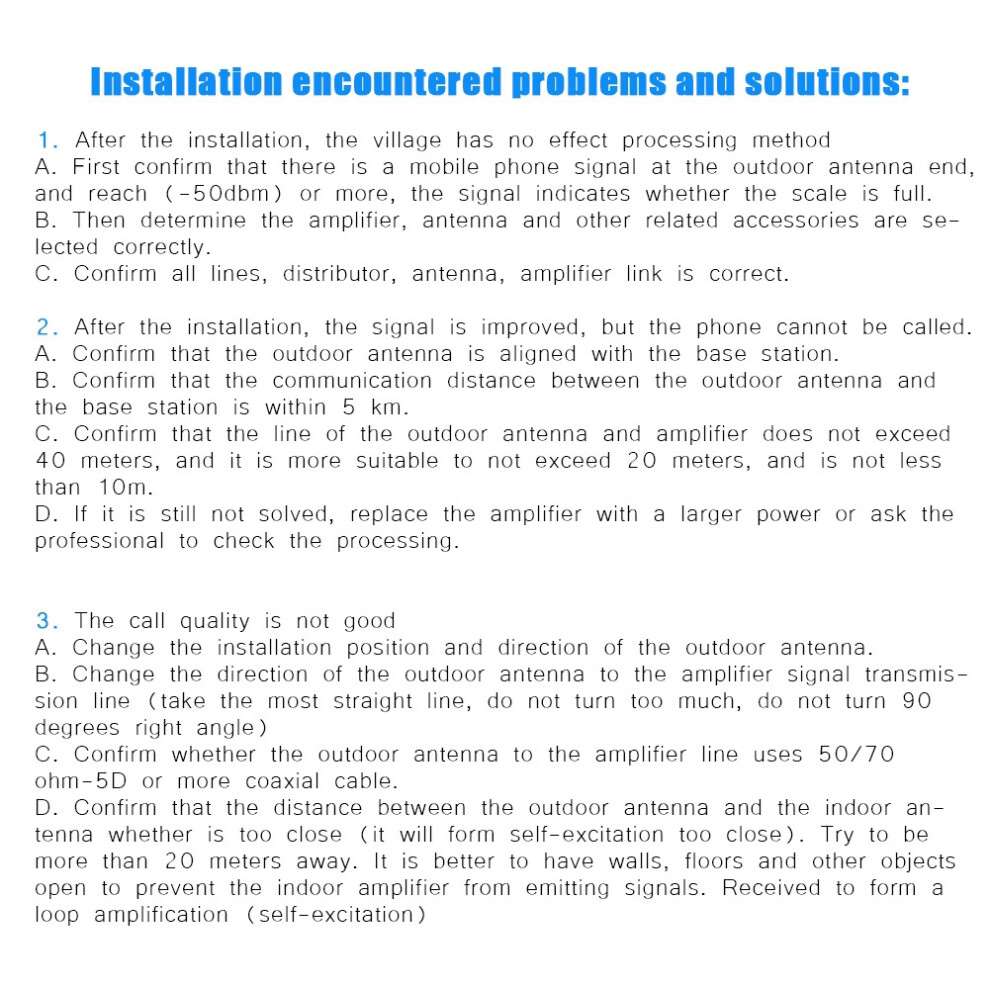

Installation encountered problems and solved

1. How to deal with the effect of Bay Village after installation

A. First confirm that there is a mobile phone signal at the outdoor antenna end and reach (-50dbm) or more. The signal indicates whether the scale is full.

B, then determine the amplifier, antenna and other related accessories are selected correctly.

C. Confirm that all lines, distributors, antennas, and amplifiers are linked correctly.

2. after installation, the signal is changed, but can not be played

A. Confirm that the outdoor antenna is aligned with the base station.

B. Confirm that the communication distance between the outdoor antenna and the base station is within 5 km.

C. Confirm that the line of the outdoor antenna and amplifier does not exceed 40 meters, and it is more suitable to not exceed 20 meters, and is not less than 10.

D. If it is still not solved, replace the amplifier with a larger power or ask the professional to check the processing.

3. The call quality is not good

A. Change the installation position and direction of the outdoor squall line.

B. Change the direction of the outdoor antenna to the amplified bone signal transmission line (take the most straight line, do not turn too much, do not turn 90 degrees right angle)

C. Confirm whether the outdoor antenna to the amplifying dwarf line uses 50/70 ohm-50 or more coaxial cable.

D. Confirm whether the distance between the outdoor antenna and the indoor antenna is too close (so-self will be self-excited). The distance between the outdoor antenna and the indoor antenna is more than 20 meters. It is best to have objects such as wall and floors.

The distance is opened to prevent the signal emitted by the indoor amplifier from being received by the indoor antenna to form a cyclic amplification (self-excitation).

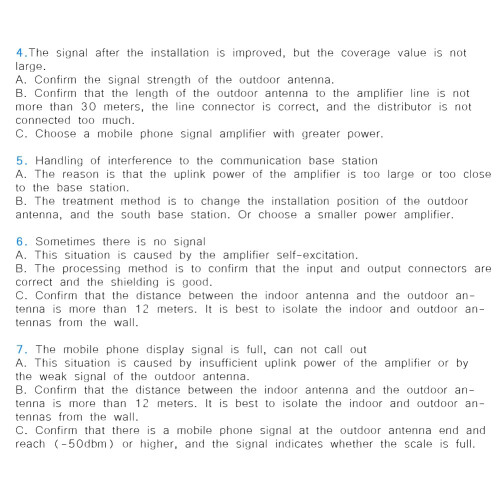

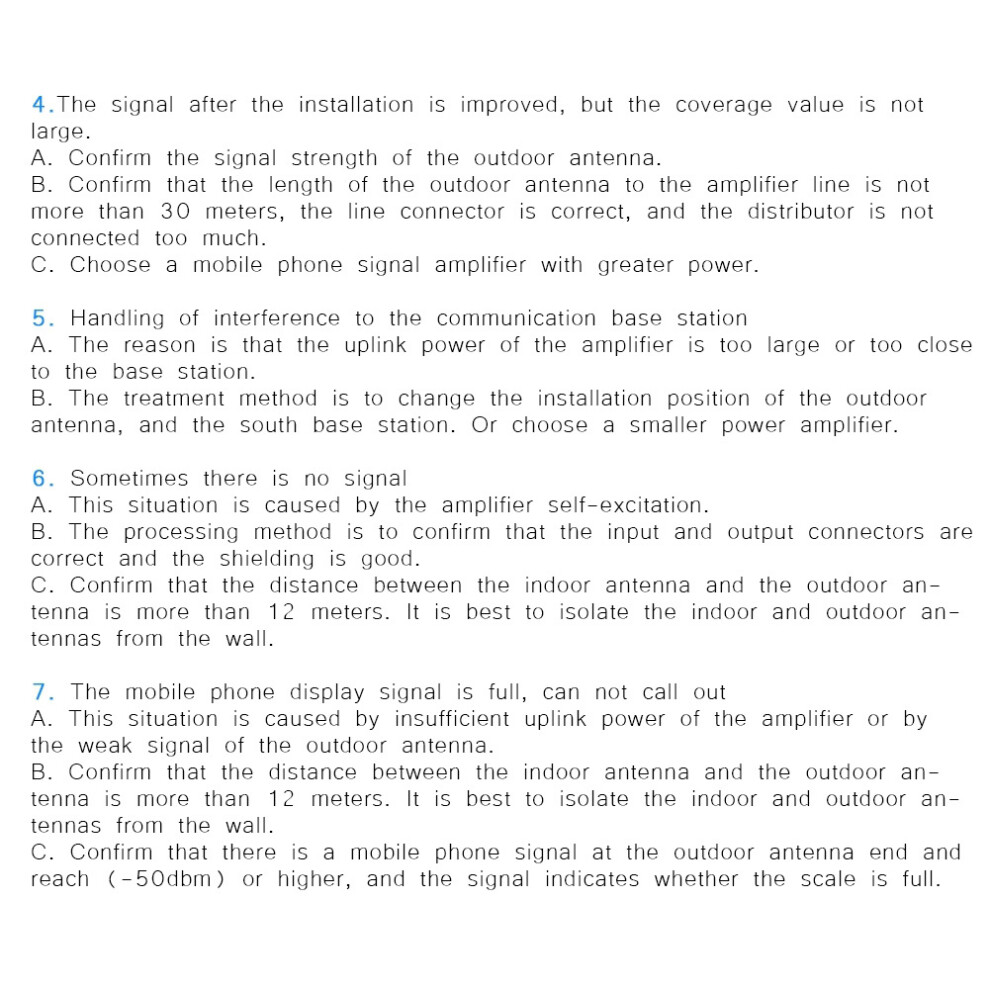

4. the signal is improved after installation, but the coverage value is not large

A. Confirm the outdoor antenna signal strength.

B. Make sure that the length of the outdoor antenna to the amplifier line is not more than 30 meters. The line connector is correct and the distributor is not connected too much.

G. Select a mobile phone signal amplifier with higher power.

5. causing interference to the communication base station

A. The reason is that the uplink power of the amplifier is too large, or it is too close to the base station.

B. The solution is to change the installation position of the outdoor antenna, and the south base station. Or choose an amplifier with a smaller power,

6. Sometimes there is no signal

A. This situation is caused by the self-excitation of the amplifier.

C. Confirm that the distance between the indoor antenna and the outdoor antenna is more than 12 meters. It is best to isolate the indoor and outdoor antennas from the wall.

7. the mobile phone display signal full grid. Can not make a phone call solution

A. This situation is caused by insufficient uplink power of the amplifier or by too weak outdoor antenna signal.

B. Confirm that the distance between the indoor antenna and the outdoor antenna is more than 12 meters. It is best to isolate the indoor and outdoor antennas from the wall.

C. Confirm that there is a cell phone signal at the end of the outdoor cable, and the well reaches (-50dbm) or more, and the signal indicates whether the scale is full.
