MultiFunction Switch Panel 12V/24V with Working

MultiFunction Switch Panel 12V/24V with Working Description

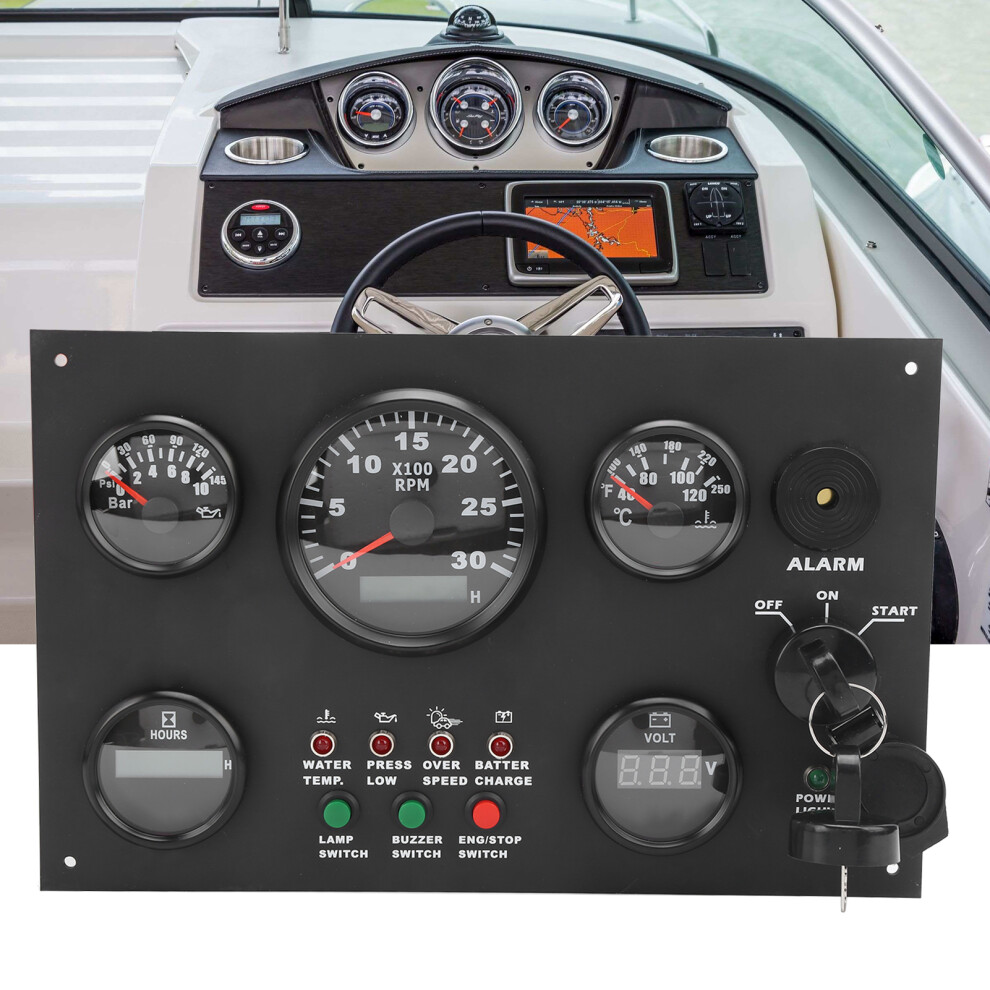

MultiFunction Switch Panel 12V/24V with Working Oil Pressure Water Temperature Hour Voltage Meter

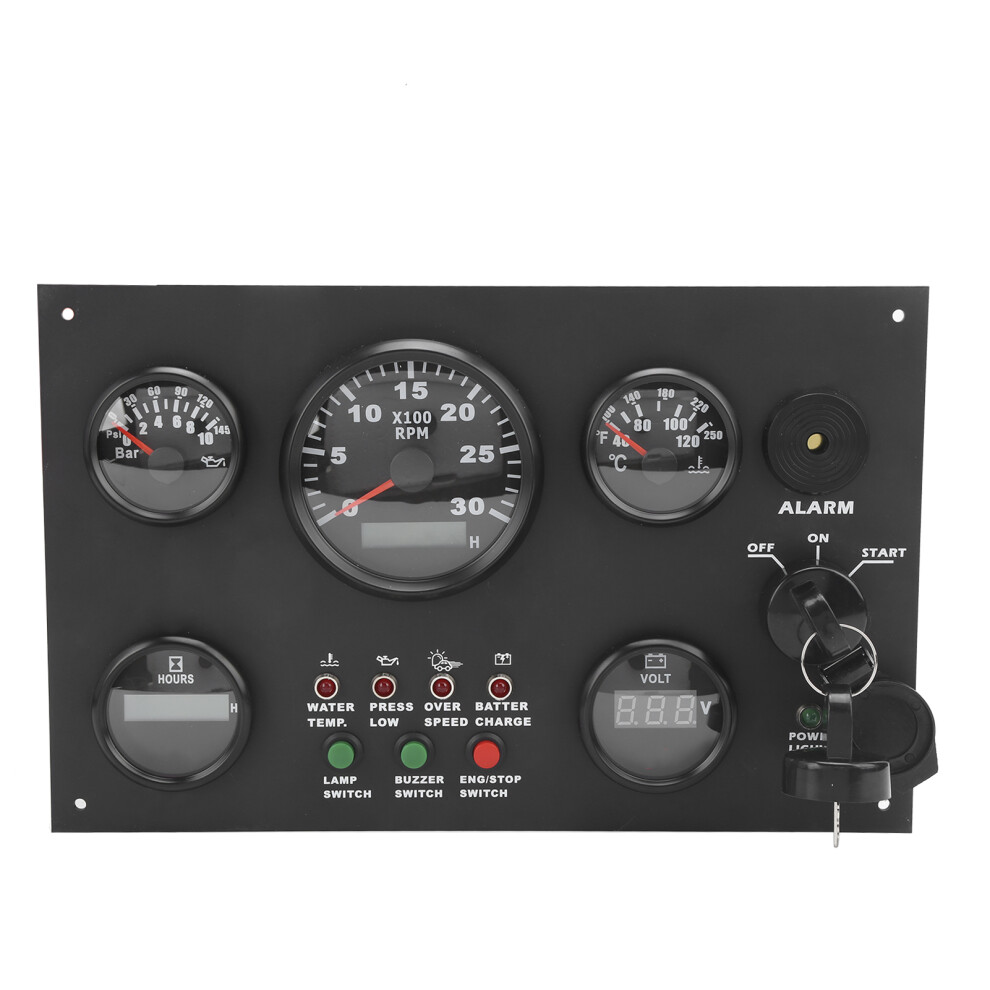

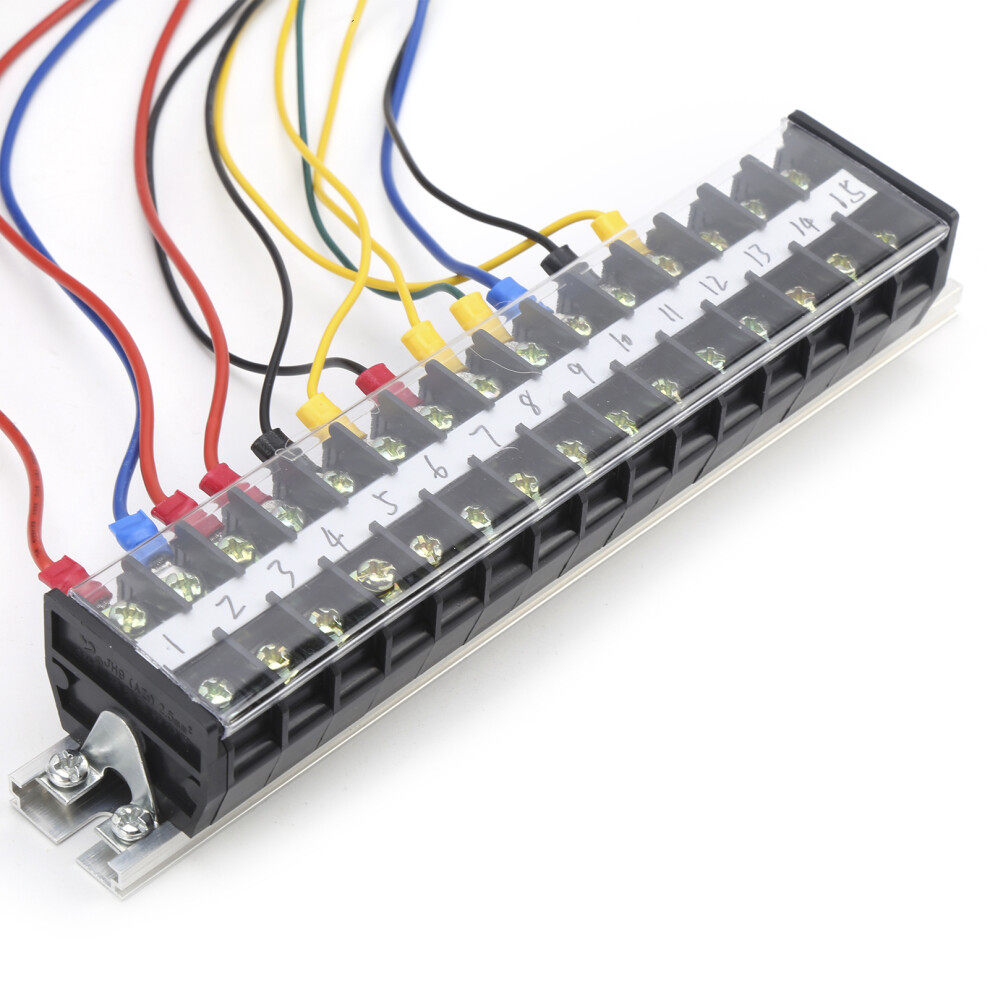

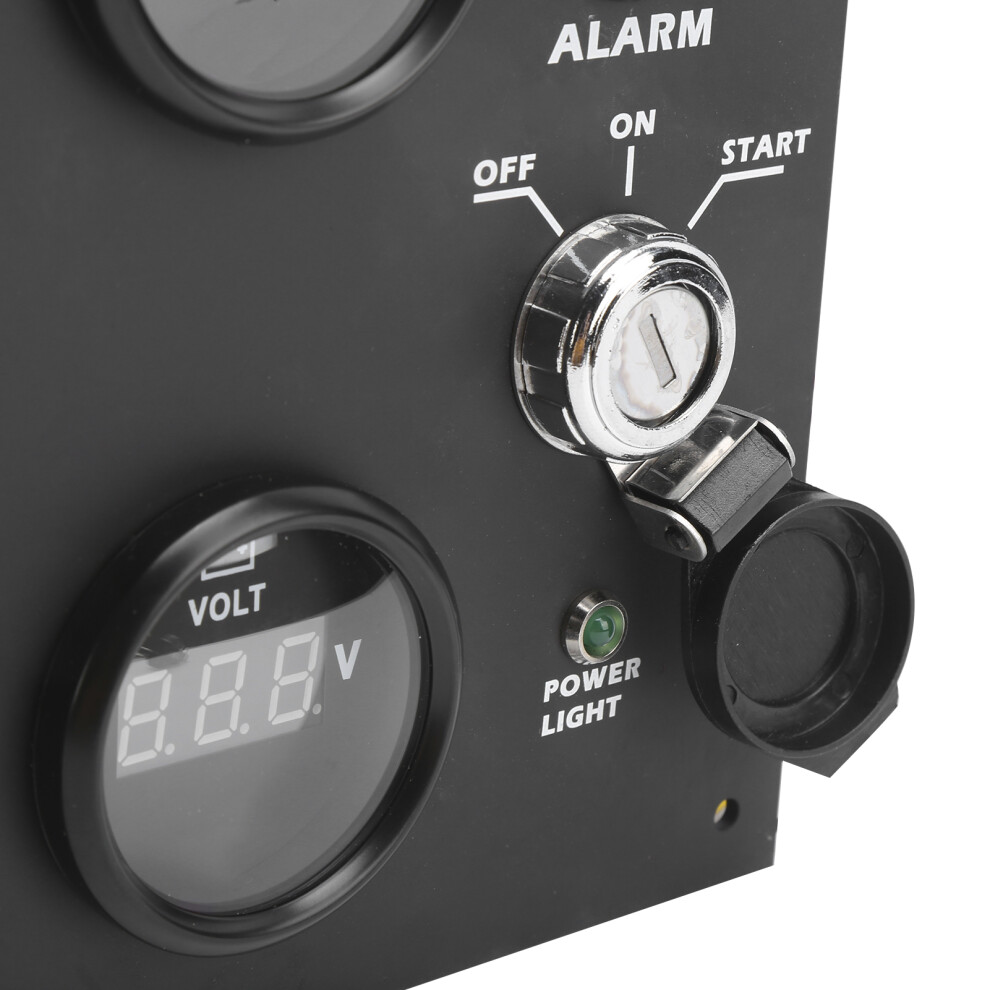

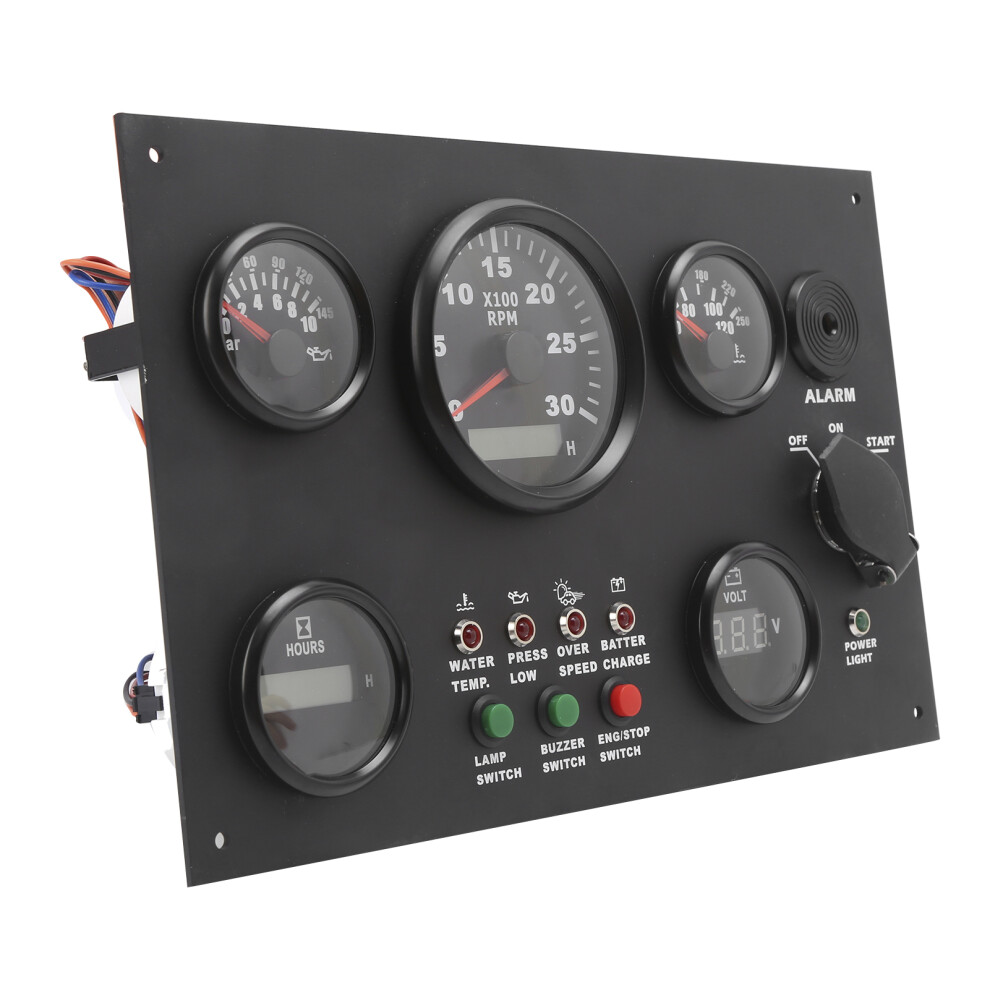

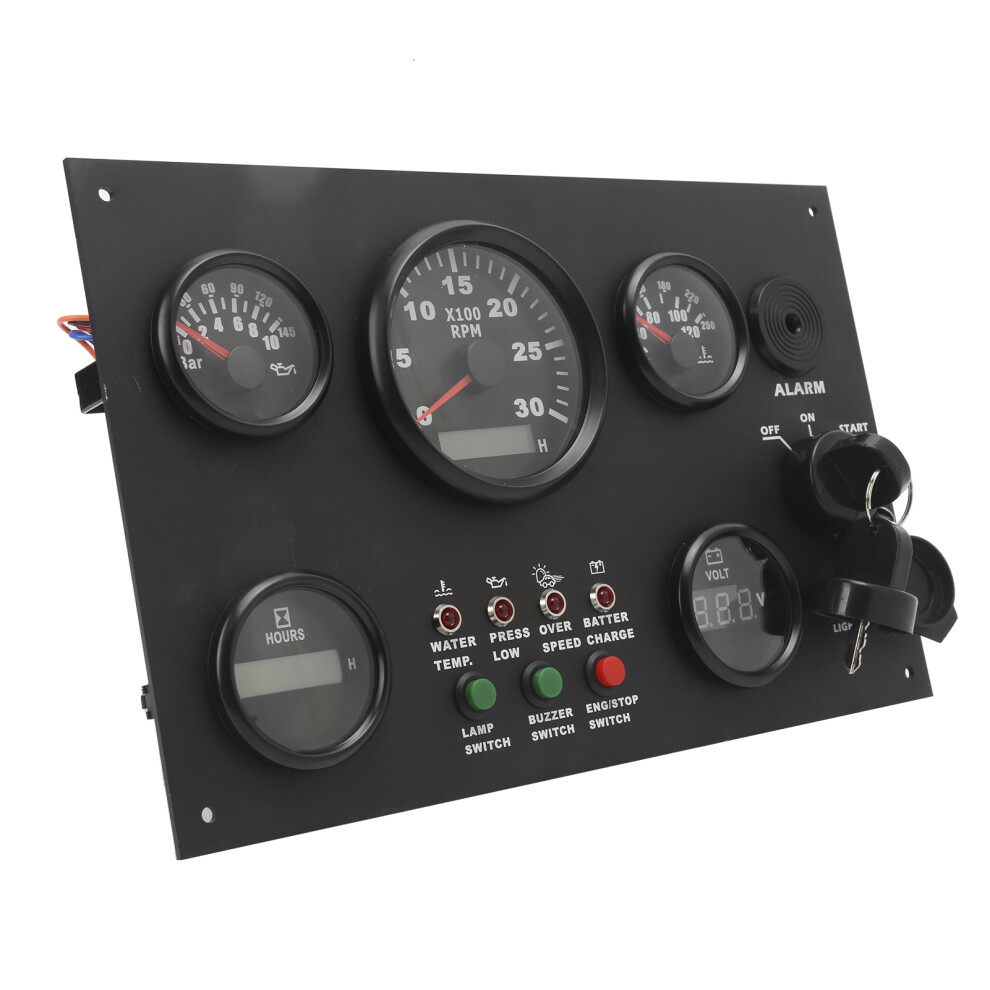

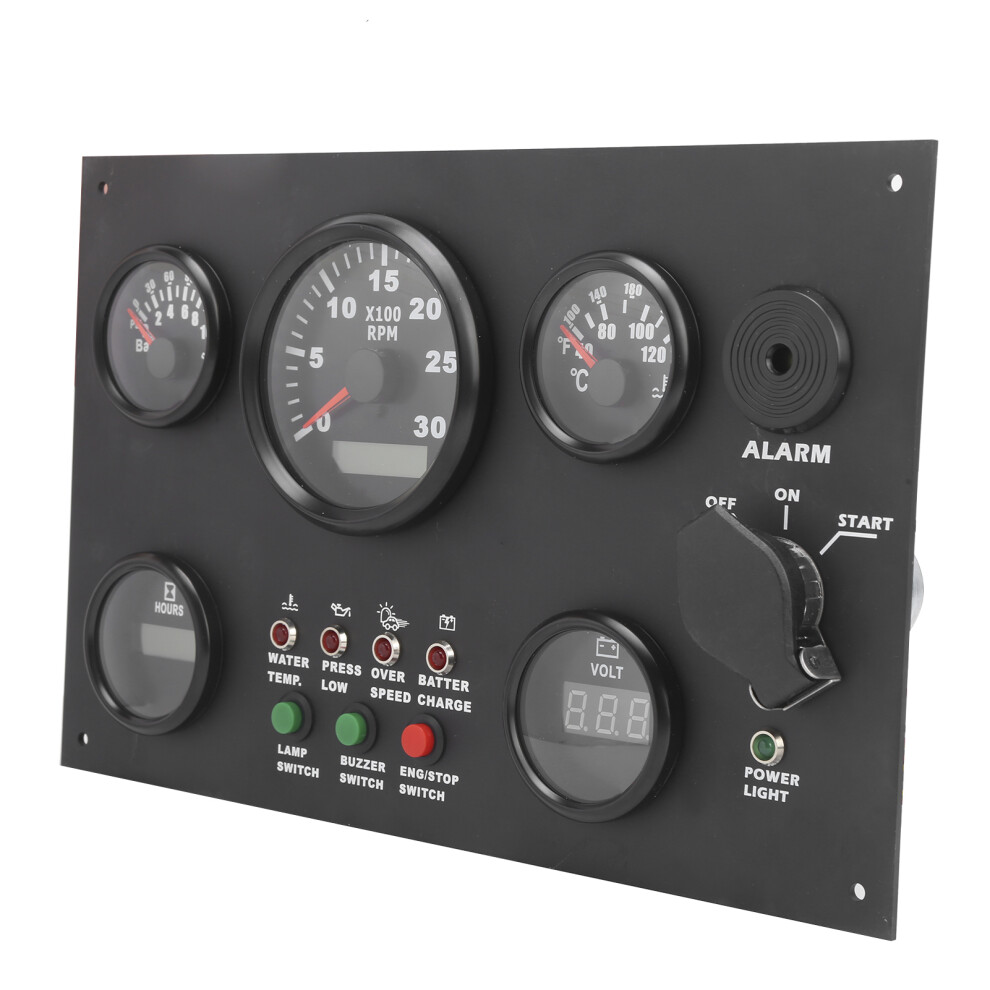

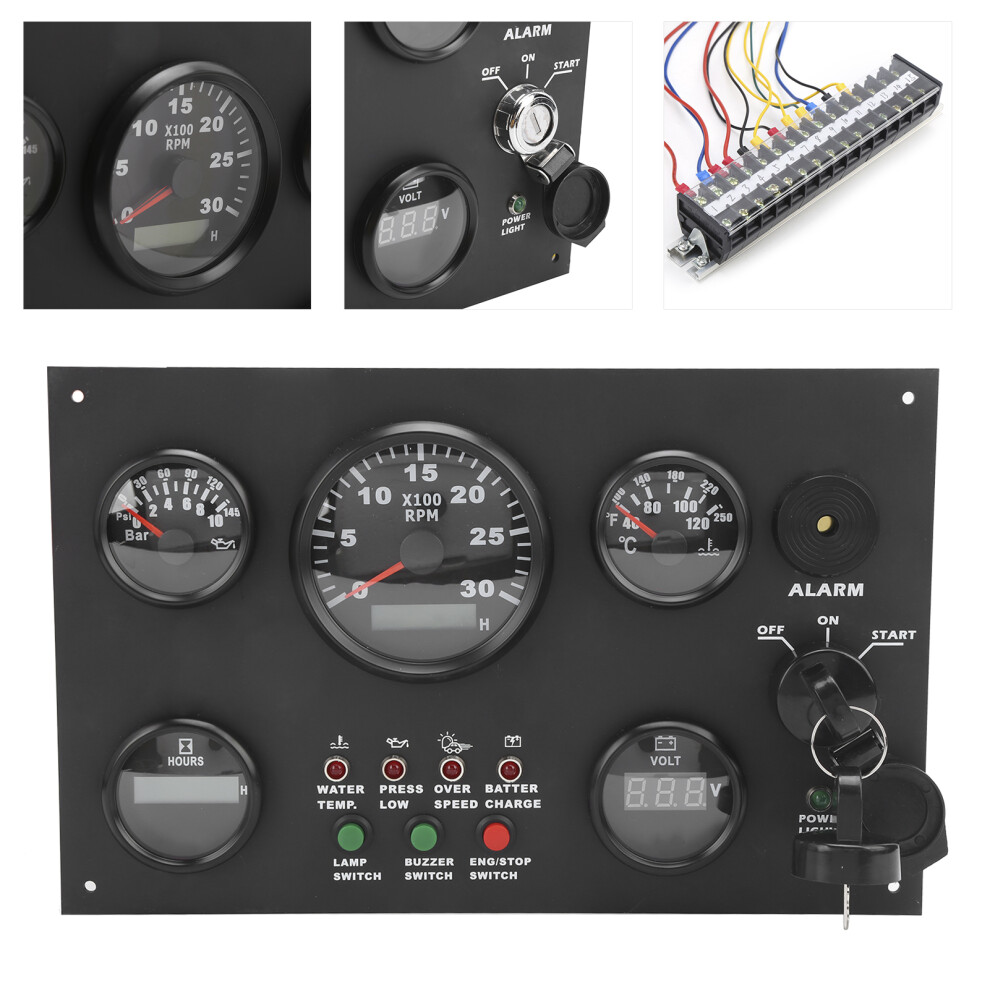

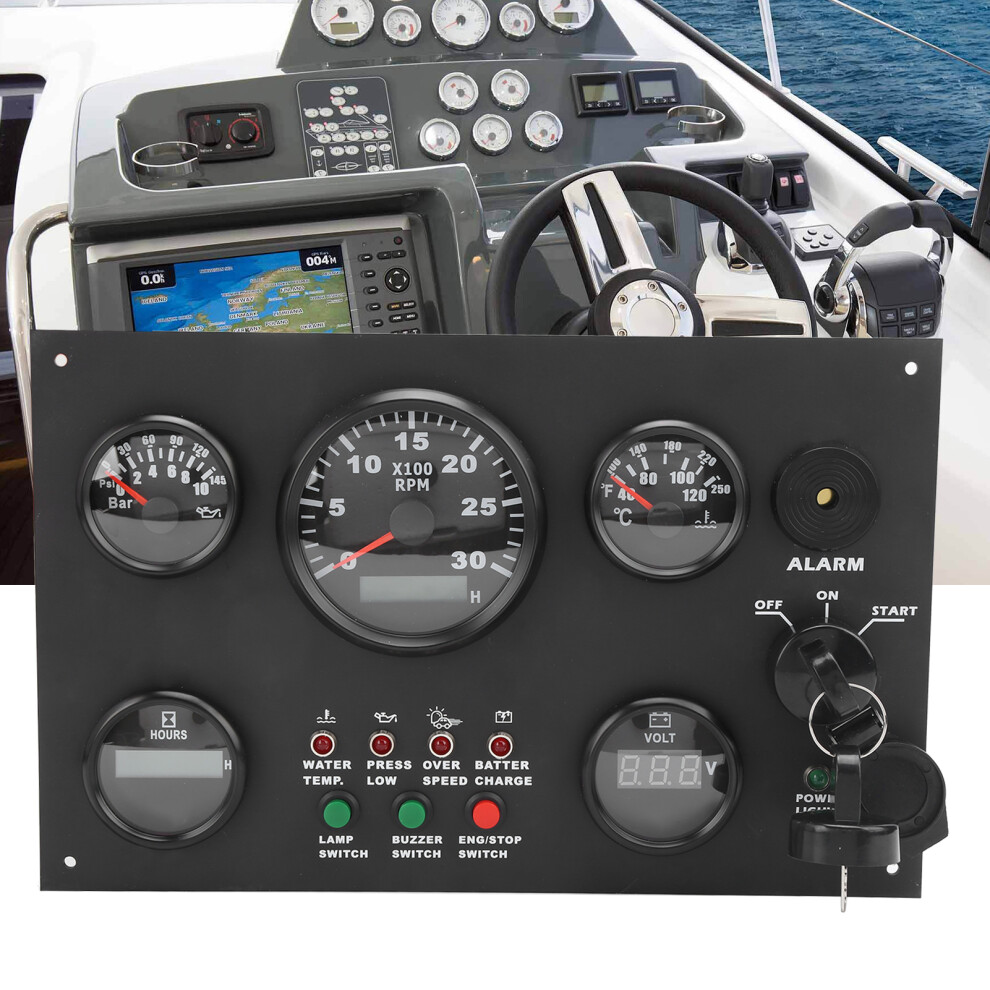

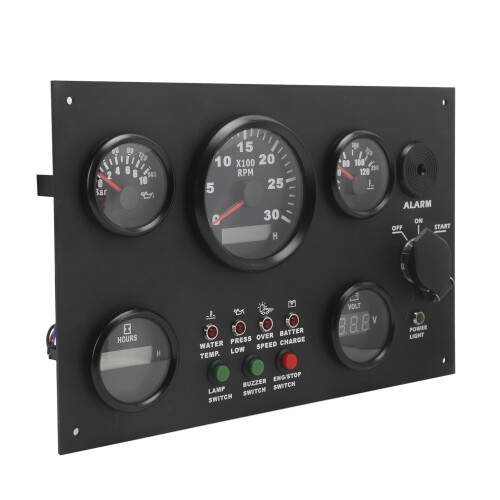

1、This is a multifunctional 12V/24V yacht RV central control modified five‑unit surface plate. It is a kit assembled by five working gauges. It comes with five working meter, oil pressure, water temperature, hour, and voltage, can work simultaneously. 2、Two ignition keys are delivered, which can be used directly. The panel is equipped with functions such as water temperature alarm, low pressure alarm, overspeed alarm, battery charging alarm, light switch, buzzer switch and engine alarm. 3、Install this panel in the central control position of the yacht or RV, and use the data of the instrument to understand the various conditions of your yacht engine and respond in time, which can save installation space and cost. 4、Using post‑programming technology, the driver can be modified as needed to match a variety of analog input signals. Delivered with three matching sensors, can be directly connected to your machine for easy installation. 5、The wire harness connector has a buckle, which can ensure a firm connection between the instrument and the wire harness, even if it is used in strong vibration occasions, it can still work reliably. 6、Using industrial‑grade electronic components and structural parts, the operating temperature can reach ‑30‑+75. Super waterproof structure design, waterproof and dustproof grade: IP67. 7、The stainless steel front cover is made of 316L, which can be used for a long time even in acid, alkali and humid environments. The whole series adopts ultra-wide working voltage design, long-term working voltage: 9-32V, up to 36V (1 minute). 8、Ultra-low power consumption design, the working current of Φ52mm series small meters is 60mm, and the working current of 85mm series large meters is 100mA. 9、It can be used for engines, generator sets, RVs, yachts, fishing boats, ships, construction machinery, agricultural machinery, modified vehicles and other fields.

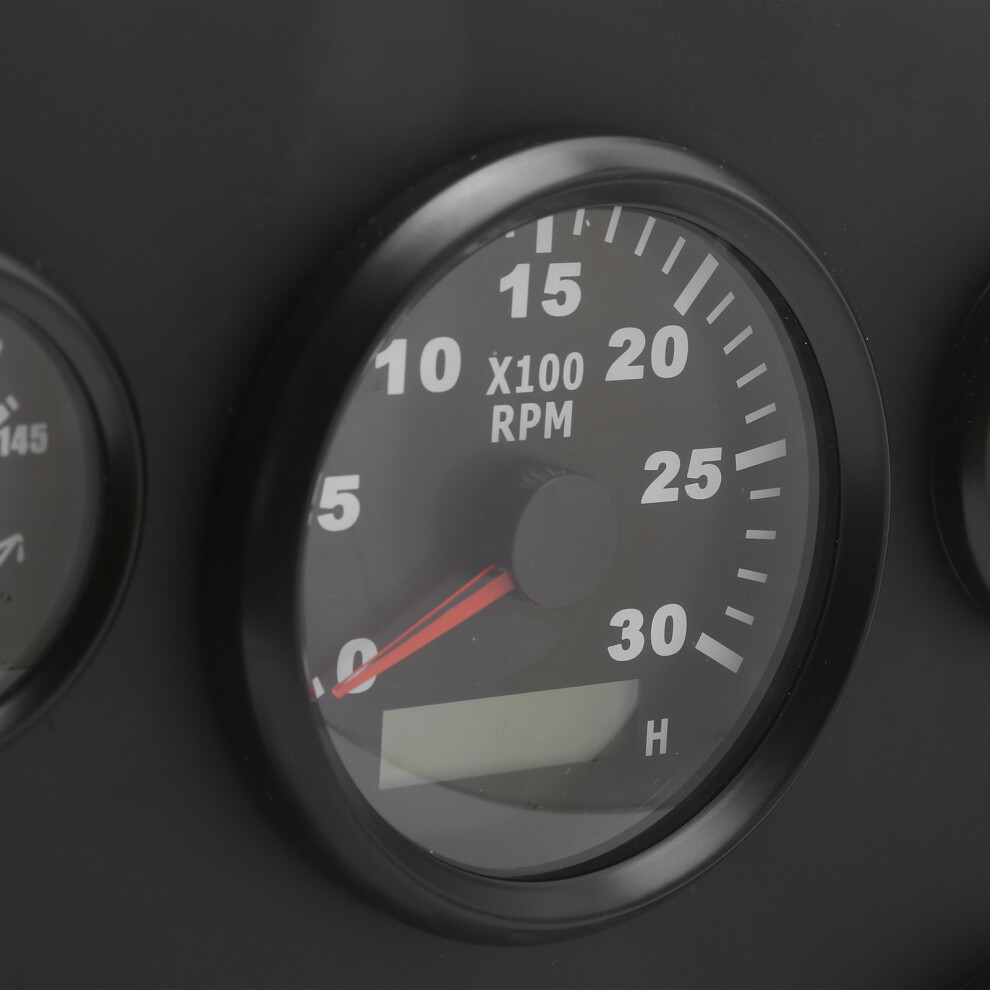

Item Type: Multi‑Function Switch Panel Material: Stainless Steel + Nickel-Plated Plastic Description: 12V/24V yacht RV five-unit surface board, the central control modification panel comes with five working meter, oil pressure gauge, water temperature gauge, hourmeter, and voltage gauge, which can work at the same time. Two ignition keys are delivered, which can be used directly. The panel is equipped with functions such as water temperature alarm, mortgage alarm, overspeed alarm, battery charging alarm, light switch, buzzer switch and engine alarm. Backlight Color: Red Working Voltage: 9-32VDC Working Current: 100MA (12V/24V) Operation Mode: LCD Display, Stepping Motor Input Signal: Plus Signal from Speed Sensor, Engine, Ignition Coil, Crankshaft Sensor, Etc. Protection Level: IP67, Can Work at 1m/1.1yd Underwater Display Range of Each Meter: Tachometer: 30 x100RMP, 99999.9Km Water Pressure Gauge: 0-145PSI Water Temperature Meter: 0-250 Hourmeter: 9999.9H Voltmeter: 0-38V



1 x Multi‑Function Switch Panel 3 x Sensor 2 x Ignition Key 1 x Manual
