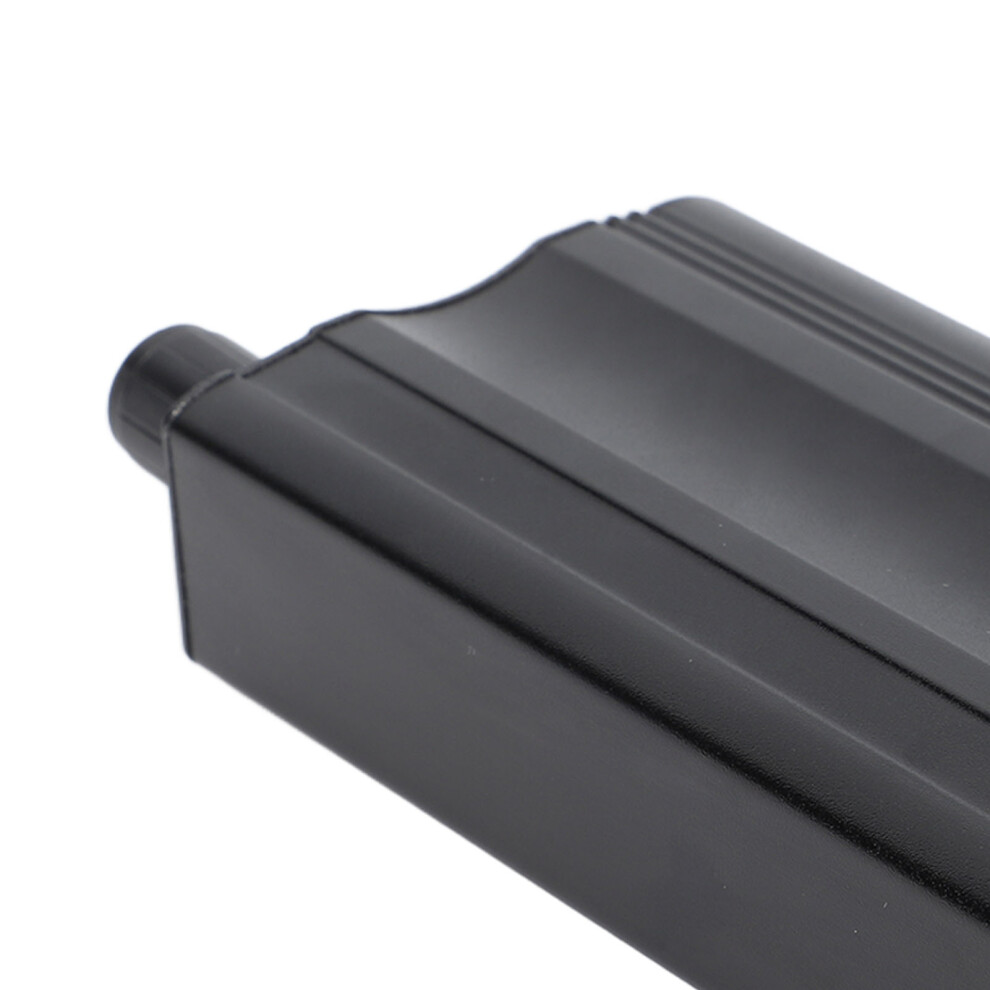

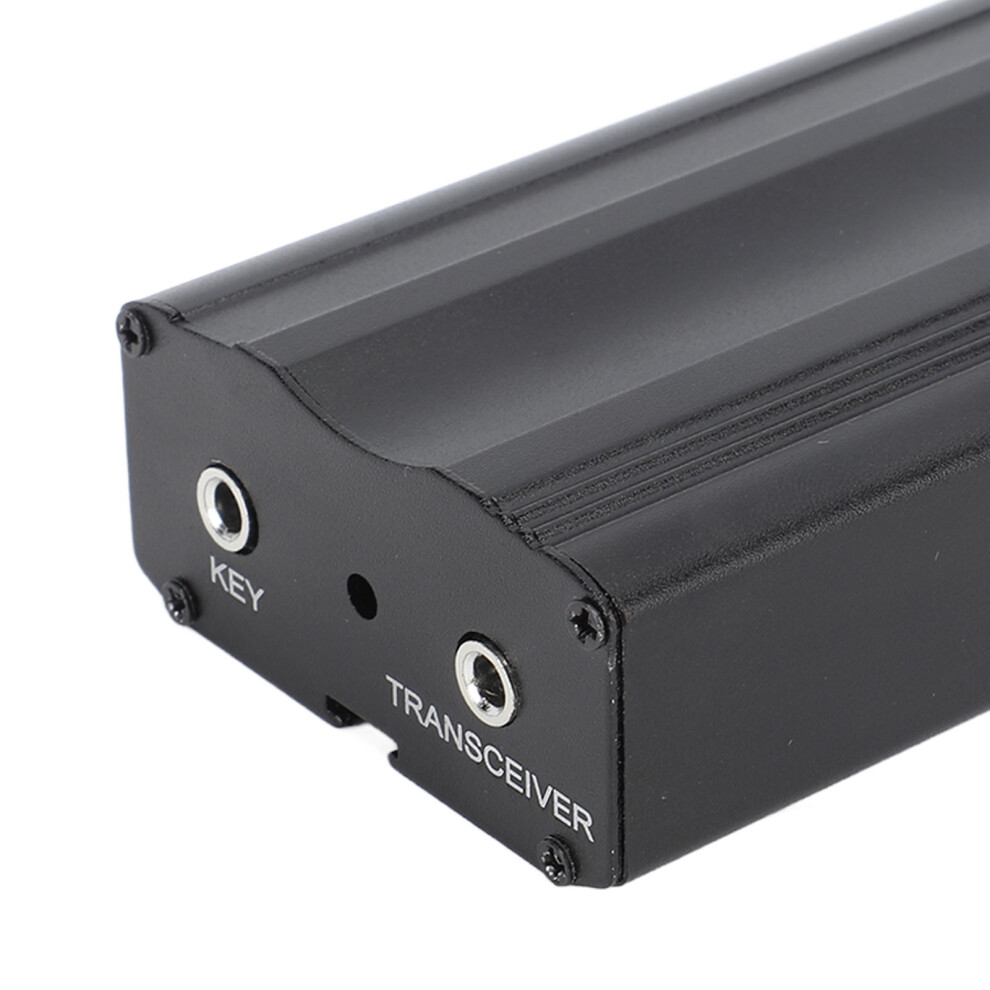

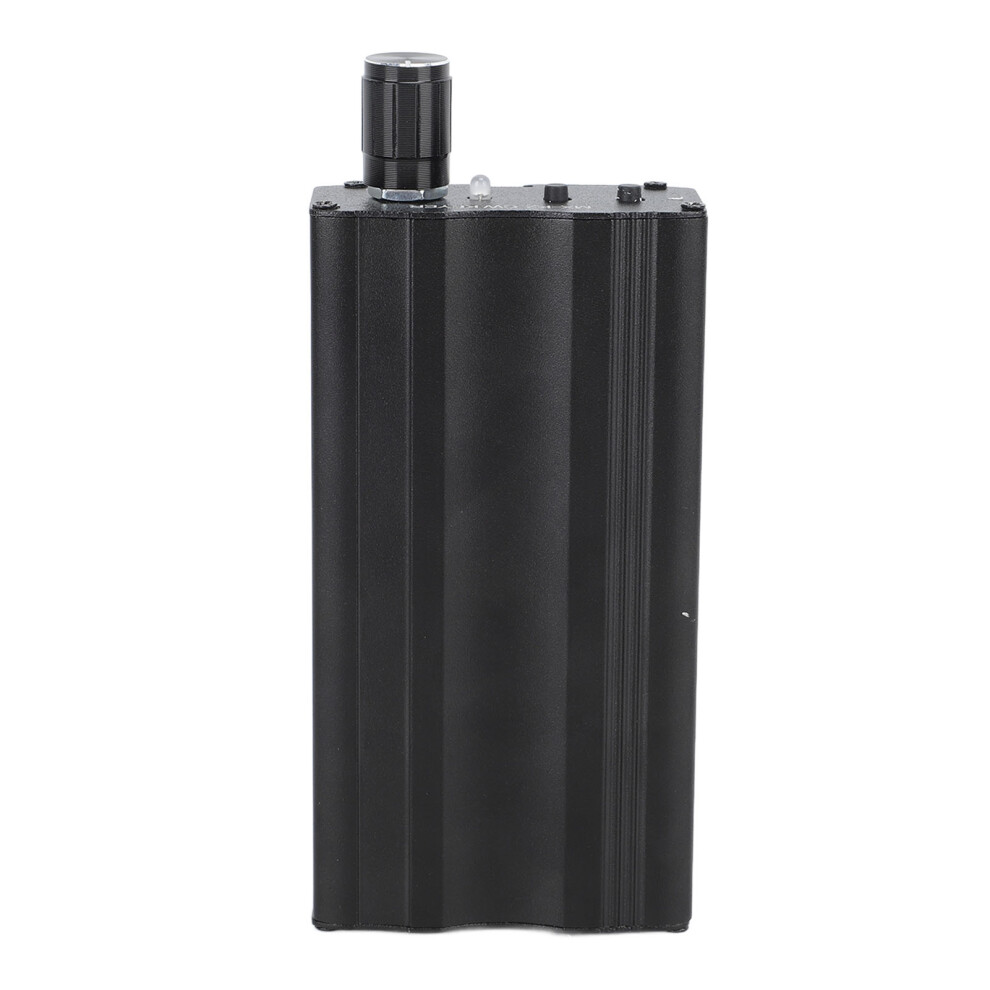

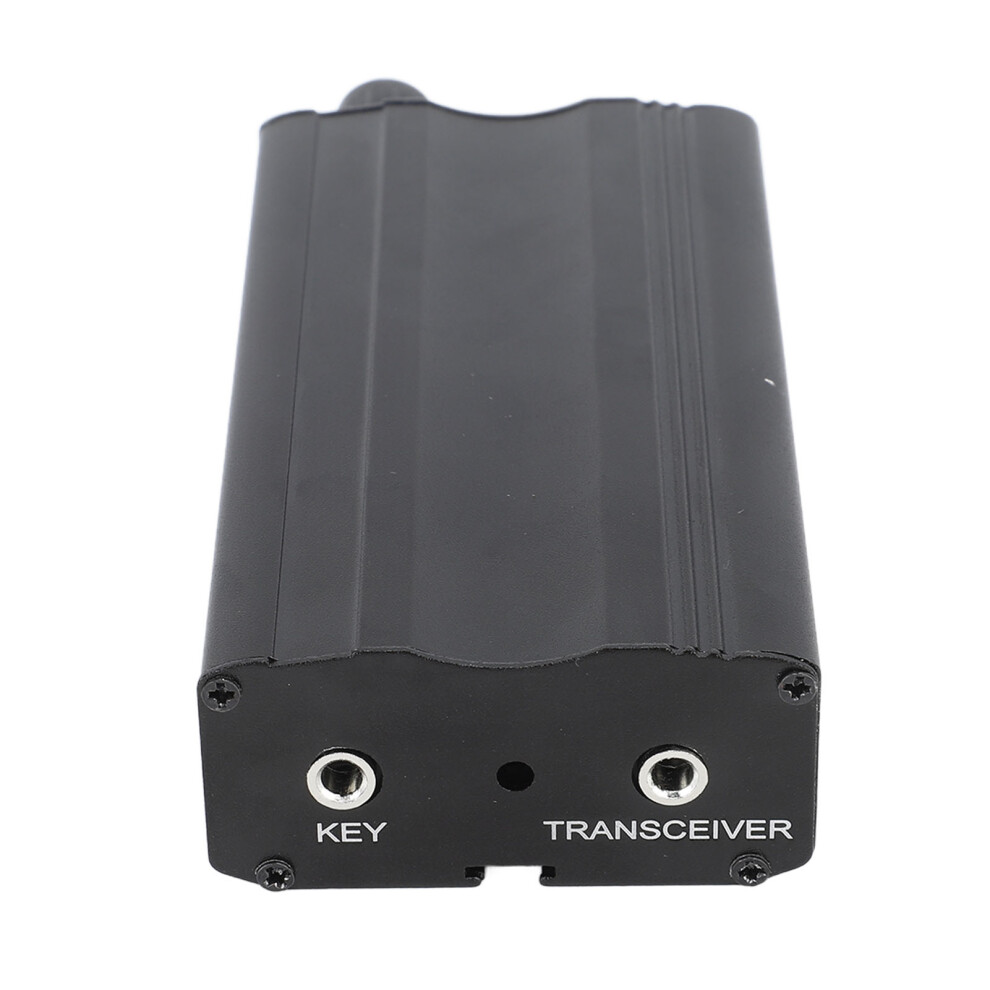

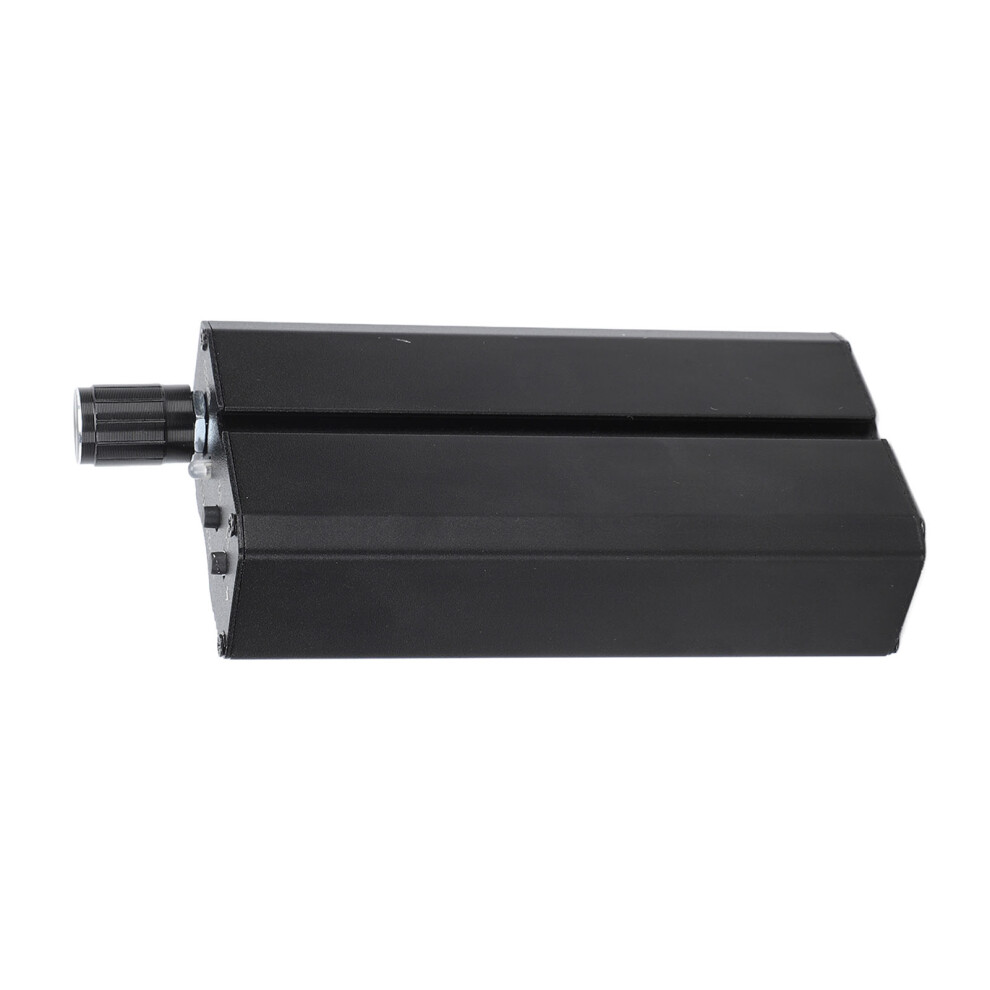

MX-K2 CW Morse Code Keyer with Auto Memory Control and Speed Adjustment

MX-K2 CW Morse Code Keyer with Auto Memory Control and Speed Adjustment Description

Morse Code Keyer CW Keyer Auto Memory Key Controller Auotmobile Transceiver for Control
Item Type: Morse Code Keyer
Model: MX-K2 CW Keyer
Material: Aluminum Alloy
Battery: 2 x AAA battery, shipped without battery.
How e:
1. J1: Buzzer mute.
2. L/R: di/da or da/di.
3. The F1 key can memorize 60 words and has a power off protection function.
4. The F2 key can remember 50 words and does not protecting data after power failure.
5. The R3 key is used for speed control. When the value of R3 decreases, the speed becomes faster.
6. Record: Hold down F1 or F2 for more than half a second, you will hear M, and now it will automatically record CW.
7. After completing, press F1 or f2 and you will hear S.
8. If you exceed the volume, you will be reminded with an F and it will exceed the standard.
9. T will not be recorded.
10. Information: Each information can not only store a long amount of memory, but can also be divided into several pieces.
11. Divide by entering EOM end of message at the end of each subdivision.
12. Play Segment: If you want to play the second segment, simply press the save button twice; If you want a third one, press 3 times, and so on.
13. Command Mode: Press F1 and F2 simultaneously, and you will hear C, indicating that you are in command mode.
14. End Command Mode: press F1 and F2 again, or you can press the automatic key to enter D. When using the auto key, PIC will make a judgment. The correct command will hear R, while ? is for invalid commands.
15. A: Turn off the memory of long and short duration speech.
16. B: Open the memory of long and short speech. This is the most common command.
17. C and E: Repeat playback. After playing 255, it will automatically stop timing in E command mode. If you want to turn off the voice automatic button, just press it once. After pressing the key and pressing it again, it will be judged as R, and it will end.
18. C cannot automatically extract sound, but can be used as a flag. If you want to turn off the voice automatic button, just press it once. Press the key again and make an R judgment on the keyboard, it will end.
19. D ends the command mode and returns to the normal mode.
20. T transmits the command for 30 seconds, then returns to com manual mode.
