N1201SA PS200 37.5M - 2.7G Multi-Function Convenient Antenna Analyzer Measuring Instrument VSWM Meter Tester

N1201SA PS200 37.5M - 2.7G Multi-Function Convenient Antenna Analyzer Measuring Instrument VSWM Meter Tester Description

To Measurement And Calibration Accuracy, Please The Instrument For At Least 15 Minutes.
Try To Use Good Quality Cables And Connectors.
The Calibration Cable Is Marked As It May Be Used Directly Without Calibration Next Time.
The Craftsmanship Of The Test Leads Affects The Measurement Accuracy. It Is Recommended Not To Choose The Test Leads That Are Too Long.
Before Measuring And Calibrating, Please Make Sure You Are Not Using Strong Wireless Signals To Avoid Interference Caused By Inaccurate Measurements. If You Don'T Understand The Impedance Measurement Itself, You Can Consult The Vector Network Analyzer'S Instructions And Tutorials. This Instrument Is Equivalent To Single-Port Vector Network Analysis.

Frequency: 34.375mhz-2.7ghz
Spacing: 1khz
Monitor: 2.4 inches tft pixel 320x240 (qvga) - rated
Capacity: 2000mah (7.4wh)
Charging current: 400ma-port
Charging (for charging only) -
Automatic shutdown: adjustable (normally on; 5 minutes -60 minutes)
Measurement : resistance/reactance/swr/s11
Resolution ratio: 4 significant figures
Frequency accuracy: 55ppm
Connector: SMA-K
Measuring range:
Impedance: 0.1Ω~1000Ω (absolute impedance value);
SWR: 1,000 65 65;
S11 (db): 0db a-60db -
Error (single point measurement):
Impedance: Less than Absolute value of impedance x3 % 0.0.1Ω (z Less than 200200, Less than 1.5ghz)
Swr: Less than Reading x10 Valid% 0.1
S11 (db/): 0.1 db/5 (0db to-10db); 1db/10 (-10db to-20db); 5db/20 (-20db to-40db)
Directivity: Less than 35db (35mhz 2 ghz after calibration);
Output level: -18dbm
Working temperature: 0 ~ 40
Atmospheric pressure: 860hpa 101060hpa
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use
Colour:black
Material:plastic

Package Contents:

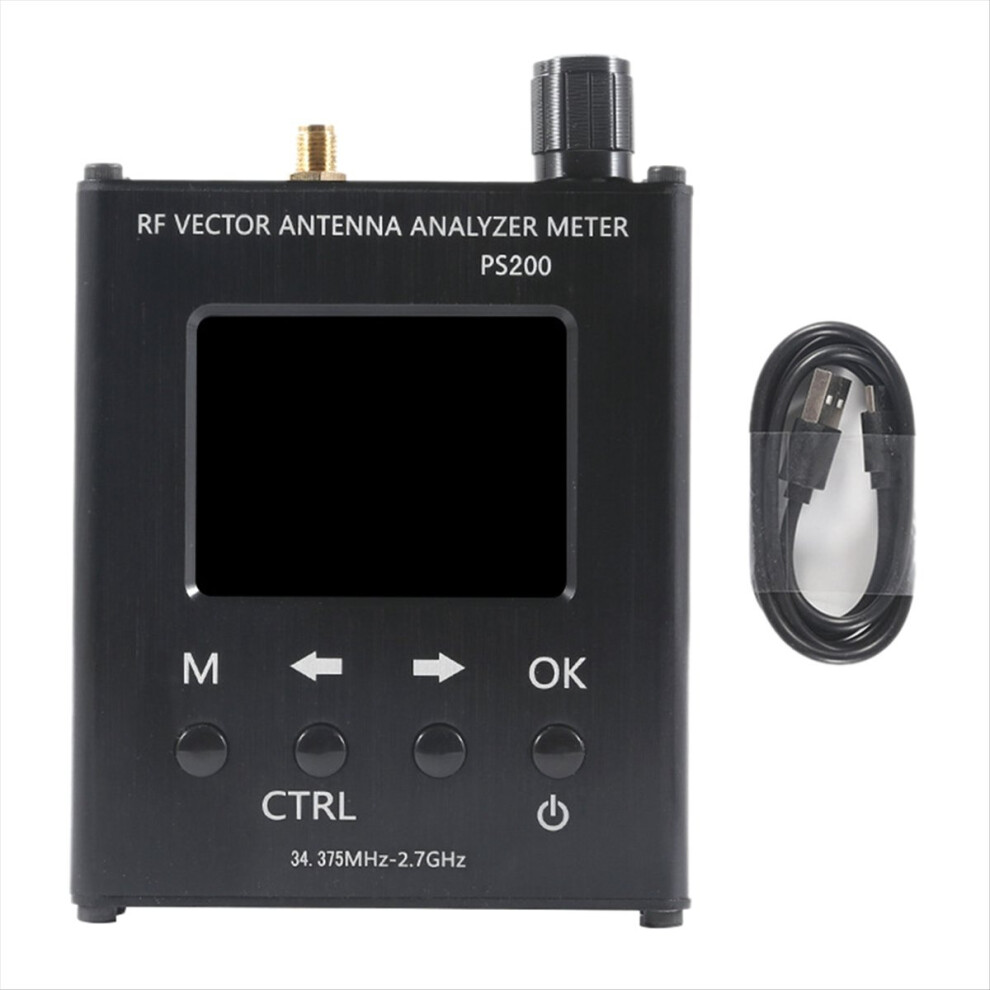

1 x Antenna Analyzer
1 x Data Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
