#NAME? Description

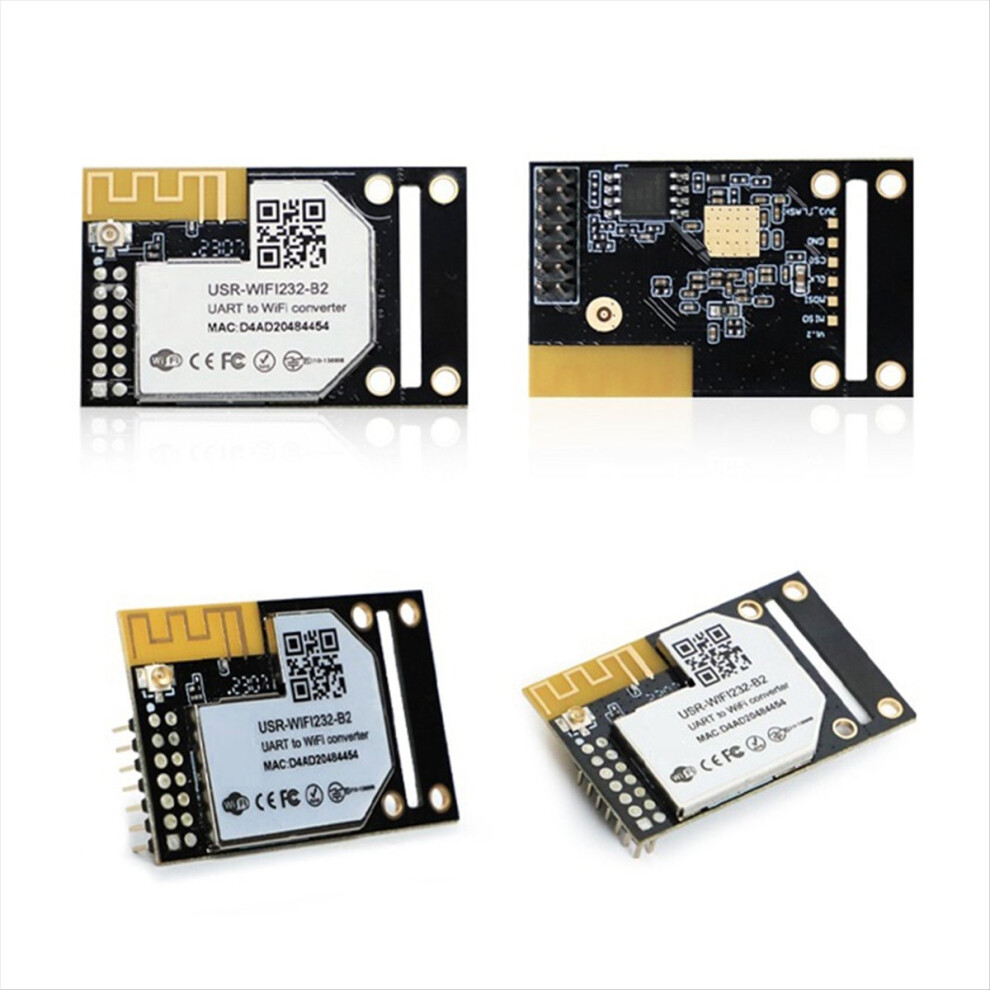

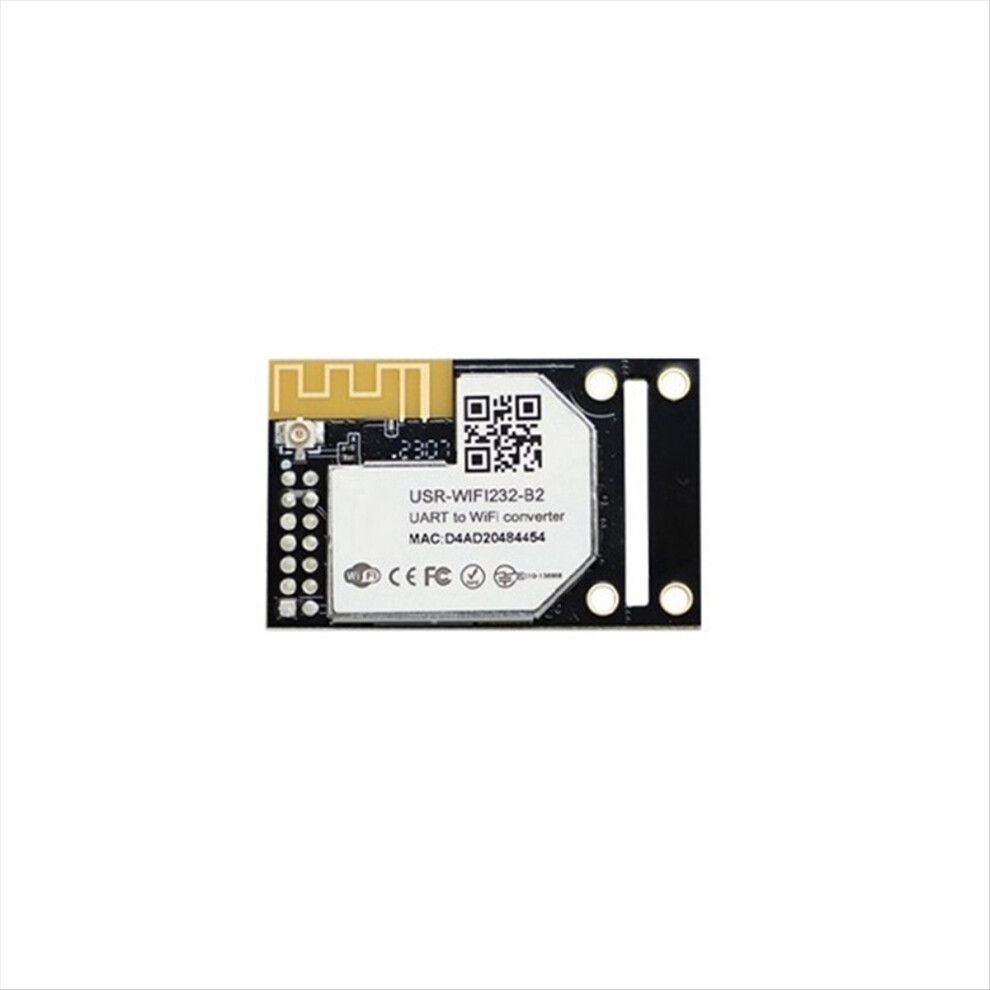

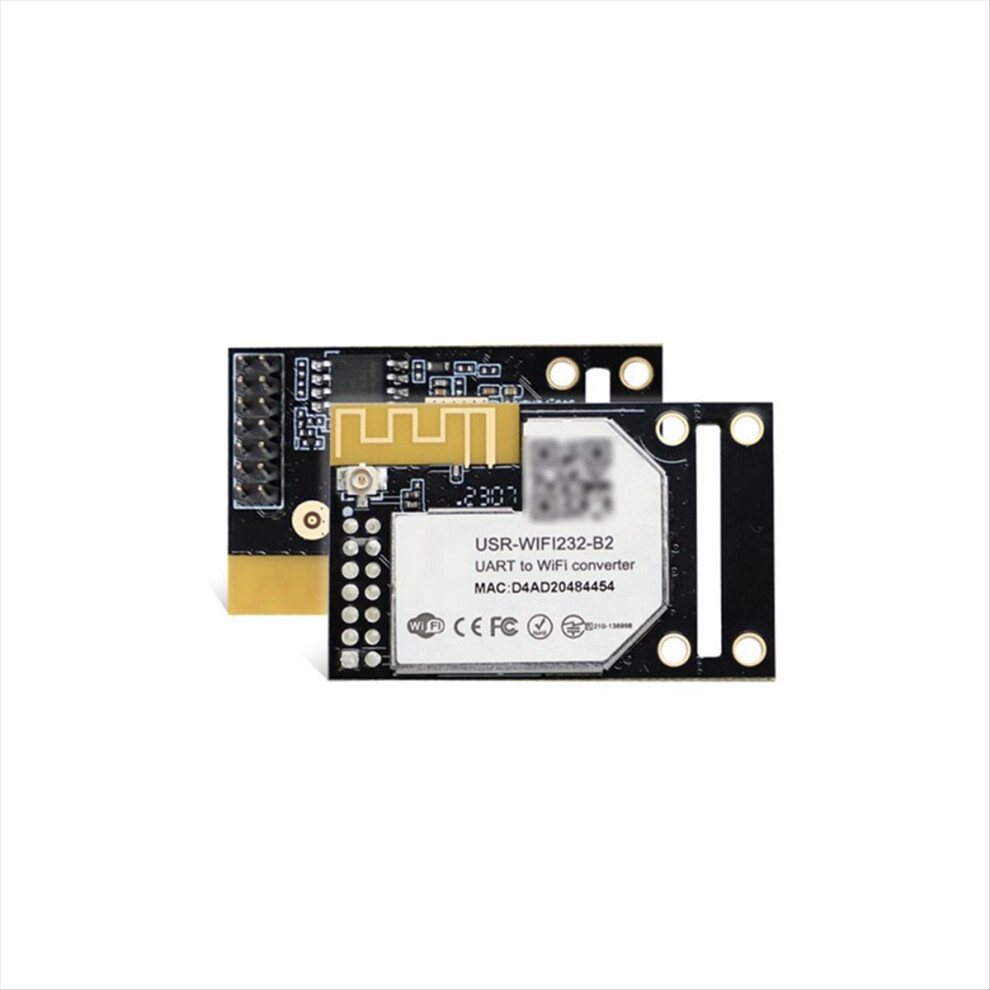

-WIFI232-B2 is an embedded 802.11 b/g UART WiFi module. It can connect traditional serial device and MCU controlled device with wifi network to realize control and management.The module has an Ethernet port. It can realize mutual data transmission among wifi, serial and Ethernet.
Converts UART(3.3V TTL) to wifi or Ethernet

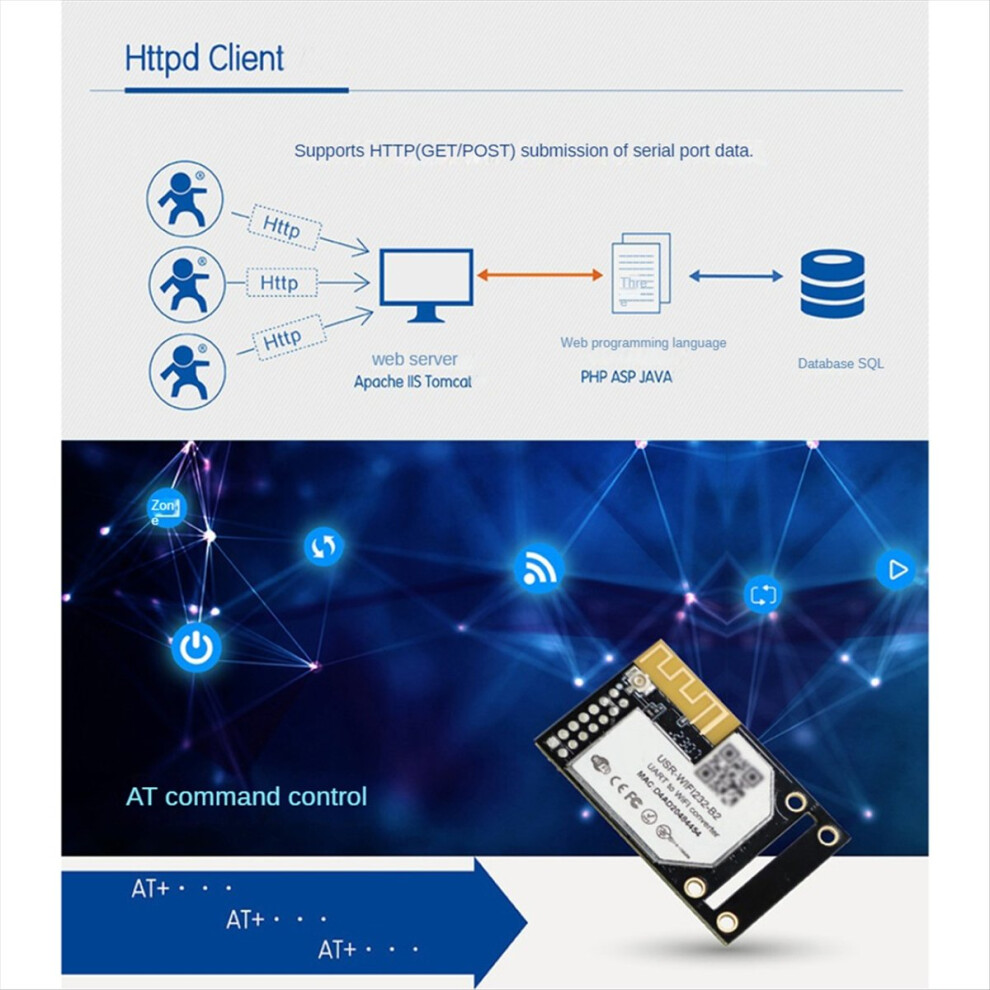

Supports server/client, UDP server/client,https client, Virtual COM
Supports Modbus RTU to Modbus

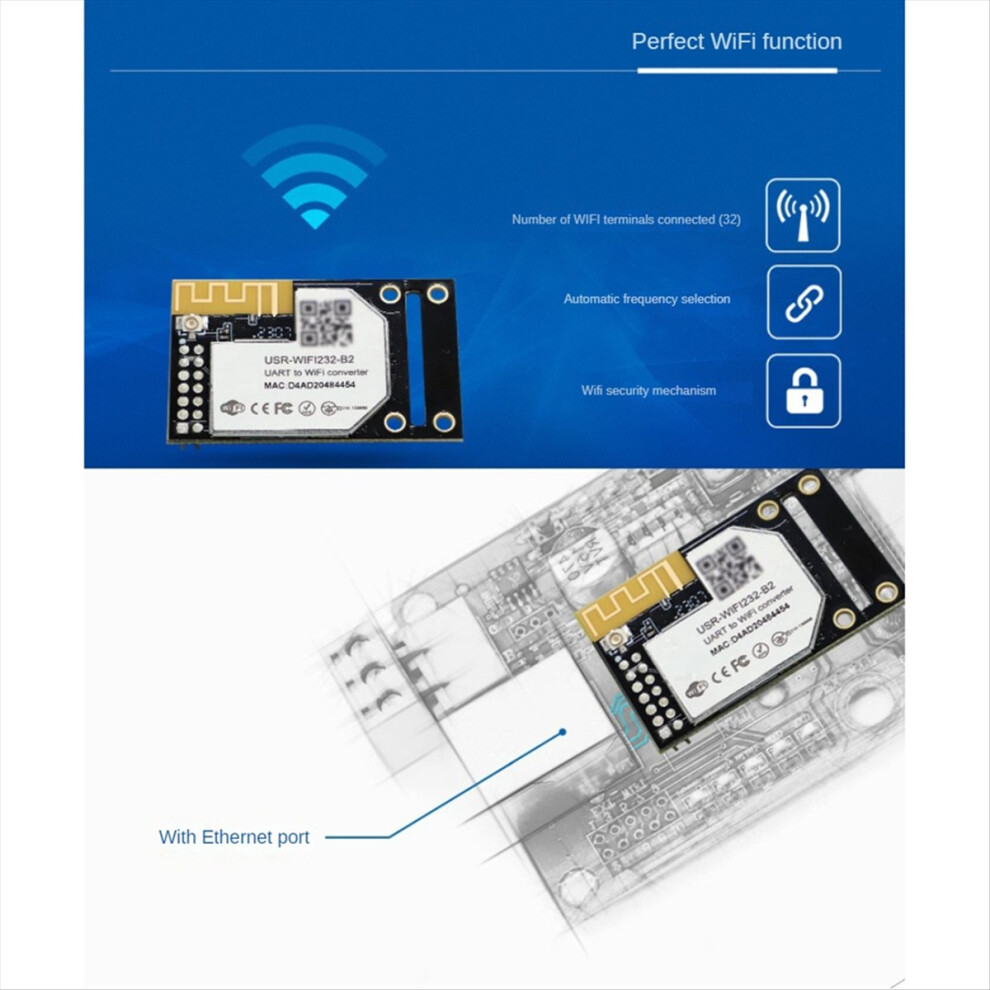

Supports multiple networking mode with 1 RJ45 ethernet port

1 TTL Serial Ports Supporting Data Rates of up to 460.8Kbps
32 simultaneous client connections to Soft AP interface
Support 802.11b/g wireless standard
Support IP/UDP network protocol
Support UART/GPIO/Ethernet data interface

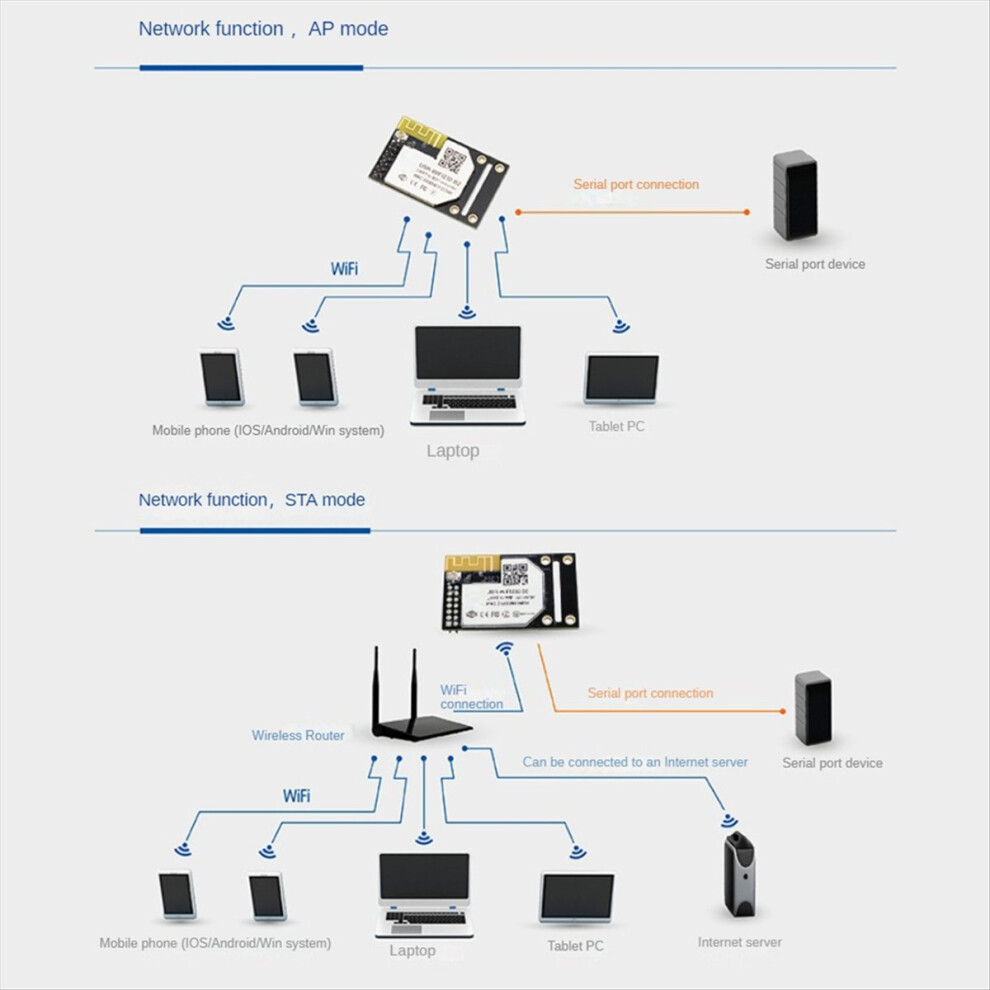

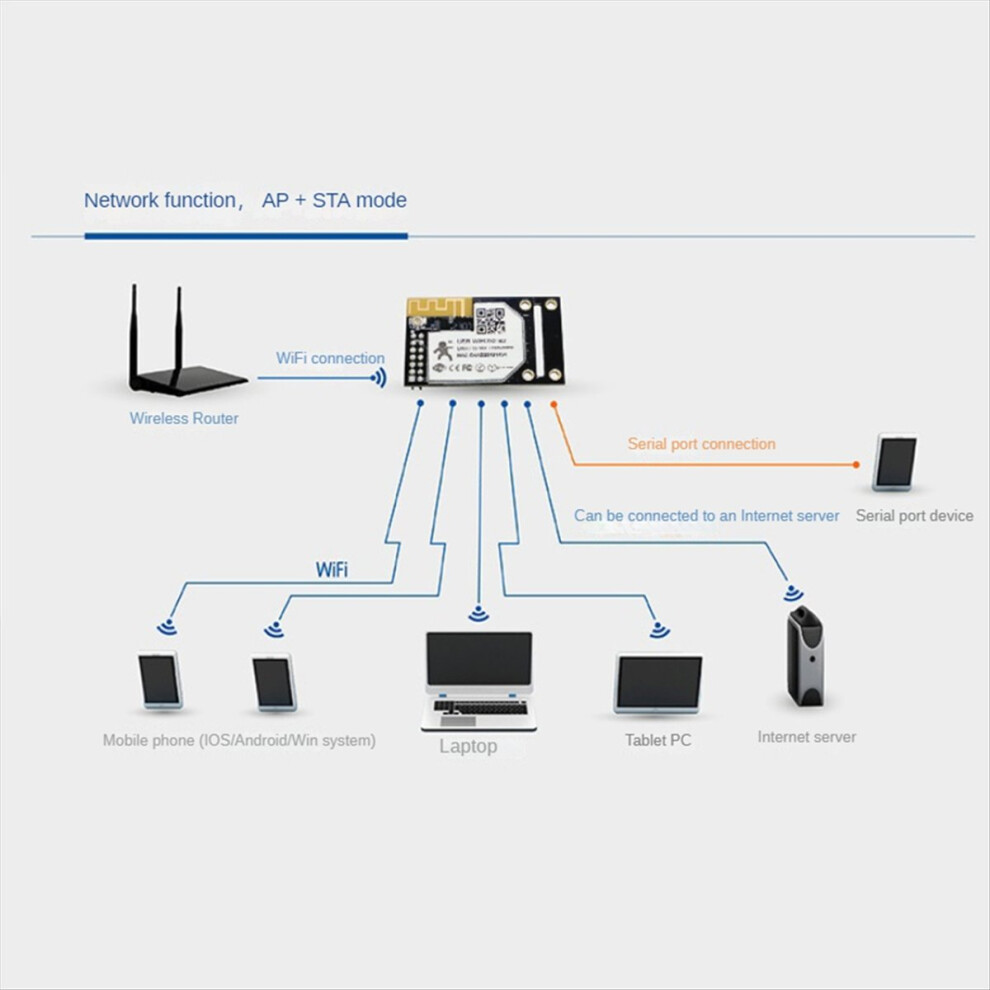

Support work as STA/AP/AP+STA mode
Support router and bridge mode
External antenna Version
Support transparent transmission mode
Provide AT+ instruction set for configuration
Provide friendly web configuration page
Support heartbeat signal and wifi connection indication
Support UART auto-frame function
3.3V power supply
Max transmission distance: 280 meters (open horizon, 3dbi antenna)
Application Field:
WiFi remote control and monitoring, IP and WiFi coprocessor
WiFi remote control toy such as aircraft and cars
WiFi Internet radio, camera, digital photo frame
instrument, data acquisition, handheld device
WiFi fatness testing machine, smart card terminal, Smart Home
Instrument, equipment parameter monitoring, wireless POS machine
Modern agriculture, field and other wireless related secondary development applications
Different batches may have different appearance, which does not affect use.
Colour:Black
Material:PCB+electronic components

Package Contents:
1 x UART to WiFiModule

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
