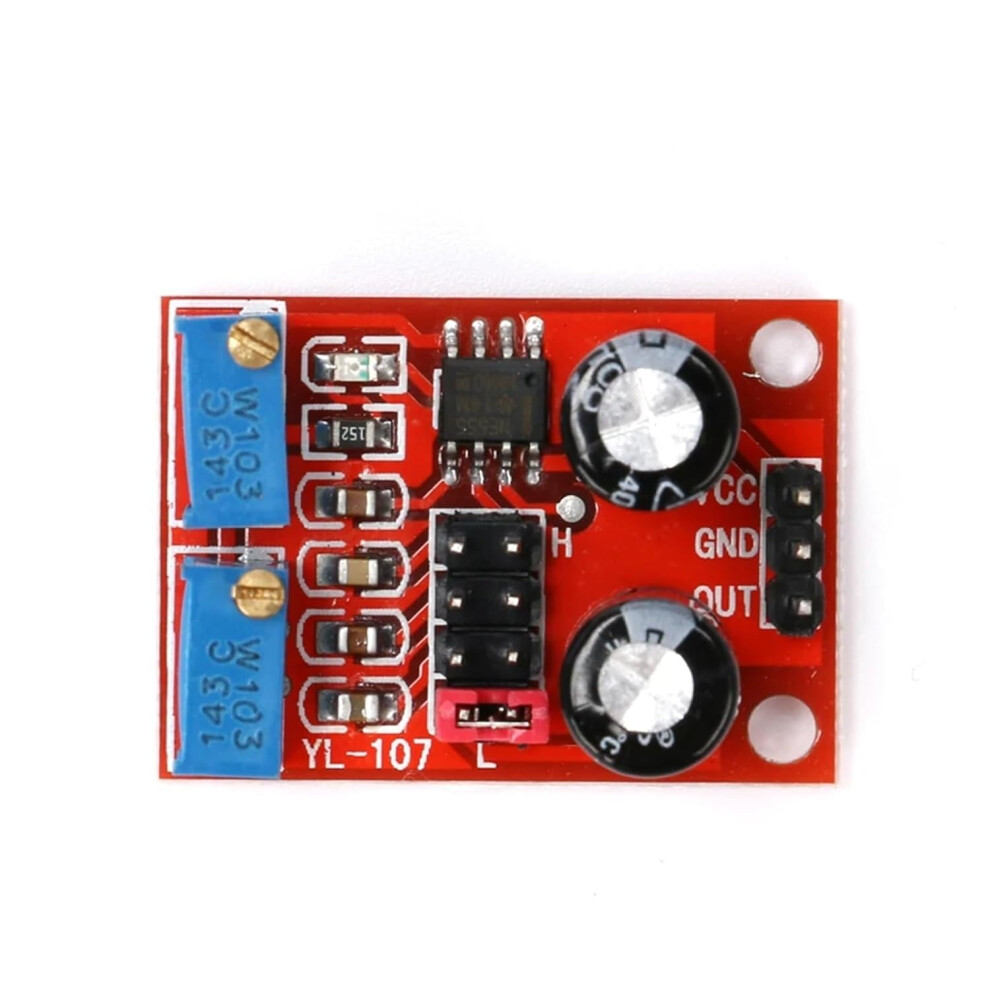

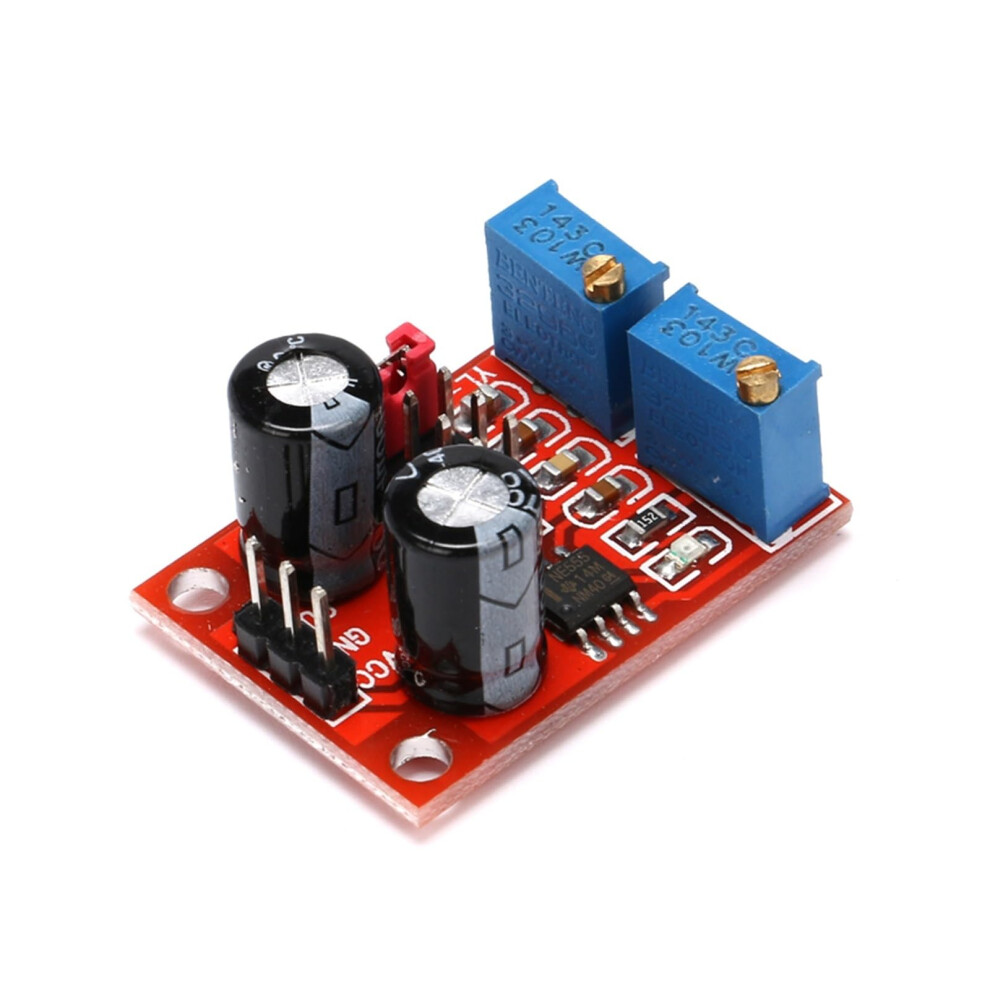

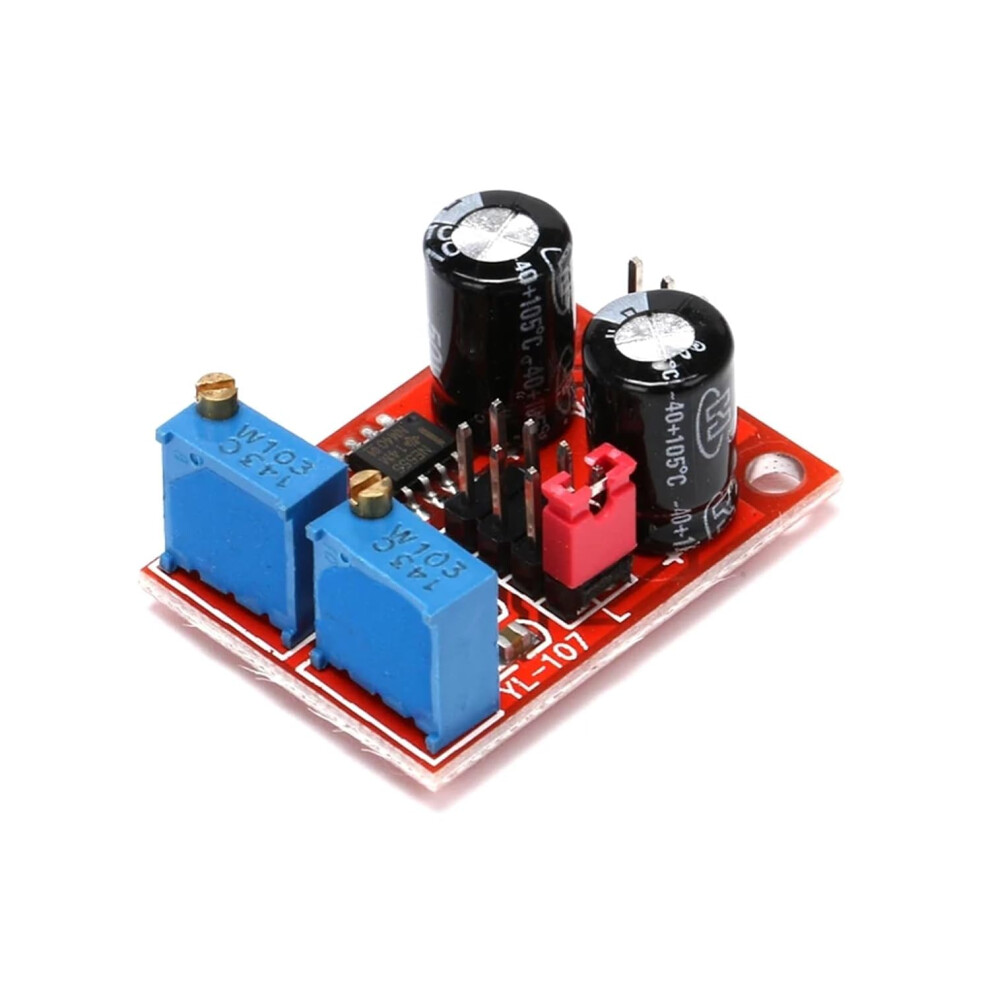

NE555 Pulse Frequency Duty Cycle Adjustable Module 5V12V Square Wave Signal Generator Red Module

NE555 Pulse Frequency Duty Cycle Adjustable Module 5V12V Square Wave Signal Generator Red Module Description

Versatile NE555 Arbitrary Waveform Generator Key benefits Reliable square wave generation for testing, timing, and control tasks. The NE555 module provides a straightforward, cost effective way to produce adjustable signals for experiments and driving small actuators. Flexible control with adjustable frequency and duty cycle. A single channel allows precise tuning to match your specific application requirements. Wide compatibility with common power systems. Operates from a 5 to 12 V supply while delivering stable output current levels up to 35MA at higher voltages. Easy monitoring and operation. Onboard power indicator and clear LED output signal help you verify performance at a glance. Product features Function: Versatile arbitrary waveform generator based on the NE555, delivering adjustable square wave signals for experimental development and motor driving. Output: Singlechannel output with fine tunability of frequency and duty cycle for performance. Power range: Designed to operate within a 5V to 12V supply range, maintaining stable current up to 35MA at higher voltages. Indicators: Onboard power indicator and clear LED output signal for straightforward monitoring in complex projects. Applications and use scenarios Prototyping and testing: Generate timing signals for microcontroller projects, sensor interfaces, or circuit validation in a lab or development bench. Motor or actuator control: Provide a programmable square wave signal to drive small stepper motors or other actuators that respond to PWM or timing signals. Education and experimentation: Use different frequencies and duty cycles to observe circuit behavior, learn timing concepts, and debug signal paths in projects. Notes This description reflects the product as an NE555 based module with a singlechannel, adjustable square wave output, suitable for experimental development and motor driving within the specified voltage and current ranges.
