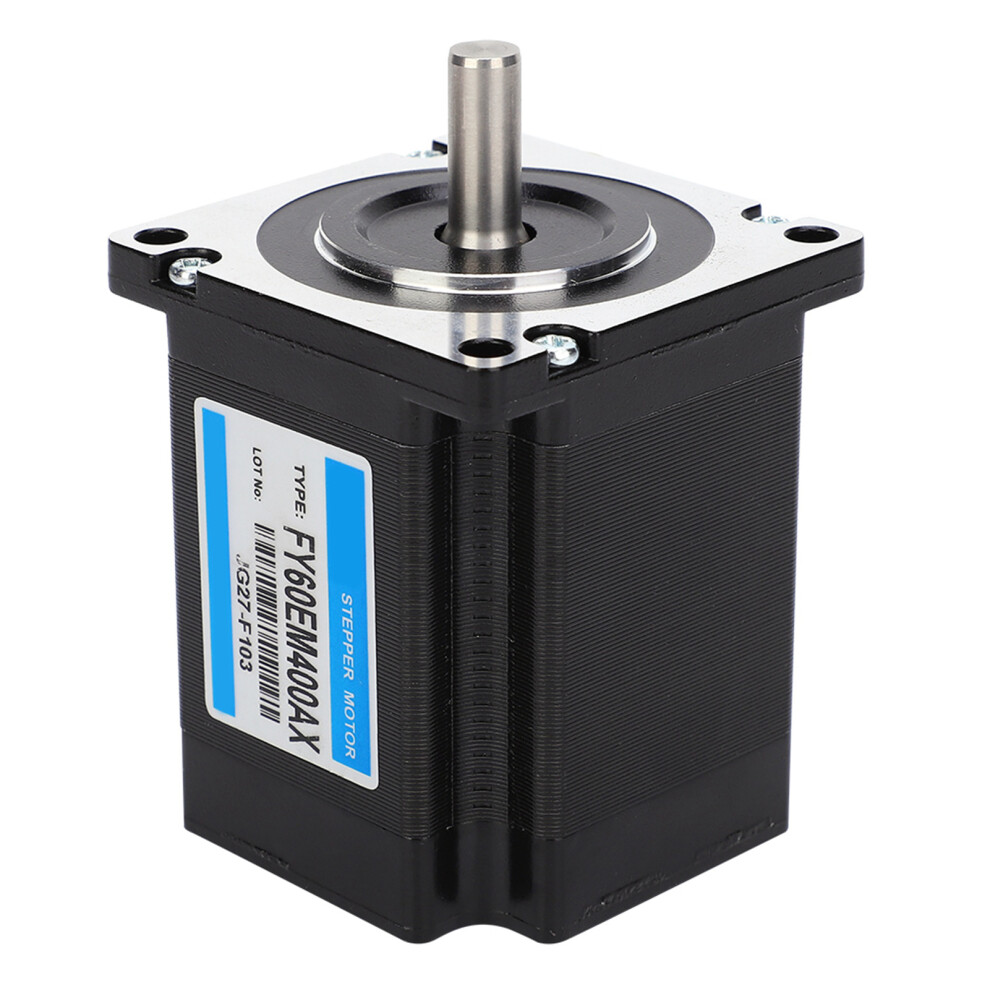

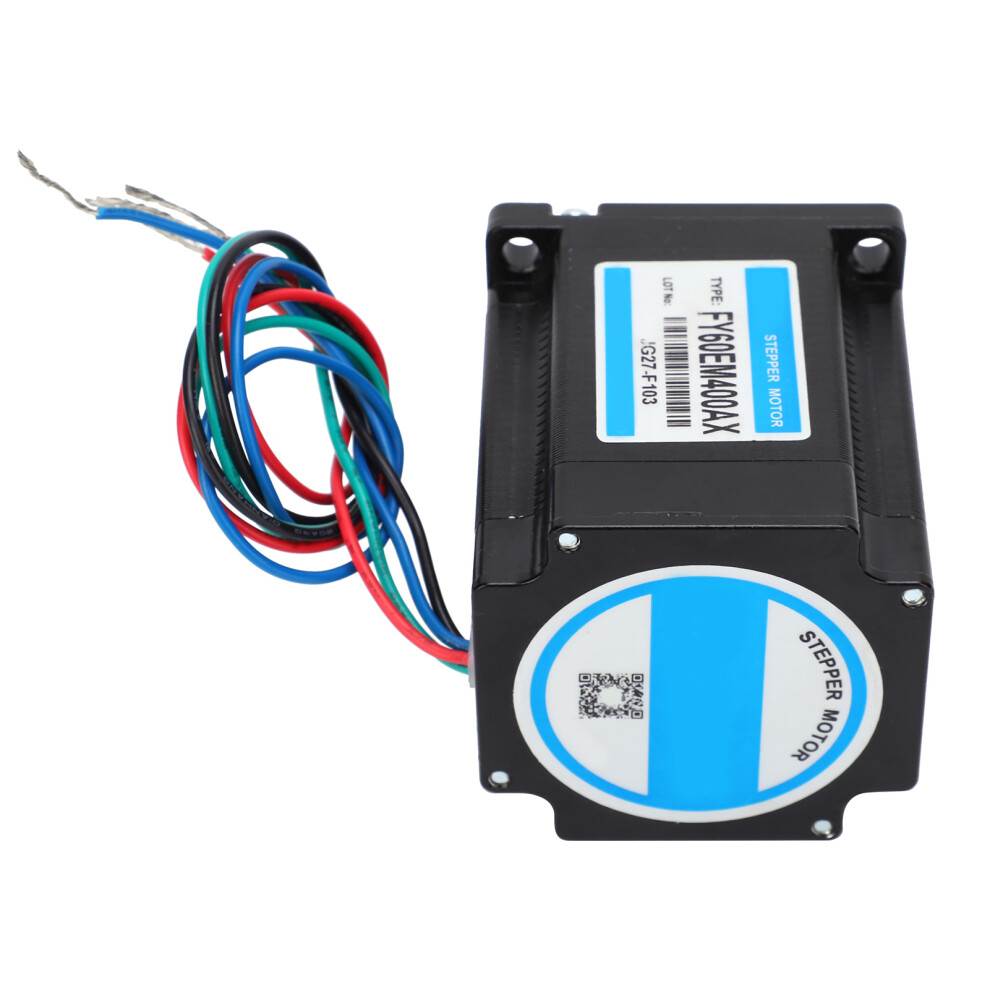

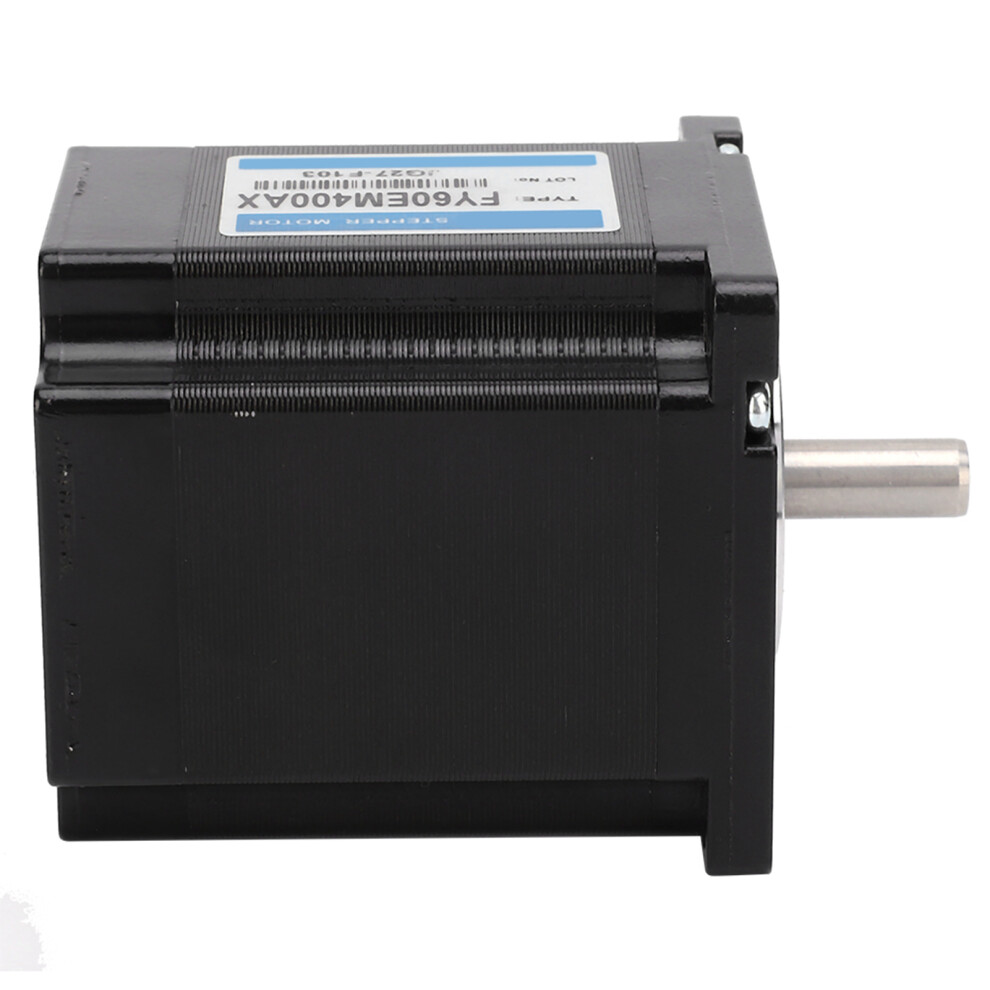

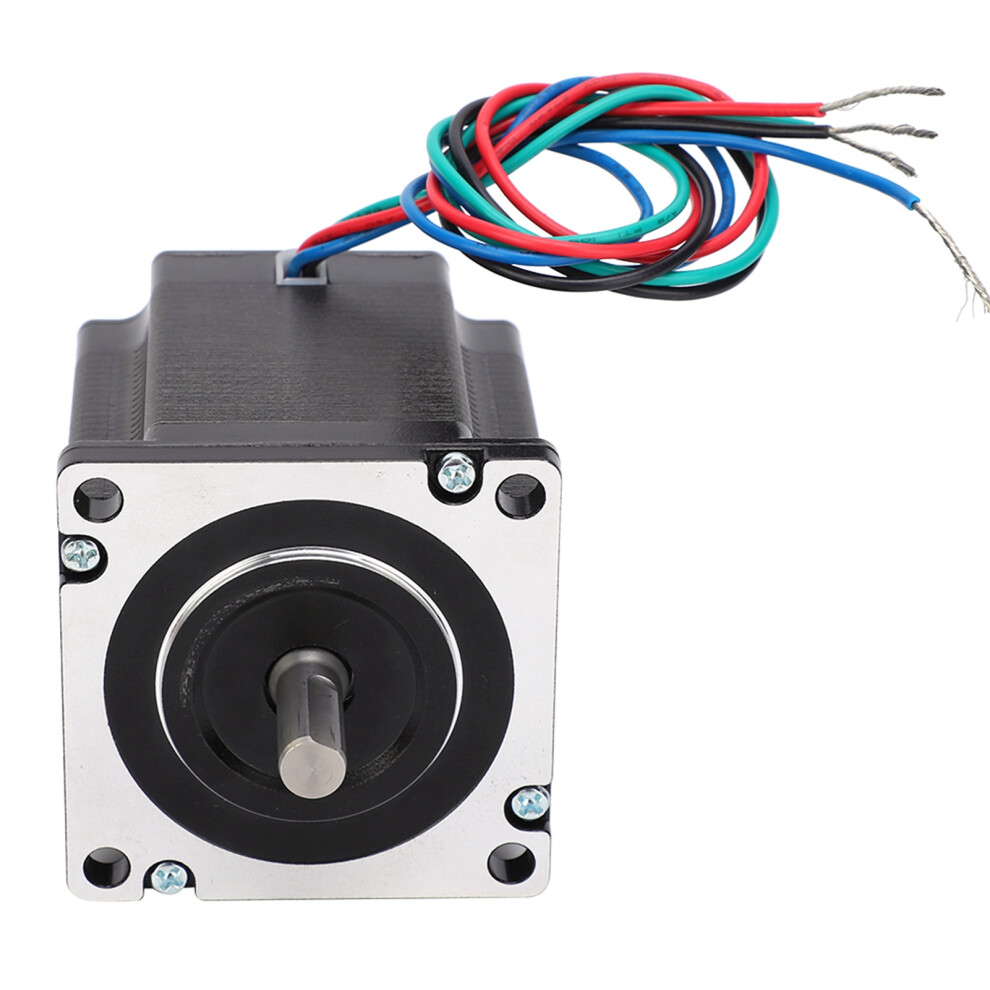

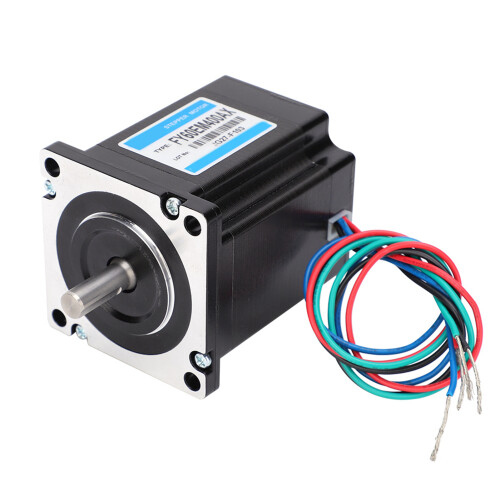

NEMA24 Stepper Motor 2-Phase 60 1.8 3.2Nm Replacement

NEMA24 Stepper Motor 2-Phase 60 1.8 3.2Nm Replacement Description

1、Imported high‑quality motor steel sheets, bearings made of German technology, low self‑inductance, good responsiveness. 2、The product can be directly connected to the load and run at low speed in a state of close to a locked rotor without gear reduction. 3、The inner rotor adopts German technology, and the surface is coated with imported rotor glue to prevent burrs on the surface after carbon steel oxidation and grinding, resulting in increased motor noise. 4、The front and rear covers are perfectly connected, the body is black electrophoresis, high‑end atmosphere, and the body size is standard. 5、Quick start and stop, frequent forward and reverse rotation, precise control, the number of pulses determines the motor position.
Item Type: Electric Motor
Material: Carbon steel
Purpose: Industrial motor control, transmission and transmission occasions
Step Angle: 1.8
Current: 4A
Holding Torsion: 3.2N.m
Resistance: 0.7Ω
Inductance: 1.8mH/phase
Length: Approx. 86mm / 3.4in
Number of Outlets: 4
Shaft Type: Milling single flat table
Step Angle Accuracy: 5% (full step)
Resistance Accuracy: 10% (20)
Inductance Accuracy: 20% (1KHZ)
Temperature Rise: 80 maximum (rated current, 2-phase energization)
Ambient Temperature: -20~+50
Insulation Resistance: 100MΩ Min, 500VDC
Radial Clearance: 0.02mm maximum (450g load)
Axial Clearance: 0.08mm maximum (450g load)
Maximum Radial Load: 75N (20mm from flange surface)
Maximum Axial Load: 15N
1 x Electric Motor
