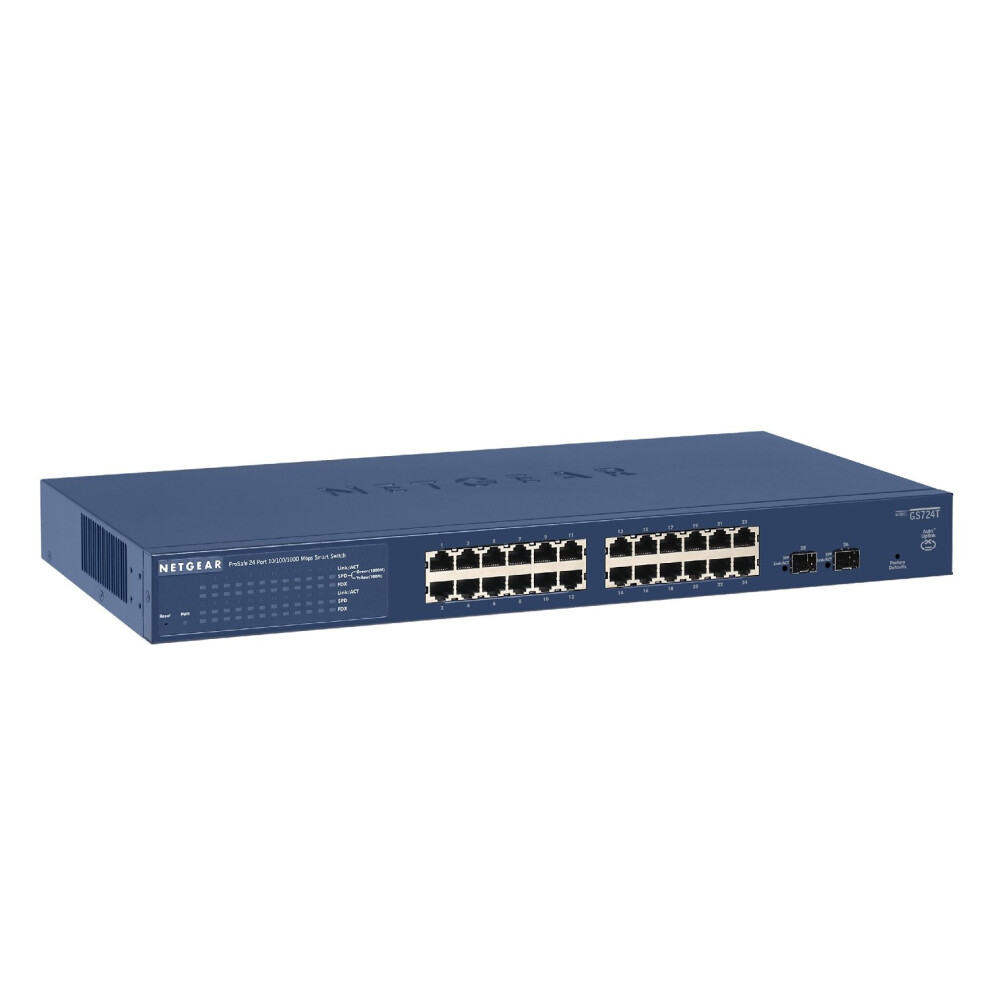

Netgear 24 Port Gigabit Smart Switch
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 127,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 18th - Fri 19th Jun
Returns: 30 days
180-day payment protection
Most Popular in Network Hubs & Switches
Summary
- ProSafe Gigabit 24 Port Smart Managed Switch with 2 SFP Ports
- Total Ports: 26
- Gigabit Ethernet Ports: 24 RJ45
- Bandwidth: 52 Gbps
- Mean time between failures (MTBF): 567,680 hours
Netgear 24 Port Gigabit Smart Switch Description
Netgear 24 Port Gigabit Smart Switch
Features:
- ProSafe Gigabit 24 Port Smart Managed Switch with 2 SFP Ports
- Auto Voice VLAN and Auto Video VLAN help deploy VoIP systems and IP-based surveillance systems
- Static routing helps to route internal traffic for more efficient use of network resources
- Energy Efficient Ethernet (802.3az) support for more energy saving
- Dynamic VLAN assignment for easy user authentication and location-independent access to network
- Total Ports: 26
- Gigabit Ethernet Ports: 24 RJ45
- SFP Ports: 2
- IEEE Protocols: 802.3, 802.3i/u/ab, 802.3ad, 802.3ae, 802.3x, 802.3az, 802.1D, 802.1w, 802.1s, 802.1x, 802.1p, 802.1Q, 802.1Qat/av 802.1ab, 802.1BA, 802.1AS
- LEDs: Speed, Link, Activity, Power Status
- Bandwidth: 52 Gbps
- Forwarding Modes: Store and forward
- Buffer Packet Memory: 2 MB
- Address Database Size: 16,000
- Mean time between failures (MTBF): 567,680 hours
- Jumbo frame support up to 9k packet size
- Number VLANs Supported: 256
- Priority Queues: 8
- IGMP Snooping v1/v2/v3
- MLD Snooping v1/v2
- DHCP Client
- IPv4/IPv6 DSCP and TOS
- L2 MAC, L3 IP, and L4 Port ACLs
- SNMP v1/v2c/v3
- Security: 802.1x RADIUS Authentication, Guest VLAN, Network Storm Protection, Broadcast/Unicast/Multicast Protection
- Package Contents: Gigabit Switch, power cord, rack-mounting kit, resource CD
Details
| OPC | PDSP6RY |
|---|---|
| Brand | |
| Codes | 0606449098327 (EAN) |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Weight & dimensions
| Weight | 2.74 kg |
|---|---|
| Height | 43 mm |
| Width | 440 mm |
| Depth | 204 mm |
Certificates
| Certification | CE, FCC, VCCI, EN, C-Tick, CCC, CSA, UL/cUL, IEC |
|---|
Power
| Power consumption (typical) | 17.4 W |
|---|---|
| AC input voltage | 100 - 240 V |
Security
| Security algorithms | 802.1x RADIUS, HTTPS, SSL/TLS |
|---|---|
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
Design
| Rack mounting | Yes |
|---|---|
| LED indicators | Activity, Link, Power |
| Product colour | Blue |
Protocols
| Management protocols | SNMP v1/v2 |
|---|---|
| Supported network protocols | IP |
Performance
| Mean time between failures (MTBF) | 567680 h |
|---|---|
| Noise level | 0 dB |
| Firmware upgradeable | Yes |
Network
| Full duplex | Yes |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1as, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support | Yes |
| Port mirroring | Yes |
| Broadcast storm control | Yes |
| IP routing | Yes |
| Number of VLANs | 256 |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T |
Data transmission
| MAC address table | 16000 entries |
|---|---|
| Switching capacity | 52 Gbit/s |
| Jumbo frames support | Yes |
| Number of queues | 8 |
| Packet buffer memory | 2 MB |
| Number of static routes | 32 |
Operational conditions
| Operating altitude | 0 - 3000 m |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Non-operating altitude | 0 - 3000 m |
Packaging content
| Cables included | AC |
|---|---|
| Manual | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Management features
| MIB support | RFC 1213, RFC 1493 Bridge, RFC 1643 Ethernet Interface |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| System event log | Yes |
| Switch type | Managed |
Multicast features
| Multicast support | Yes |
|---|---|
| Number of multicast groups filtered | 512 |
Optical fiber
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| SFP module slots quantity | 2 |
