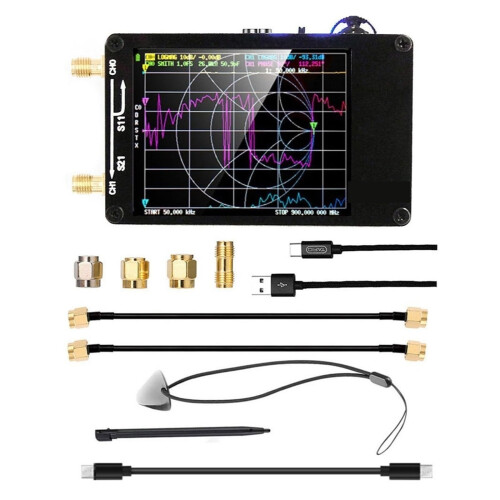

Network Analyzer Vector Network Antenna Analyzer MF HF VHF UHF With Card Slot For Network Cable Diagnostics

Network Analyzer Vector Network Antenna Analyzer MF HF VHF UHF With Card Slot For Network Cable Diagnostics Description

Broad frequency coverage supports MF HF VHF UHF ranges for versatile RF testing across multiple bands with a single instrument Integrated card slot provides extended data storage and easy firmware updates to simplify logging, data management, and software maintenance precision measurement of SWR impedance and phase enables accurate antenna tuning, improving matching and overall performance Clear display with realtime curve visualization supports fast diagnostics and easy interpretation of trends for efficient troubleshooting Use scenarios Amateur radio antenna tuning across HF VHF and UHF bands: measure SWR and phase, log results to the card, and update firmware on site as needed to maintain performance. Field RF testing and surveys: capture realtime curves during site measurements, store data for post analysis, and compare results to verify system integrity. Laboratory multiband antenna development: use precision SWR and phase measurements to refine tuning and verify improvements, with curve visualization aiding quick evaluation.
