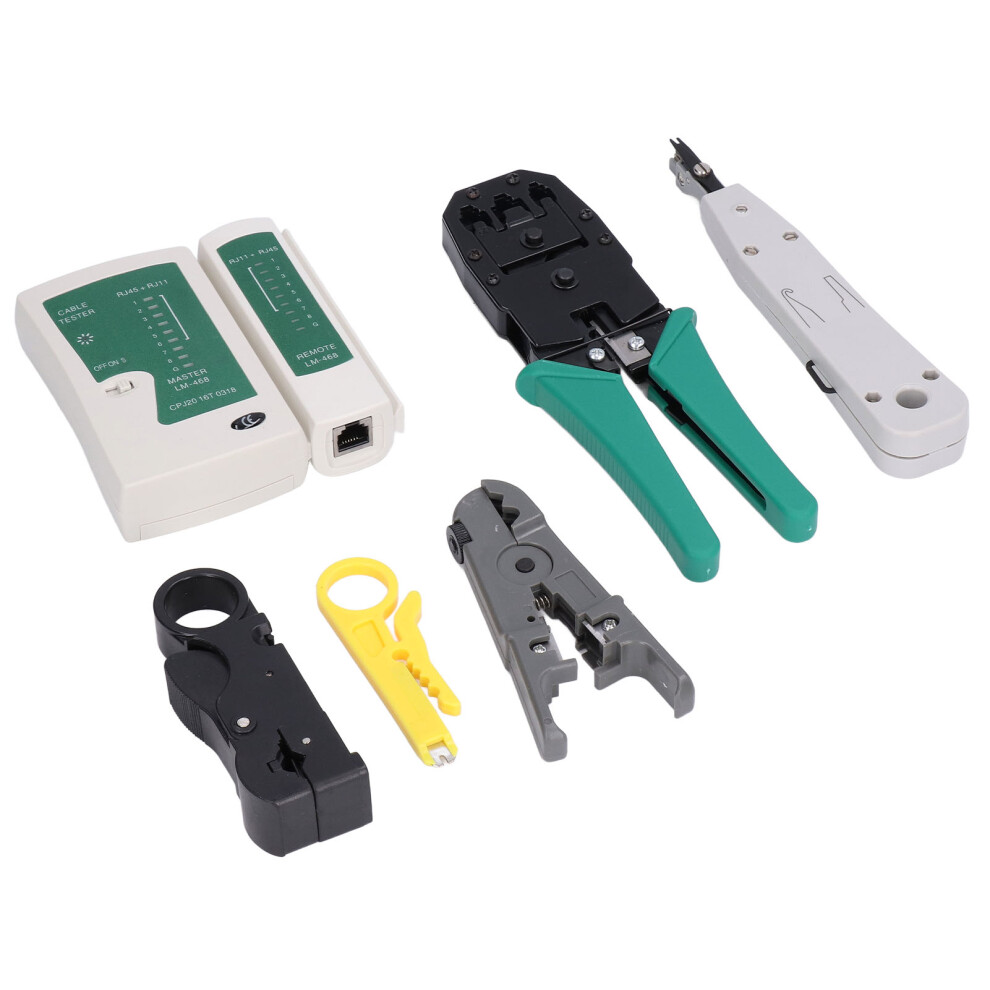

Network Cable Tool Kit 2KT-2172 with Wire Cutter & Tester

Network Cable Tool Kit 2KT-2172 with Wire Cutter & Tester Description

Network Cable Tool Wire Cutter Stripper Pliers Repair Maintenance Set Kit for Testing
Item Type: Network Cable Tool
Material: Steel + PP + ABS
Model: 2KT-2172
Tester Battery: 1 x 9V dry battery (without battery).
Application Scope of Wire Cutter: For telephone line, network cable, monitoring line.
Application Scope of Coaxial Wire Stripping Pliers: For coaxial cable RG58/RG59/RG62/RG3C/RG4C.

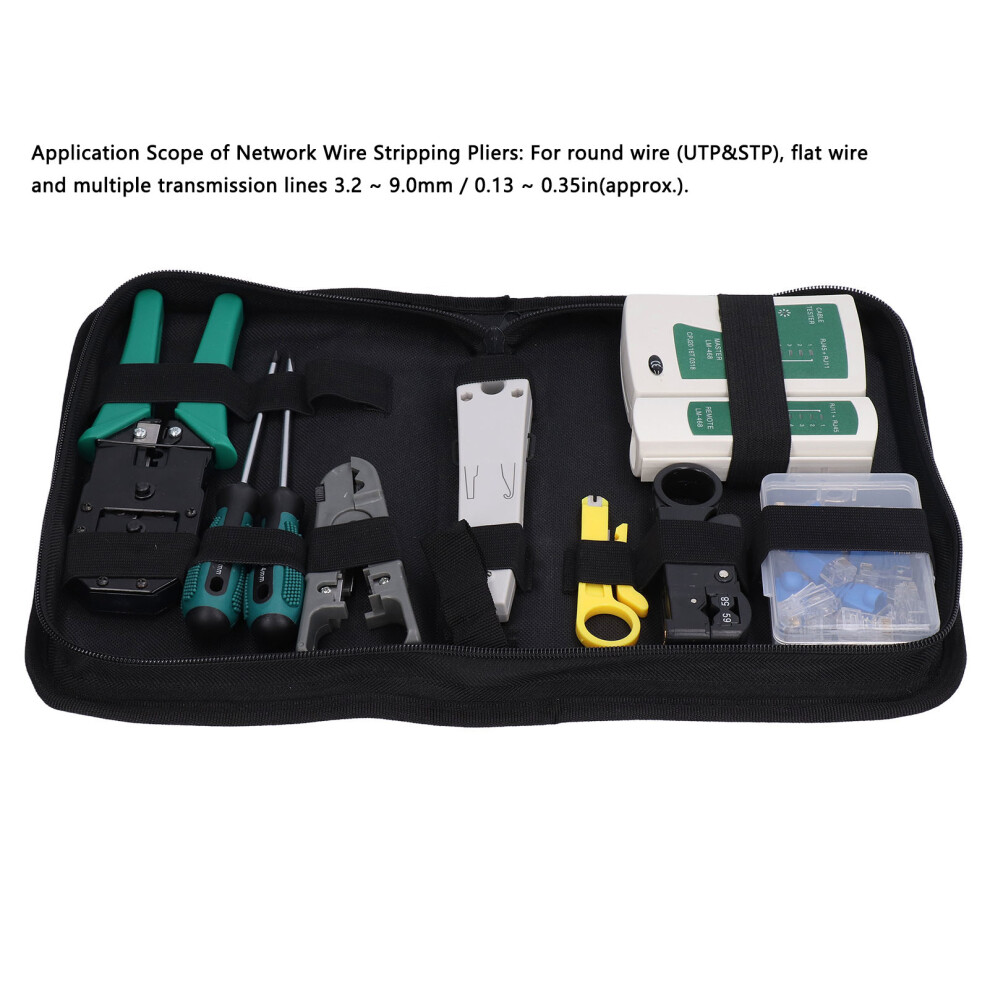

Application Scope of Network Wire Stripping Pliers: For round wire (UTP&STP), flat wire and multiple transmission lines 3.2 ~ 9.0mm / 0.13 ~ 0.35in(approx.).
How e:
1. Test the twisted pair 1, 2, 3, 4, 5, 6, 7, 8, and G wire pairs one by one (pair), and can distinguish which one (pair) is wrong, short circuit and open circuit.
2. Switch ON is the normal test speed, S is the slow test speed, and M is the manual gear.

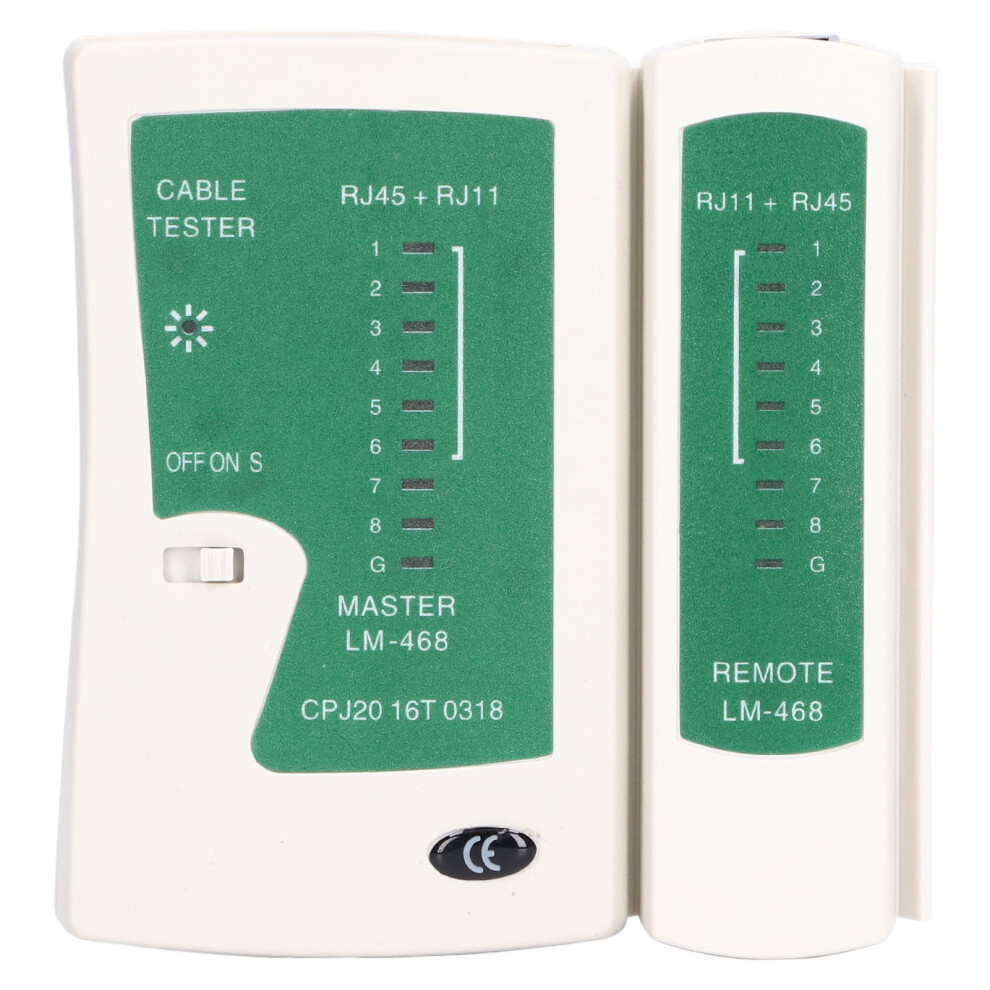

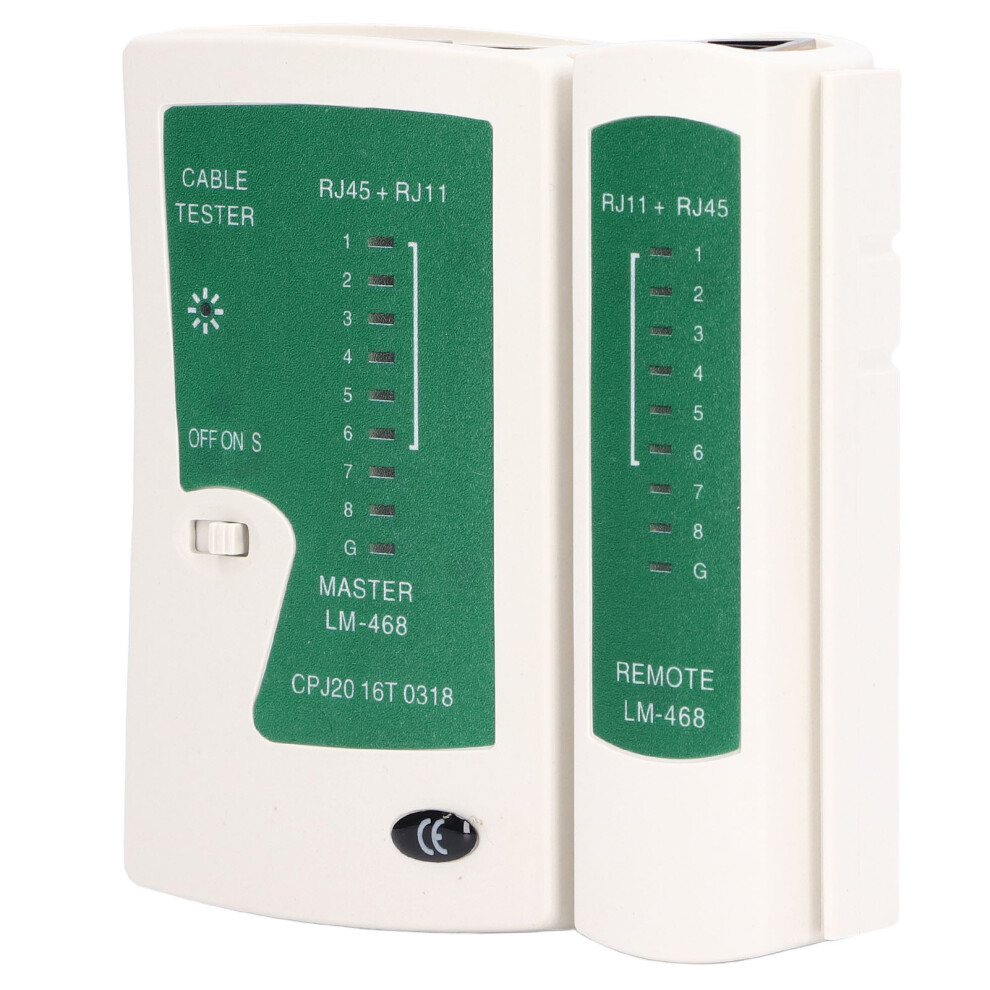

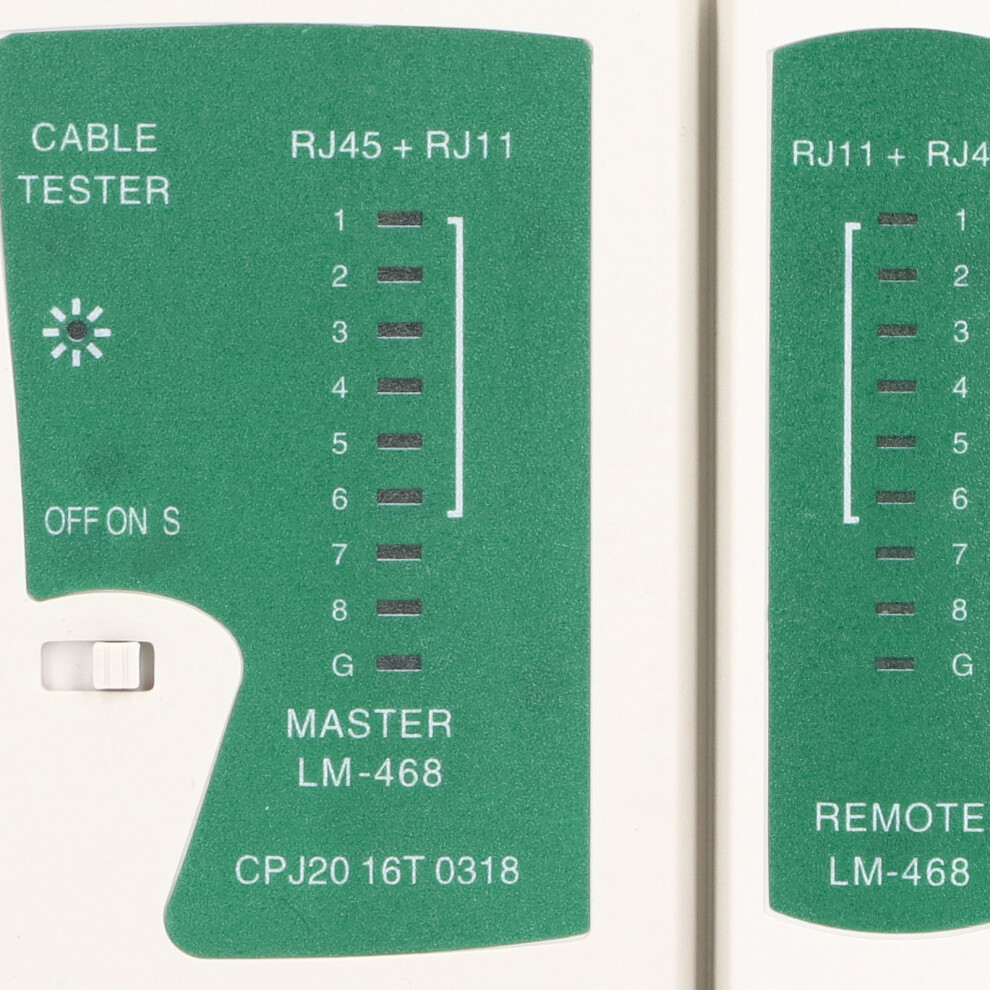

3. Twisted Pair Test: Turn on the power, insert the network cable plugs into the main tester and remote tester respectively, and the indicator lights of the host will flash from 1 to G one by one, as follows:
Main Tester: 1-2-3-4-5-6-7-8-G
Remote Tester: 1-2-3-4-5-6-7-8-G (RJ45)
1-2-3-4-5-6------(RJ12)
1-2-3-4----------(RJ11)
If the wiring is not normal, it will be displayed as follows:
A. When a network cable such as line 3 is disconnected, the main tester and remote test terminal 3 lights will not light up.
B. When several lines are unavailable, several lines will not light up. When the network cable is less than 2 lines connected, the lights will not light up.
C. When the two ends of the network cables are out of order, for example 2, 4 wires are out of order, the display is as follows:
The Main Tester Remains Unchanged:
1-2-3-4-5-6-7-8-G
The Remote Test Terminal is:
1-4-3-2-5-6-7-8-G
D. When two network cables are short circuited, the main tester does not light up, and the two cables that are short circuited at the remote test terminal are both lit slightly. If there are more than three (including three) short circuited, all the short circuited cables The lights of all line numbers are not on.
