NEUTRIK - 6.35mm Jack Plug, Mono, 90 Degree, Black Description

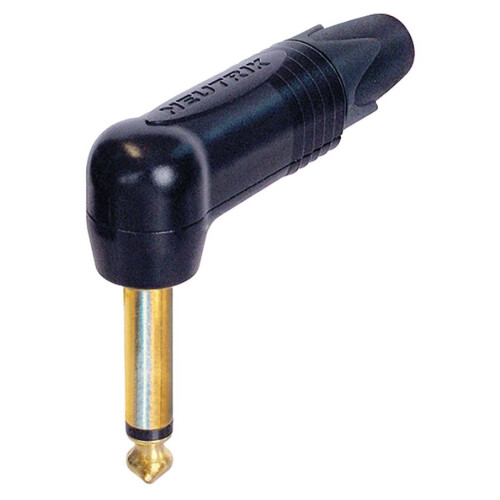

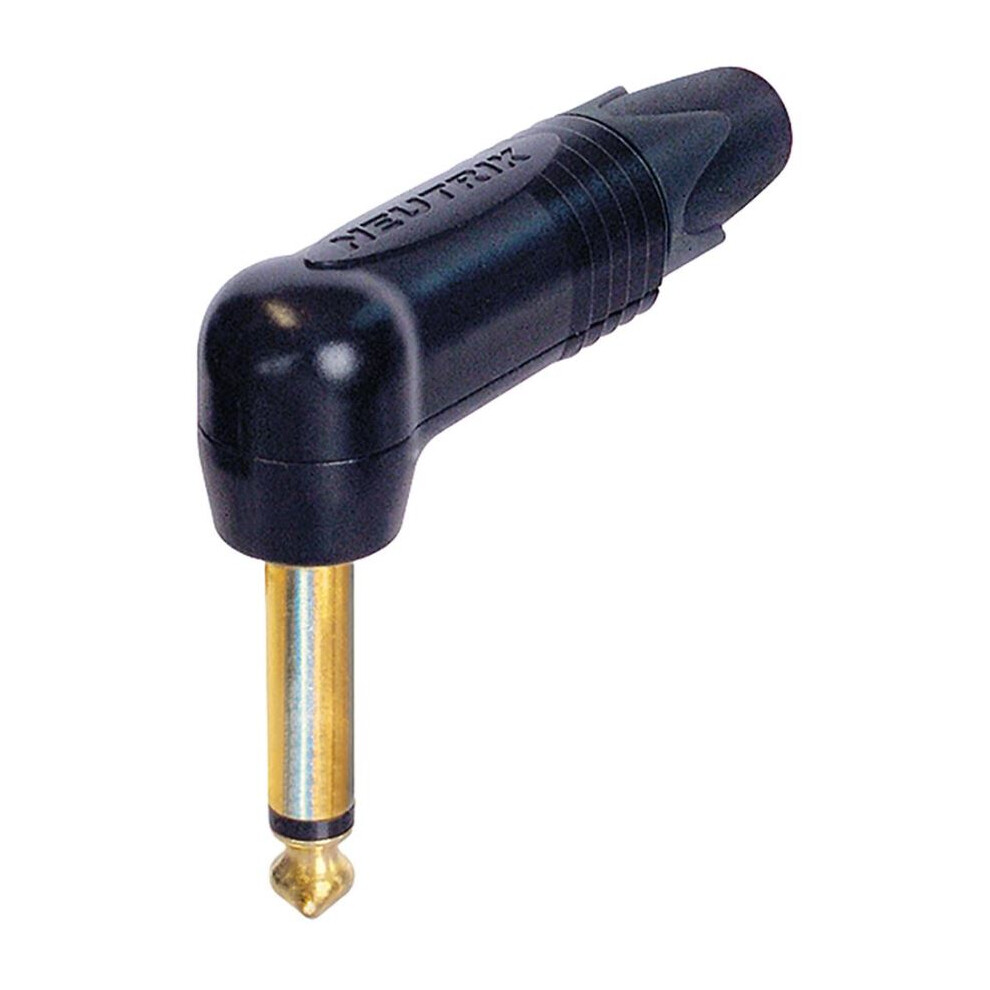

The NP2RX-B from Neutrik is a 2 pole right angle 1/4" professional phone plug. This heavy duty professional phone plug has proven unique chuck type strain relief for reliable cable retention. The slim-line shell with a width of 14.5mm meets the most recent requirements for highest density jack fields (15.88mm jack pitch). The precise machined one piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. All metal housing design of this connector eliminates plastic cover of predecessor NP*RCS and improves further durability and EMI protection. This phone plug is used in audio cables, snakes, speakers, amplifiers, mixing desks and guitar applications.
Extra slim 1/4" plug for highest packing density
Robust die-cast shell in stylish design
Sleek design for best handling convenience
Rated voltage is less than 50V
Cable outer diameter range from 4mm to 7mm
Wire size is 18AWG (1mm²) and greater than 1000 mating cycles
Gold plated brass solder contacts, polyacetal + PU bushing and polyamide insert material
Zinc die-cast shell with black chromium plating
IEC 60603-11/EIA RS-453 compliant
Temperature range from -20C to 65C
Applications
Audio, Consumer Electronics, Imaging, Video & Vision
No. of Contacts: 2Contacts
Gender: Plug
Pin Diameter: 6.35mm
Connector Mounting: Cable Mount
Contact Plating: Gold Plated Contacts
Connector Body Material: Metal Body
Product Range: PX
Details
| OPC | PFCDC7S |
|---|---|
| Brand | Neutrik |
| Codes | 3551984152287 (EAN) |
| MPN | NP2RX-B |
