New 2-Way Audio Isolator, XLR 6.5, Permalloy Isolator

New 2-Way Audio Isolator, XLR 6.5, Permalloy Isolator Description

1. Support 2-way 6.5/XLR input and output
2. Two-channel physical input-output fully isolated, balanced/unbalanced conversion
3. Isolate external line interference, isolate ground loop caused by current sound, noise, noise
4. Protect equipment from ground voltage difference surge impact static damage, improve sound quality and remove digital taste

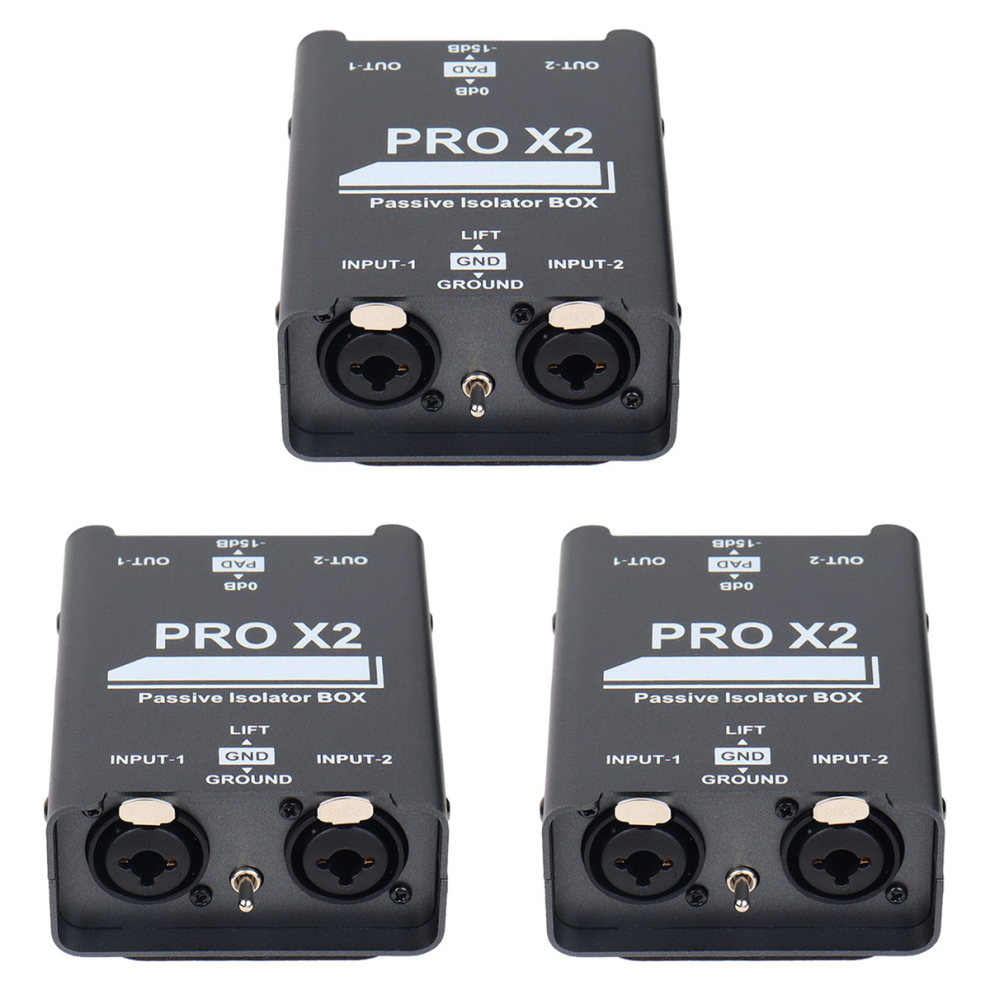

Model PRO X2
Input impedance: 600Q (AC impedance)
Output impedance: 600Q (AC impedance)
Input interface: 6.35/XLR (hybrid interface) X2
Output interface: XLR X2
Mode: Passive
Main functions: Two-channel physical isolation, balanced/unbalanced conversion
Frequency response: 20Hz-25kHz (Less than 0.3dB ref 1kHz)
Loss: Less than 0.7dB (ref 1kHz 1V rms)
Insulation resistance: DC1000V 100MQ
Isolation voltage: AC 50Hz-60Hz0V-1500V
Size: 32X69X80MM
Weight: 900g
Colour:black
Material:ABS

Package Contents:
3 x audio isolator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
