(No shell) M5Stack StickC Plus RF 2-in-1 Module NRF24 2.4GHz CC1101 433MHz Bruce Firmware
New
£57.96
Similar Products we think you'll like
Would you like us to let you know when it's back?
Description & Details
(No shell) M5Stack StickC Plus RF 2-in-1 Module NRF24 2.4GHz CC1101 433MHz Bruce Firmware Description
Description:

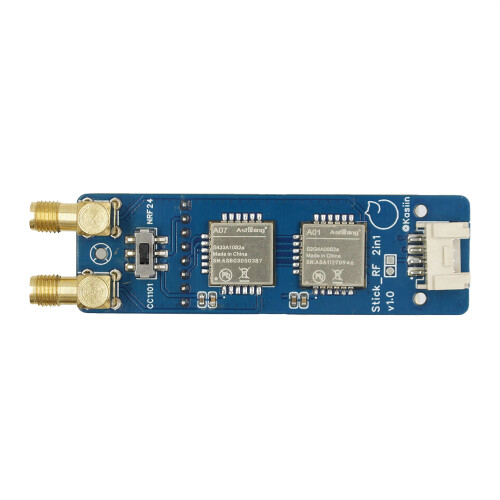

This dual-mode RF development board is specially designed for the M5Stack StickC Plus2, integrating both A01-S2G4A00S2A (2.4GHz NRF24) and A07-S433A10S2A (433MHz CC1101) modules.
Fully compatible with Bruce firmware, it features a plug-and-play design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.
Fully compatible with Bruce firmware, it features a plug-and-play design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.
Features:
Dual-module design: supports both NRF24 (2.4GHz) and CC1101 (433MHz) communication.
Tailored for M5Stack StickC Plus2, plug-and-play.
Bruce firmware compatible, no complex setup required.
High-performance RF communication for reliable data transmission.
Physical switch for easy module selection.
Usage Instructions:
Package Included(1):
Package Included(2):
Module Details:
2.4GHz NRF24 Module (A01-S2G4A00S2A): stable, high-speed short-range wireless communication
433MHz CC1101 Module (A07-S433A10S2A): low-power, long-range RF transmission
Reliable performance with optimized signal layout and power design
Usage Instructions:
1. Flash Bruce Firmware (First-Time Setup):
To use this board with StickC Plus2, first flash the Bruce firmware.
Follow the instructions to select the correct device (StickC Plus v1.1/v2) and complete the flashing process
2. Hardware Connection:
Connect the RF board to the M5Stack StickC Plus2 using the Grove cable or GPIO jumper wires.
The GPIO pin-out is pre-configured and compatible with Bruce firmware.
3. Switching Between Modules:
This board includes a physical switch to toggle between the two RF modules.

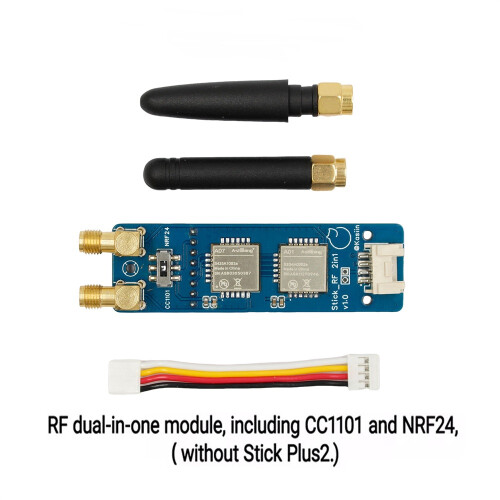

Package Included(1):
1*RF Module
2* Antennas
1*Pin Cable

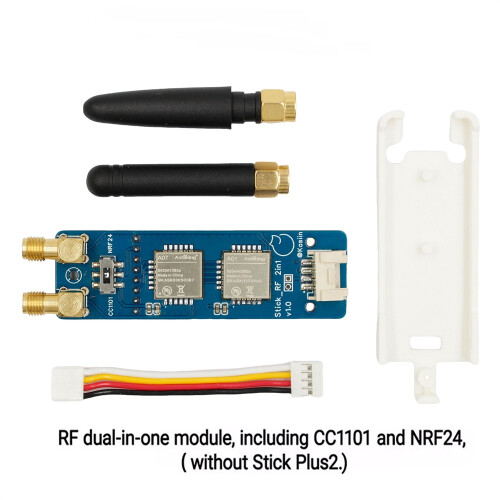

Package Included(2):
1*RF Module
2*Antennas
1*Pin Cable
1*Shell
Details
| OPC | PTPF9TK |
|---|---|
| Codes | 0110691395788 (EAN) |
