Nobsound Analog Stereo VU Meter Audio Level Display Sound Level Meter Visualiser

Nobsound Analog Stereo VU Meter Audio Level Display Sound Level Meter Visualiser Description

Dual Channel Real-Time VU Display: High-precision custom VU meters independently display left and right audio channels with smooth needle movement, providing real-time visualization of your music dynamics. Adjustable Sensitivity for Perfect Response: Built-in control knob allows you to fine-tune the needle swing according to input signal strength, ensuring optimal visual performance across different audio sources.

• View All Categories
  • Add-on Items
  • Record Player & Turntable Part

• Audio Board & DIY Kit
• Audio Player & Turntable Parts

Sign Up Now ! Nobsound Analog Stereo VU Meter Audio Level Display Sound Level Meter Visualiser Item description Features

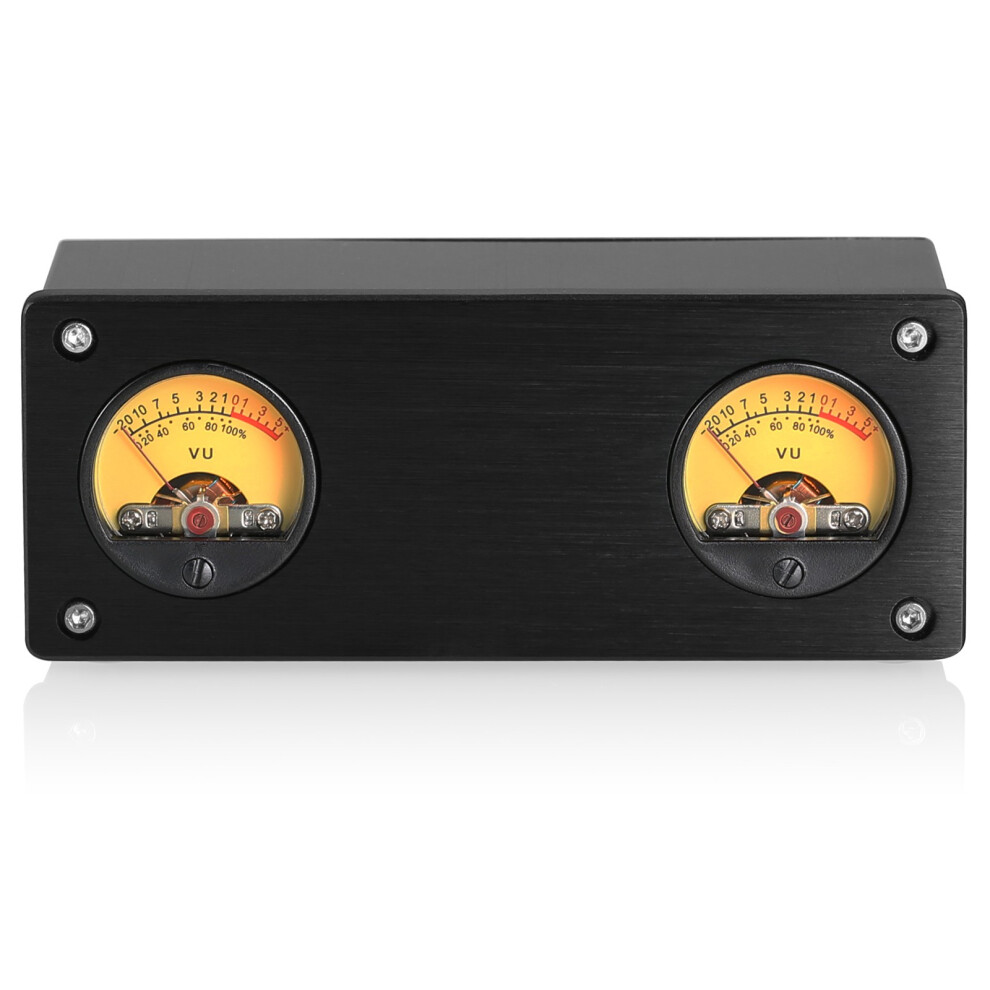

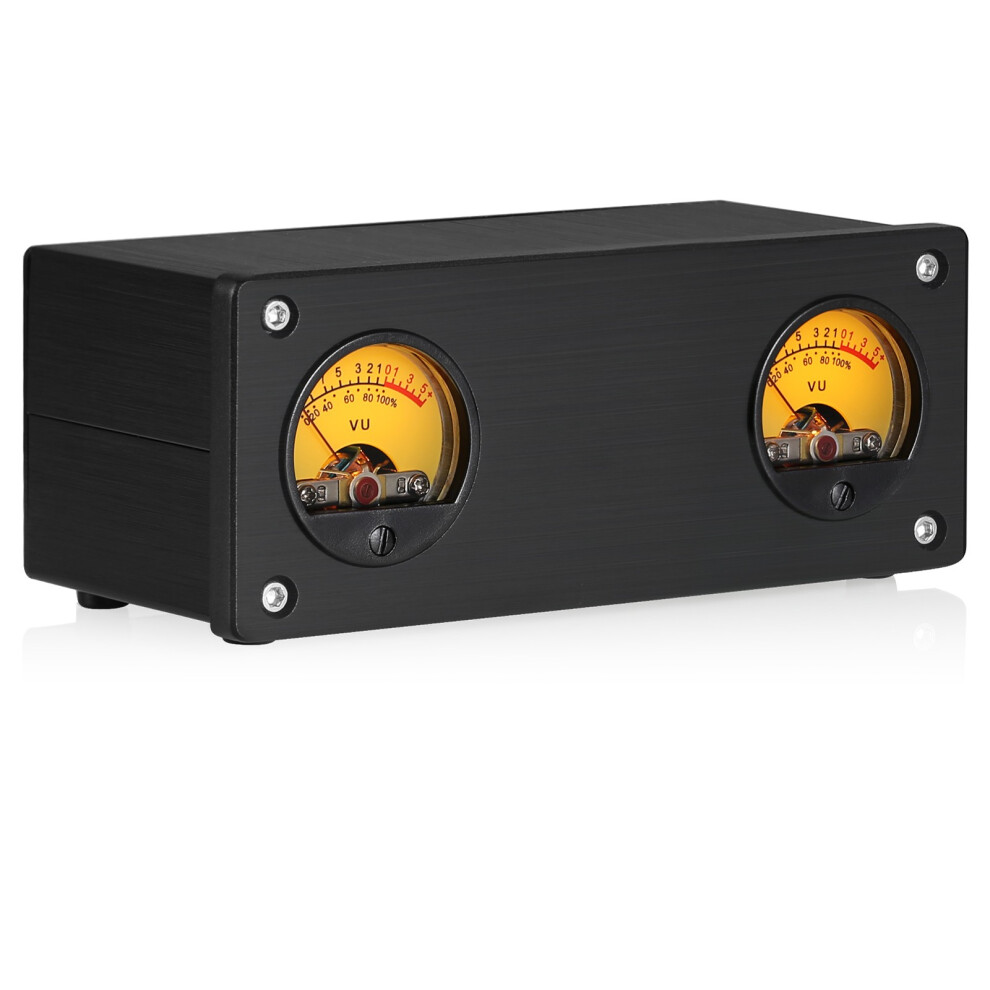

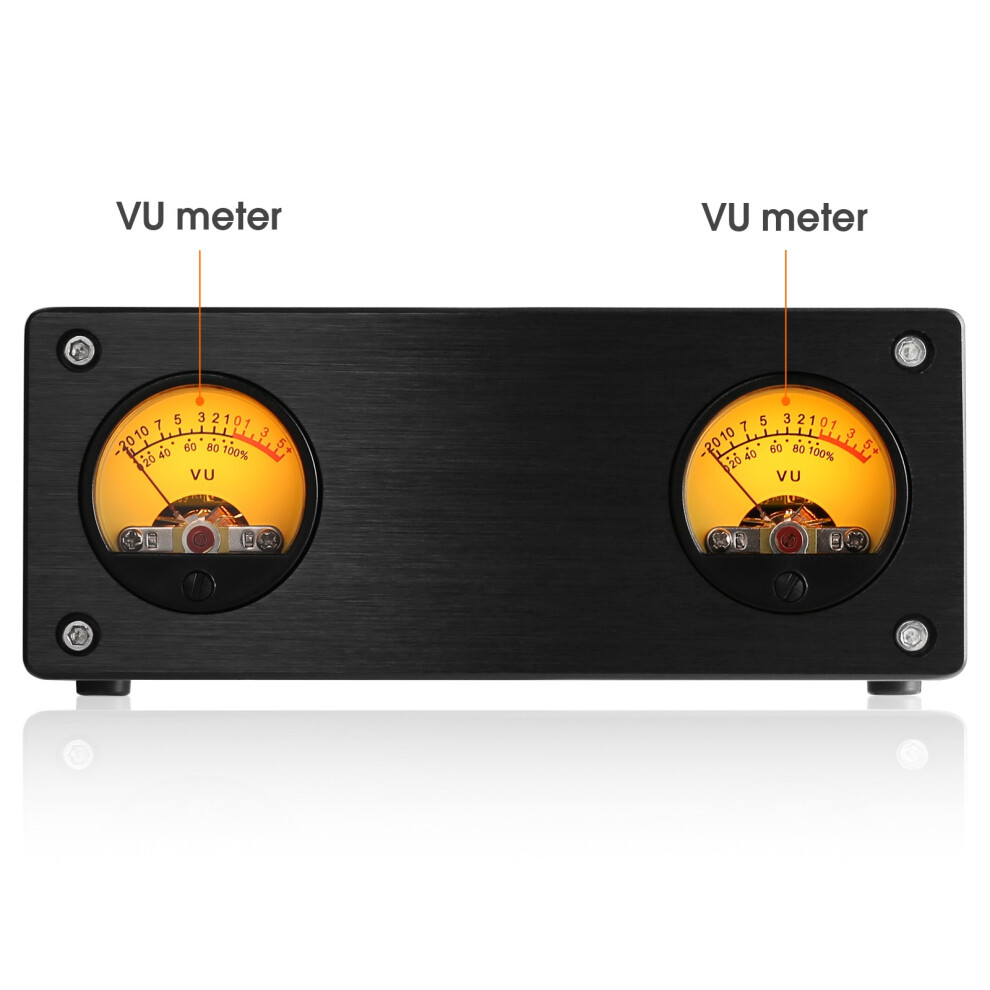

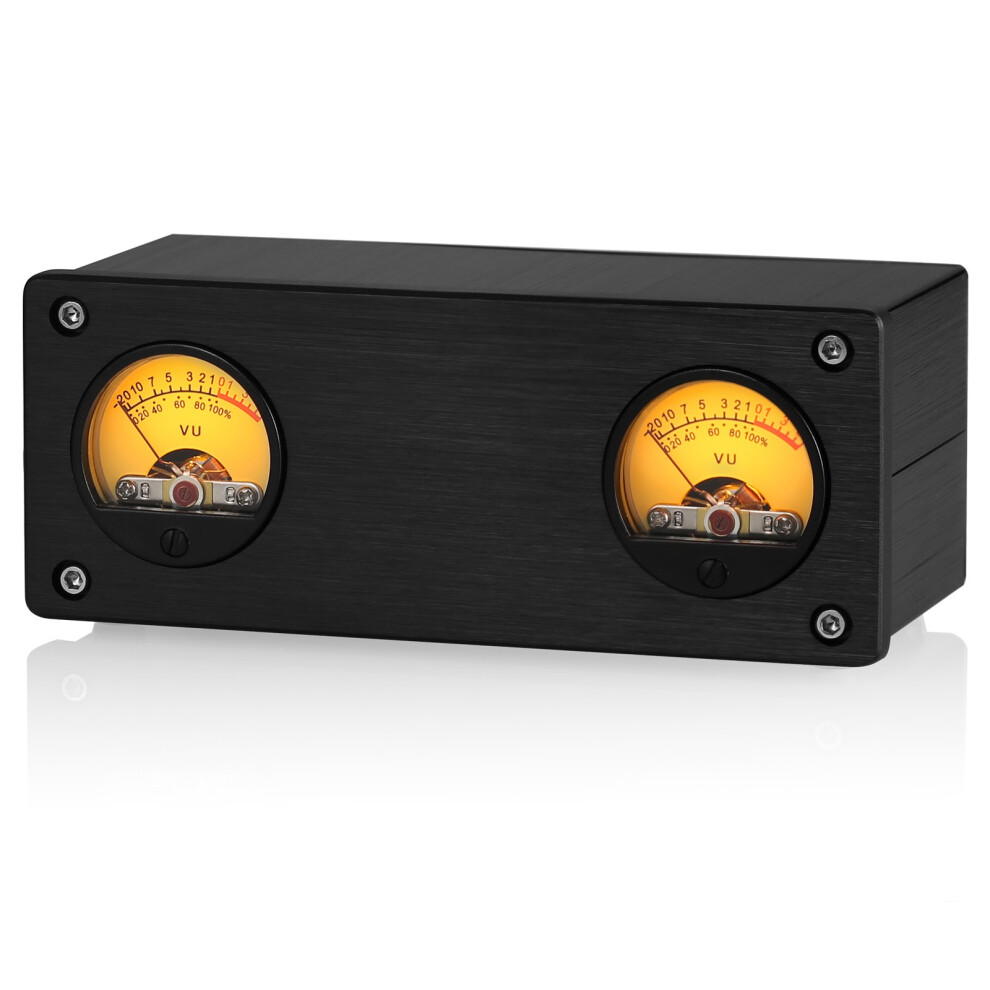

• Dual Channel Real-Time VU Display: High-precision custom VU meters independently display left and right audio channels with smooth needle movement, providing real-time visualization of your music dynamics.

• Adjustable Sensitivity for Perfect Response: Built-in control knob allows you to fine-tune the needle swing according to input signal strength, ensuring optimal visual performance across different audio sources.

• Pure Analog Pass-Through: Audio signal is internally buffered and amplified only for meter driving, without affecting the original signal path, preserving sound quality with zero degradation.

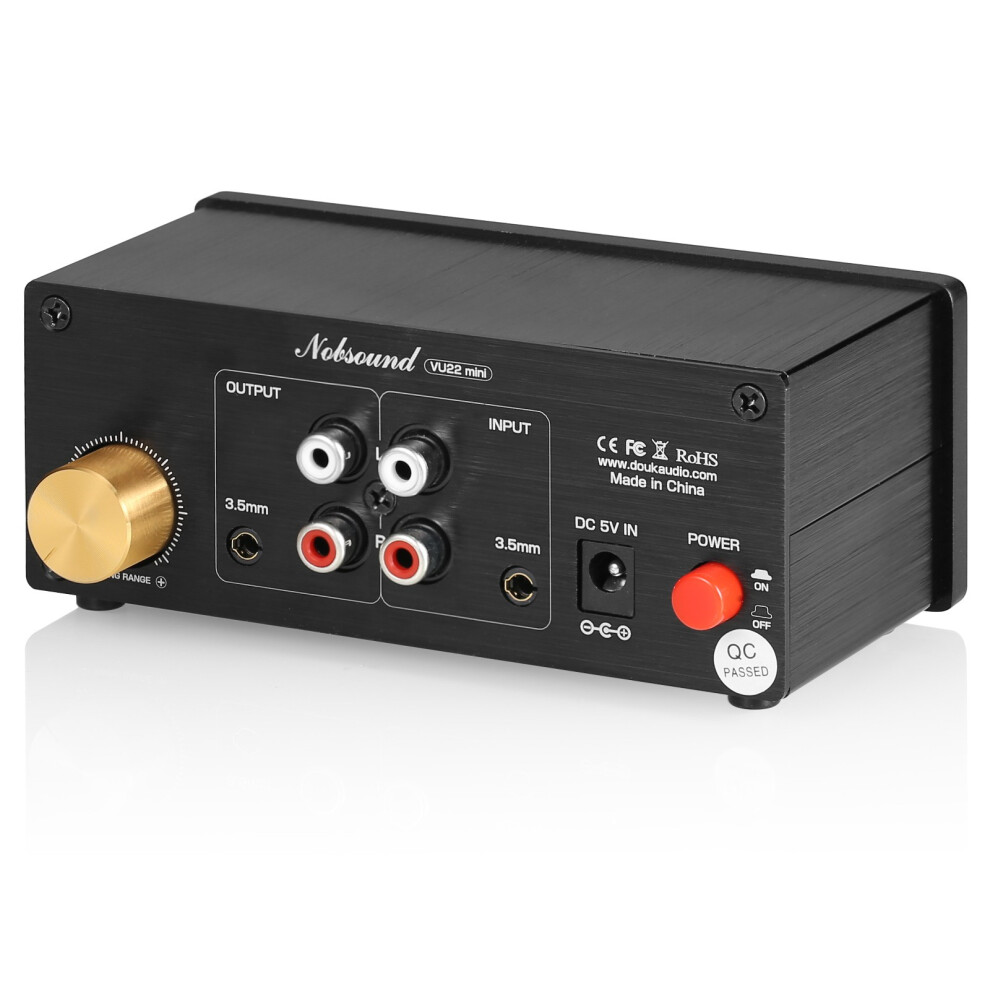

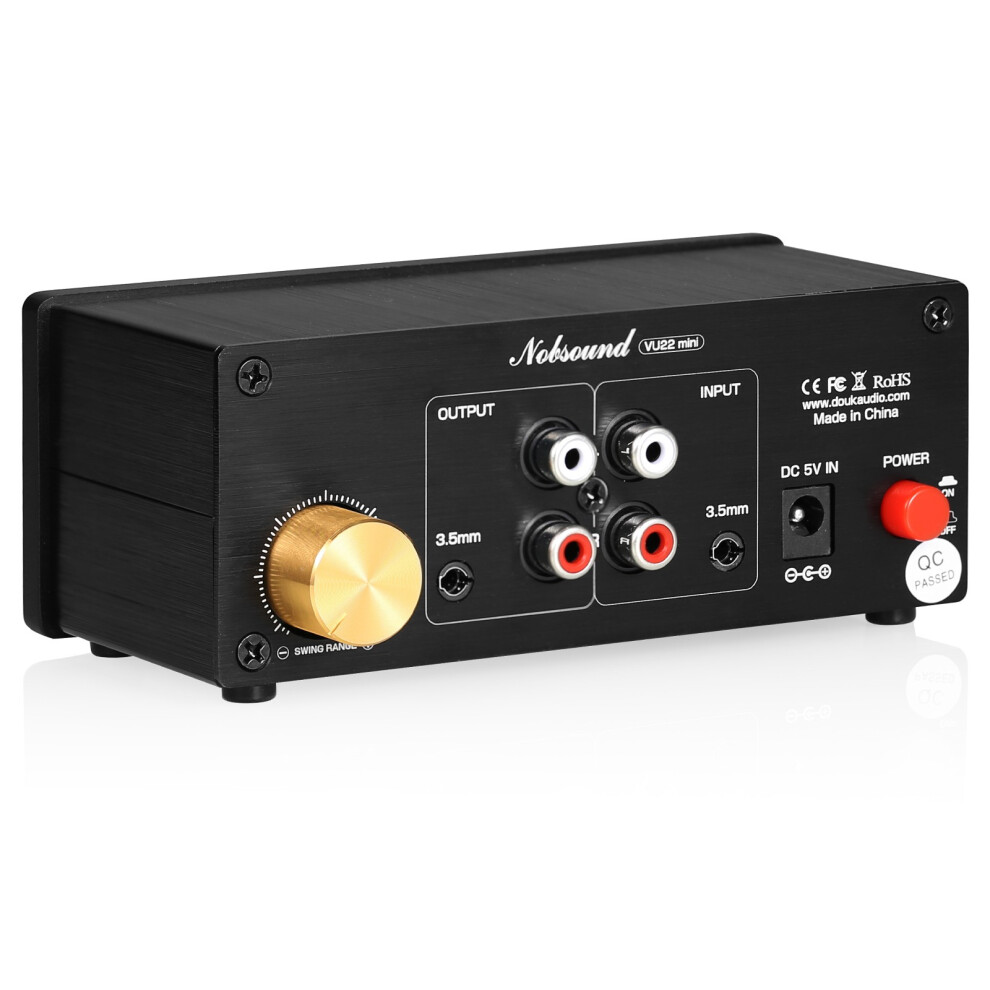

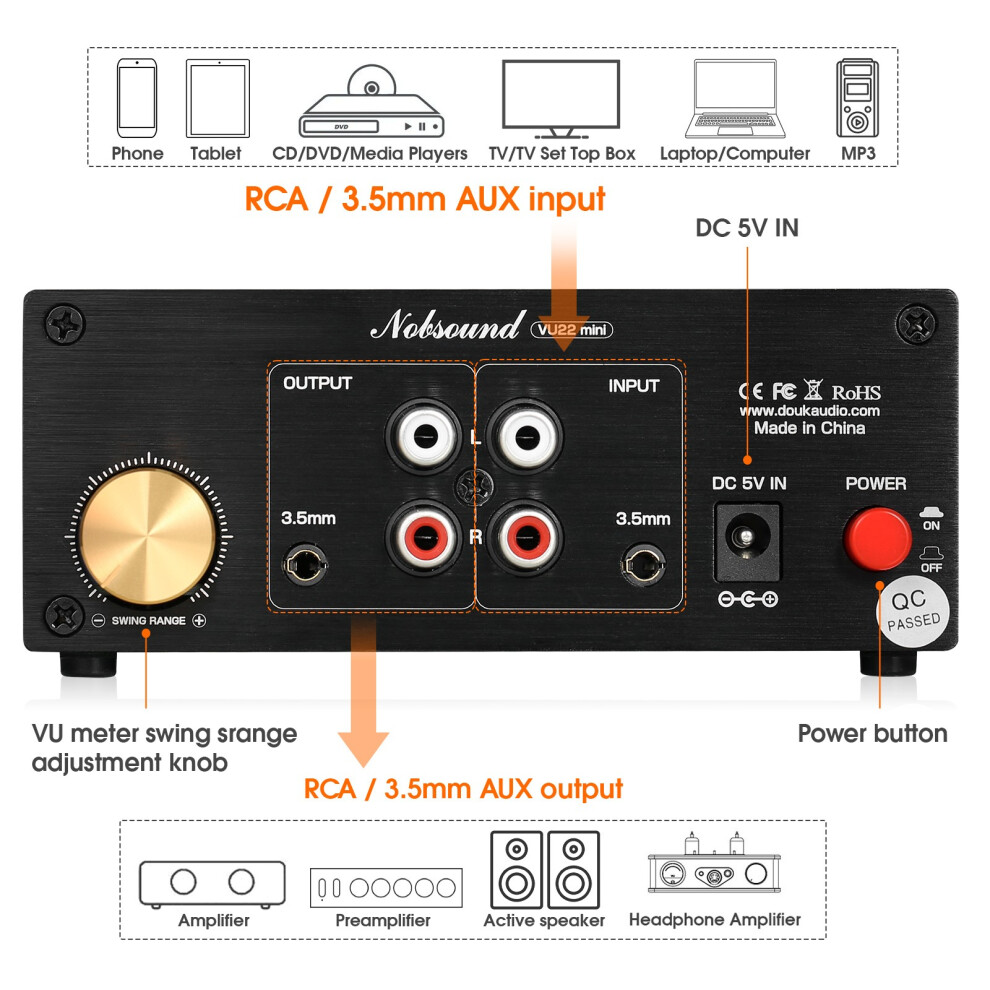

• RCA and 3.5mm Input and Output: Supports both AUX and RCA interfaces with parallel design, easy integration with DACs, amplifiers, active speakers, computers, CD players and more.

• Plug and Play USB Powered Design: Simply connect the included USB to DC cable to a 5V power supply and your audio source to start, paired with solid metal case, adding dynamic visual appeal to your desk.

Q: What kind of power supply should I prepare?
A: Please use a DC 5V power supply with at least 500mA output. Higher voltage may cause damage, while insufficient current may affect performance.

Q: Can the VU22 MINI be used as a preamp, and will it affect the audio signal or volume?
A: No, the VU22 MINI is not a preamp. The adjustment knob only controls the signal sent to the VU meter for visual response and does not affect the original audio signal or volume passing through your system.

Q: Can I connect two audio sources or output to two devices simultaneously with the VU22 MINI?
A: Both the inputs and outputs of the VU22 MINI are connected in parallel. It is not recommended to connect two audio sources at once, as this may impact the VU meter performance. However, you can output to two devices simultaneously.

Q: Why do the left and right VU meters respond differently?
A: The inconsistency in the left and right VU meters is a normal phenomenon caused by differences in the stereo balance of different songs. It does not indicate a malfunction of the VU22 MINI.

Parameters

• Brand: Nobsound
• Model: VU22 MINI
• Audio Input: RCA / 3.5mm AUX
• Audio Output: RCA / 3.5mm AUX
• Channels: 2.0 Stereo
• Swing Range Adjustment: Supported
• VU Meter Diameter: 30mm / 1.18in
• Power Input: DC 5V (≥500mA)
• Dimensions (W × D × H): 130 × 60 × 50mm / 5.12 × 2.36 × 1.97in
• Net Weight: 320g / 0.705lb

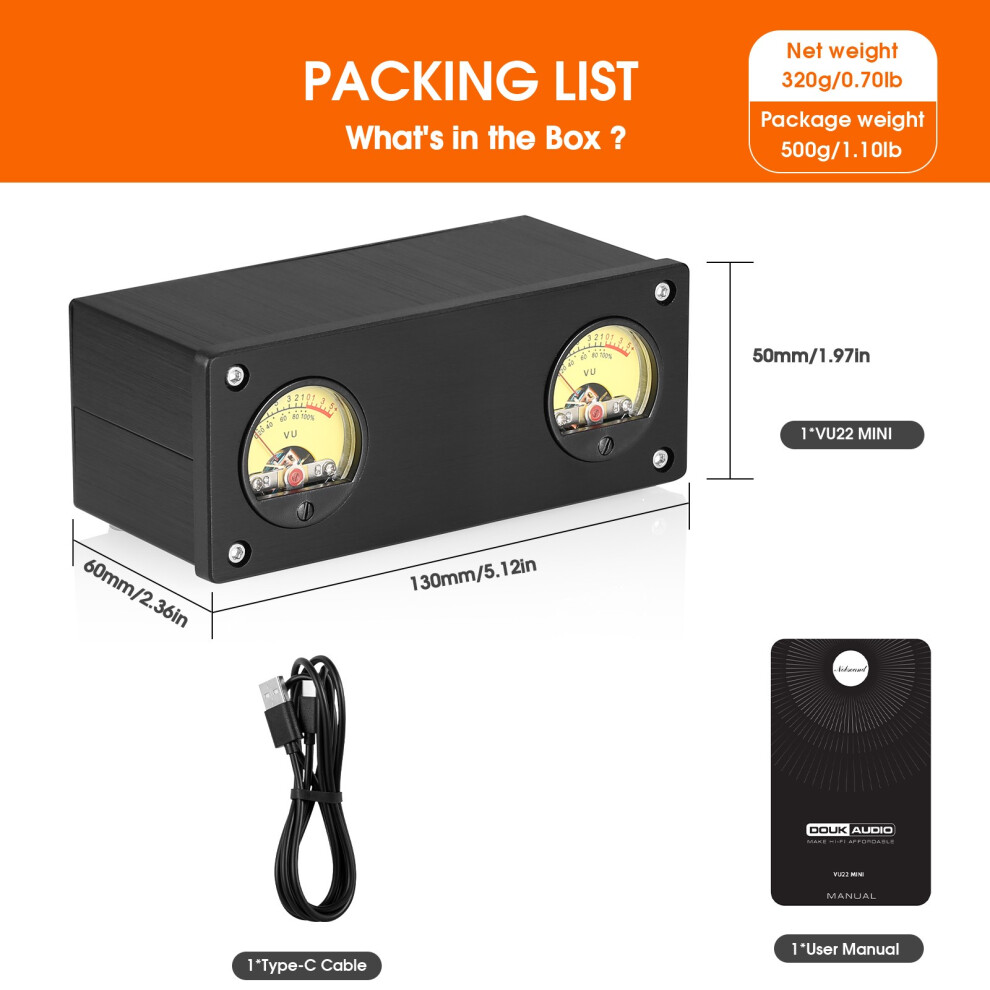

Packing List

• 1* VU22 MINI
• 1* USB to DC Cable
• 1* User Manual

1-year warranty is provided for all items(Excluding: 1. Man-made damage or misuse. 2. Audio accessories and consumables such as vacuum tubes).
