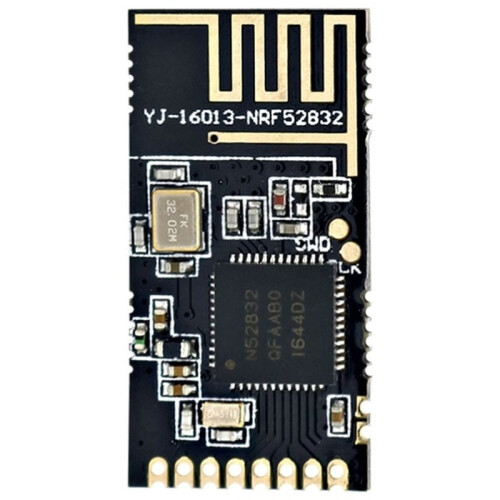

Nordic NRF52832 Module Low Power Development Board Automation Modules for BLE Mesh

Nordic NRF52832 Module Low Power Development Board Automation Modules for BLE Mesh Description

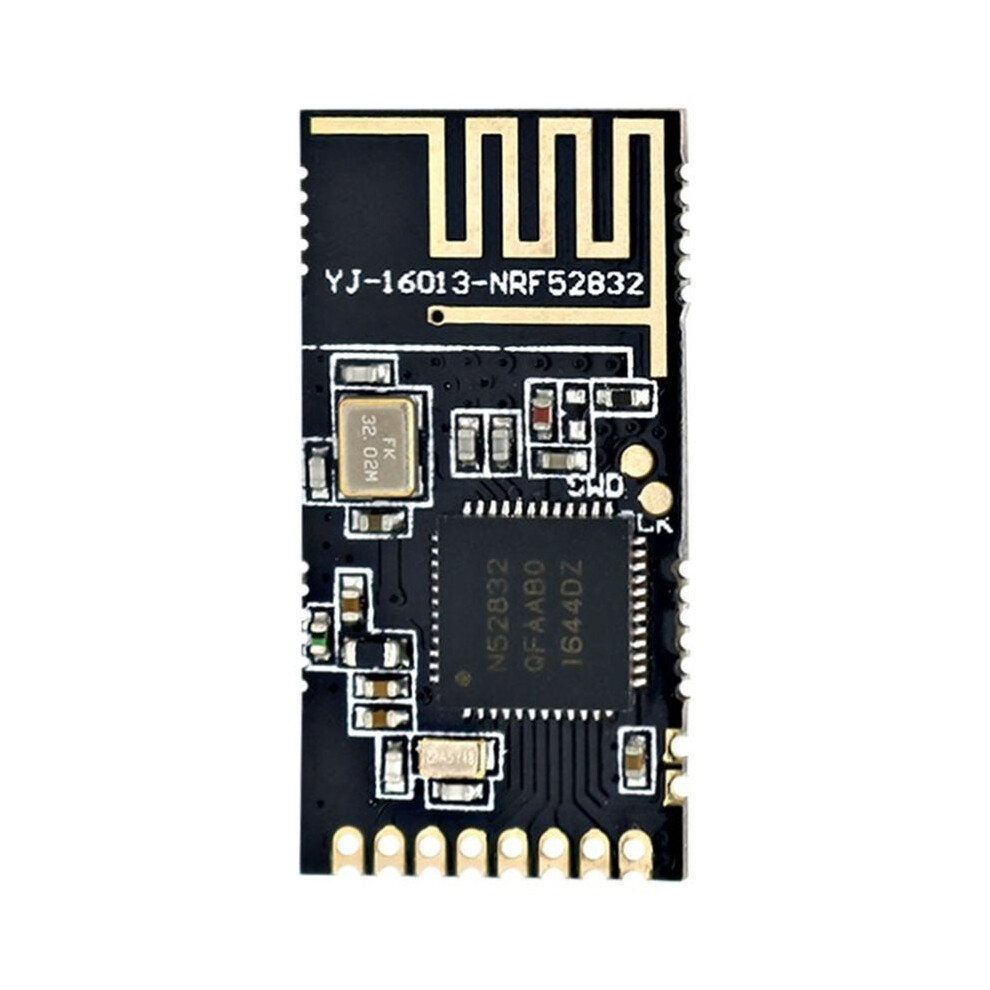

BLE module is based Nordic nRF52832 Soc , The nRF52832 SoC is a powerful, highly flexible ultra-low power multiprotocol SoC ideally suited for low (previously called ), ANT and 2.4GHz ultra low-power wireless applications.
The nRF52832 SoC is built around a 32-bit CPU with 512kB + 64kB RAM. The embedded 2.4GHz transceiver supports low , ANT and proprietary 2.4 GHz protocol stack. It is air compatible with the nRF51 Series, nRF24L and nRF24AP Series products from Nordic Semiconductor.

Features
Scalable 2.4GHz multi-protocol SoC
ARM Cortex-M4F processor
Operating voltage: 1.7V-3.6V
512kB Flash + 64kB RAM
Supports Low (BLE) and ANT protocols
-chip NFC for OOB (Out-of-Band) pairing
Transmit to +4dBm
BLE receive sensitivity: -96dBm
Secure execution and thread protection
Event-driven API
Over-the-air compatible with nRF24L and nRF24AP series
2x data rate (2Mbps/1Mbps)
27 GPIOs
Highly flexible and efficient application code optimization
Automatic power management peripherals
Configurable digital and analog I/O
3x Master/Slave SPI
2x I2C
UART (RTS/CTS)
3x PWM
AES hardware encryption
RTC
PDM
-chip balun
SWD debug interface (SWDIO, SWCLK, VDD, GND)
nRF52832 QFAA
Multiprotocol radio( low ,ANT,2.4G proprietary)
Color: Black
Material: PCB

Package Contents:
1 * Development Board
