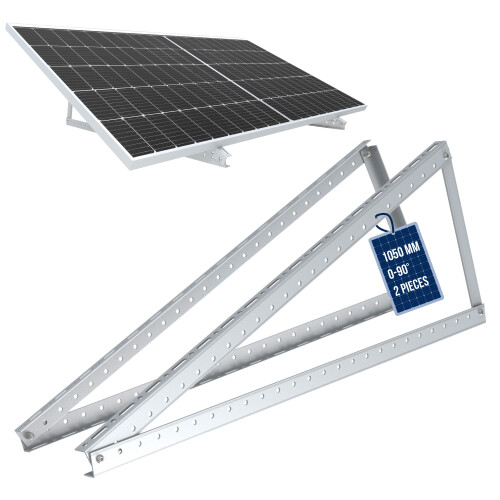

NuaSol Bracket for solar panel elevation up to 105 cm flat roof PV solar module

NuaSol Bracket for solar panel elevation up to 105 cm flat roof PV solar module Description

NuaFix - Triangular solar panel mounts 1050mm inclination angle 0-90°

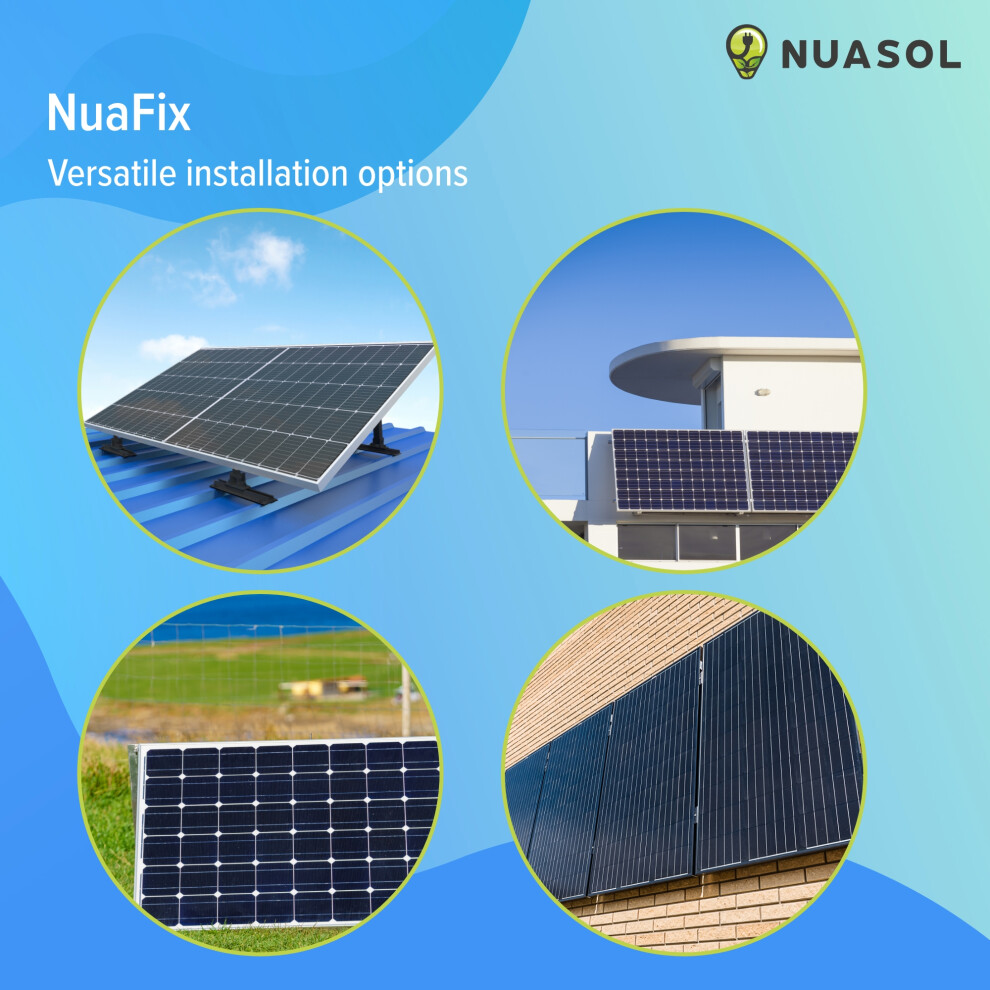

NuaFix offers you different mounting materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks or adjustable brackets to Z-brackets, with us you will find the right mounting material for every type of mounting.

Triangular solar panel brackets 0-90°

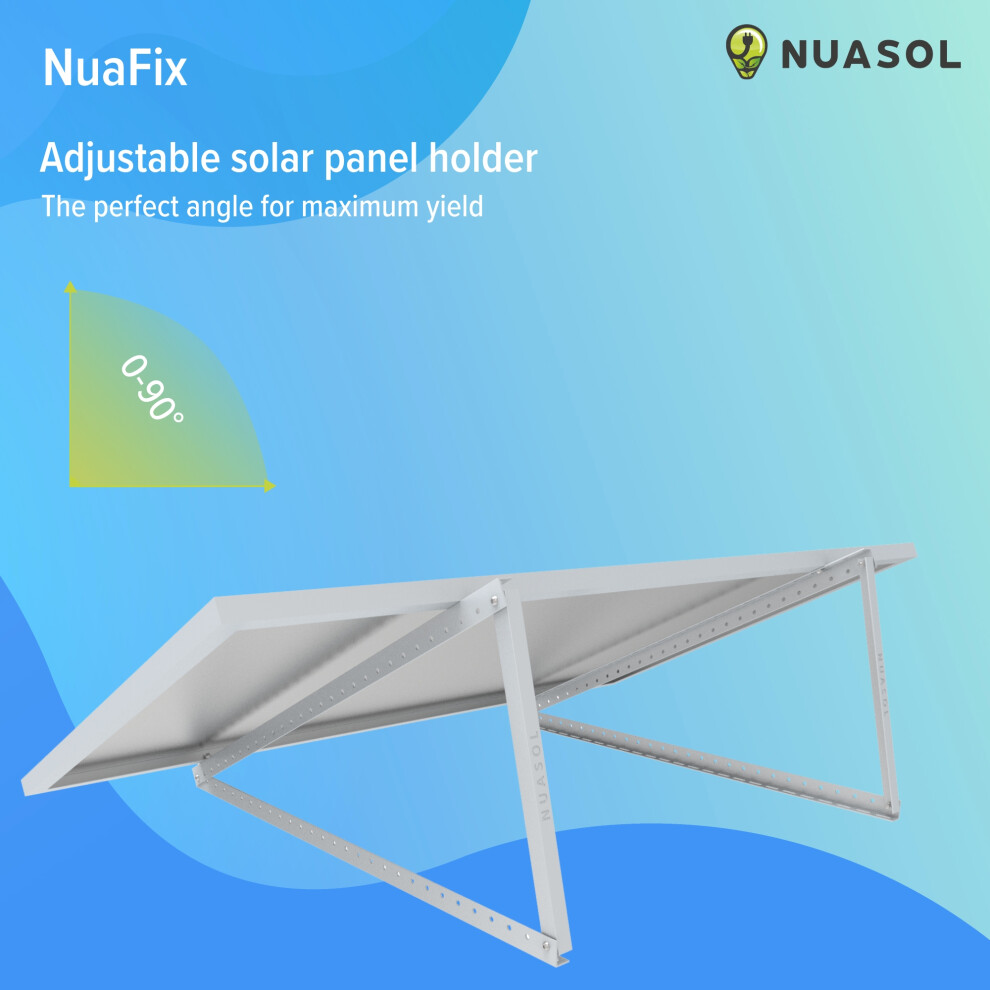

Made from AL6005-T5 aluminium, our weather-resistant adjustable PV system brackets are easy to attach to the solar panel, so your solar system is ready to go in no time. SUS304 stainless steel bolts and nuts are included. Our adjustable brackets are suitable for installations on flat surfaces such as garages, gardens, balconies... . Convenient adjustment of the tilt angle to harvest the maximum yield.

NuaFix - Flexible brackets 0-90°

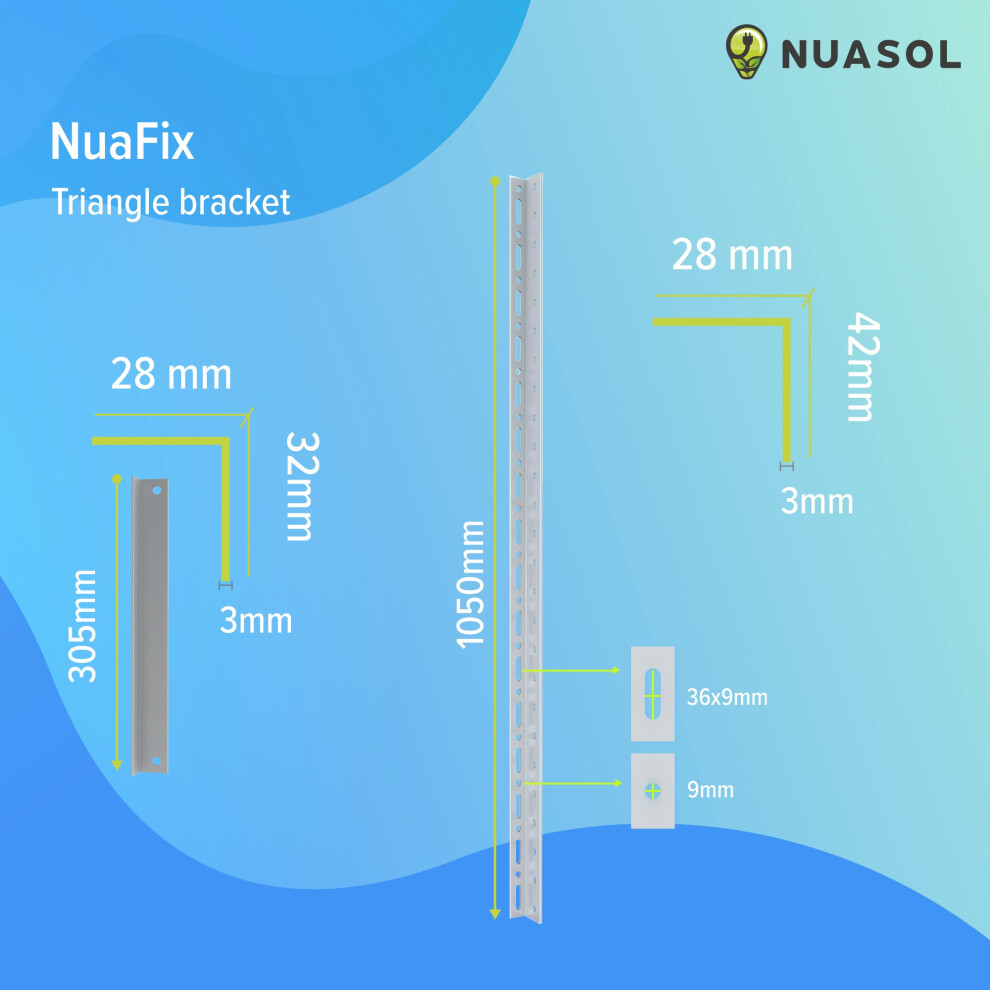

• Dimensions long strut (WxDxH): 28 x 42 x 3m
• Length long strut: 1050 mm
• Length cross brace: 365 mm
• Dimensions cross strut (WxDxH): 28 x 32 x 3m
• Max. Solar module width: 1050 mm
• Material thickness: 3 mm
• Dimensions of fixing holes for long strut: 9 mm / 36 x 9 mm
• Material bracket: Aluminium AL6005-T5
• Material bolts & nuts: stainless steel SUS304
• Angle: 0-90
• Weight: 2,49 kg

Technical data

NuaFix

• Dimensions long strut (WxDxH): 28 x 42x 3 mm
• Length long strut: 1050mm
• Length cross brace: 365mm
• Dimensions cross strut (WxDxH): 28 x 32x 3 mm
• Max. Solar module width: 1050mm
• Material thickness: 3 mm
• Dimensions of mounting holes long strut: 9 mm / 36 x 9 mm

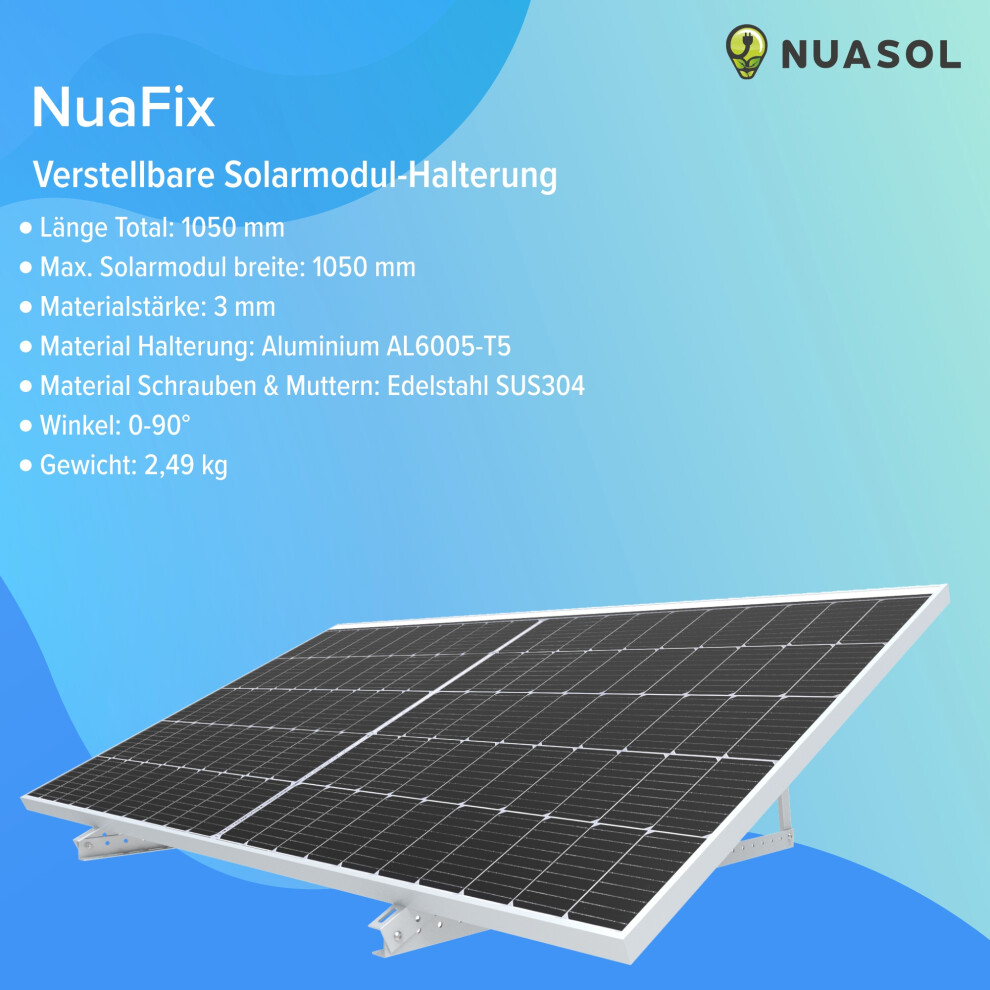

Solar panel brackets 0-90°

• Material bracket: Aluminium AL6005-T5
• Material screws & nuts: Stainless steel SUS304
• Angle: 0-90°
• Suitable for: Flat surfaces
• Colour: Silver

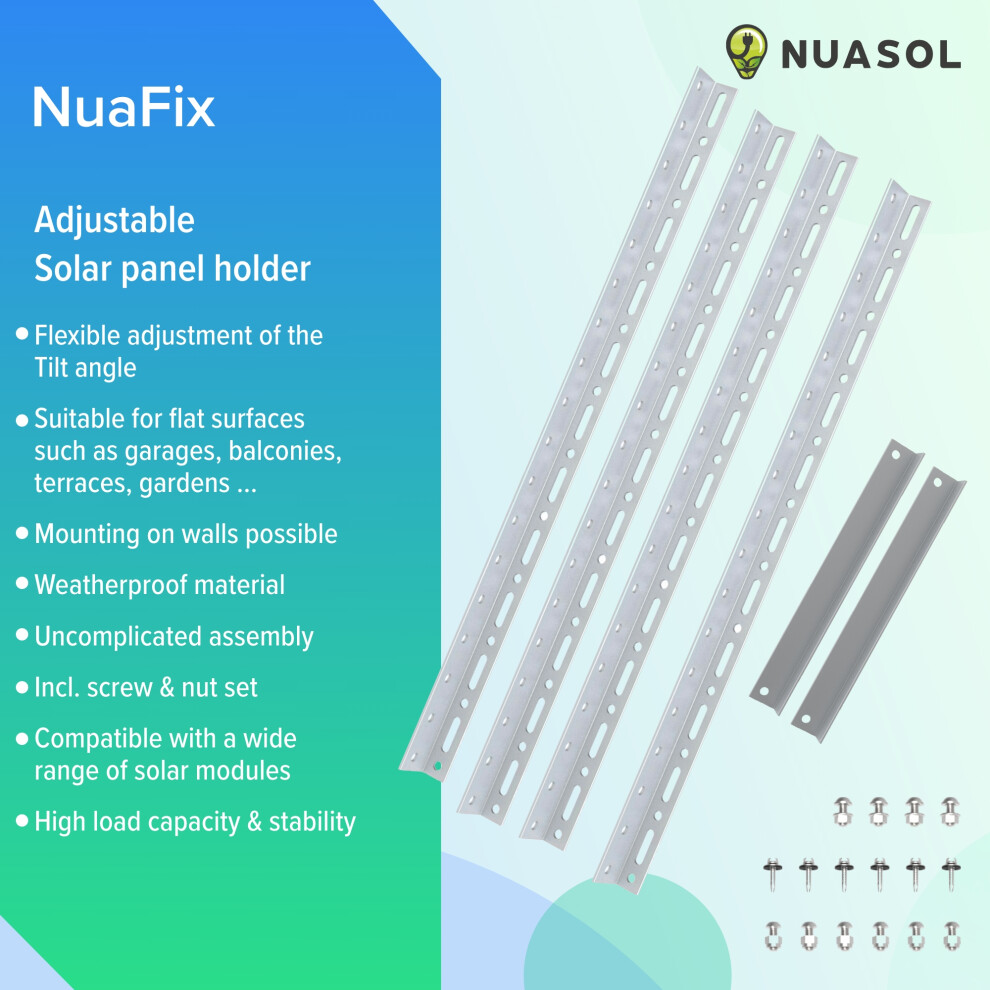

• Scope of delivery:
  8x long struts
  4x short struts
  2x screw set
