NuaSol Elevation Solar Module Mounting Balcony Power Plant Flat Roof Facade PV

NuaSol Elevation Solar Module Mounting Balcony Power Plant Flat Roof Facade PV Description

NuaFix - Adjustable solar panel brackets for PV systems 15-30°.

NuaFix offers you different mounting materials for attaching your mini PV system or balcony power plant. From hanger bolts to roof hooks or adjustable brackets to Z-brackets, with us you will find the right mounting material for every type of installation.

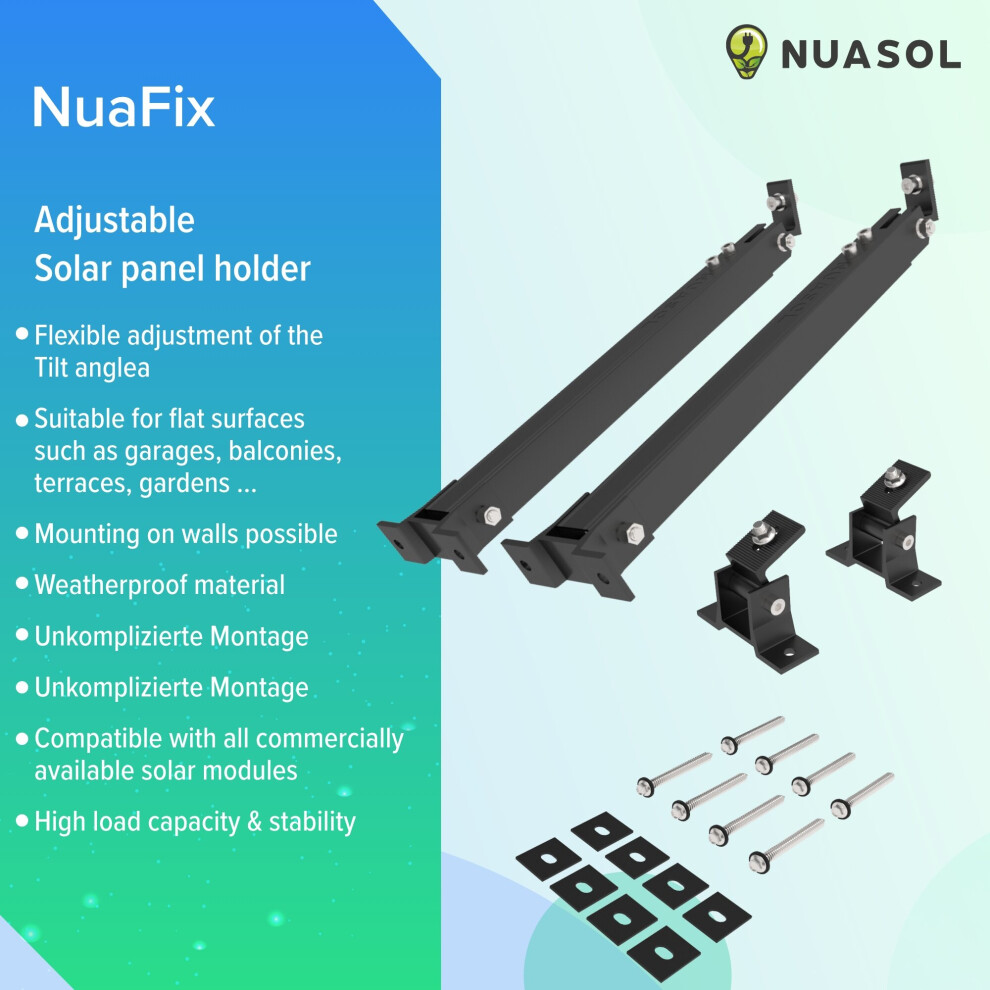

Adjustable solar panel brackets 15-30°.

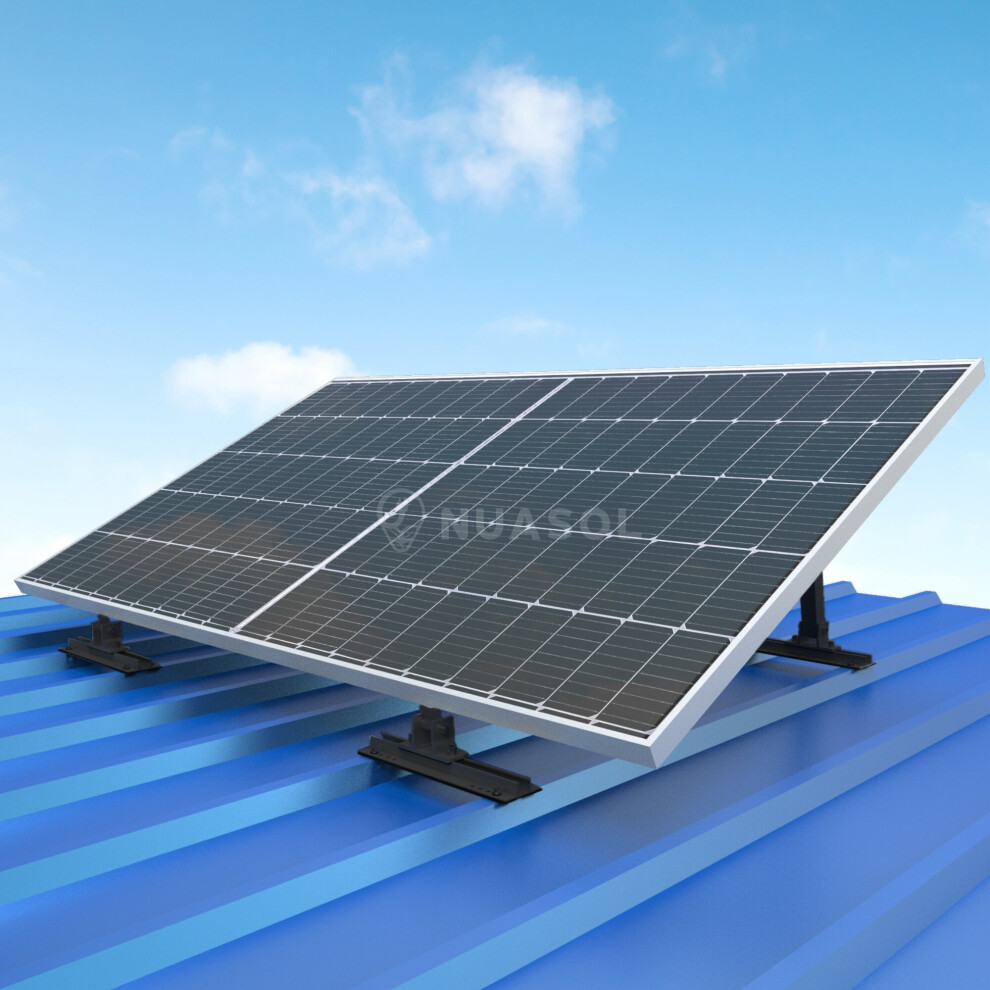

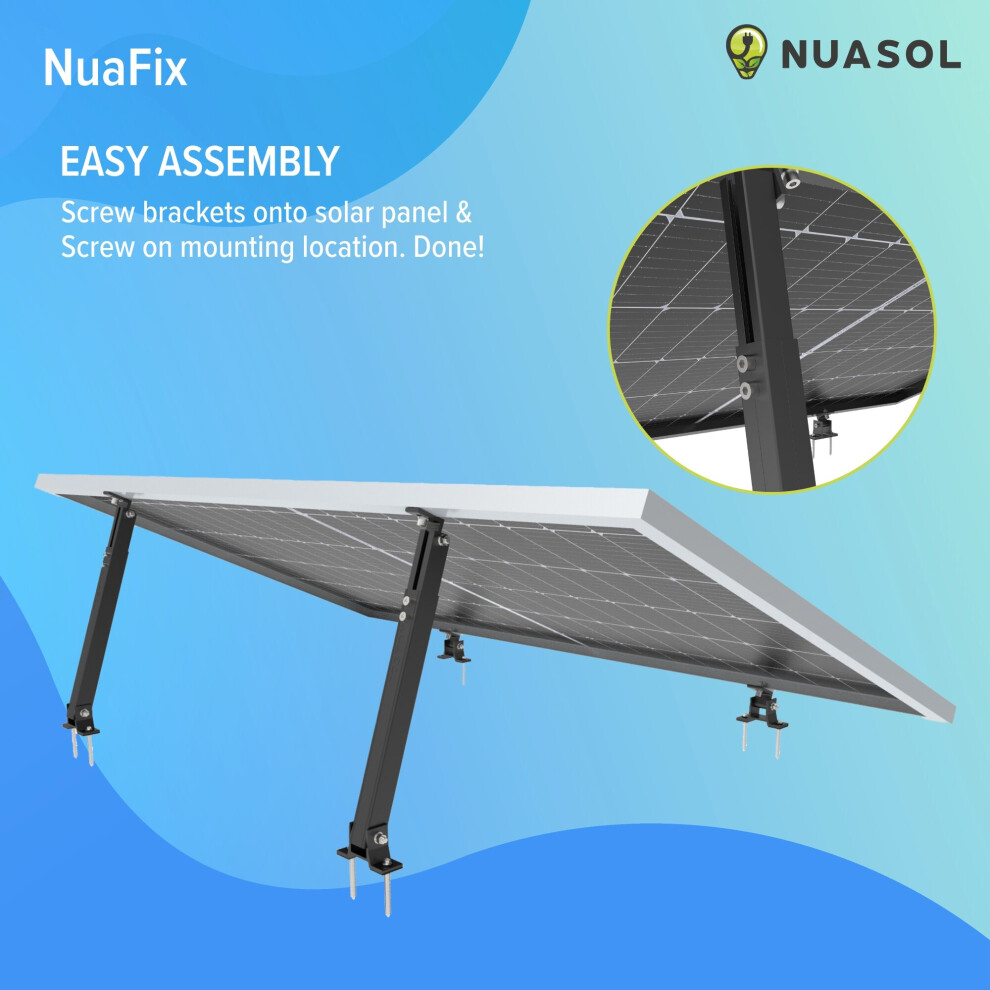

Made from AL6005-T5 aluminium, our weather-resistant adjustable PV panel brackets are easy to attach to the solar panel, so your solar system is ready to go in no time. SUS304 stainless steel bolts and nuts are included. Our adjustable brackets are suitable for installations on flat surfaces such as garages, gardens, balconies... . Convenient adjustment of the tilt angle to harvest the maximum yield.

NuaFix - Flexible brackets 15-30°

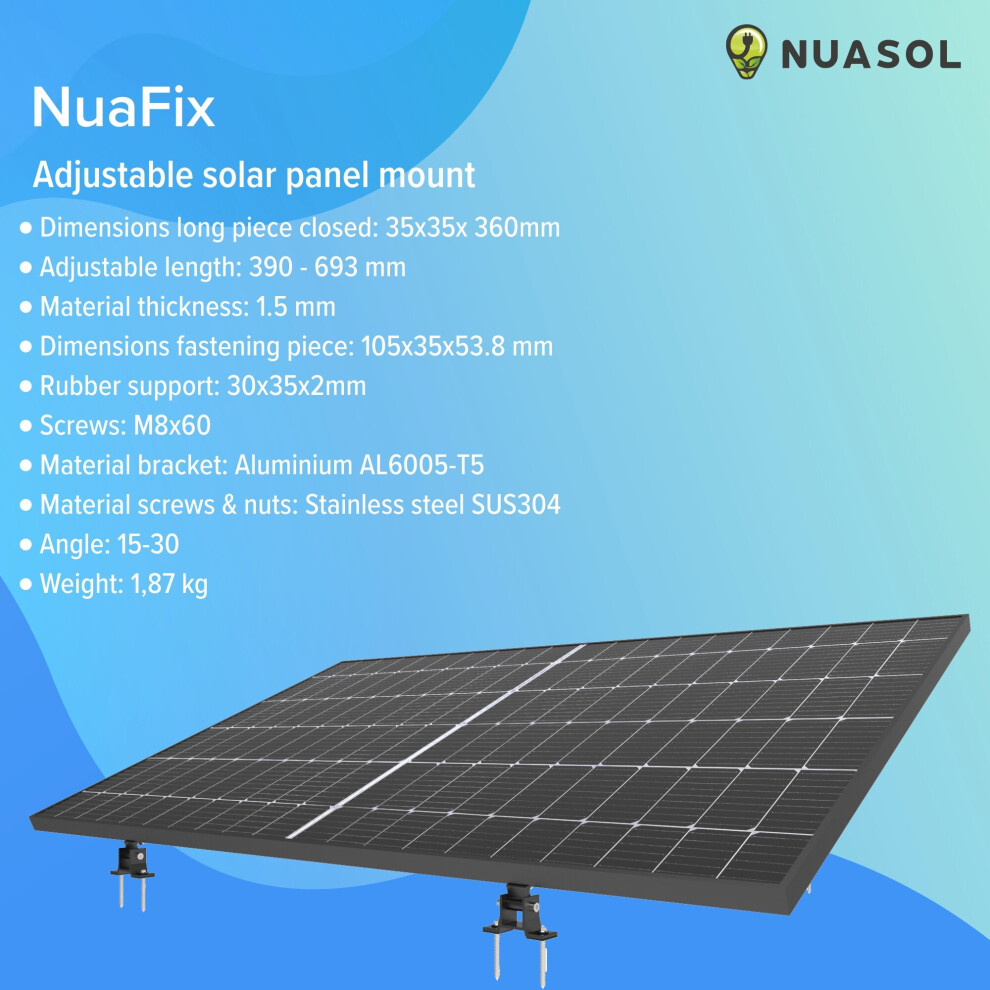

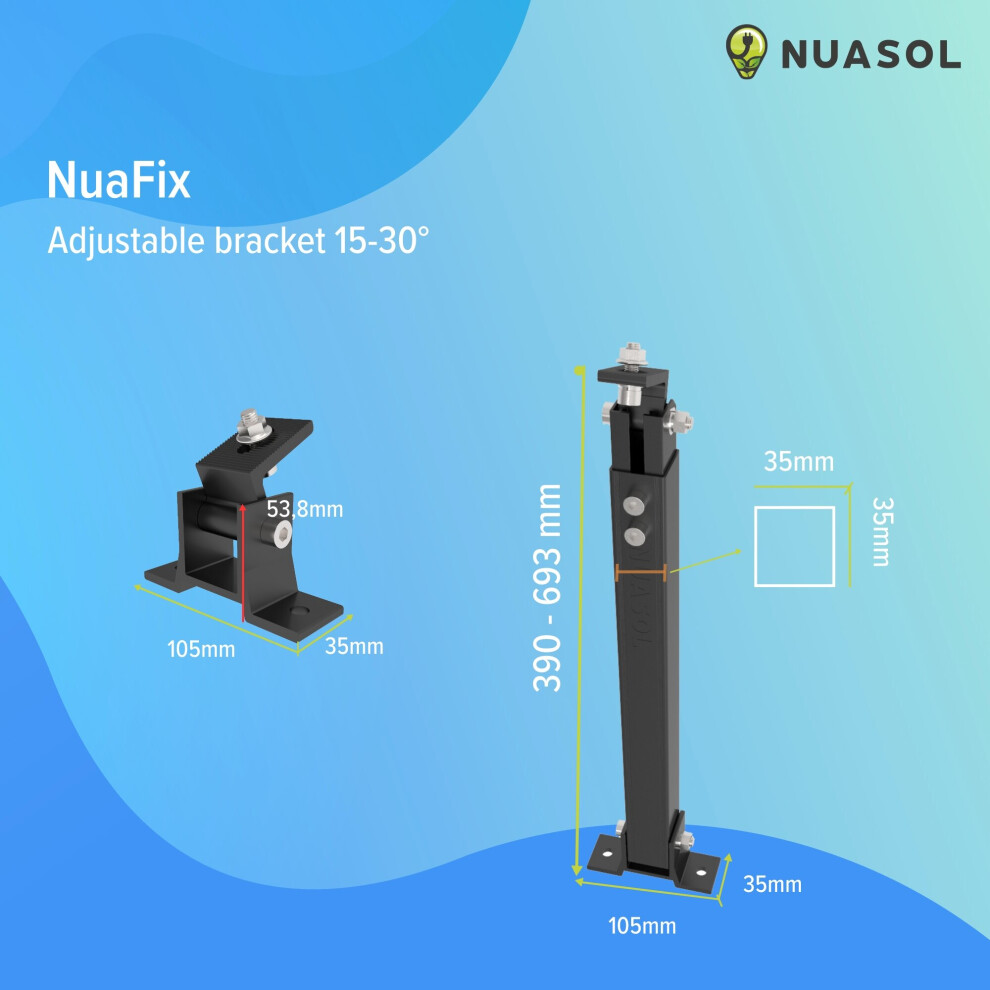

• Dimensions Long piece closed: 35 x 35 x 360 mm
• Adjustable length: 390 - 693 mm
• Material thickness: 1.5 mm
• Dimensions of mounting piece: 105 x 35 x 53.8 mm
• Rubber support: 30 x 35 x 2 mm
• Screws: M8 x 60
• Weight: 1.87 kg
• Material mounting bracket: Aluminium AL6005-T5
• Material screws & nuts: stainless steel SUS304

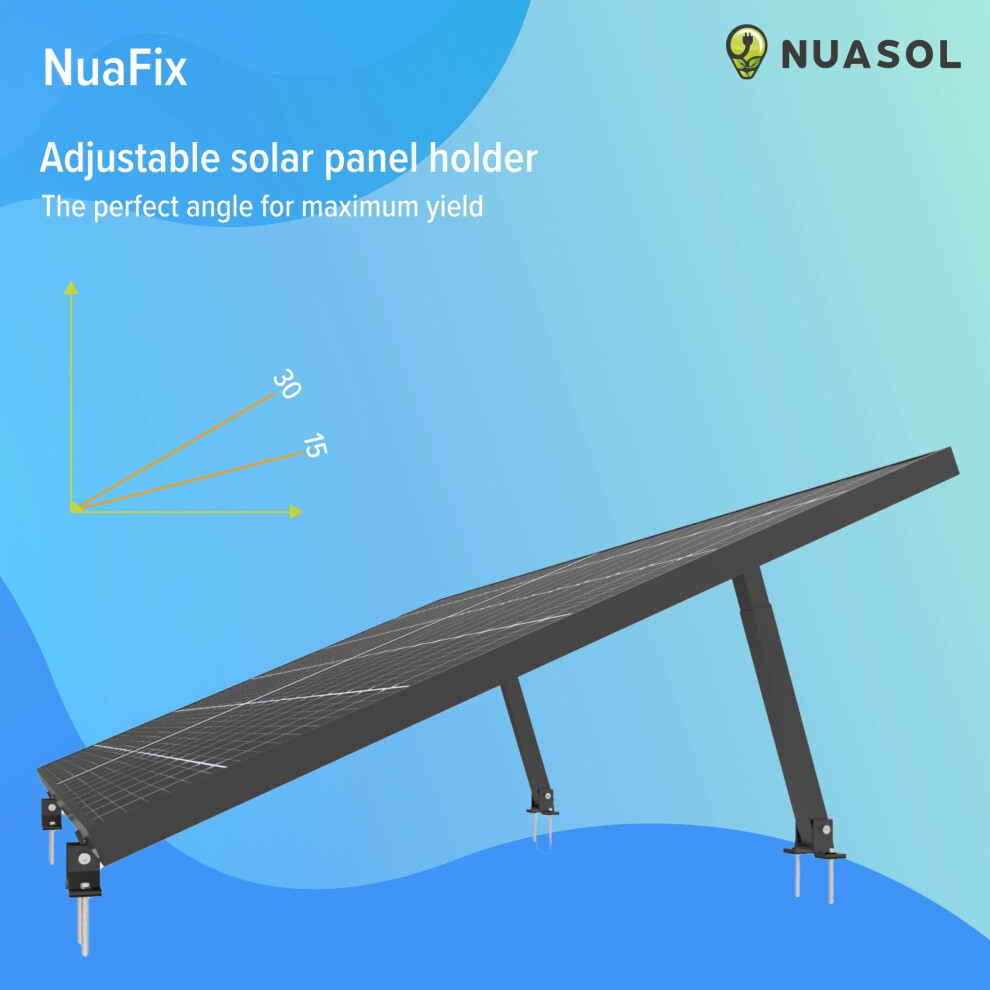

• Angle: 15 - 30
• Suitable for: flat surfaces

Technical data:

NuaFix

• Dimensions: 35 x 35 x 360mm
• Adjustable length: 390 - 676 mm
• Material thickness: 1.5 mm
• Dimensions: 105 x 35 x 53.8 mm
• Rubber pad: 30 x 35 x 2 mm
• Screws: M8 x 60
• Weight: 1.87 kg

Solar panel brackets 15-30

• Material bracket: Aluminium AL6005-T5
• Material screws & nuts: Stainless steel SUS304
• Angle: 15 - 30
• Suitable for: Flat surfaces
• Colour: Silver / Black

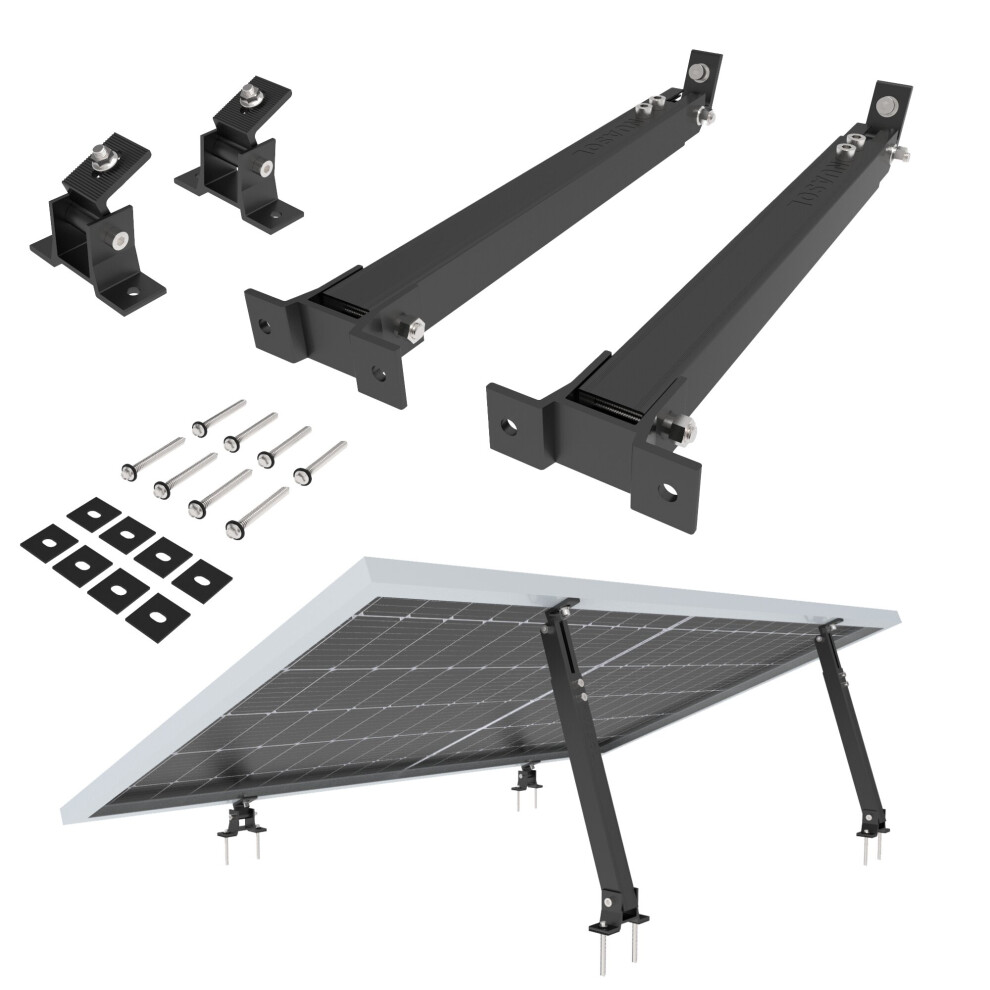

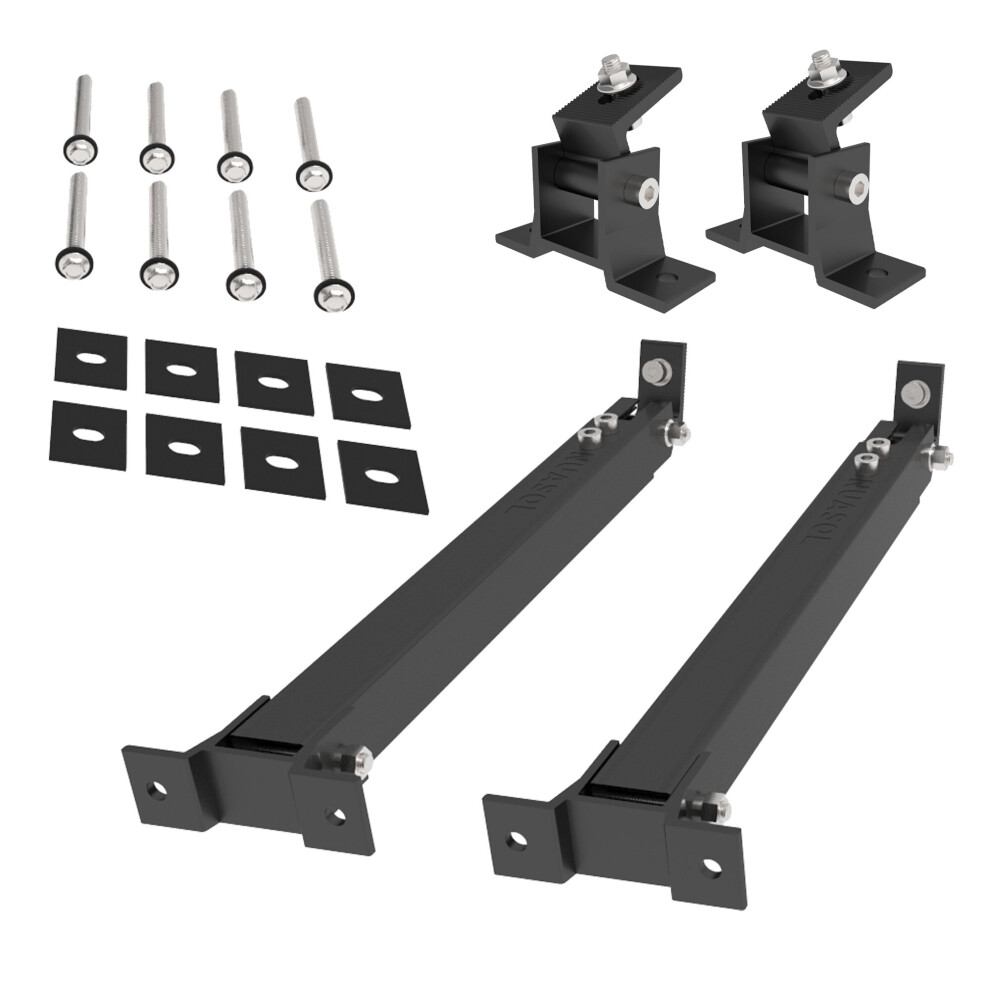

• Scope of delivery:
  2x long bracket
  2x short bracket
  8x EPDM support
  1x screw set
