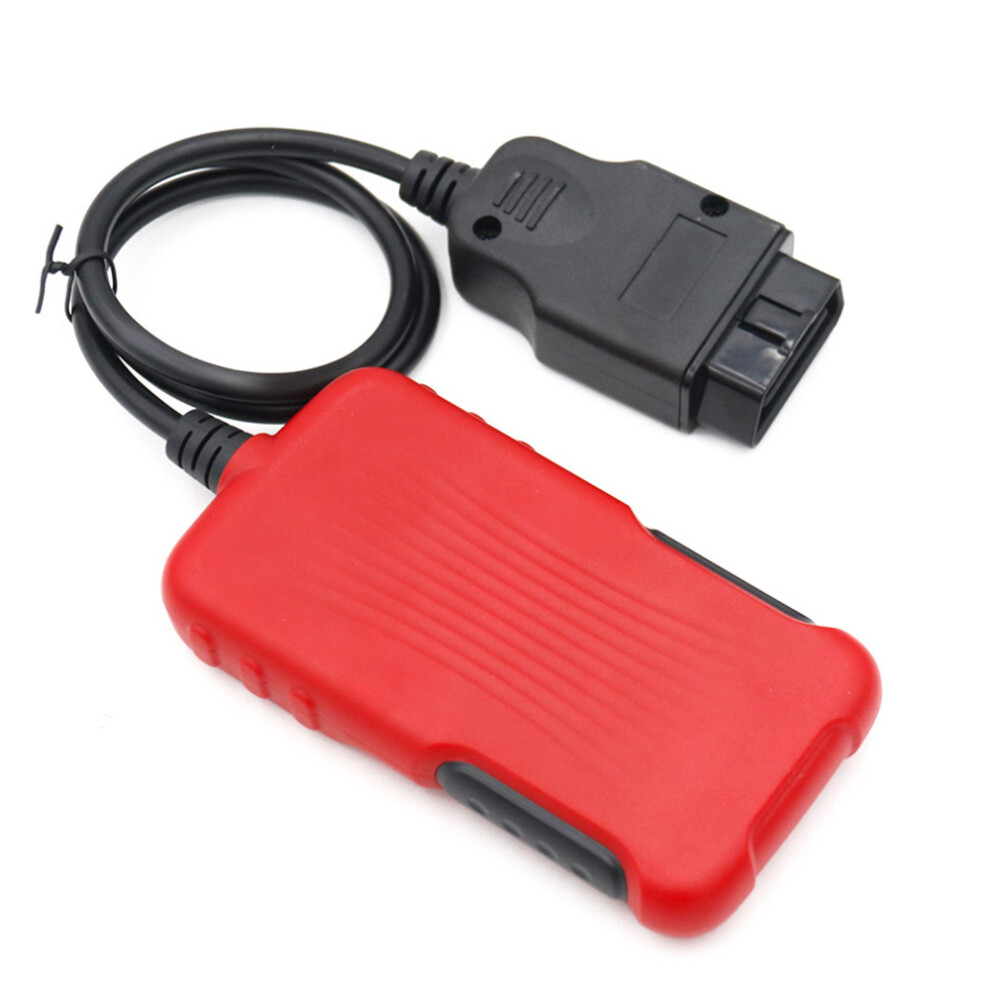

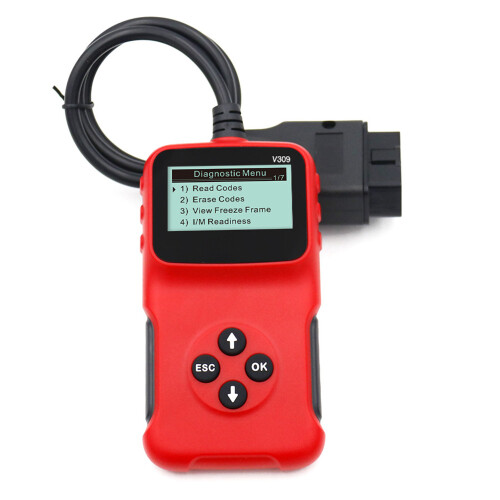

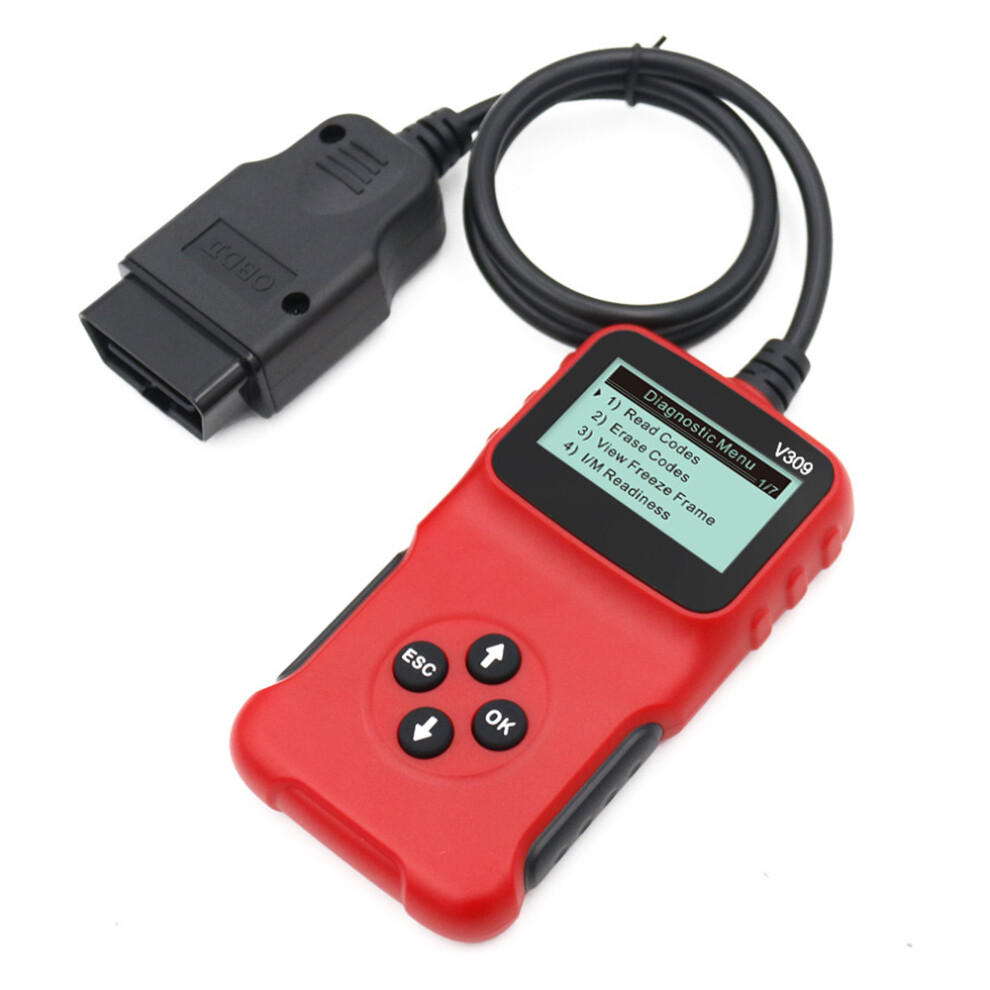

OBD Diagnostic Device Car Fault Code Scanner

OBD Diagnostic Device Car Fault Code Scanner Description

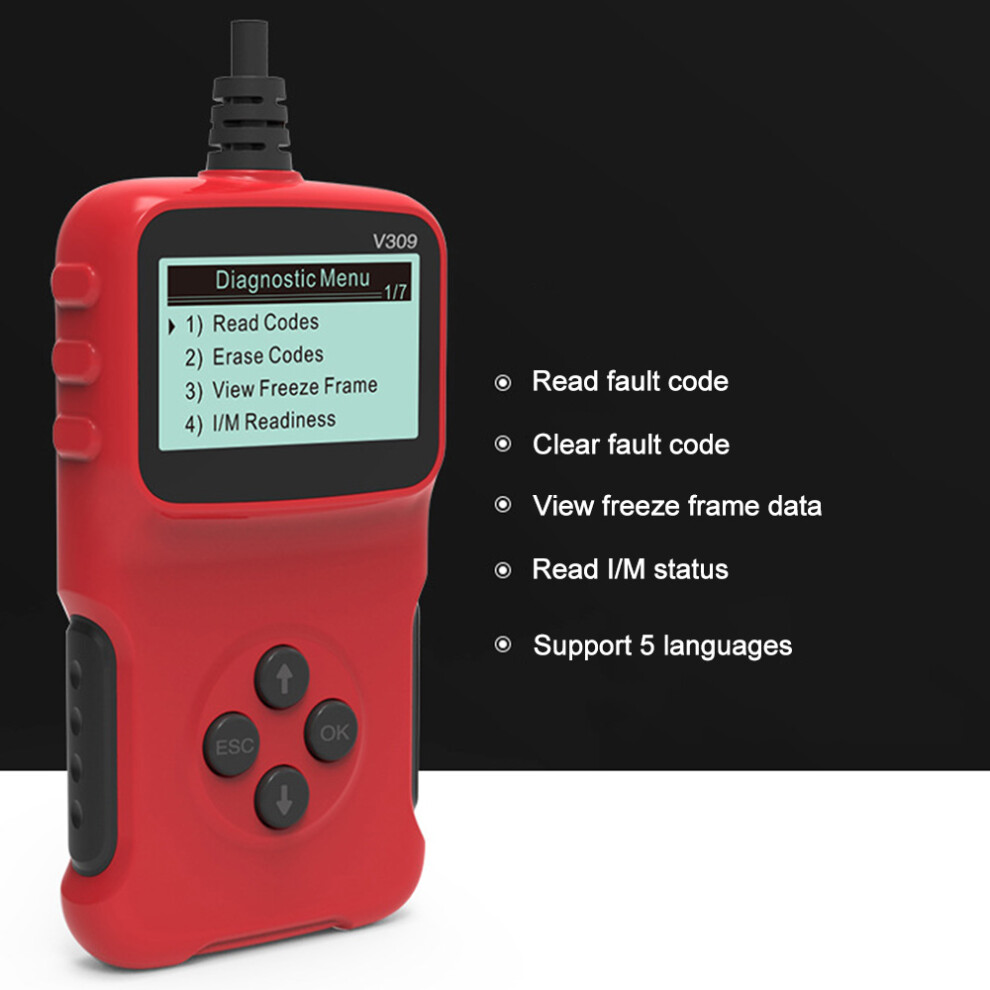

1、5 languages supported. 2、Support multiple codes request. 3、Read freeze frame data which shows engine condition. 4、It is capable of reading/erasing, showing error code definitions, reading I/M and view freeze frame.
Features:
5 languages supported.

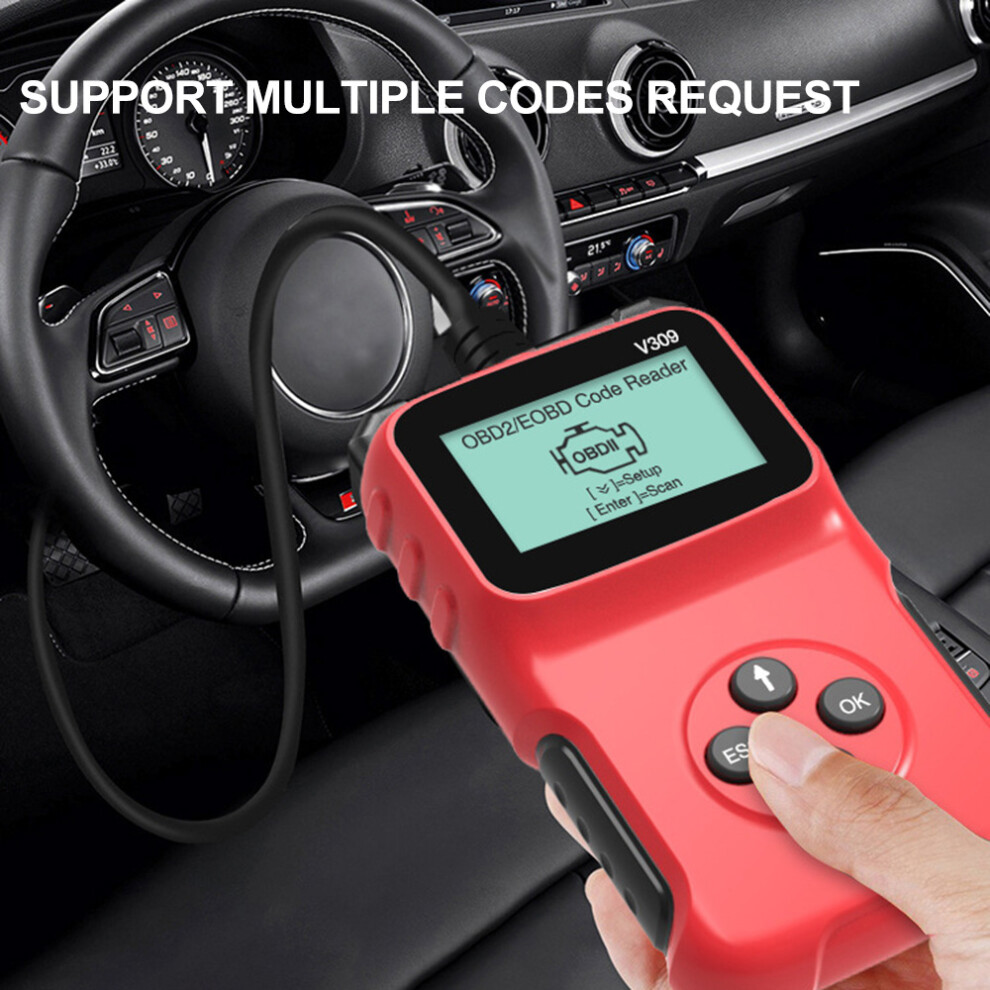

Support multiple codes request.
Read freeze frame data which shows engine condition.
It is capable of reading/erasing, showing error code definitions, reading I/M and view freeze frame.
Easier to read manufacture specific codes.
Clearly arranged keypad, menu-driven navigation, hot-keys and TFT color screen together make it extremely easy to use.
Communication protocol:
SAE J1850 PWM（41.6 Kbaud）
SAE J1850 VPM（10.4 Kbaud）
ISO 9141-2 (5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (fast init,10.4 Kbaud)
ISO 14230-4 CAN (11bit ID,500 Kbaud)
ISO 14230-4 CAN (29bit ID,500 Kbaud)
ISO 14230-4 CAN (11bit ID,250 Kbaud)
ISO 14230-4 CAN (29bit ID,250 Kbaud
Specifications:
Color: red
Working voltage: 9-16v
Working current: 80mA
Operating environment: - 30-70 C
Storage temperature: - 30-80 C
Item size: 95.5 * 72.1 8 22.2mm
Package Size: 200 * 130 * 31mm
Package Weight: 200g / 0.44lb
Packing List:
1 * Universal Reader
1 * Cable
1 * User Manual
1 * Universal Reader
1 * Cable
1 * User Manual
