OBD2 Breakout Box with LED Light Indicator, Automotive Electrical Diagnostic Test Tool, Portable Testing Tool, Detector

OBD2 Breakout Box with LED Light Indicator, Automotive Electrical Diagnostic Test Tool, Portable Testing Tool, Detector Description

This is a professional automotive tool for the OBDII diagnostic link connector which offers easy access to the OBDIl connector for monitoring signals of protocol, power and grounds conveniently and safely. When unconfirmed signals are detected, the breakout box can also be connected to a multimeter or oscilloscope for further testing.

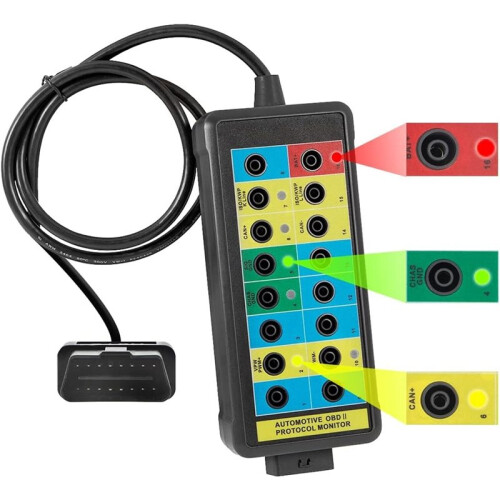

The LED lights the OBD2 breakout box can quickly indicate whether the power and grounding of the OBDII interface the car are normal. Yellow LED lights to show communication with a scan tool and protocol identification; Green LED (Pin 4/5) lights to indicate good ground. The Red LED (Pin 16) lights to show there is power.
The input jack layout simulates the 16-pin layout of the OBDII interface, making more tests quick and intuitive. All 16 pins of OBDII can be easily connected when the decoder communicates with the vehicle. This OBD2 breakout box provides easy access to the vehicle data bus lines.
The OBDII connector extension cable adopts multithreading data connection technology, which makes the connection faster and smoother. The cable body is made of elastic thermoplastic TPU material, which has the characteristics of the high elasticity, high strength and high resilience.
The OBD2 breakout box uses safe banana sockets, and the built-in input jack can be connected to any type of 4mm banana plug, including those with safety sheaths, making it easier to connect the breakout box to a multimeter or oscilloscope.

Color: As Shown
Material: ABS

Package Contents:
1 * OBD2
