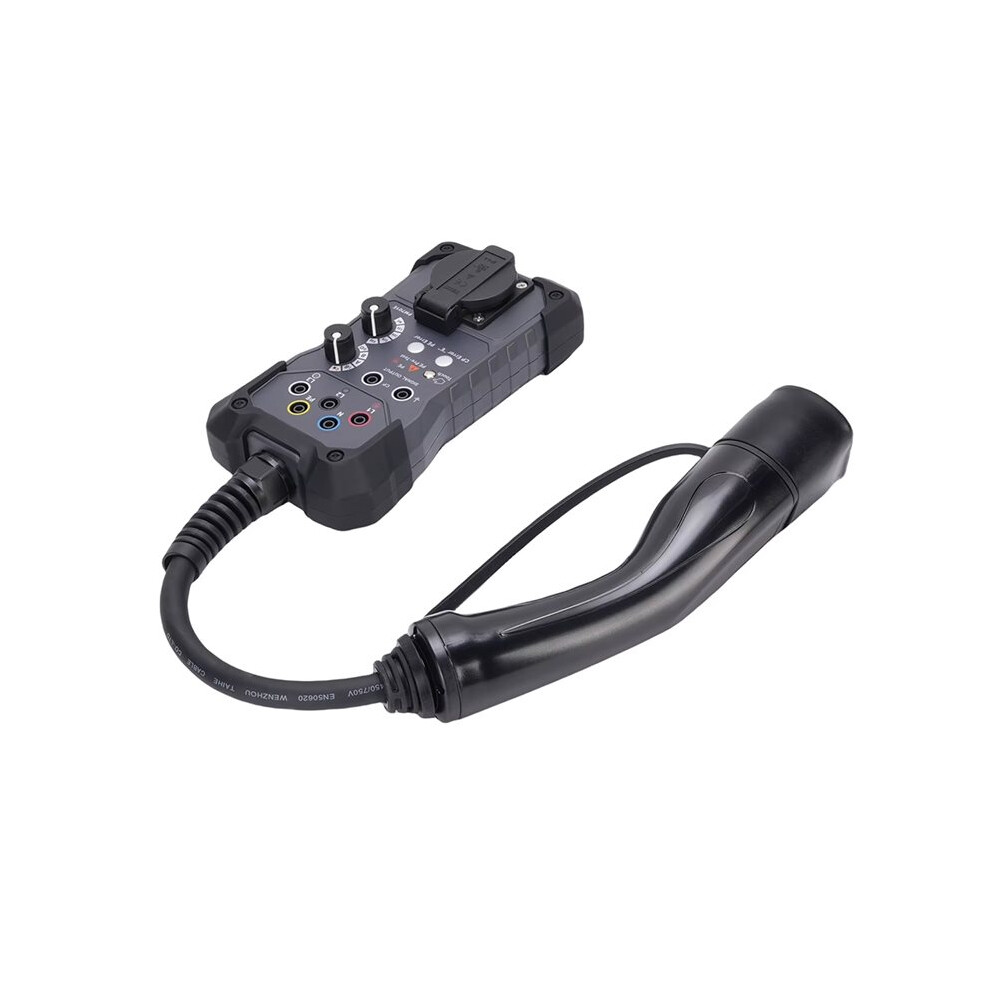

63A EVSE Tester Adapter Voltage Tester for EV Charging Station Testing Compatible with Testers Multimeters Oscilloscopes
Brand Melitt
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£132.33
£200.50
34% off!
FREE Delivery
1%
Earn £1.32 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Wed 15th - Fri 17th Jul
Returns: 30 days
180-day payment protection
Most Popular in Car Garage Electrical Testers
Description & Details
Summary
- EVSE Tester Kit: Simulate the presence of electric vehicles and equipped with European standard Type 2 plug for easy testing of European standard AC electric vehicle charging stations

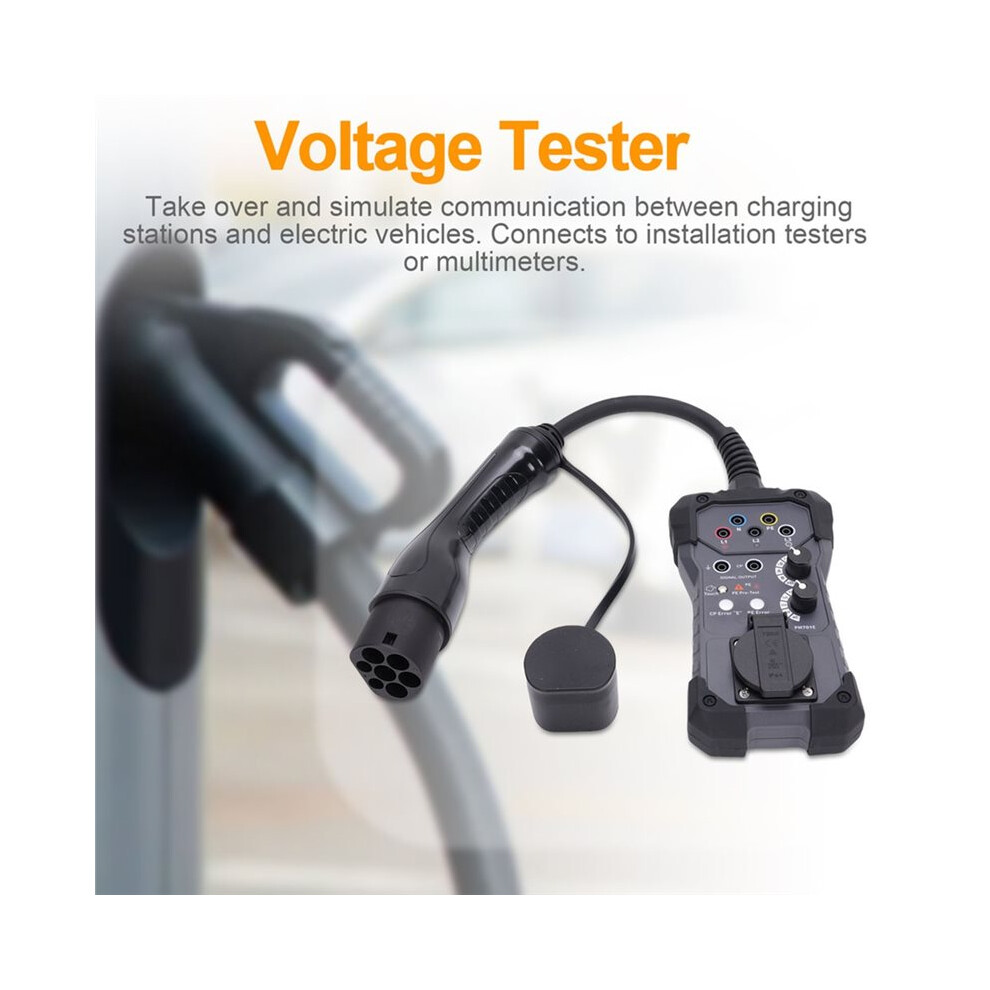

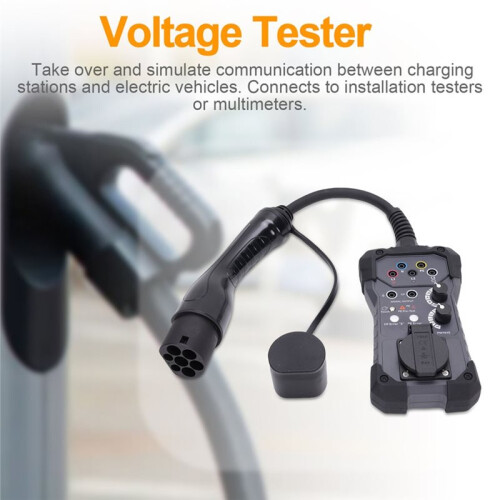

- Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters
- Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output

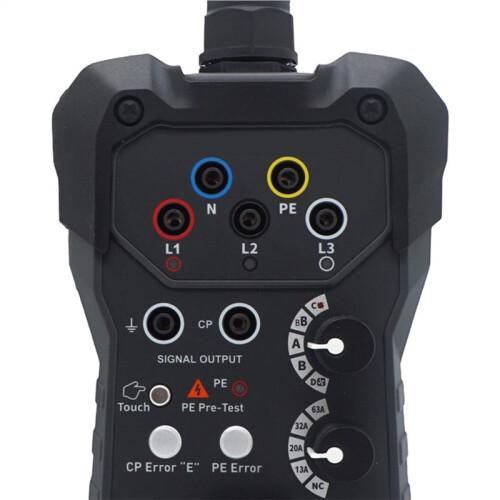

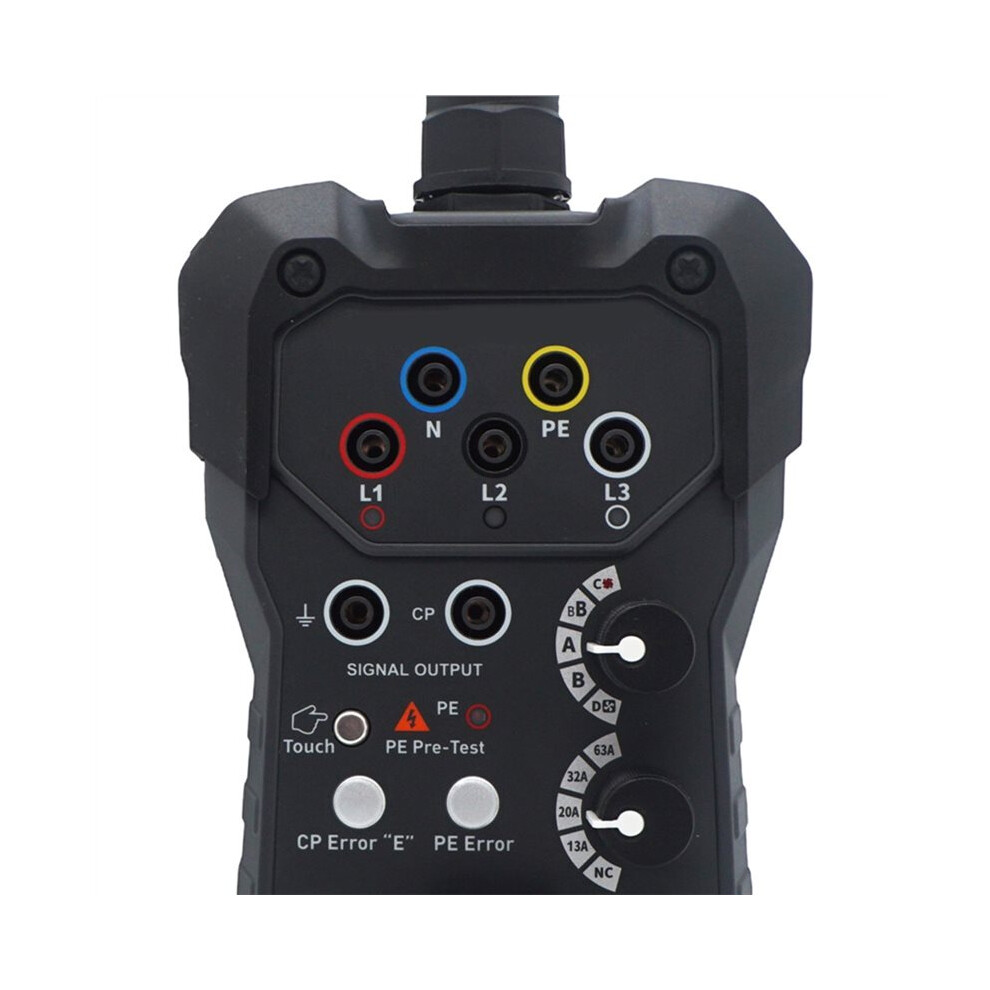

- LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked
- Rotating Switches: PP switch simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP switch helps simulate common vehicle states - A, B, C, D
63A EVSE Tester Adapter Voltage Tester for EV Charging Station Testing Compatible with Testers Multimeters Oscilloscopes Description
EVSE Tester Kit: Simulate the presence of electric vehicles and equipped with European standard Type 2 plug for easy testing of European standard AC electric vehicle charging stations
Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters
Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output
LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked
Rotating Switches: PP simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP helps simulate common vehicle states - A, B, C, D
Item Type: Electric Vehicle Charging Station Test Adapter
Frequency: 50/60Hz
Current: 10A
Type 2 Testing Cable: AC Charging Mode 3, suitable for IEC62196-2 Type 2 socket or fixed cable with vehicle connector (Type 2, 7 pole, three-phase)
Measurement Category: IEC/EN 61851-1/IEC/HD, 60364-7-722, 600VCATII
Protection Grade: IP54
(The product printed words may vary depending the batch, but this does not affect use)
Color: As Shown
Material: plastic
Package Contents:
1 * 63A EVSE Tester Adapter
Details
| OPC | PQKTMF7 |
|---|---|
| Brand | Melitt |
| Codes | 6032137176819 (EAN) |
| Rank | #1 Car Garage Electrical Testers |
| #66 Car Garage Diagnostic, Testing & Measuring Tools | |
| #232 Garage Equipment & Vehicle Tools |
Product Data
| Height | 10cm |
|---|---|
| Width | 29cm |
| Length | 35cm |
| Weight | 1.6785kg |
| Colour | As Shown |
| Material | Plastic |
