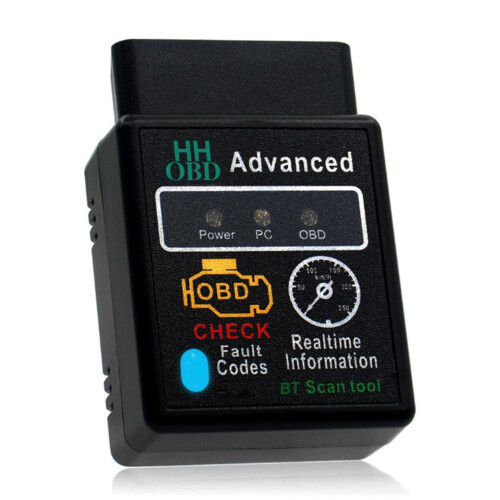

OBD2 Car Bluetooth Code Scanner Reader ELM 327 Automotive Diagnostic OBDII UK ST W5X9

OBD2 Car Bluetooth Code Scanner Reader ELM 327 Automotive Diagnostic OBDII UK ST W5X9 Description

Car OBD2 Scanner Elm327 V1.5 Code Reader OBDII Diagnostic Tool Specification Category:V1.5 Auto fault detector Material: ABS Size: about 6.5*4.5cm Communication: for Bluetooth 5.1 Support system: IOS, Android, Symbian, Windows Working voltage: 9v16v Working temperature: -4065 Package includes: 1*OBD2 Bluetooth V1.5 car scanner (with teaching QR code on the back of the box) Compatible systems: Software support platform: Windows XP, Windows 7/8, Android, Symbian, Windows PC Compatible software: Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc. Android: Torque, DashCommand, OBD Auto Doctor, Auto Doctor, Mini OBD, EOBD, etc. Symbian: OBDScope Supported protocols: 1.SAE J1850 PWM (41.6Kbaud) 2.SAE J1850 VPW (10.4Kbaud) 3.ISO9141-2 (5 baud init, 10.4 Kbaud) 4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud) 5.ISO14230-4 KWP (fast init, 10.4 Kbaud) 6.ISO15765-4 CAN (11bit ID, 500 Kbaud) 7.ISO15765-4 CAN (29bit ID, 500 Kbaud) 8.ISO15765-4 CAN (11bit ID, 250 Kbaud) 9.ISO15765-4 CAN (29bit ID, 250 Kbaud) Basic functions 1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database). 2: Clear trouble codes and turn off the MIL ('Check Engine' light) 3: Display current sensor data, including: 4: Engine RPM 5: Calculated Load Value 6: Fuels System status 7: Fuels System Status 8: Vehicle Speed 9: Short Term Fuels Trim 10: Long Term Fuels Trim 11: Intake Manifold Pressure 12: Timing Advance 13: Intake Air Temperature 14: Air Flow Rate 15: Fuels Pressure 16: Oxygen sensor voltages / associated short term fuels trims 17: Many others OBD2 Car Bluetooth Code Scanner Reader ELM 327 Automotive Diagnostic OBDII UK ST W5X9
