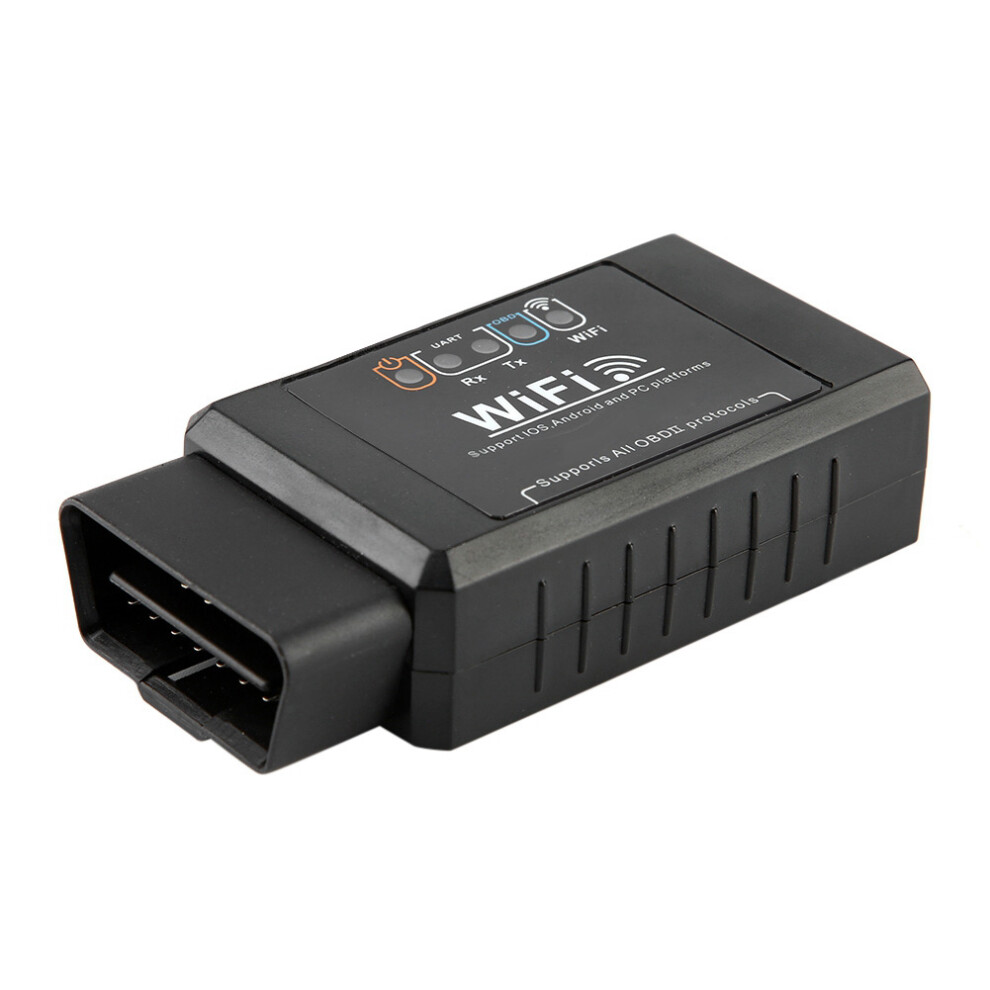

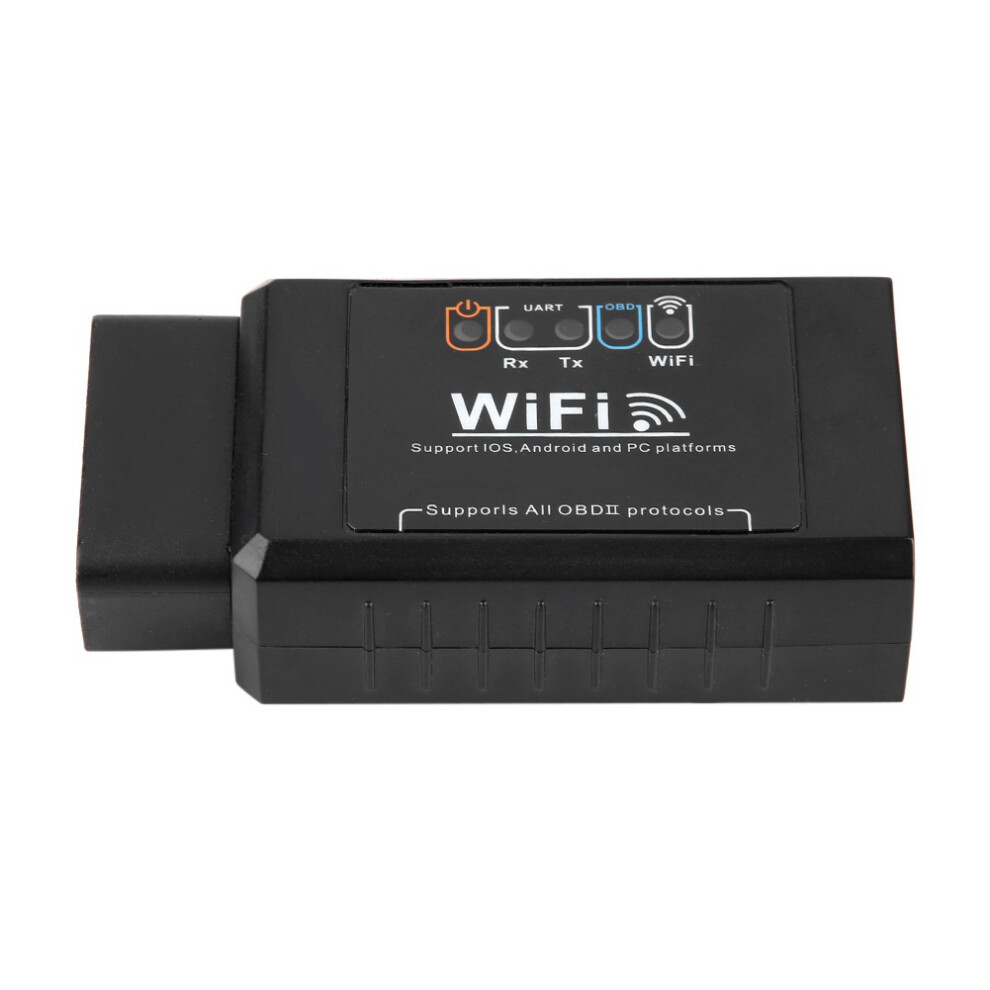

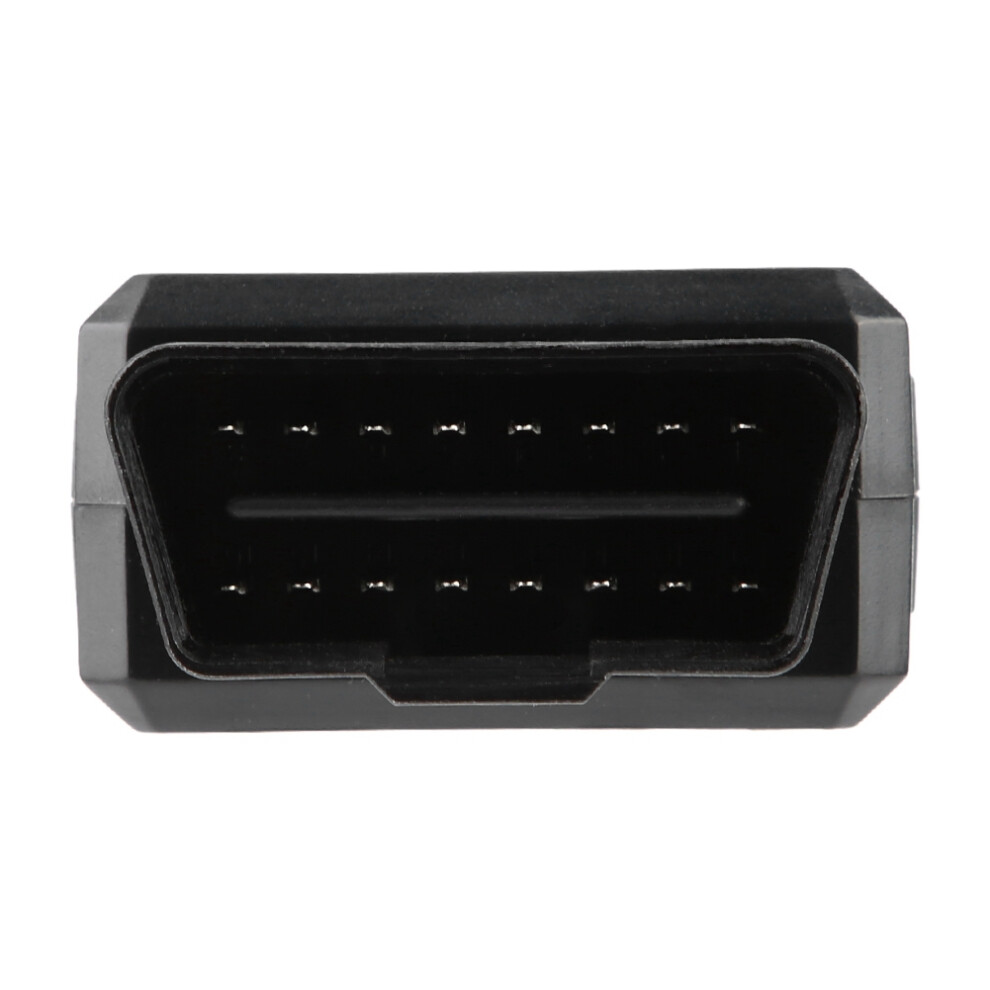

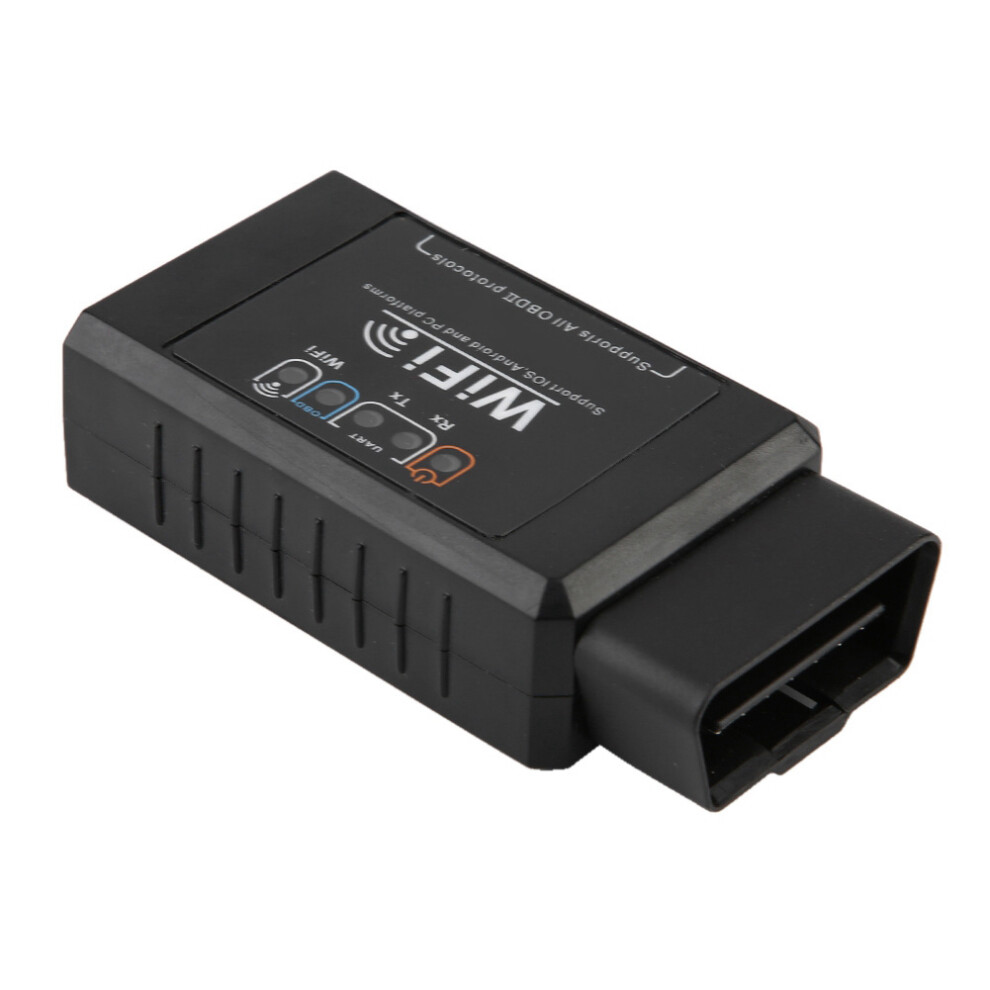

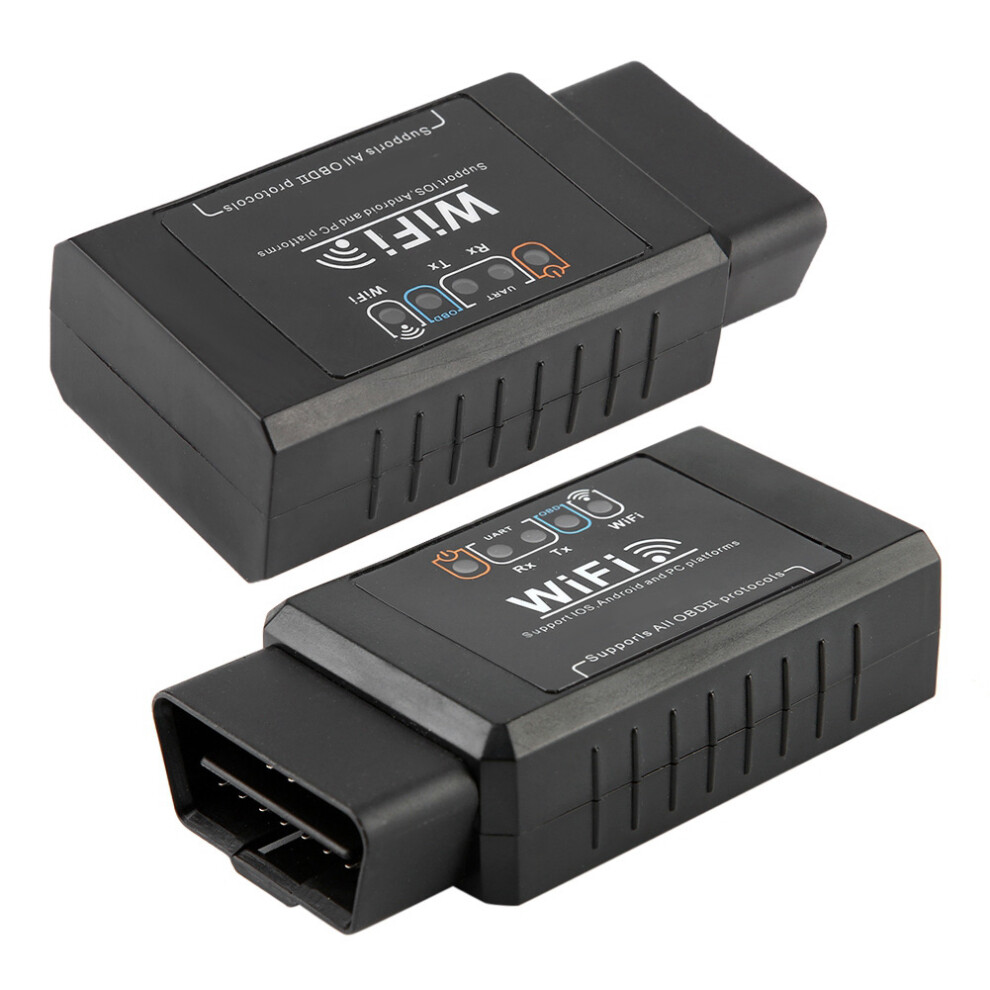

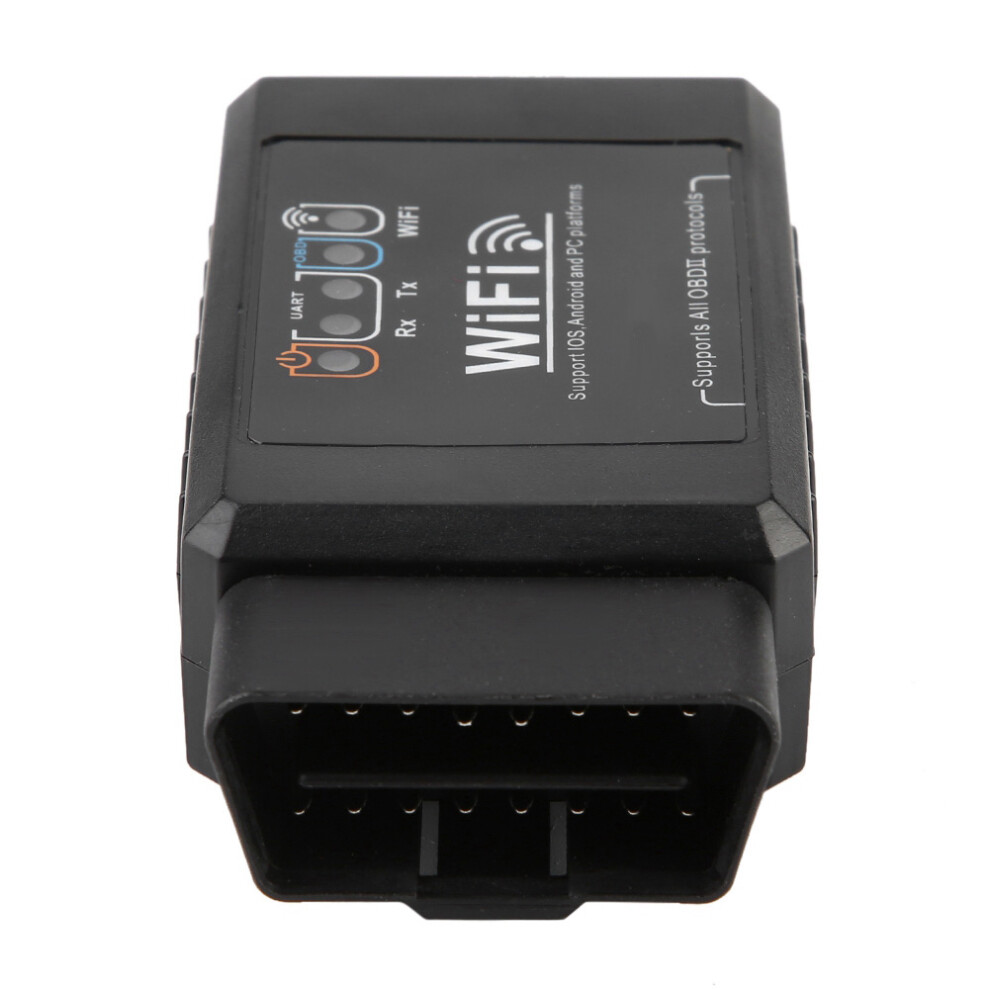

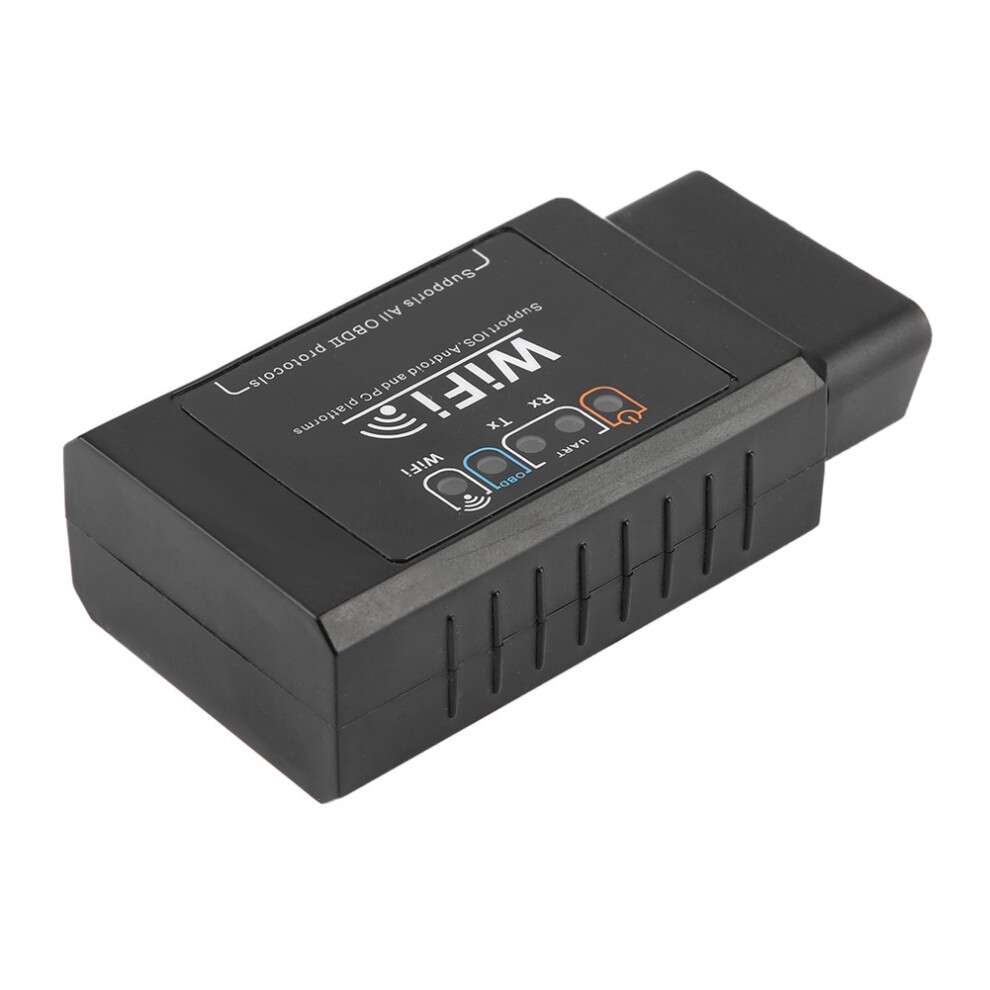

OBD2 WiFi Car Scanner Auto Code Reader Supports 9 Protocols, Black

OBD2 WiFi Car Scanner Auto Code Reader Supports 9 Protocols, Black Description

OBD2 OBDII CAN BUS WIFI Car Diagnostic Tool Auto Scanner Code Reader
Features:

The OBDII scanner is used to read, clear fault codes and detect fuel pressure.


WIFI connection, support 9 kinds of OBDII protocols, support for IOS Android and PC platforms.


Compact and highly integrated smart chip, faster speed, more stable operation and lower power consumption.


Its OBDII software is a complimentary program which allows you to get information about your car's computer via your PC and hardware interface.


The program is very easy e and learn. It's also simple to install: just unzip the files to a folder on your computer's hard drive.


To uninstall the program, just delete all the contents of the folder where the program is located.

Support 9 OBDII Protocols:
ISO9141-2(5 baud init,10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPW (10.4 Kbaud)
SAE J1939 CAN (29bit ID, 250*Kbaud)
USER1 CAN (11*bit ID, 125*Kbaud)
USER2 CAN (11*bit ID, 50*kbaud)
Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear trouble codes and turn off the MIL ("Check Engine" light)
Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Specifications:
Condition:
Material: ABS
Main Color: Black
Connection: WIFI connection
Package Weight: Approx.41g/1.4oz
Package List:
1 * OBDII Scanner
