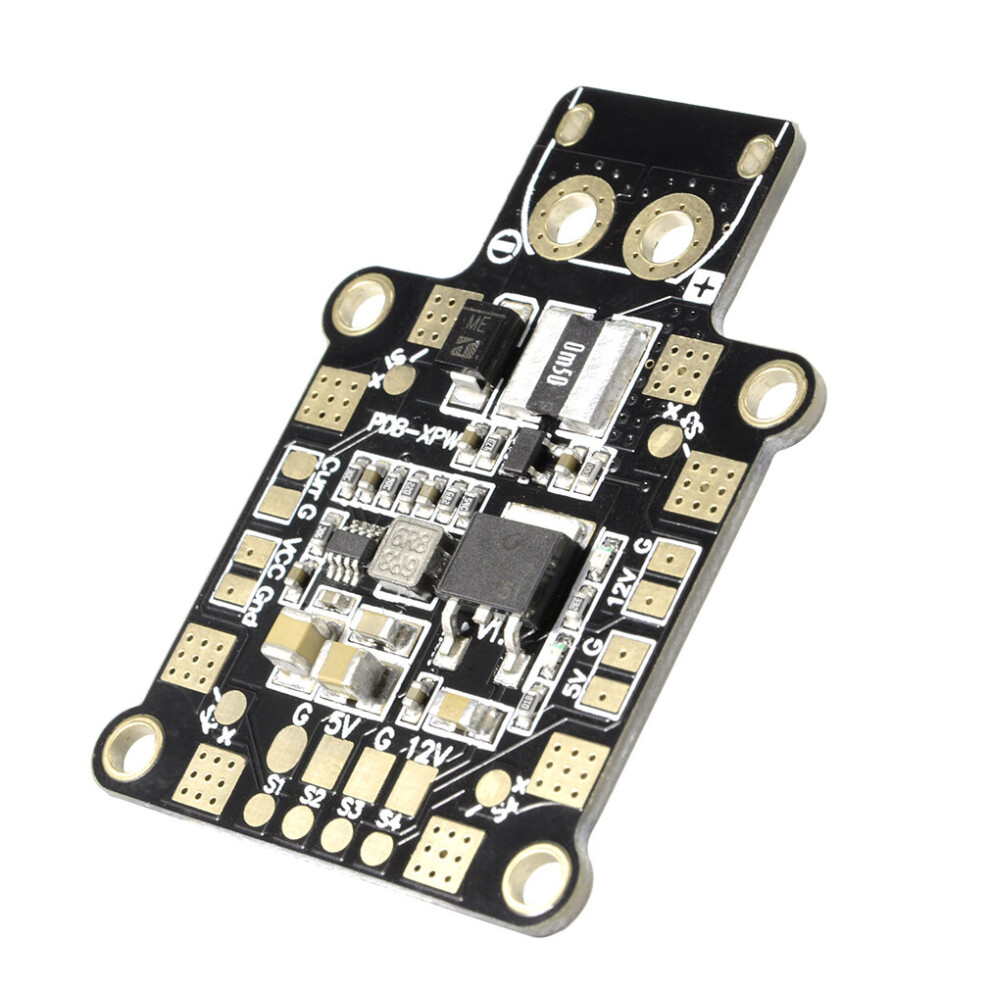

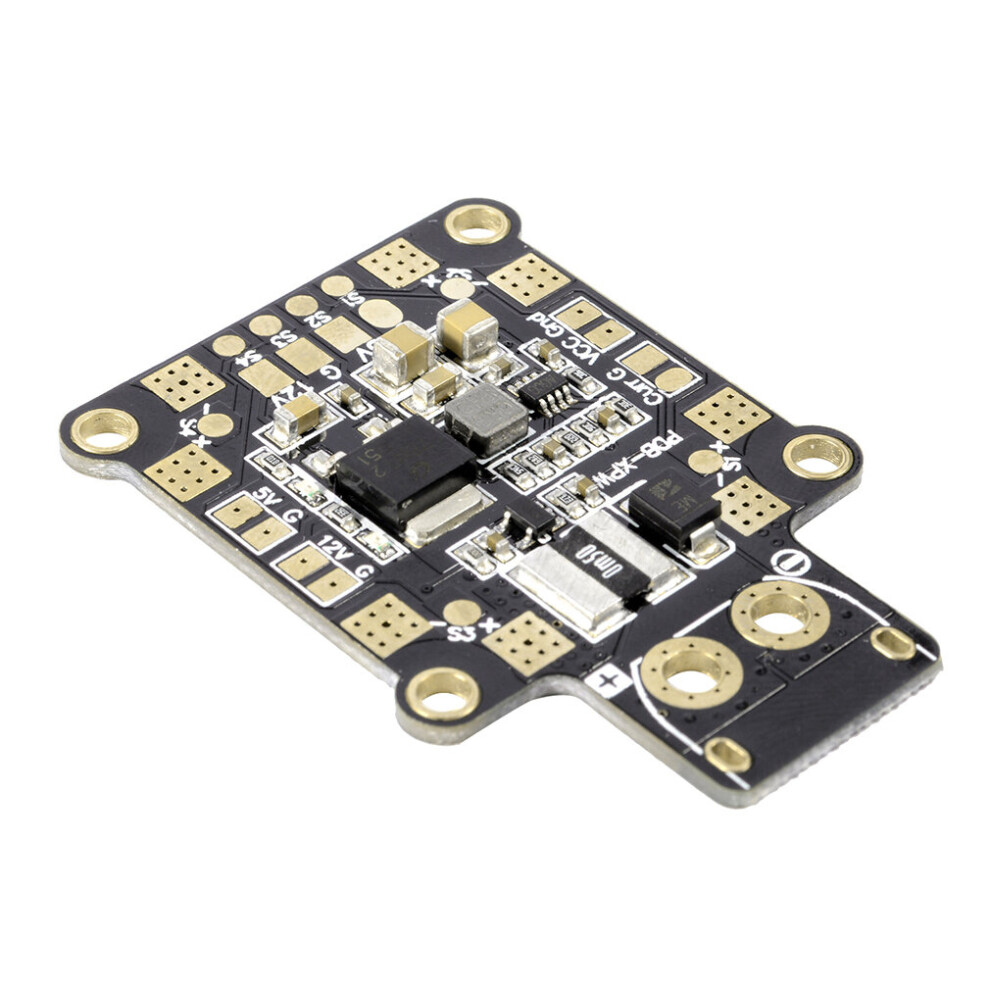

OCDAY SYS PDB-XPW 5V 12V Dual BEC PDB Built-in 140A Current Sensor Compact

OCDAY SYS PDB-XPW 5V 12V Dual BEC PDB Built-in 140A Current Sensor Compact Description

   Features:
The PDB-XPW distributes power from a LiPo pack to 4 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc.It also offers a XT60PW socket to connect the LiPo pack conveniently.
Built-in current sensor 140A
Built-in XT60PW Socket
Total 4 pairs ESC solder tabs are fit for X type frame 5V & 12V Output LED indicators & Short circuit tolerant

Specifiactions:
-Input voltage range (3S-5S LiPo operation): 9 - 21V DC
-PDB: 4 x 35A
-Regulated 5V and 12V outputs
-Current module 140A
-LED power indicators ( 5V & 12V outputs )
BEC 5V output:
-Designed for RC Receivers, Flight controllers, OSD, and  Servos.
-DC/DC synchronous buck regulator.
-Voltage: 5.0 +/- 0.1VDC
-Continuous current: 2 Amps (Max.2.5A  10s/minute)
-Output Ripple: 40mV (VIn=16V,  VOut=5V@2A load)
-Short-circuit tolerant (5  seconds/minute)
BEC 12V output:
-Designed for Video TX or FPV camera with linear regulator.
-The battery should be 4~5S LiPo (13~21V DC)
- Voltage: 12.0 +/- 0.3VDC
-Continuous current: 500mA (Max.0.8A  5s/minute)
-Short-circuit tolerant (2  seconds/minute)
BEC 12V @ 3S LiPo
-Output voltage= 3S LiPo voltage -1V
Mounting: 30.5 x 30.5mm, ?3mm
Dimensions:

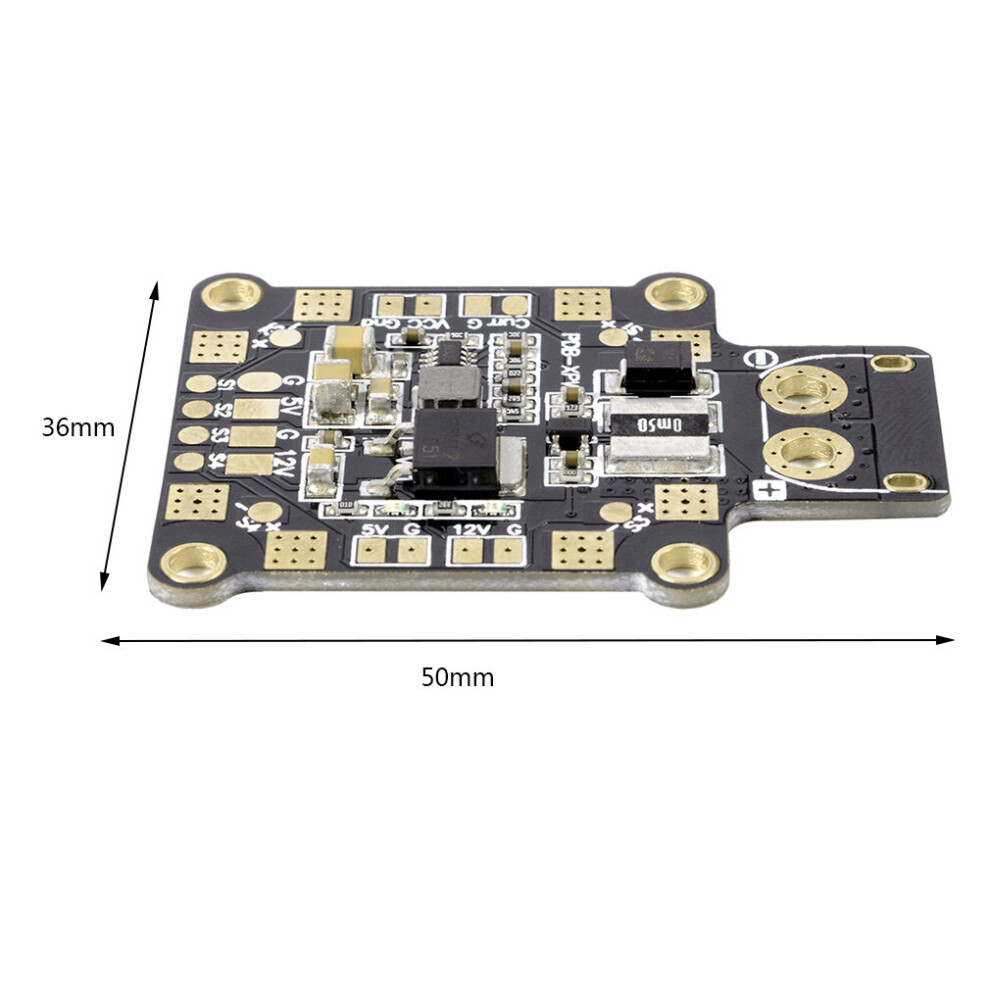

36 x 50 x 4 mm/1.4 x 2.0 x 0.2inches (w/o XT60PW)
36 x 58 X10.5mm/1.4 x 2.3 x 0.4inches (w/  XT60PW)

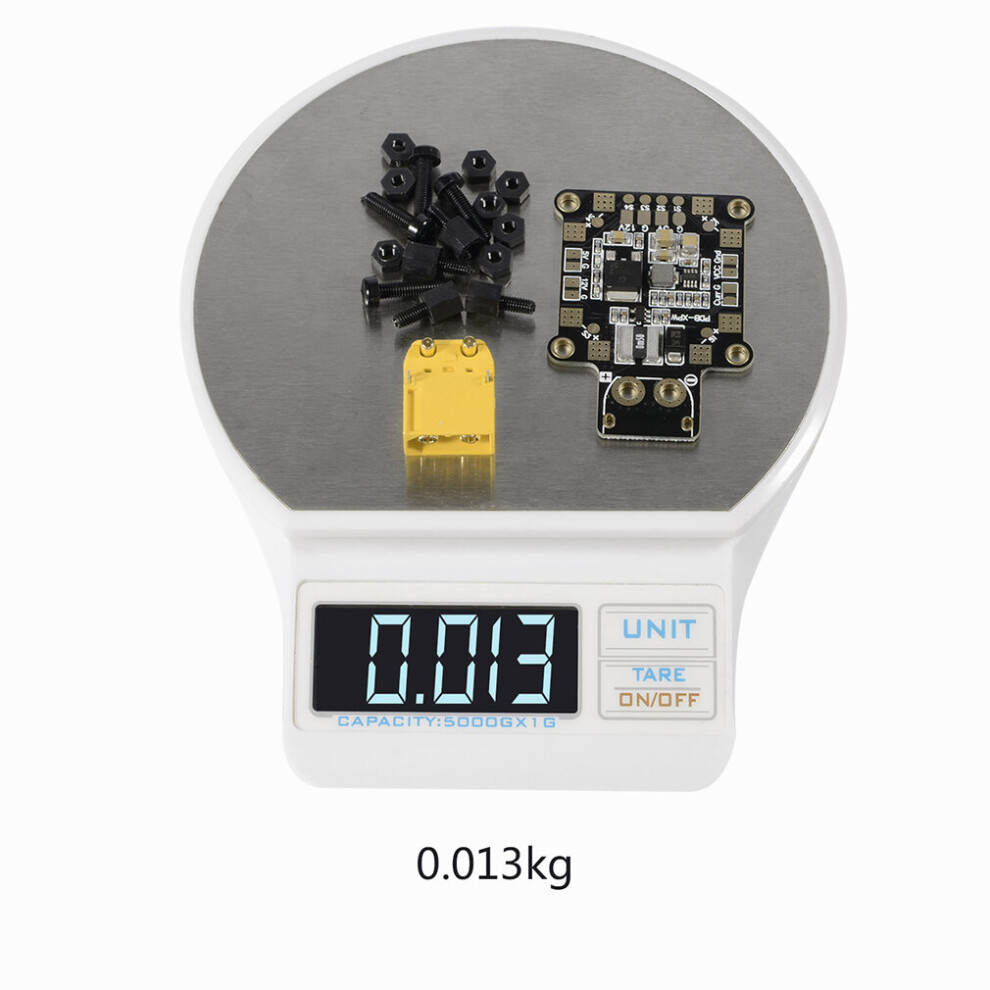

Weight: 13g

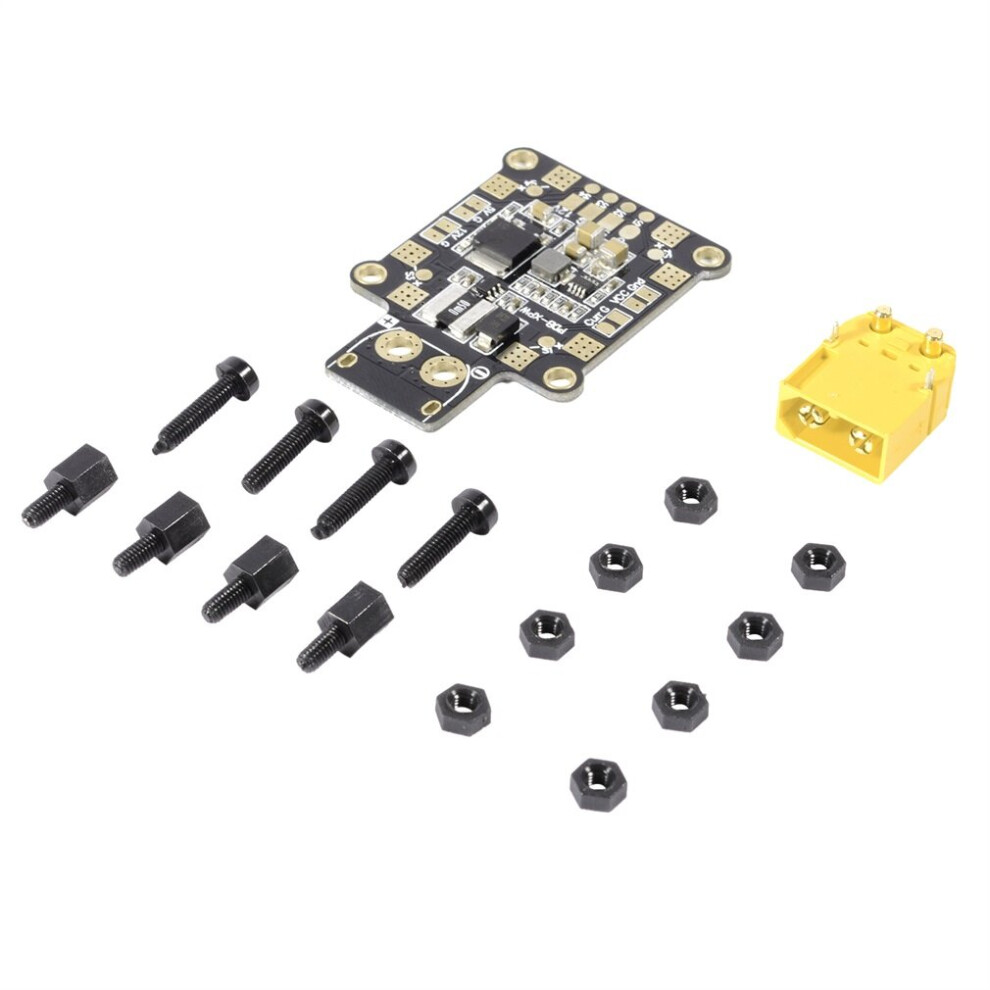

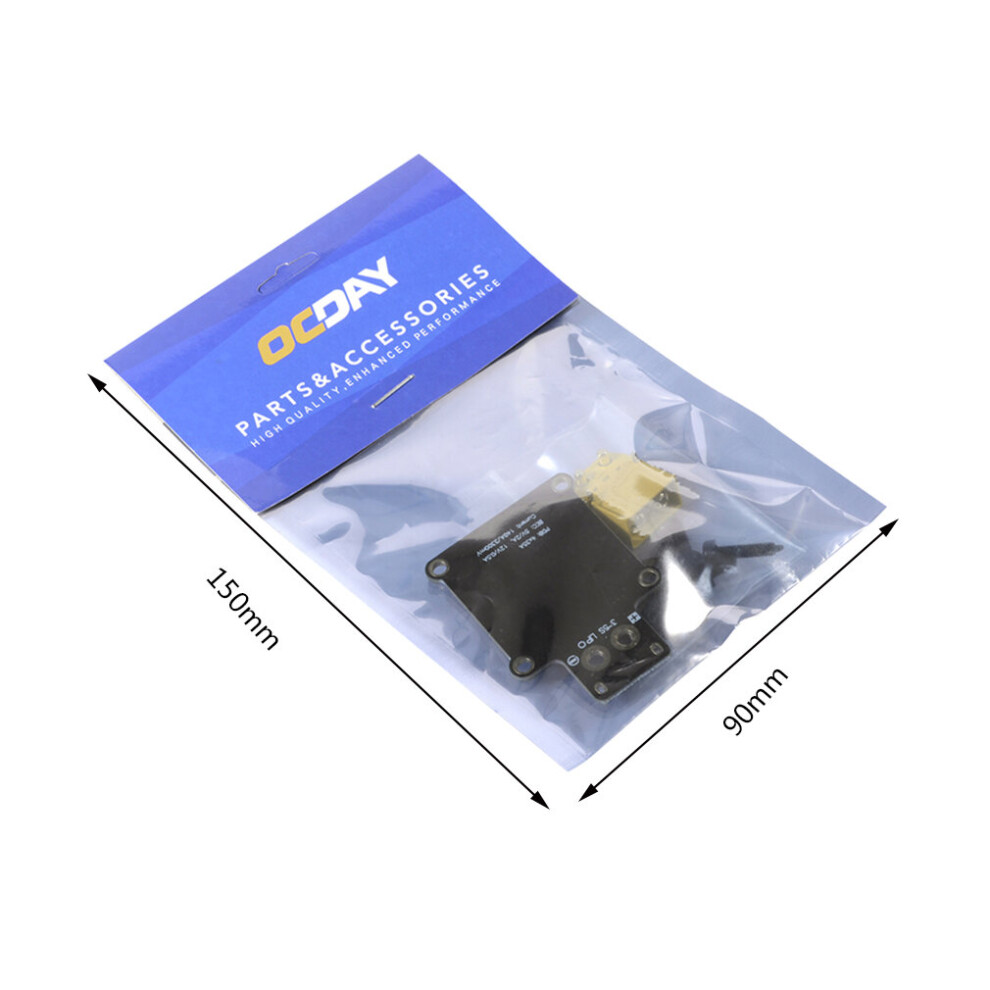

Package included:
1 x PDB
1 x XT60PW Socket
4 pairs ESC solder tabs
