Oled Display Screen Combined with EC11 Rotary Encoder Module IIC Interface for 0.96Inch

Oled Display Screen Combined with EC11 Rotary Encoder Module IIC Interface for 0.96Inch Description

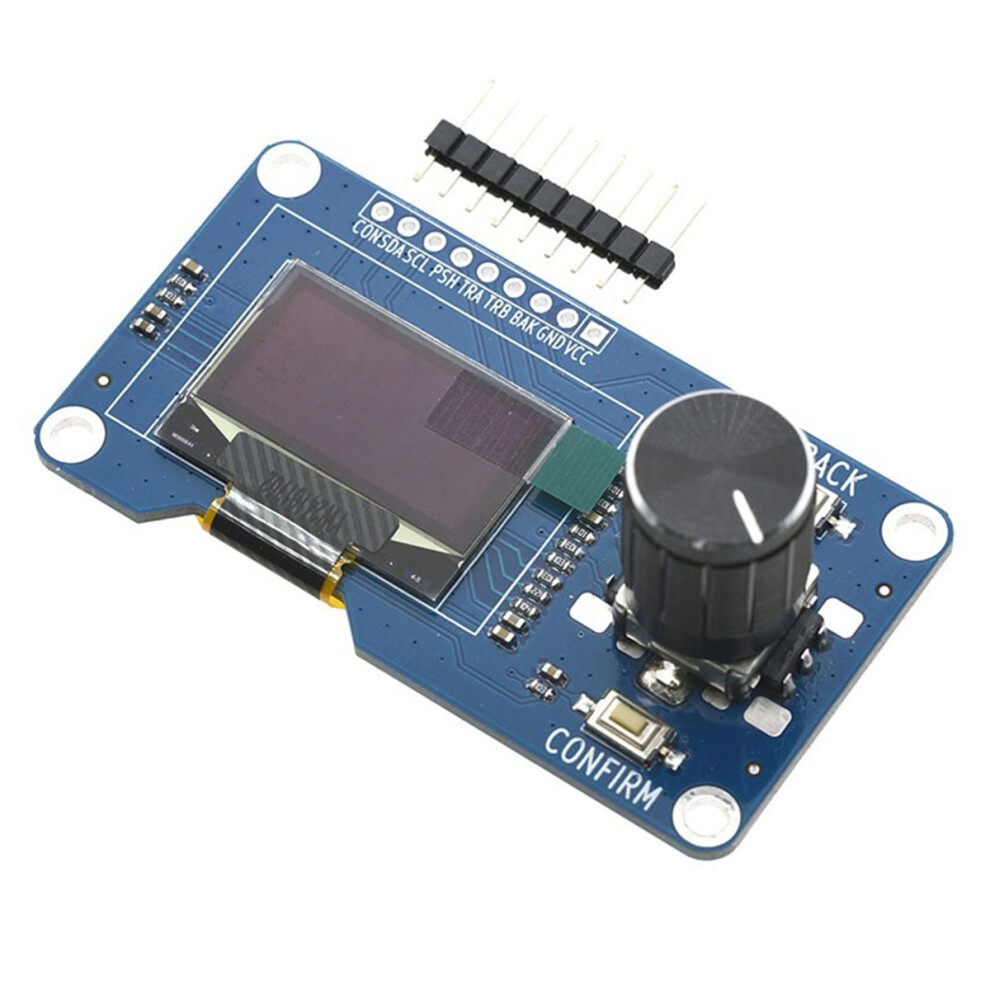

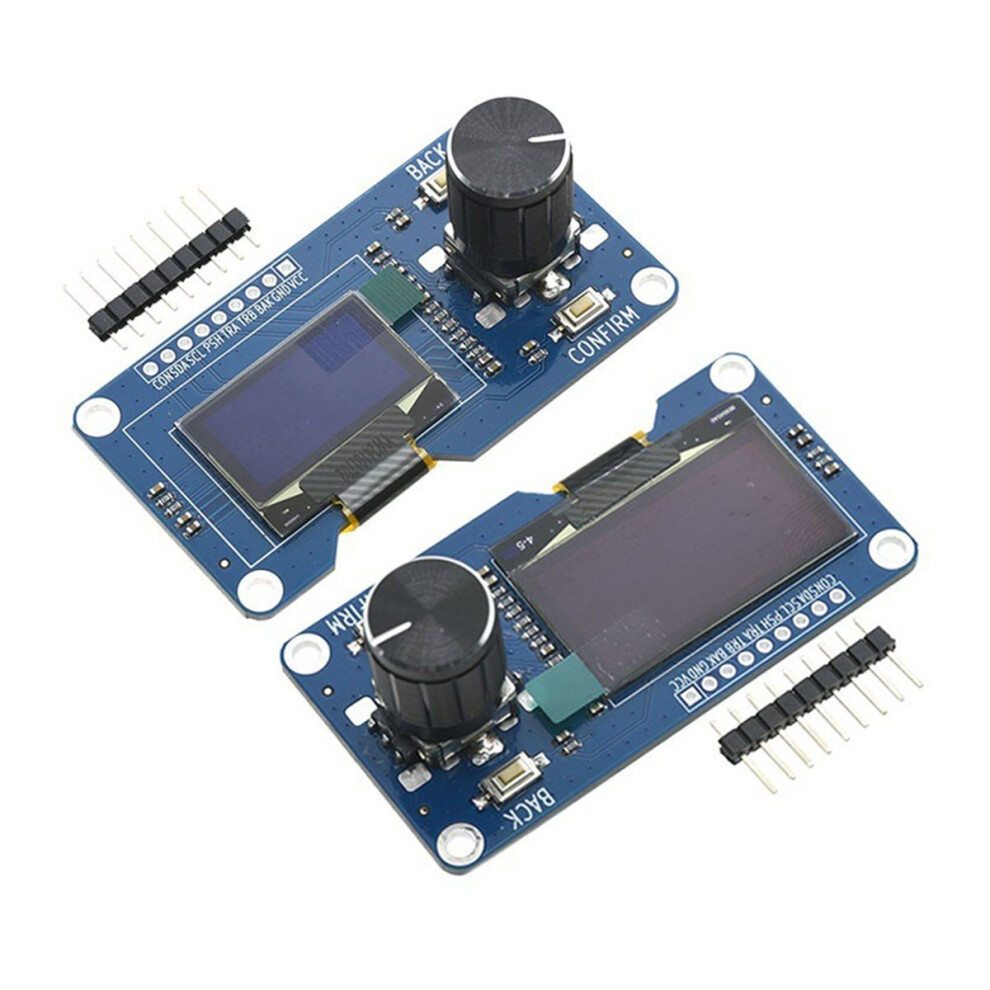

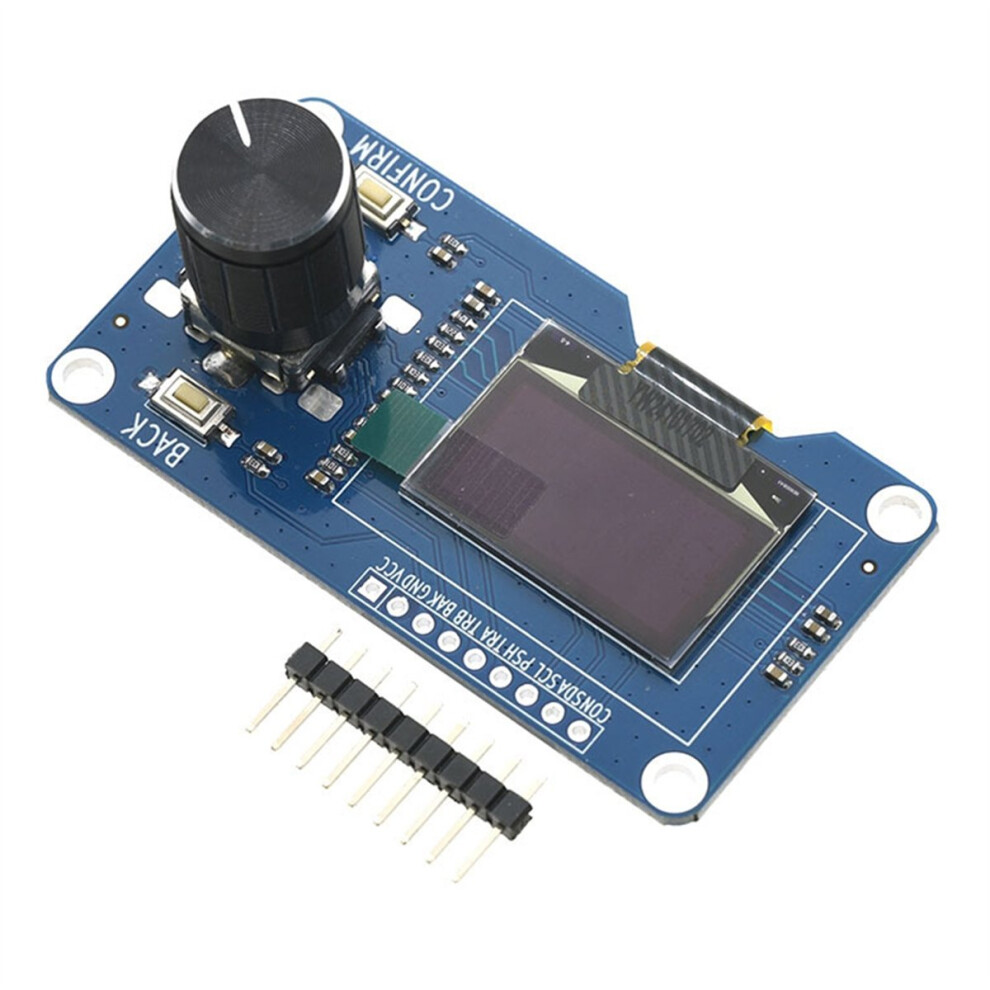

This module is composed of OLED IIC interface module and EC11 rotary encoder combined module, two It is not associated, just placed on a board, made into an integrated module, with additional return and
Confirm the key, the key interface is also , you can choose to use according to the actual use.
Integrated design, more simple and beautiful, convenient DIY.

0.96 Inch OLED+EC11 rotary encoder
OLED driver chip:
OLED interface: IIC

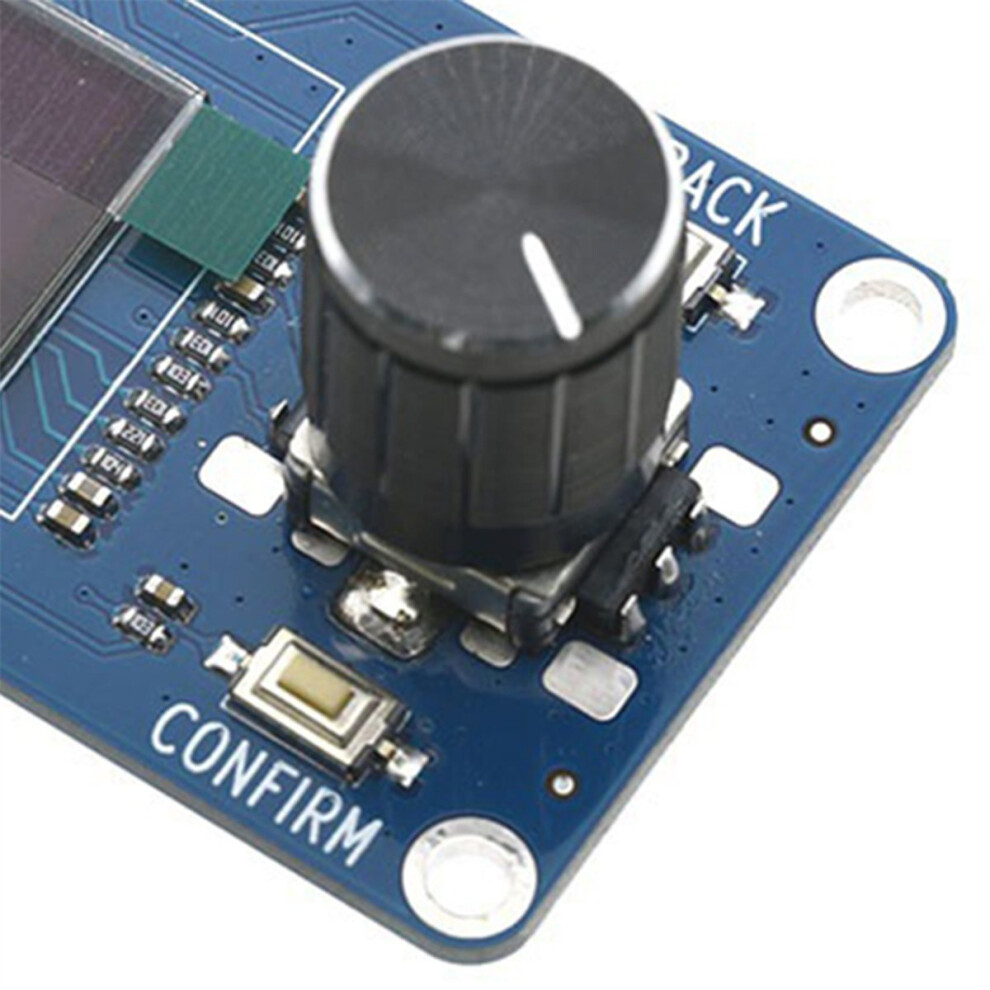

EC11: Plum handle, handle length 15mm,20
Pulse 20 positioning, 5 pin strap switch
CON(KEY1): Confirms the key interface
SDA: Data interface for OLED screen IIC communication
SCL: Clock interface for OLED screen IIC communication
: key interface of EC11
TRA, : phases A and B of EC11
(KEY0): Returns the key
GND: Power source
VCC:3.3V power supply positive
Colour:Photo Color
Material:plastic

Package Contents:
1 x display
1 x pin header

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
