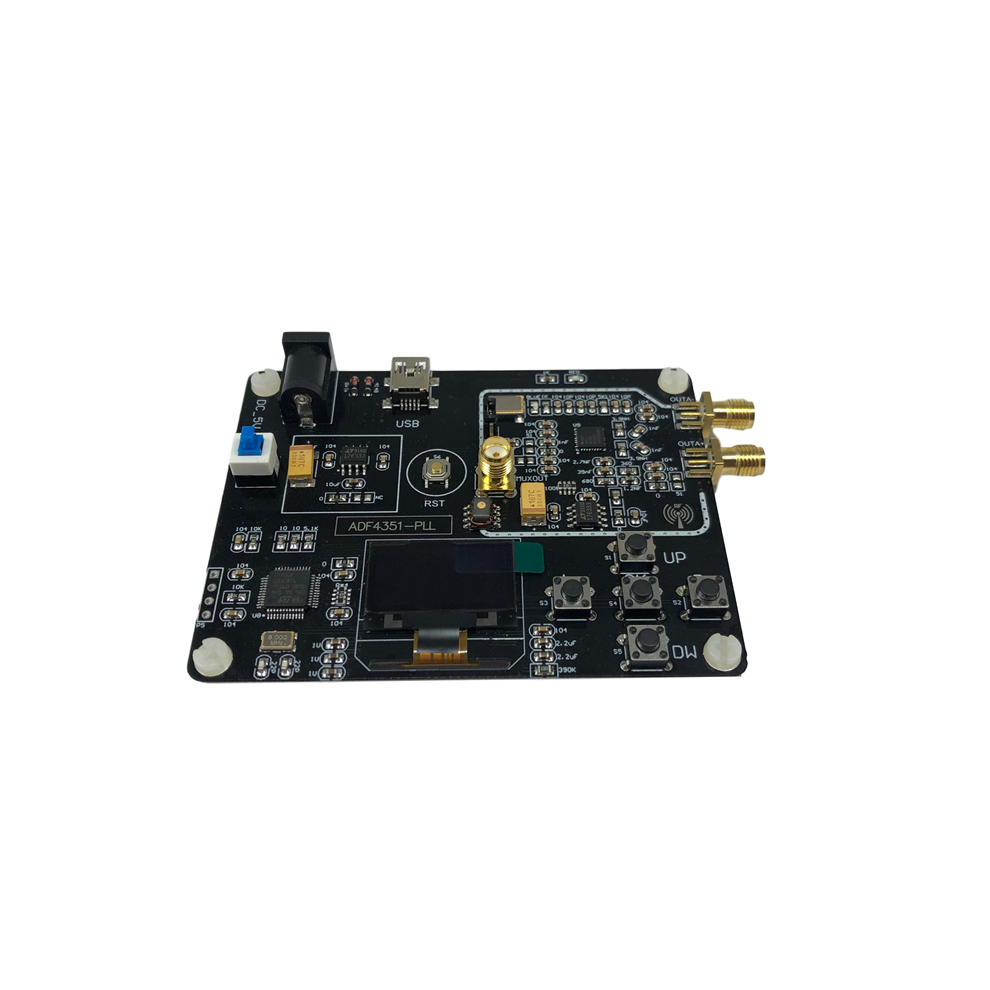

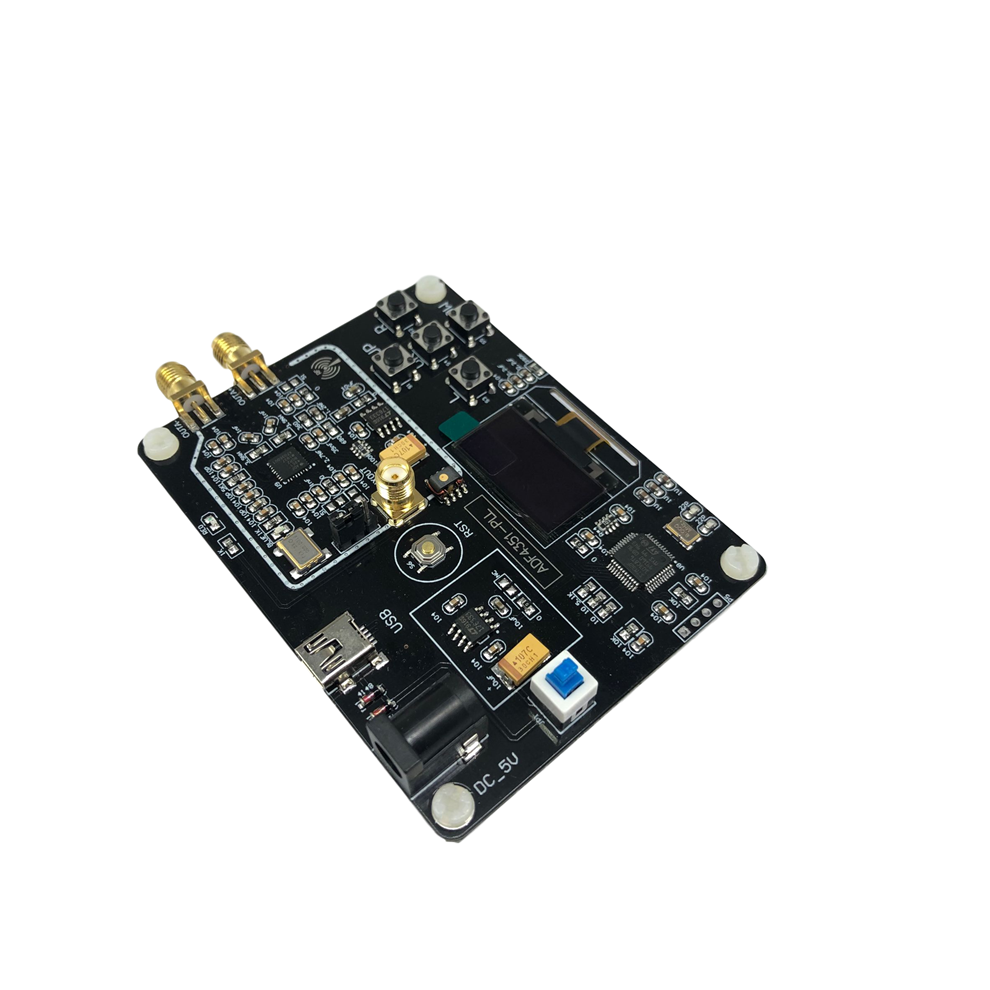

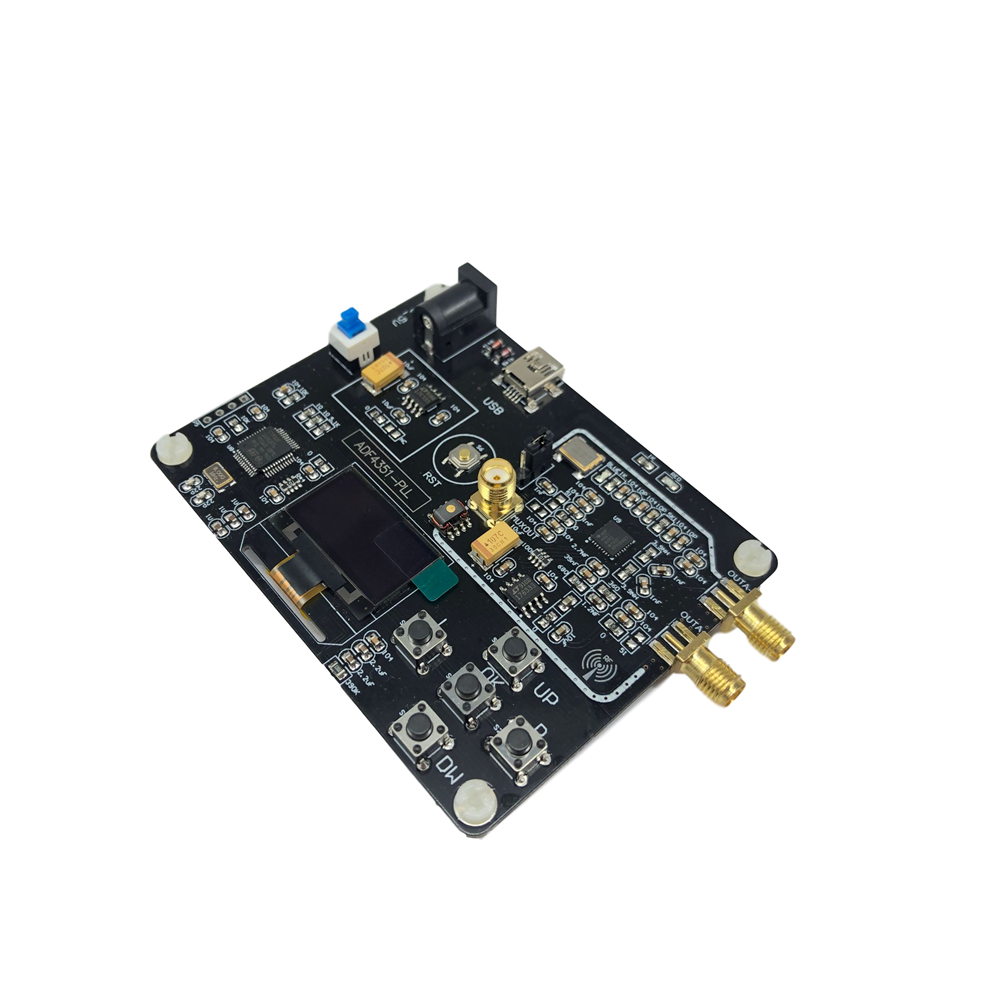

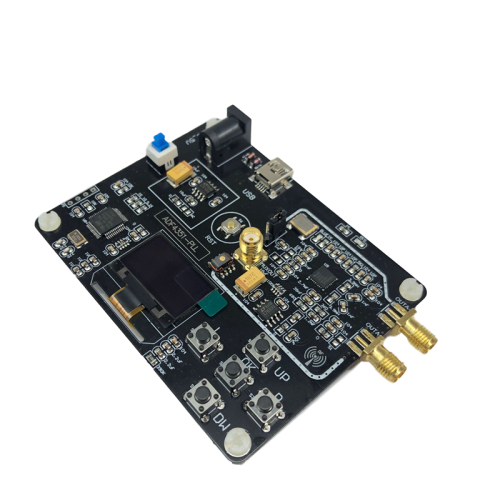

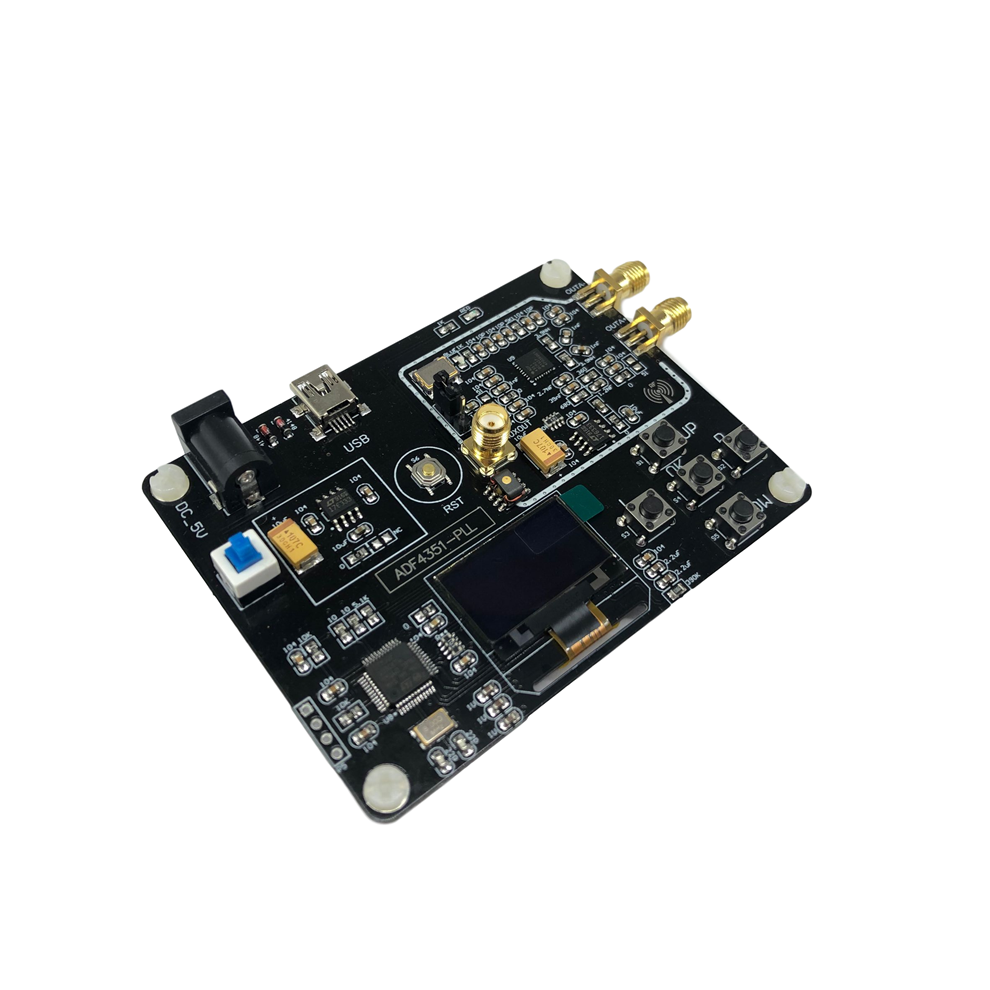

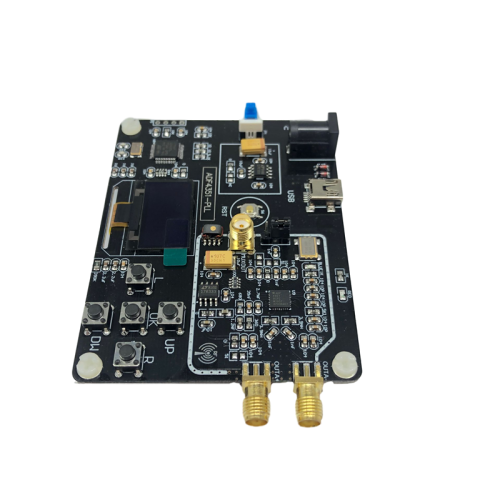

OLED Screen 35M-4.4G Precise Signal Generator Module USB Port for ADF4351 RF Development Board

OLED Screen 35M-4.4G Precise Signal Generator Module USB Port for ADF4351 RF Development Board Description

Feature:
Display: It has an OLED screen so that the results are clearly visible.
COMPATIBLE: For ADF4351 ADF4350 phase lock built-in loop, we have introduced the USB and serial port module of this host computer.
Wide VOITAGE: It is a phase locked circuit module with built-in key operation, wide-range voltage supply, and good human-computer interaction interface.
Multifunction: The module can realize the frequency output from 35MHz to 4.4GHz, basic functions such as spot frequency, frequency sweep, frequency hopping.

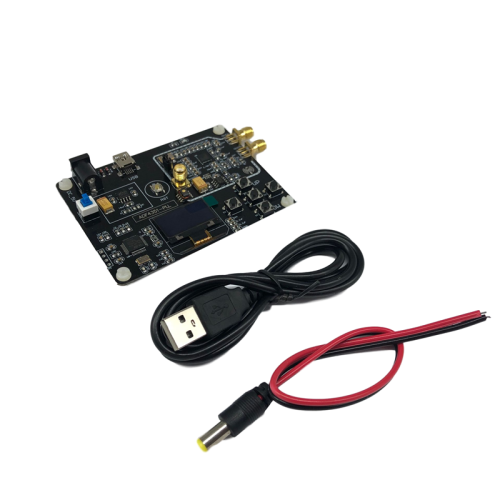

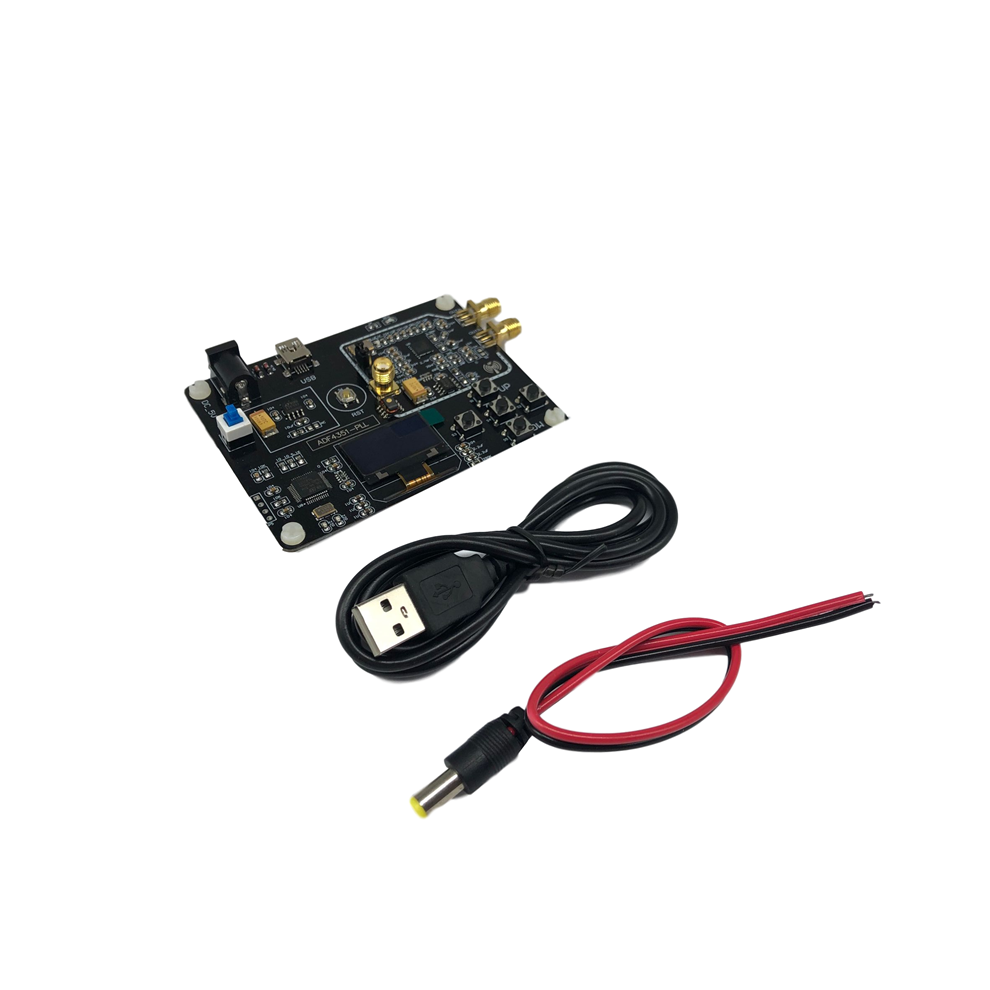

Package: Our package comes with a signal generator module, a USB-mini line, and a BNC male head to SMA male high frequency cable.

Specification
Color: black
Material: plastic
Size (length x width): about 88mm x 67mm
Power: 5V-15V (DC 5.1MM); 5 V (USB)
Bandwidth: ADF4351: 35MHz-4.4GHz; ADF4350: 137 MHz-4.4 GHz
Module step: 100KHz (minimum)
Frequency error: ?? 1KHz
Output: OUTA OUTB in two ways
Module phase noise: better than -100dBc 10KHz (noise varies with the phase of the frequency band)
Module output power: 7dBm (maximum)
Module interface: STM32 USB external communication port can be configured as USB or analog serial port (default)
Module program download mode: SW module, three-wire system (GND SWCLK SWDIO)

Package included:
1x Signal generator module

Notes:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow 0.5-2cm differences due to manual measurement.
