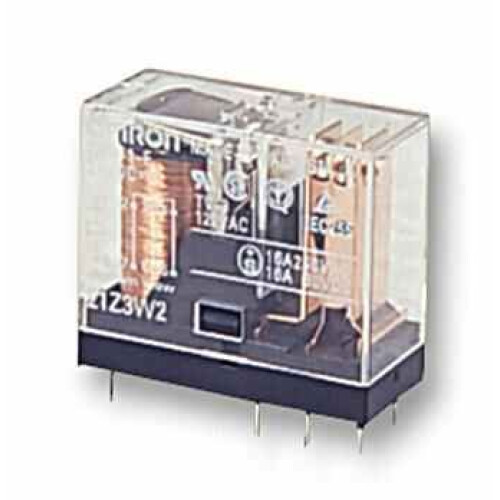

OMRON ELECTRONIC COMPONENTS - Relay, PCB, SPCO, 24V dc

OMRON ELECTRONIC COMPONENTS - Relay, PCB, SPCO, 24V dc Description

The Omron G2R series are through hole PCB power relays. These electromechanical power relays have safety oriented design with dielectric strength of 5000V between coil and contacts and surge resistance of 10000V. These relays are available in several types such as single pole, double pole, high capacity and high sensitivity type relays.

Single side stable and double winding latching

Available in flux protection and fully sealed enclosure types

SPST-NO, SPDT, DPST-NO, DPDT contact configurations

UL, CSA and VDE standards approved

Single and bifurcated contacts available

Available in 3A, 4A, 5A, 8A, 10A and 16A switching current based on models

Selectable coil voltage of 5VDC, 6VDC, 12VDC, 24VDC, 48VDC, 100VDC, 100/(110)VAC and 200/(220)VAC

Applications

Contact Configuration: SPDT

Coil Voltage: 24VDC

Contact Current: 10A

Relay Mounting: Through Hole

Coil Type: Non Latching

Contact Voltage VAC: 250VAC

Relay Terminals: Solder

30VDC

Coil Resistance: 1.1kohm
