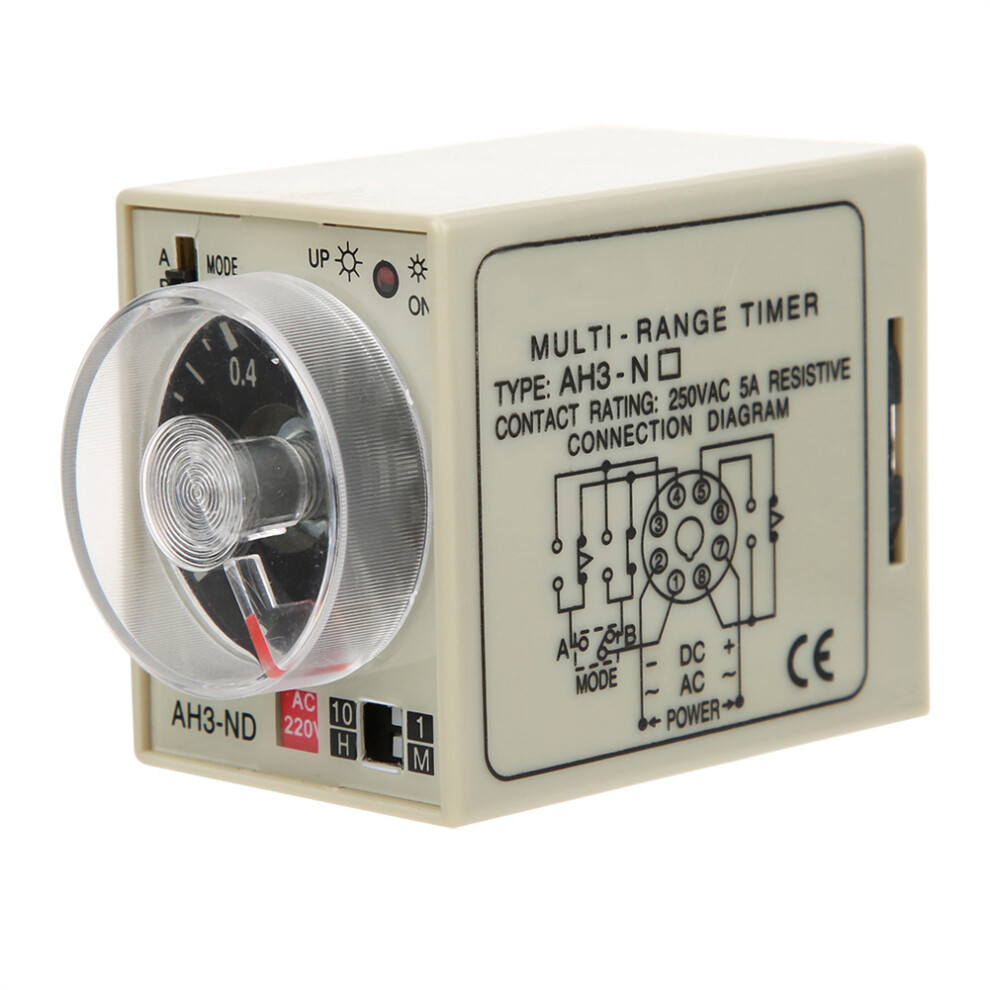

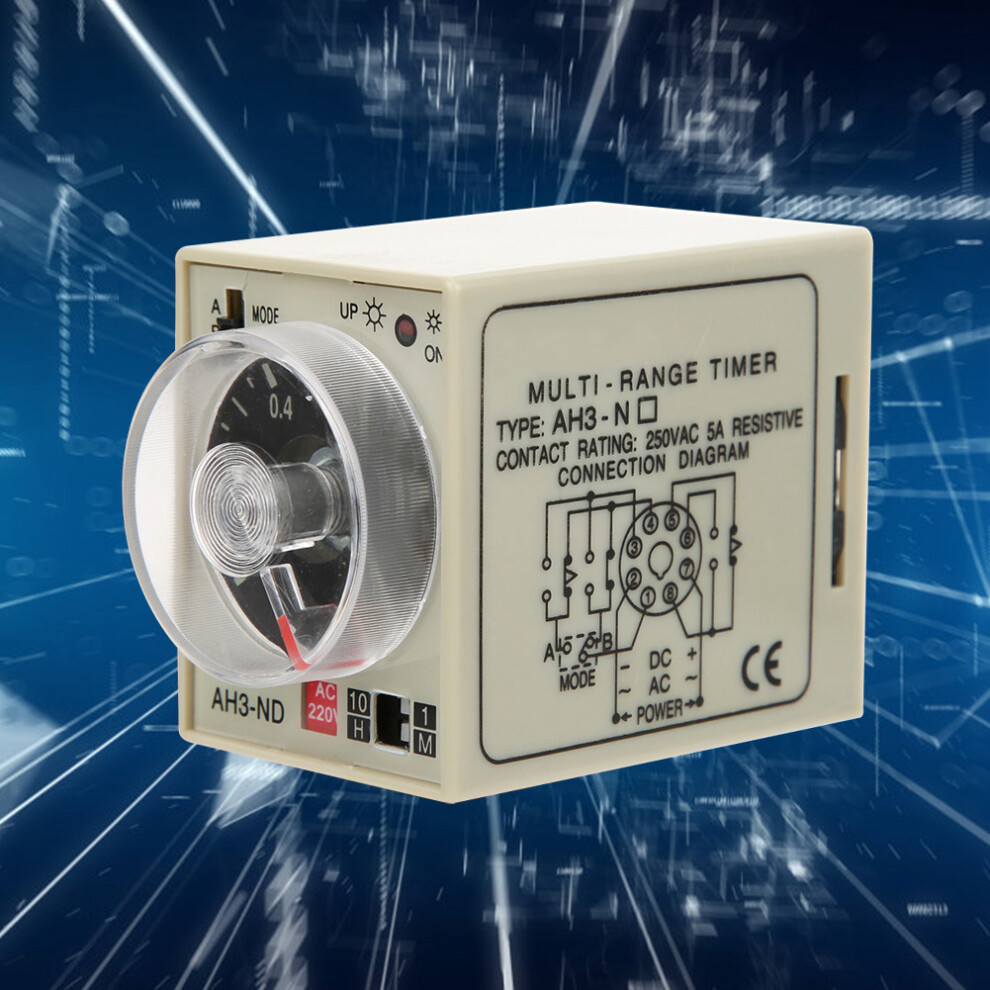

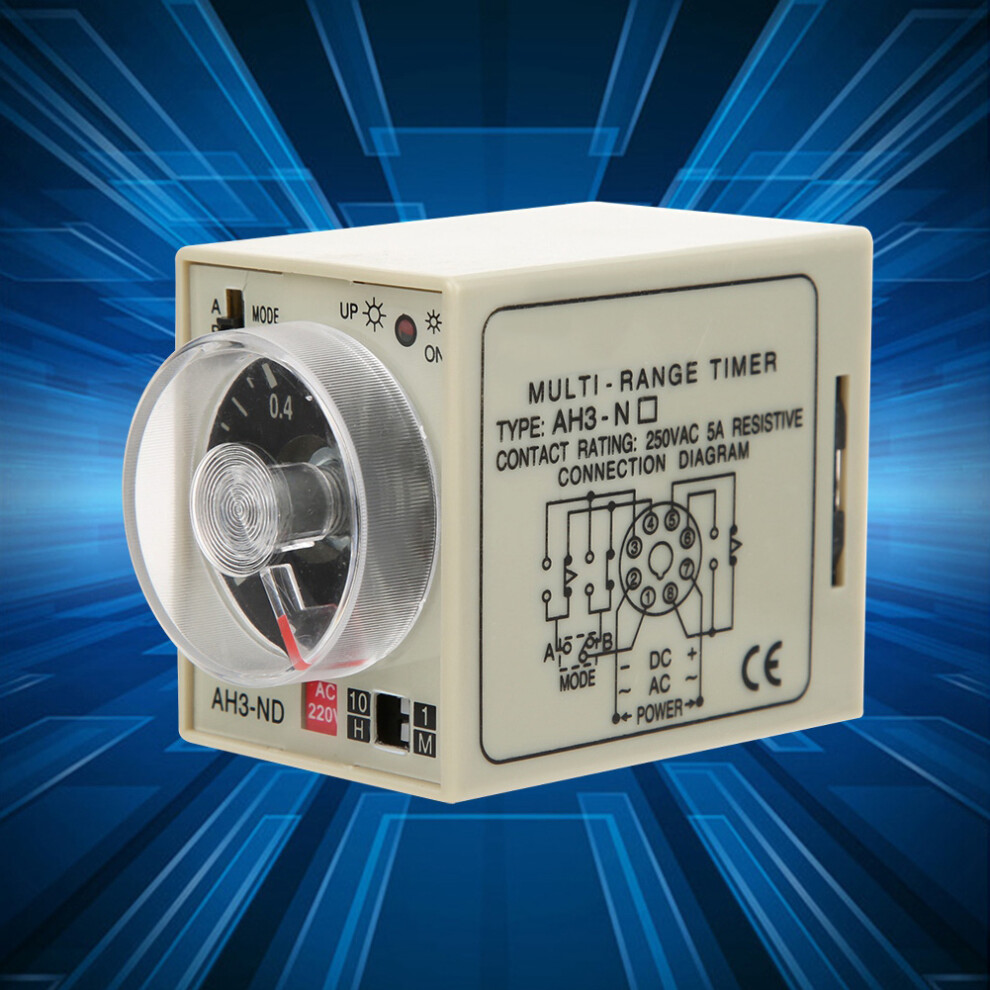

On Delay Time Relay Mini Adjustable AB Double Mode AH3 ND AC220V

On Delay Time Relay Mini Adjustable AB Double Mode AH3 ND AC220V Description

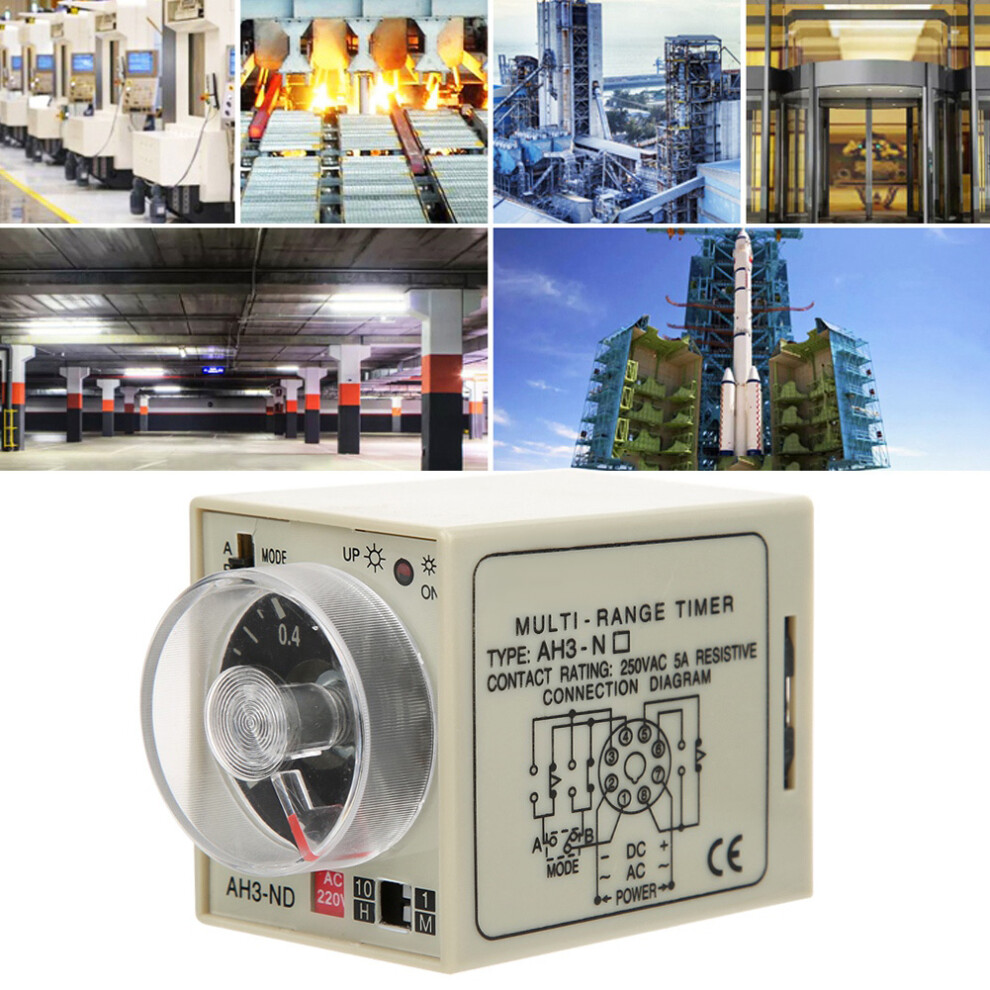

1、Multi-time Period, more range for options: 1min、10min、1h、10h 2、Large-capacity contacts, 8-pin high-quality copper galvanized pins, translucent and not rusty, excellent conductivity 3、With 2 sets of mode switching, A: two sets of time limit B: one set of instantaneous, one set of time limit 4、The indicator light can show the working state in time 5、Suitable for machine tools, metallurgy, chemical, automatic doors and garages, etc.

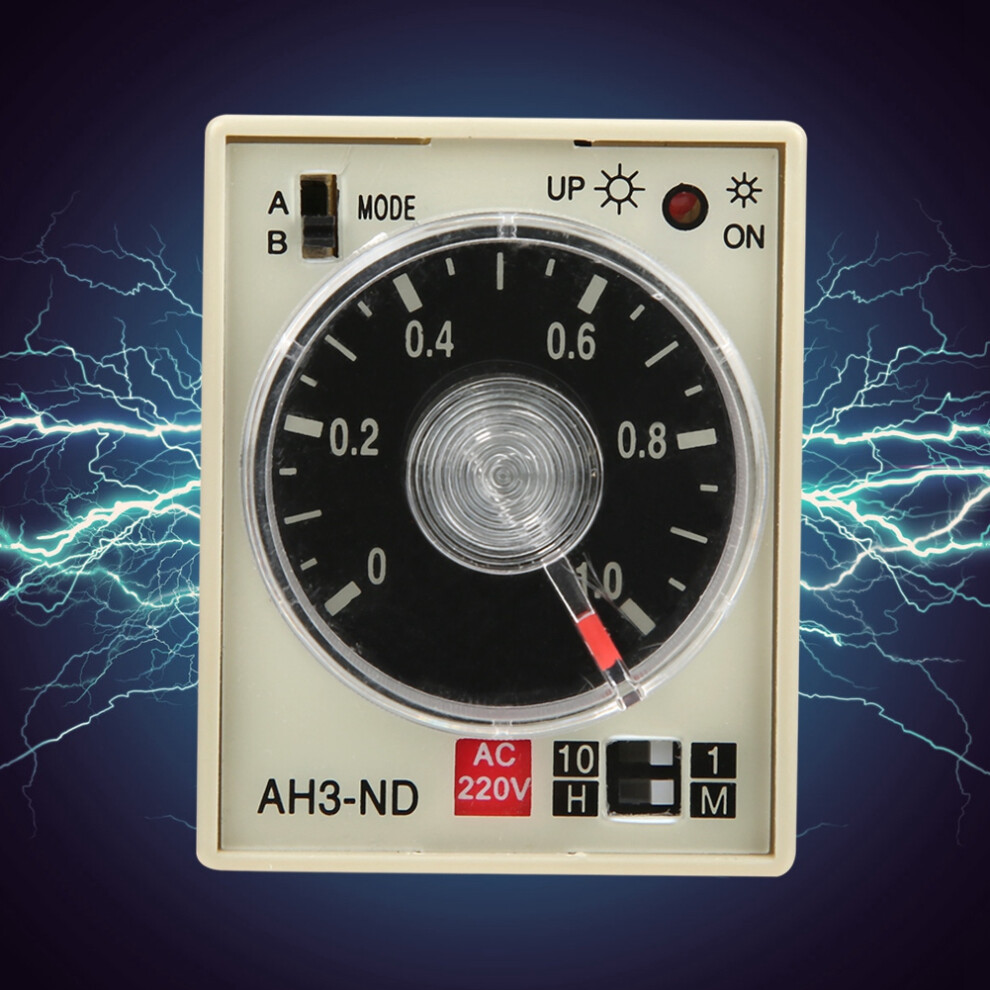

Item Type: On-Delay Time Relay
Model: AH3-ND
Specifications: 1min, 10min, 1h, 10h(adjustable)
Power Frequency: 50 / 60Hz
Contact Capacity: 250VAC 5A resistive load
Return Time: Maximum, 0.1sec
Power Consumption: About 5VA
Contact Capacity: 5A contact form time limit 2C / time limit 1C instant 1C
Mode Switch: A: Two Sets of Time Limit B: One set of instantaneous, one set of time limit
Supporting Base: PF083A
Service Life: Mechanical: 5,000,000 Times, Electrical: 100,000 times (within rated capacity)
Use Ambient Temperature: -10 ~ + 50
1 x On-Delay Time Relay
