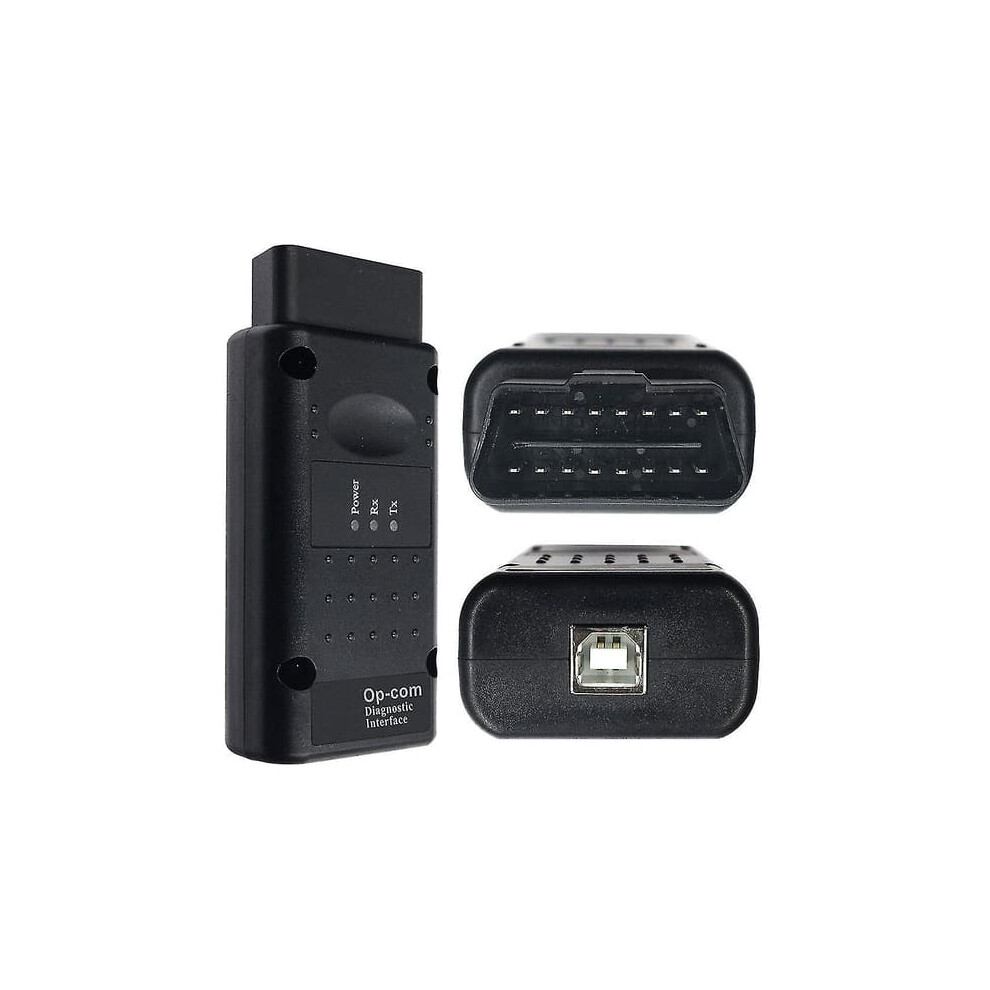

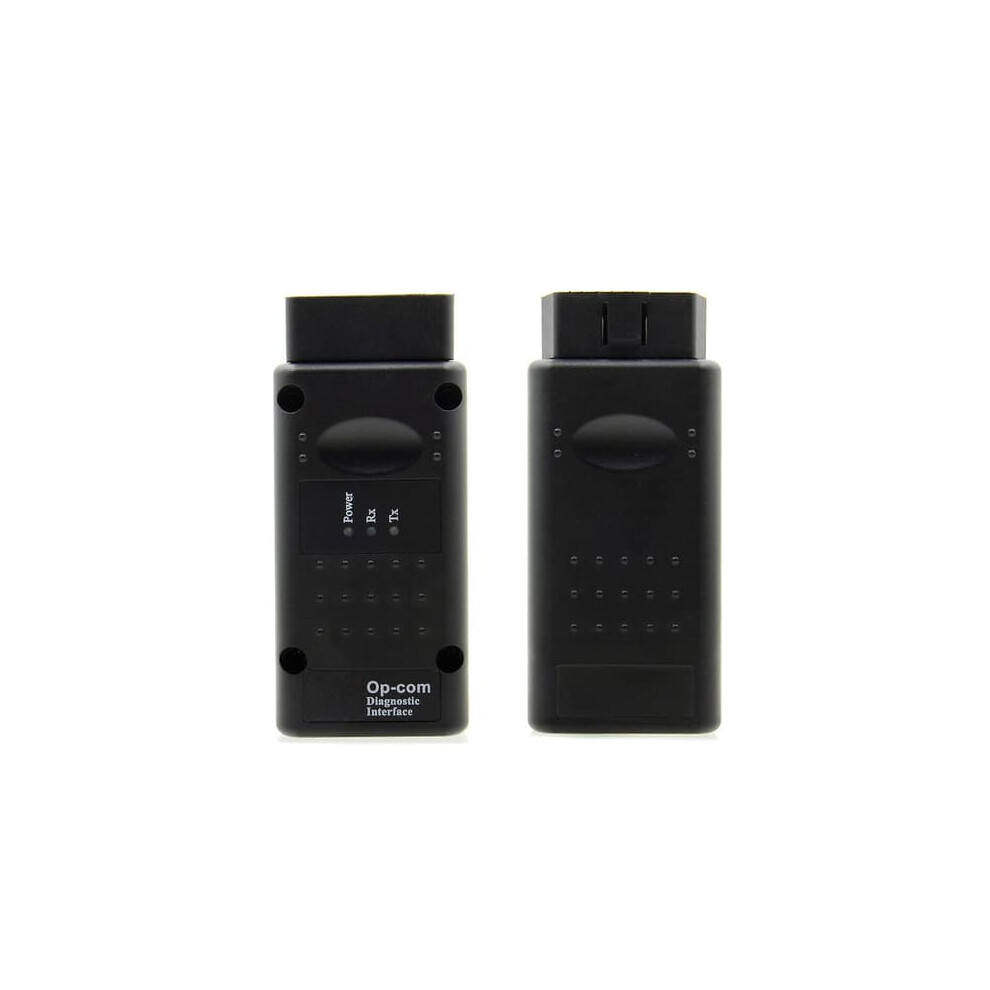

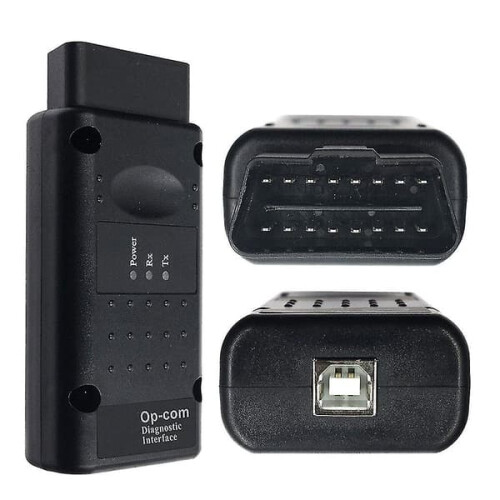

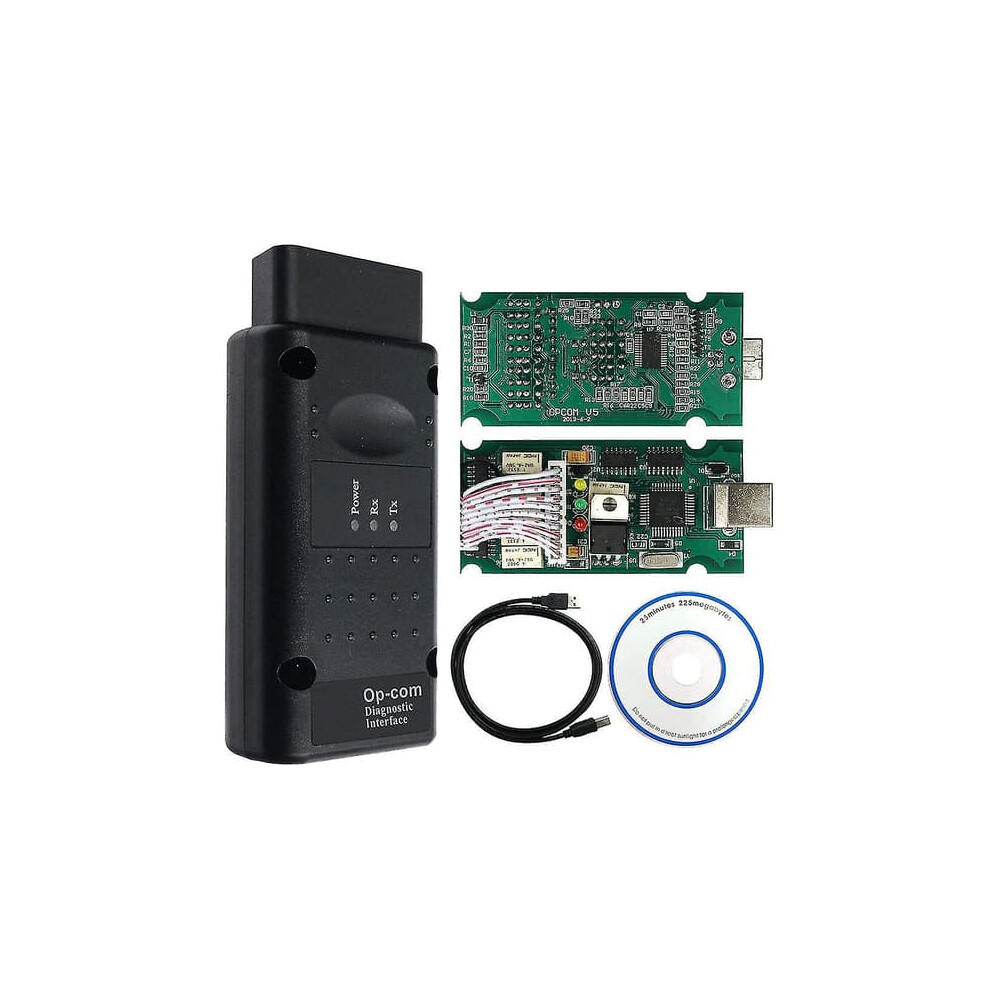

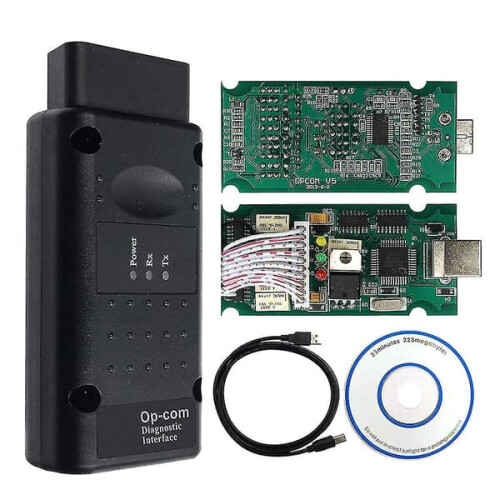

Opel diagnostic tool Op-Com firmware V1.99

Opel diagnostic tool Op-Com firmware V1.99 Description

Features: 1. The diagnostic interface is USB port based, so there will be no compatibility issues with serial-to-USB converters. 2. The communication speed over the USB bus is sufficient to handle the amazing speed of High-Speed CAN-BUS systems, which is currently 500 kbps. This is the main reason why only USB port based interface is available for CAN-BUS. 3. The program supports many control units, such as engine, automatic transmission, ABS, airbag, engine cooling system module, instrument cluster, electronic climate control, body control unit 4. The program supports many control units, such as engine, automatic transmission, ABS, airbag, engine cooling system module, instrument cluster, electronic climate control, body control unit, just to name a few. Since many pins are used in the OBD connector for Opel, the diagnostic interface acts as a multiplexer and selects the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial link (ISO9141, KW81, KW82, KWP2000)5. Error codes are displayed with all available information: Full status information (Present, Not present, Intermittent)6. The program shows you measurement block information on many control modules, you can choose what you want from the list on your own.7. You can also run output tests on many control units.PIN6-PIN14PIN3-PIN11PIN1HSCAN - Dual-wire, high-speed CAN-BUS, 500 kbpsMSCAN - Dual-wire, medium-speed CAN-BUS, 95 kbpsSWCAN - Single-wire, low-speed CAN-BUS, 33.3 kbpsincludes:1 x OP-COM interface1 x USB cable1 x CD
