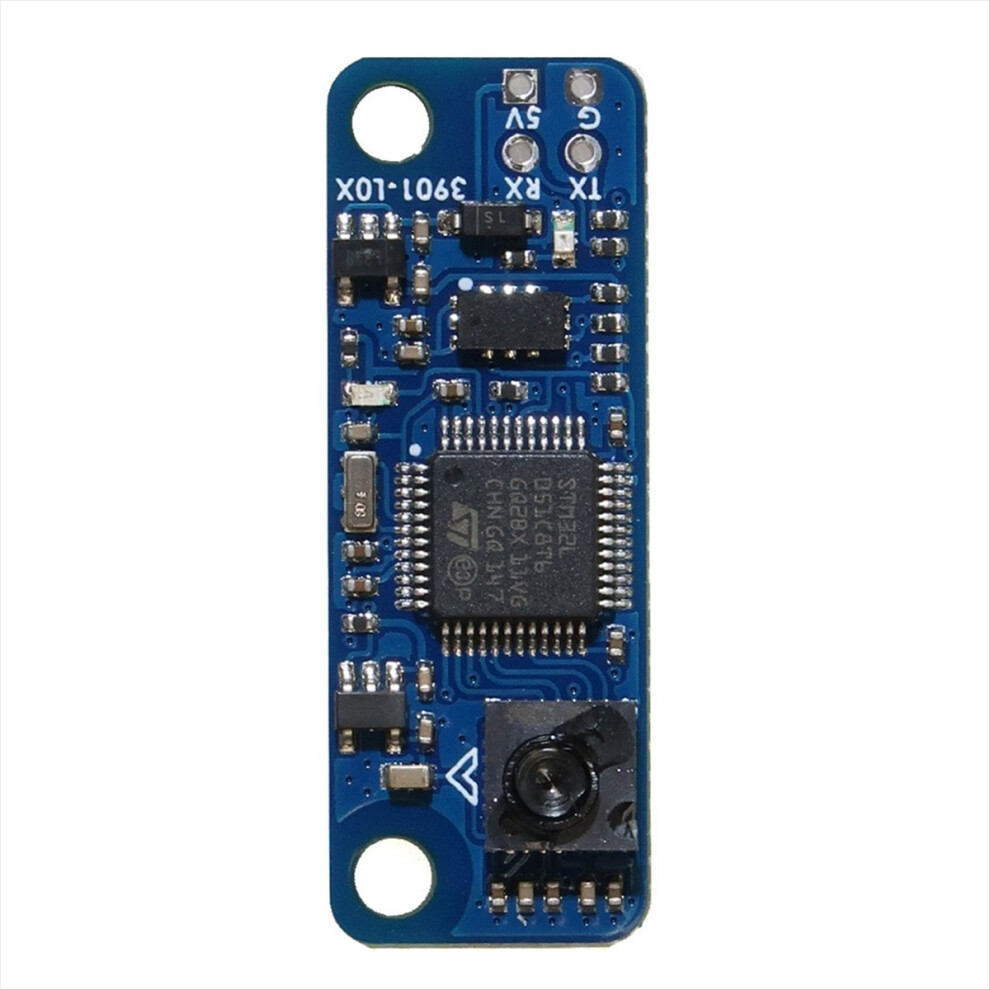

OPTICAL FLOW & LIDAR SENSOR 3901-L0X INAV Flow Sensor Module for RC FPV Racing Freestyle F4 F7 Flight Controller Drone

OPTICAL FLOW & LIDAR SENSOR 3901-L0X INAV Flow Sensor Module for RC FPV Racing Freestyle F4 F7 Flight Controller Drone Description

Specifications
Optical Flow: PMW3901
Lidar: (max. range 2 m)
Interface UART
Protocol: MSP

Working Range: 8cm~200cm
Field of view: 42 degree(PMW3901), 27 degree()
Minimum Illumination 60Lux
Input voltage: 4.5~5.5V
Power Consumption: 40mA
Material: Metal + Plastic
Color: As shown
Tips

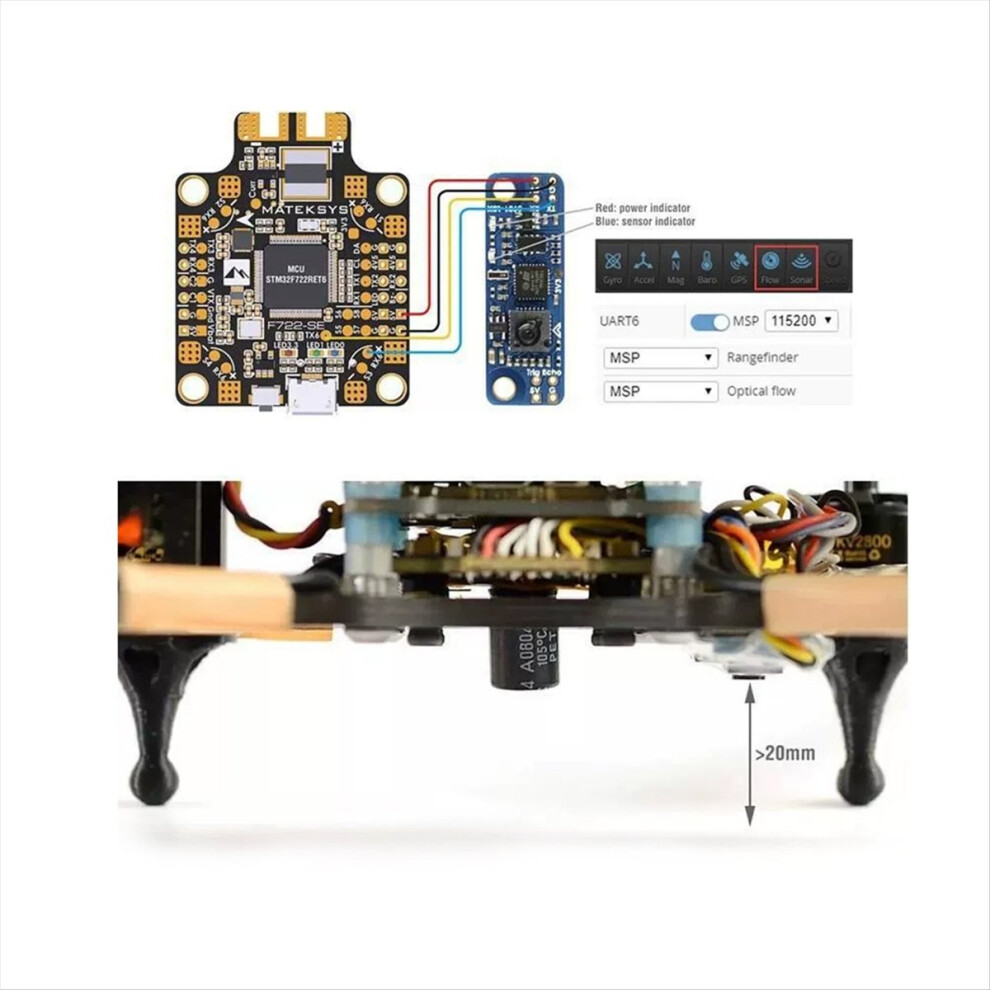

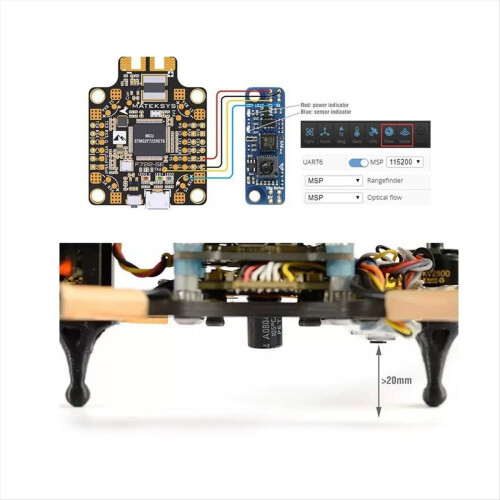

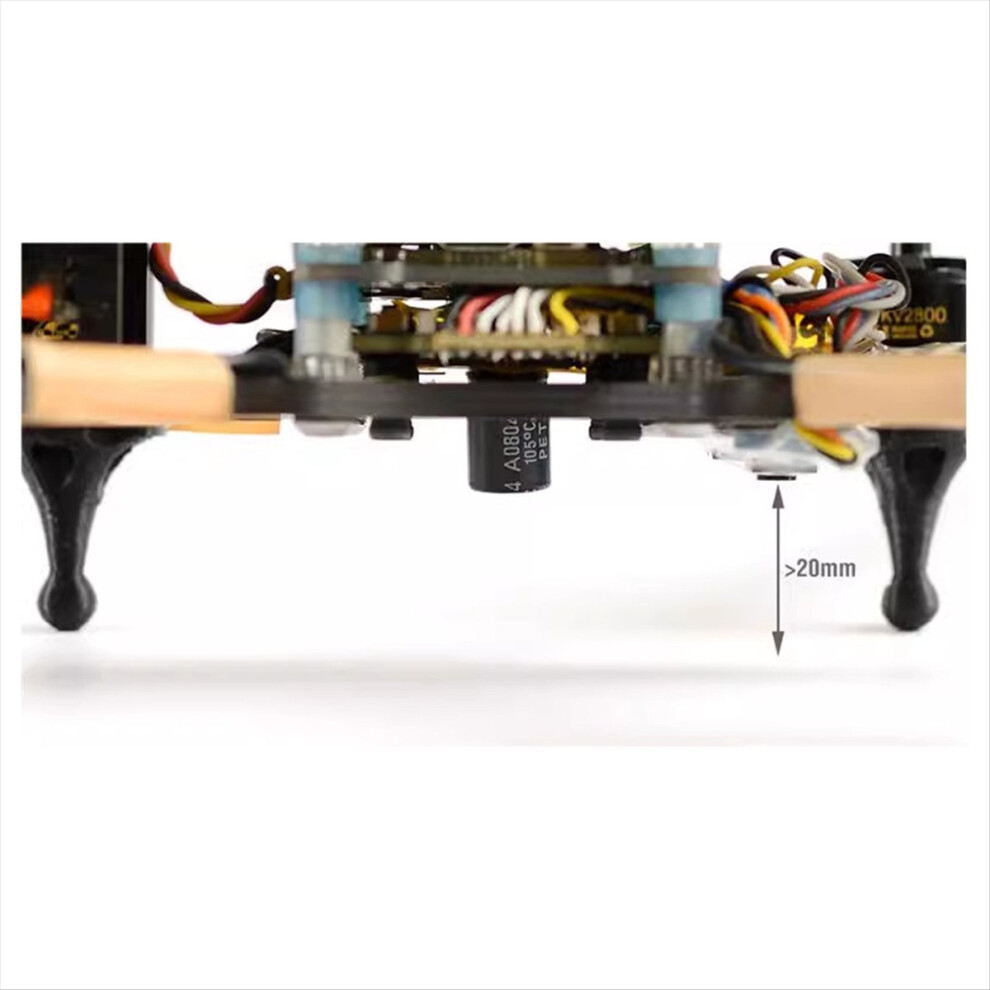

Make sure Optical Flow lens to ground 2cm for opflow initialization while FC starting up.
Maximum range of is 2m, Altitude hold 0~2m @ throttle 0~100% if is enabled.

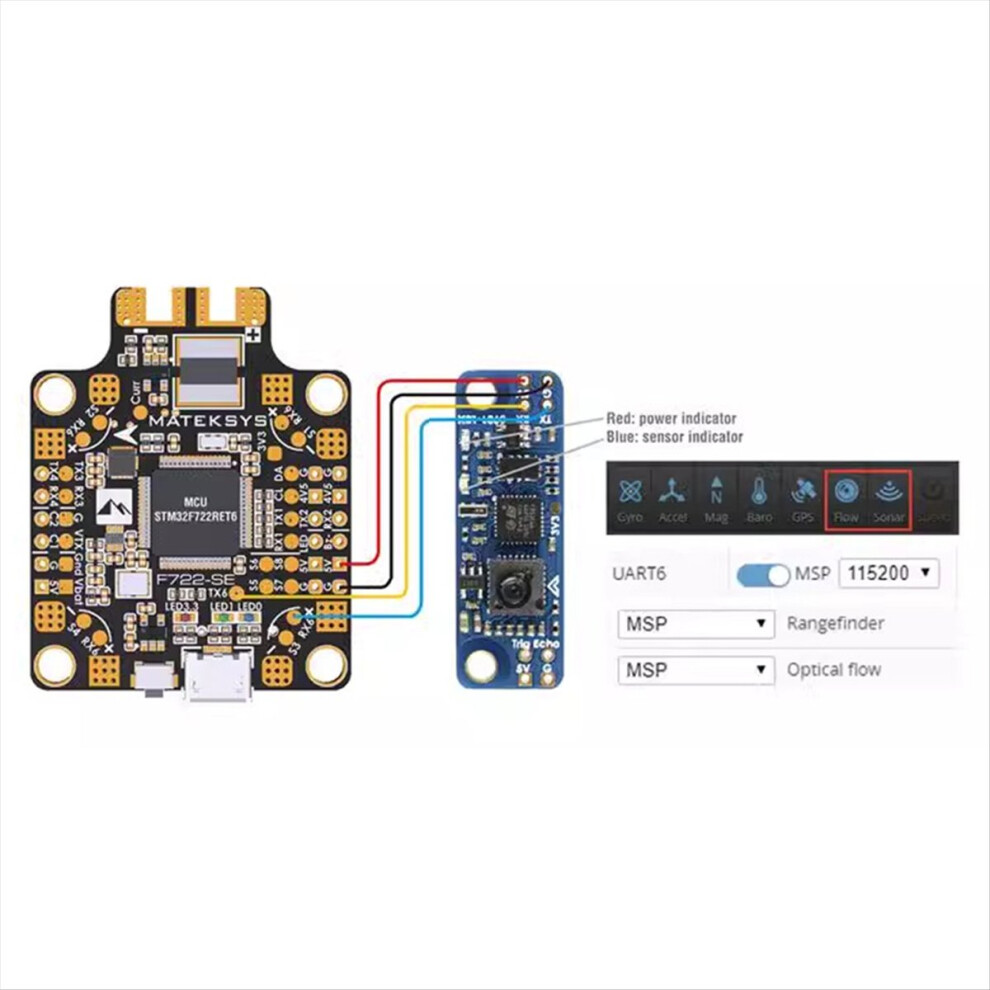

Any unused UART of FC supports it
Sonar connection (Trig & ) has not been implemented
If your flight controller doesn't have a barometer detected, you 't be to select "NAV ALTHOLD" in modes tab.

Package Contents:
1 x Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
