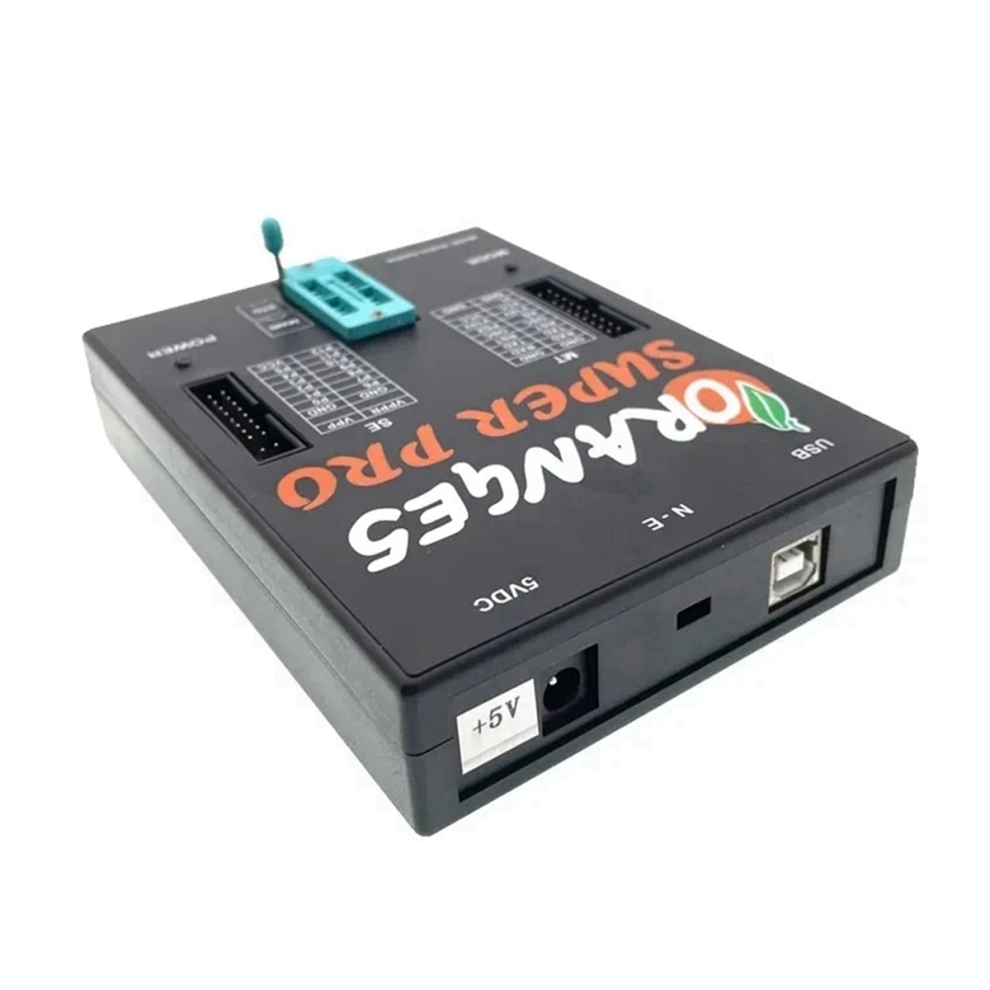

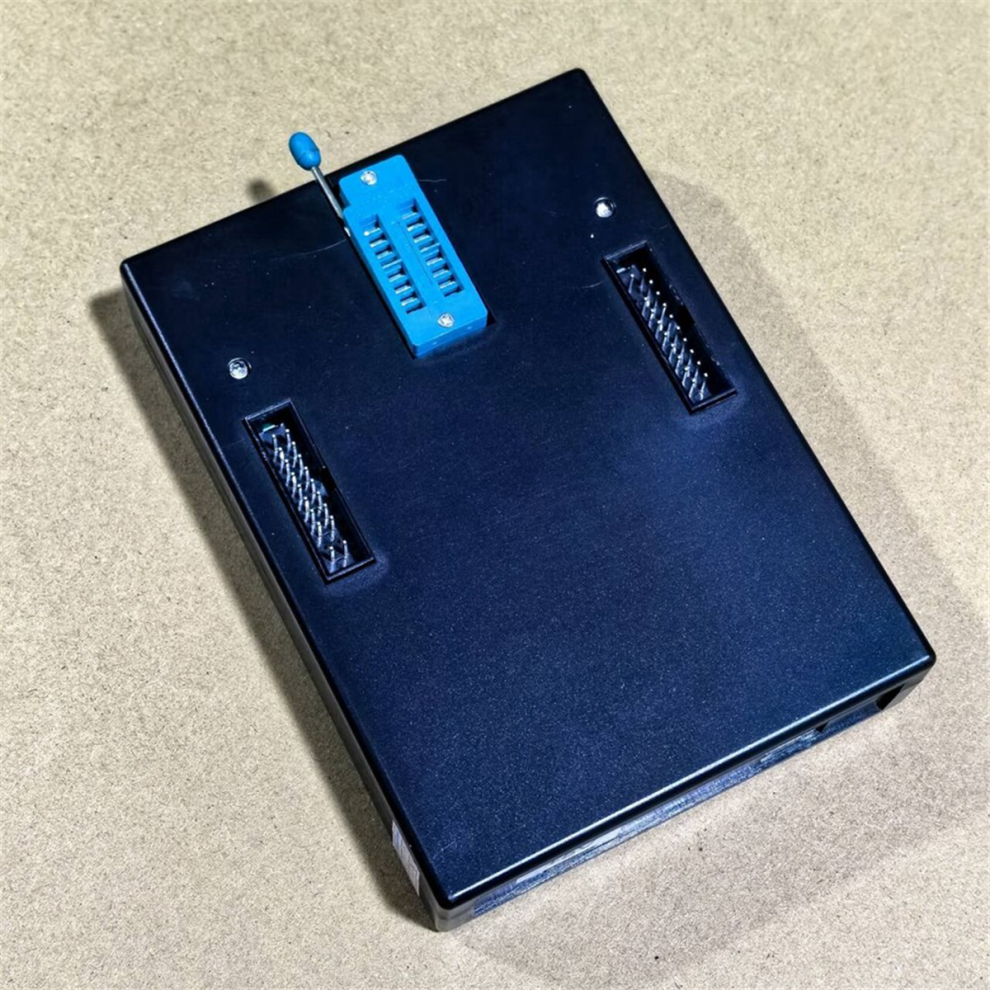

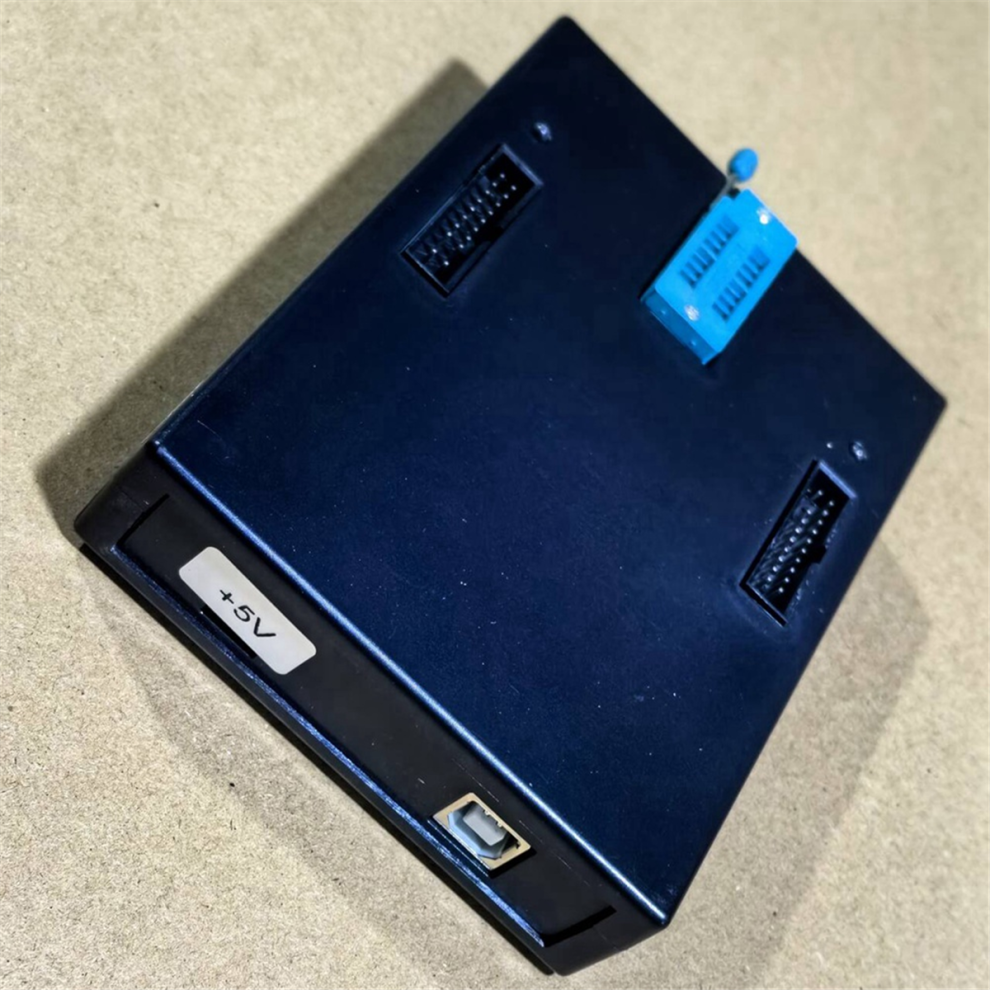

Orange5 V1.42 Main Unit 5C38 ECU Programmer Adds More Ecu Mcu List Program for Upgrade Orange 5

Orange5 V1.42 Main Unit 5C38 ECU Programmer Adds More Ecu Mcu List Program for Upgrade Orange 5 Description

NEWEST Version:V1.42:

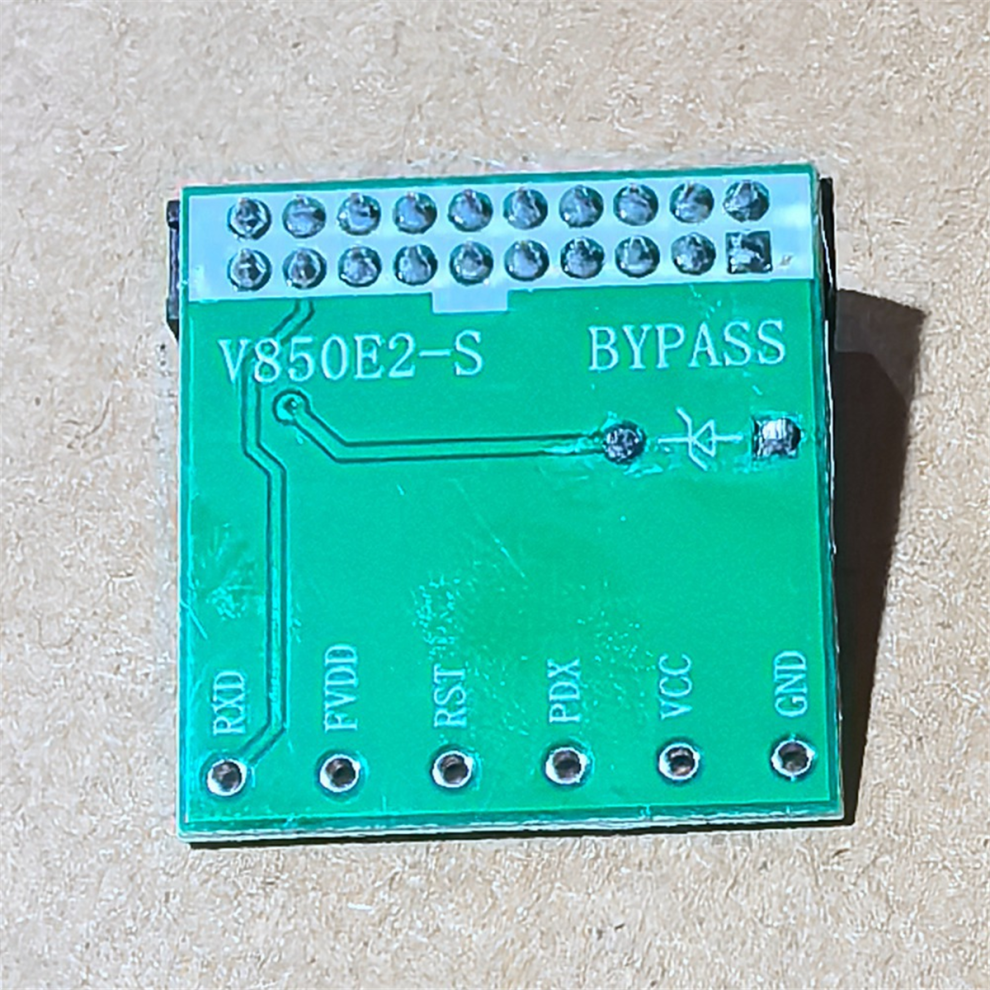

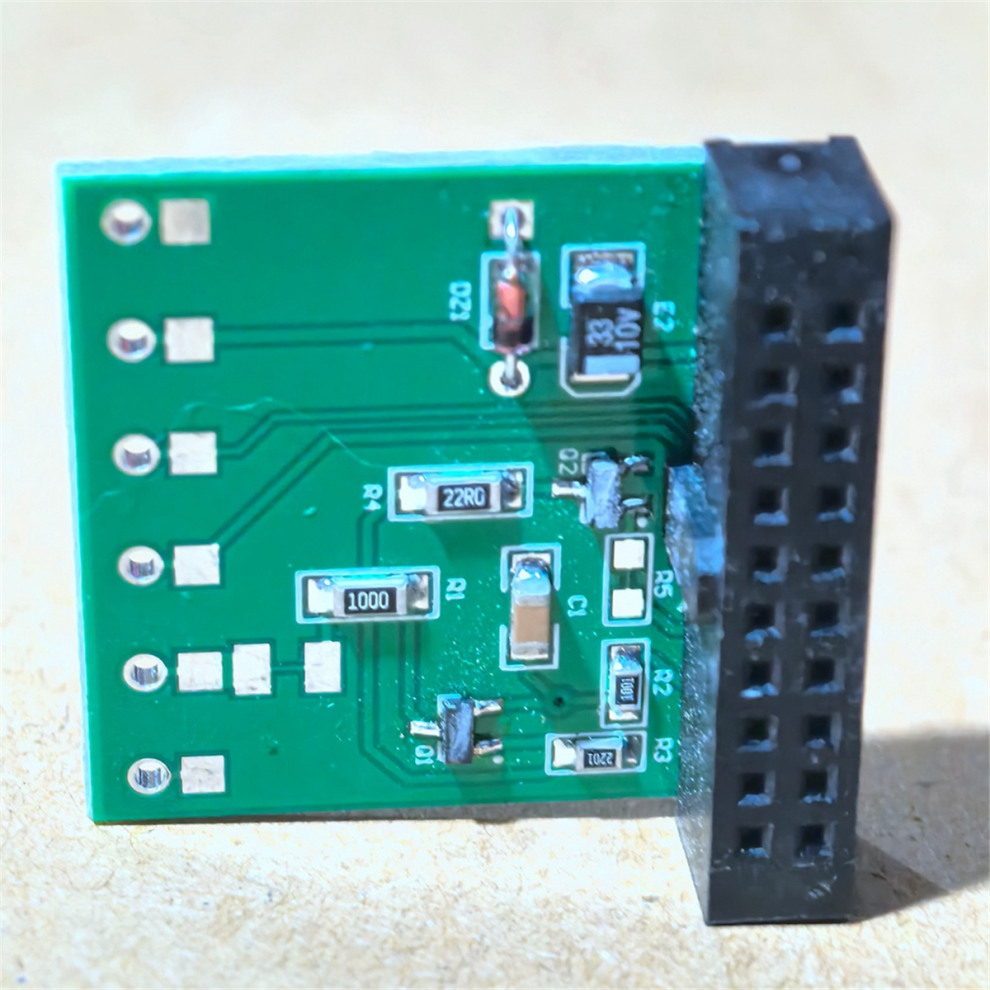

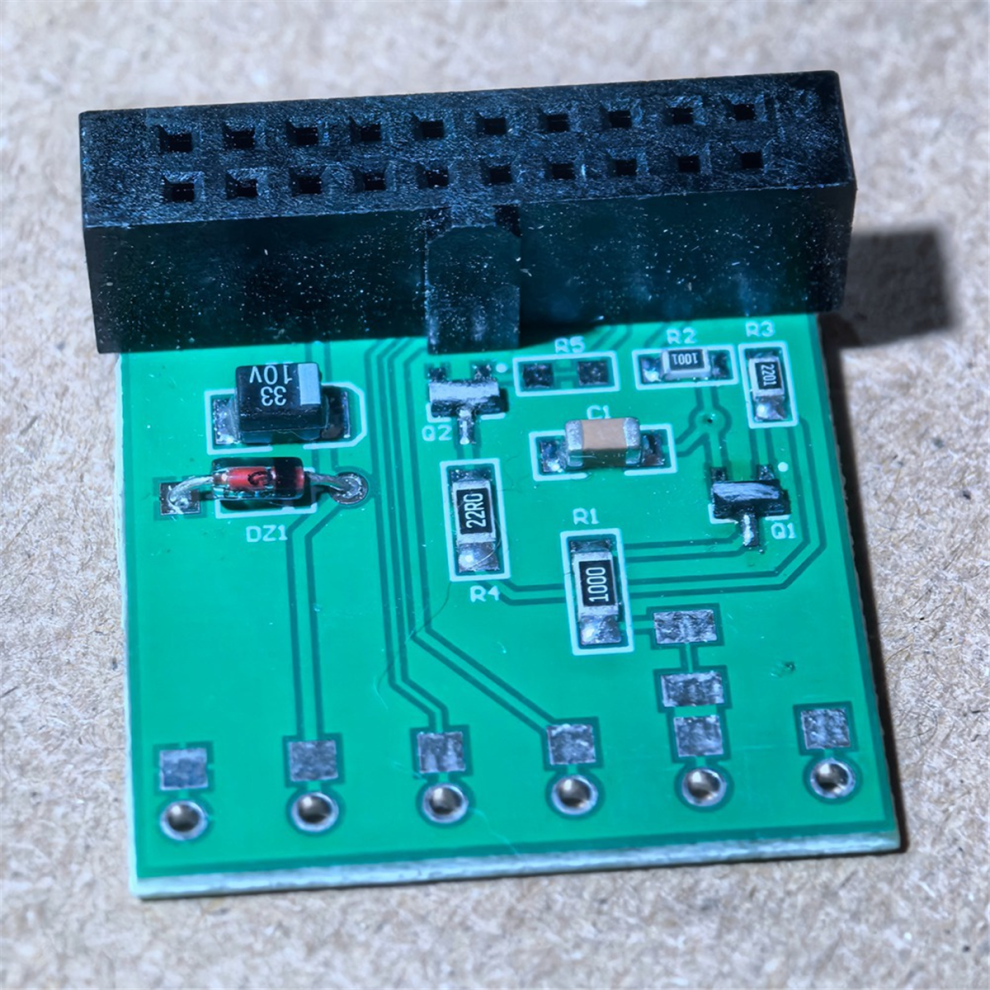

1, Updated on the basis of v1.38, adding more supported chips, compatible with 1.38 hardware, it is more professional and the programmer you want. 2, V1.42 dongle and V1.42 software need to be used together. 3, If you want detailed information about 1.42, please . 4, add V850E2-S BYPASS Adapter
Orange5 Technical :
USB power supply (USB2.0/3.0); Universal easy to plug panel ZIF16 for EEPROM; Control of contacts in the sockets; Two expansions compatible with Orange4 and MTRK; Protection against overcurrent; Overload voltage protection
Two types of power supply: (USB) and enhanced (USB + external power supply); Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers

High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under XP/7 32bit. [*Win8.1]
Installation and Work with Orange-5 under Windwos 7 and 8.1
CnCterm - Terminal program for work with COM ports.
Description:
NOTE: Orange5 cannot work on Win11, requires Win10 64 bit and Win7!!!
:
Software Version:V1.42, orange 5 full function. Activate full Authorizations
Language:English
Systems:WIN7 (32bit and 64 bit)
it can do ECU Programmer, Key Progrmmer, km correction, immo pin, srs reset
Colour: Picture Color
Material: Plastic

Package Contents:

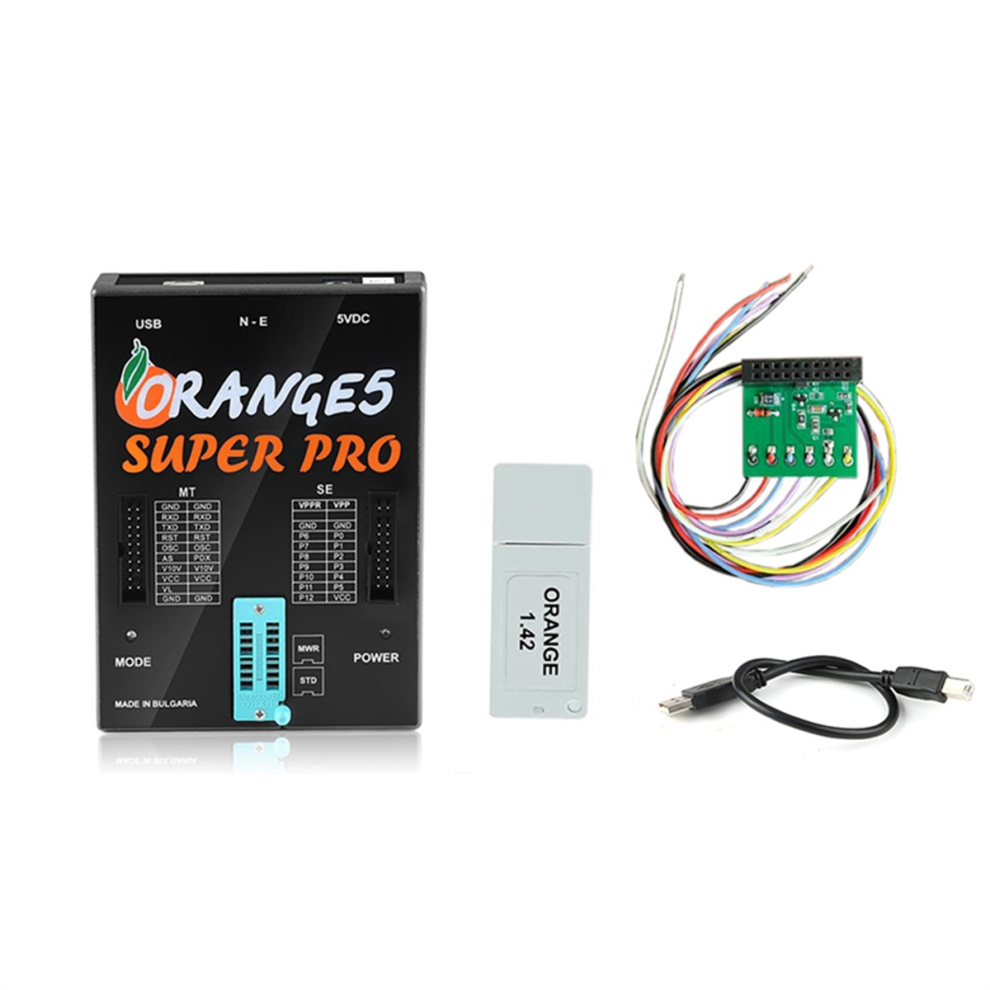

1*Orange5 V1.42 ECU Programmer set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
