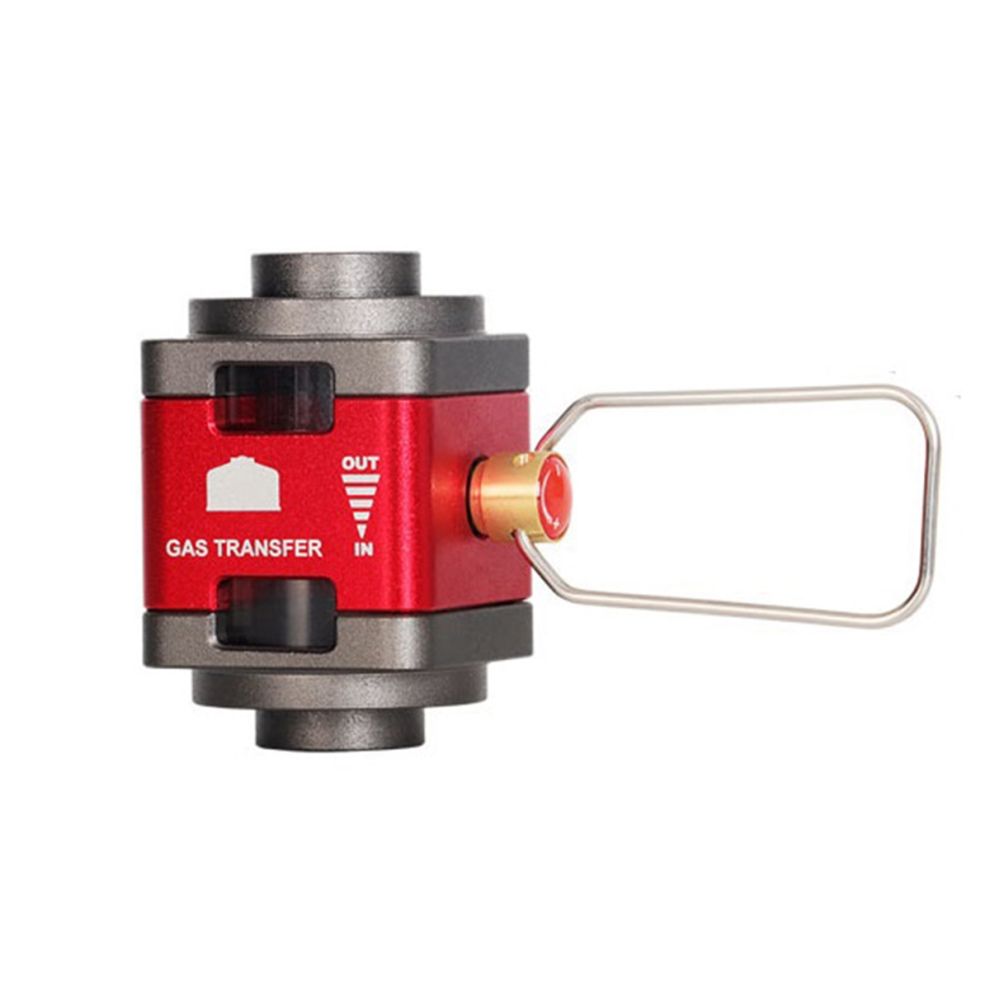

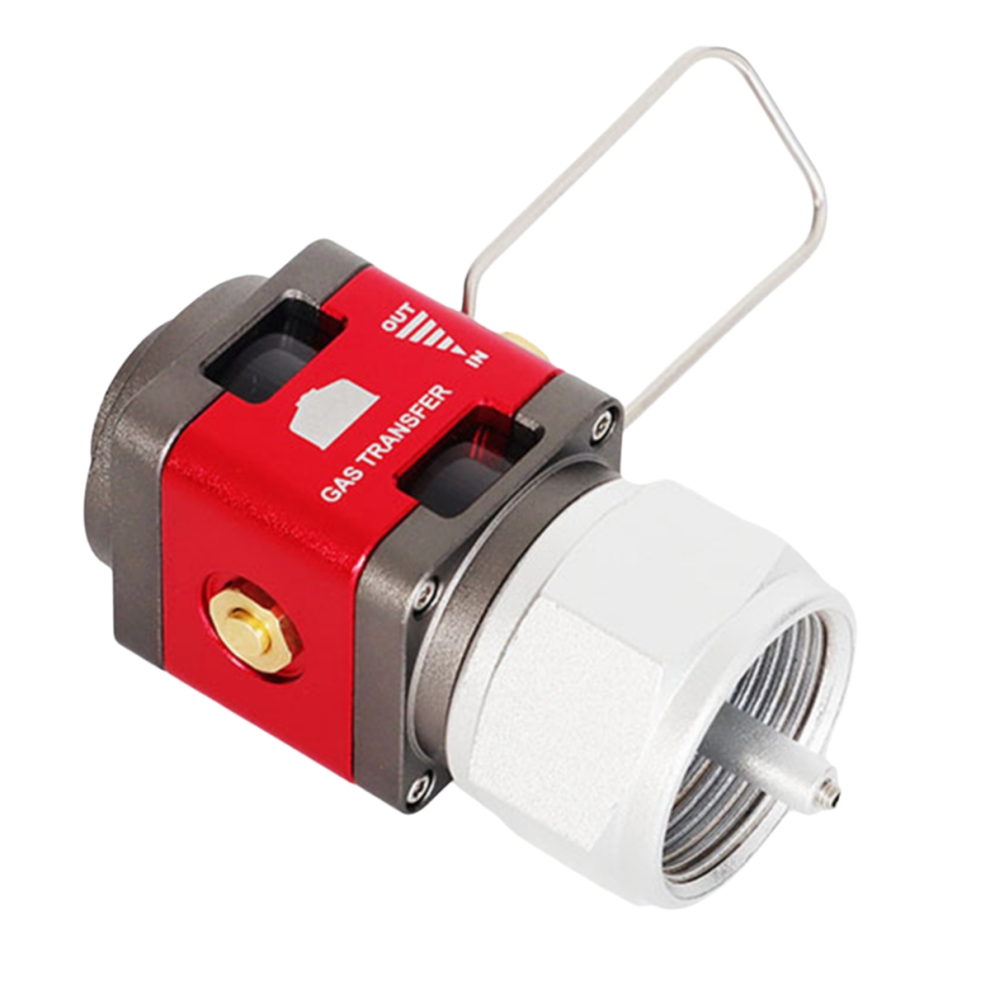

Outdoor Camping Visual Gas Tank Converter Refill Adapter Collection Valve

Outdoor Camping Visual Gas Tank Converter Refill Adapter Collection Valve Description

Gas tank filling: Inflating is generally done from top to bottom, from high pressure to low pressure. It is recommended to freeze the inflated tank in the refrigerator for 30 minutes before inflating. Warning: It is forbidden to operate by non-professionals, and it must be carried out under the relevant national safety standards.
It is strictly forbidden to inflate MAPP gas or liquefied petroleum gas into flat gas tanks or cassette gas tanks, and it must be carried out outdoors during the inflation process.

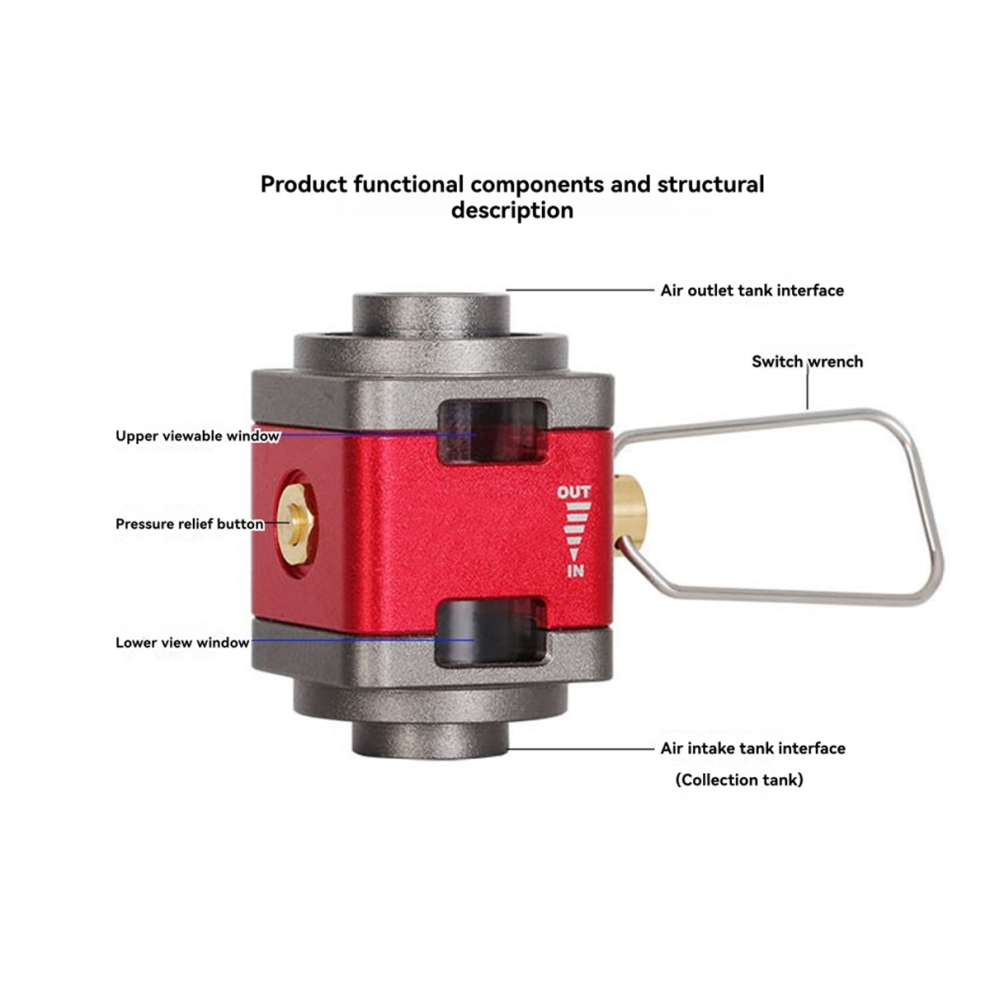

Pressure release button During the inflation process, the non-gaseous gas in the tank be squeezed on the upper part of the gas tank, and can be discharged through the pressure release button ( for about 2 seconds before inflating). Note: When releasing pressure, the air valve must be closed, and the device of this product is installed forward.

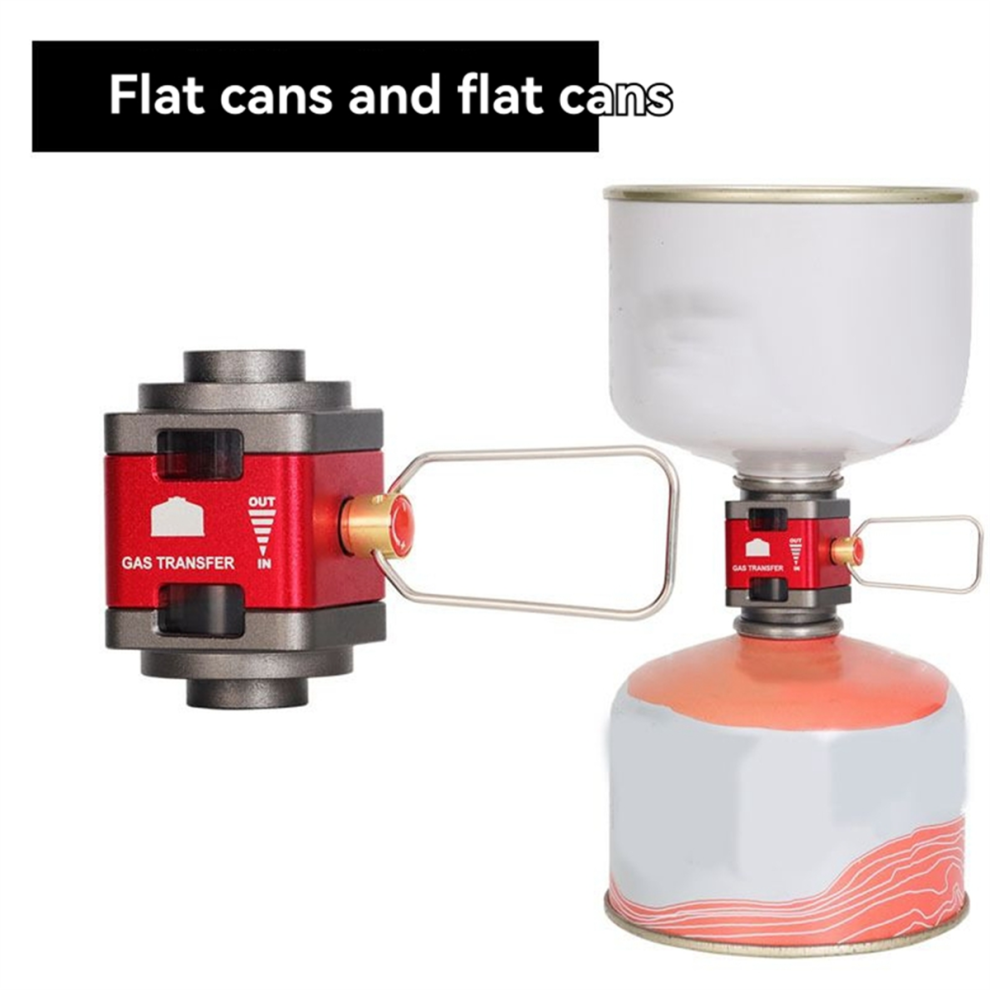

The gas in multiple unused flat gas tanks can be collected into one gas tank through this valve to achieve the purpose of reuse. This valve can be used with cassette converters, Mamp converters, converters, etc. to achieve mutual inflation between gas tanks, regardless of the upper and lower directions, and can be connected arbitrarily.
The core part of the switch uses 58 copper, which is resistant to wear and tear. The gas seal uses fluoroplastic O-rings, which are resistant to wear, chemical corrosion, low temperature and high temperature, and can be used normally at -20-250 . Double O-ring design for sealing, one to seal air and one to prevent air leakage. The gas cylinders can be different, but different and different gases should not with each other.

Stick to the same and use the same gas. The bottle that collects residual gas cannot be 100% full, nor can a newly purchased gas bottle be 100% full.
There are two best ways:
The first method: a simple and practical method, put tank and the bottom tank in the refrigerator for 20 minutes without releasing the pressure, and they rush in immediately after opening. The pressure of the cooling tank is low, and the normal temperature pressure above it is high. The high pressure inflate the low pressure.
The second method: There is no refrigerator outdoors, connect the gas tank, turn off the switch, stop working, and then five or six times to release the pressure. If you open it, it continue to work. Pressure release does not a complete charge. If the pressure release fails, it not work. , use pressure relief + shaking the air tank, rub your hands to heat them, hold the upper air tank (bottom of the air outlet pipe) with your hands, and keep shaking it back and forth to heat and shake, which increase the air pressure in the upper air tank. That air pressure + pressure relief are two The combination causes it to charge naturally toward low pressure. Giving the residual air bottle above a little exposure to the sun also pressurize it, but don't expose it for too long.
Color:Grey & Red
Material:Aluminium Alloy + Copper

Package Contents:
1 * Camping Gas Saver

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
