Outdoor RFID Access Control 125KHz Waterproof IP68 2000 Users Wiegand 26
Similar Products we think you'll like
Would you like us to let you know when it's back?
Summary
- Low power consumption, standby current is less than 30mA, with locked output current short circuit protection.
- Can use separate password. You can also open the door with a password that is not related to the card.
- With strong and durable zinc alloy plating tamper‑proof housing, more practical and reliable.
- With backlight key and Luminous keyboard for night time use. Complete programming from the keyboard, can be used as a separate keyboard.
- Support Wiegand output interface, Wiegand26 signal.Wiegand 26 input for connecting to an external reader, Wiegand 26 output for connecting to a controller.
Outdoor RFID Access Control 125KHz Waterproof IP68 2000 Users Wiegand 26 Description

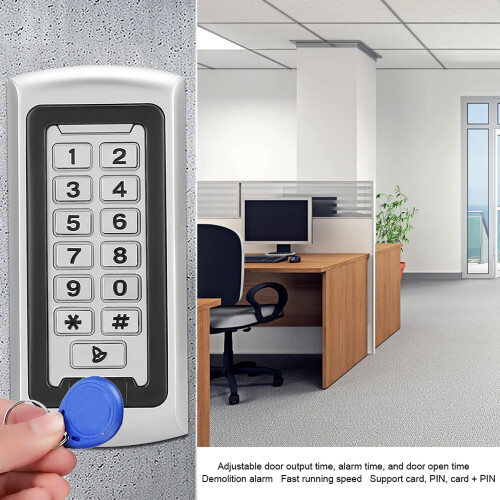

125KHz RFID Outdoor 2000 Users Wiegand 26 Security Keypad Access Control(Waterproof IP68)
Features:
Low power consumption, standby current is less than 30mA, with locked output current short circuit protection.
Can use separate password. You can also open the door with a password that is not related to the card.
With strong and durable zinc alloy plating tamper-proof housing, more practical and reliable.
With backlight key and Luminous keyboard for night time use. Complete programming from the keyboard, can be used as a separate keyboard.
Support Wiegand output interface, Wiegand26 signal. Wiegand 26 input for connecting to an external reader, Wiegand 26 output for connecting to a controller.
Easy to install and program, adjustable door output time, alarm time, and door open time.
With fast running speed, 2000 users <20ms, also support card, PIN, card + PIN.
Red, yellow and green LEDs can display operating status, built-in photoresistor (LDR) for tamper resistance.
The card number can be deleted by using the keyboard. After the card is lost, the card number can be deleted by the keyboard to completely eliminate the security danger.
Demolition alarm: If machine is illegally dismantled, built-in buzzer will alarm.
Bell button and interface: The button and circuit can isolate any external doorbell.
Specification:
Material: Metal
Color: As picture shown
Operating voltage: DC / AC 12V / 24V
Quiescent Current: 30mA
Reading Range: 3-8cm
Capacity: 2000 users
Adjustable Door Relay Time: 0-99 seconds
Wiegand Interface: Wiegand 26
Wiring Connection: Electronic lock, exit button, external alarm, external reader
Ambient Temperature: -25 C - 60 C
Ambient Humidity: 10%-90%
Electric Lock Output: 3A
Alarm Output: 20A
Output Short Circuit Protection Time: 100μS
Opening Hours: 0~99 seconds (adjustable)
Package List:
1 x Access Control
10 x ID Card
1 x Screw Package
1 x Instruction Manual
Details
| OPC | PSXPPM6 |
|---|---|
| Codes | 8121393349995 (EAN) |
