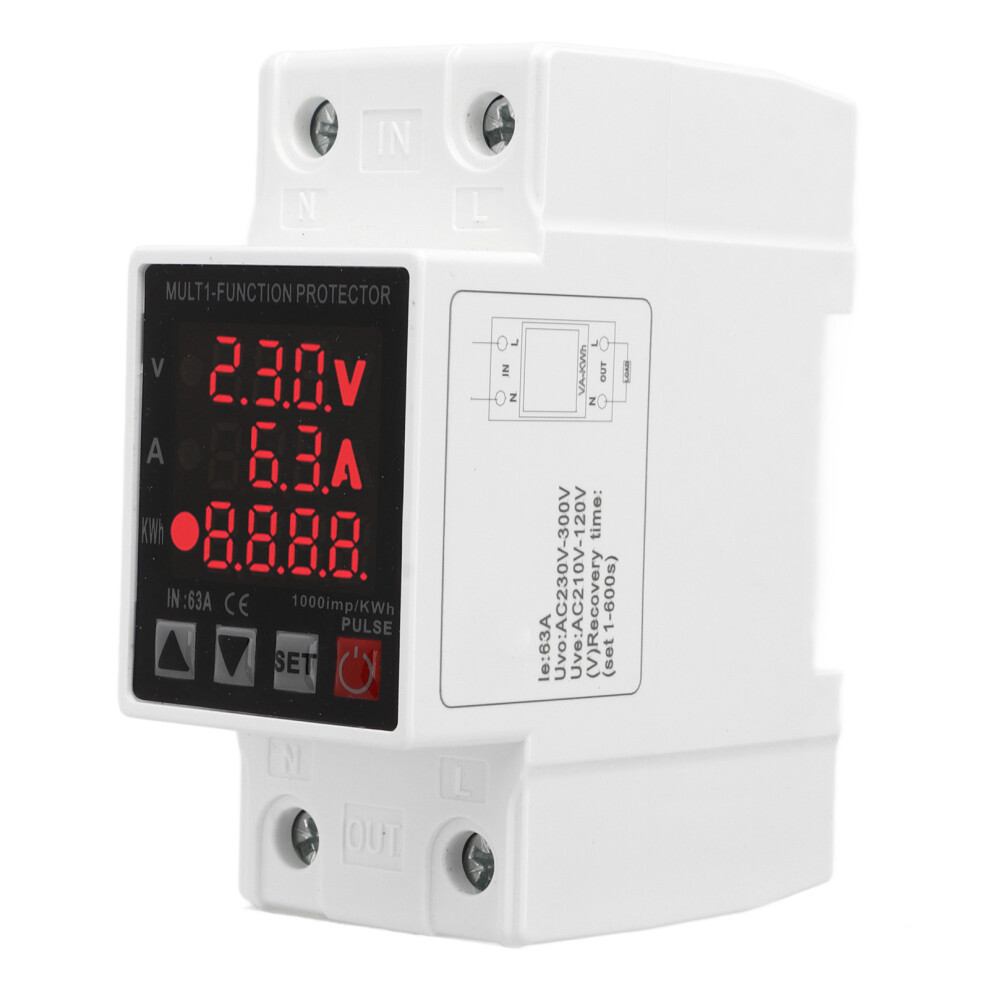

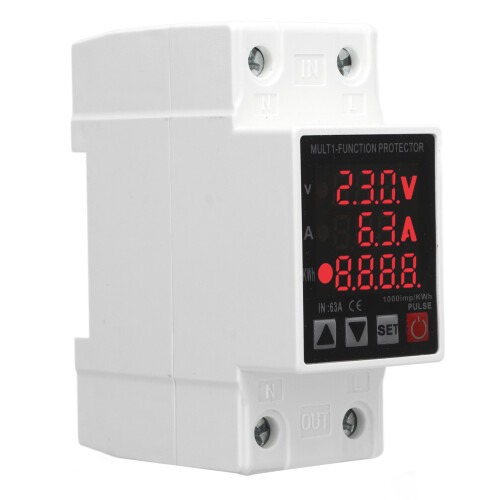

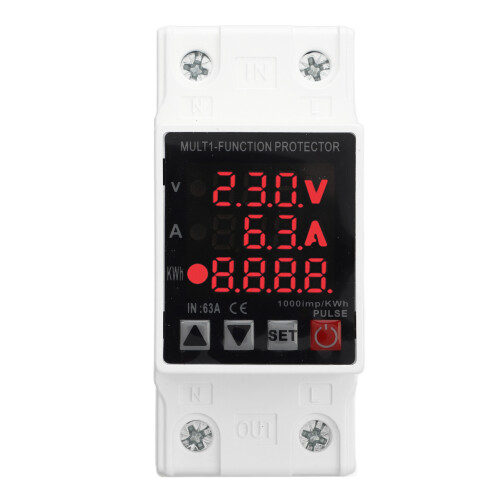

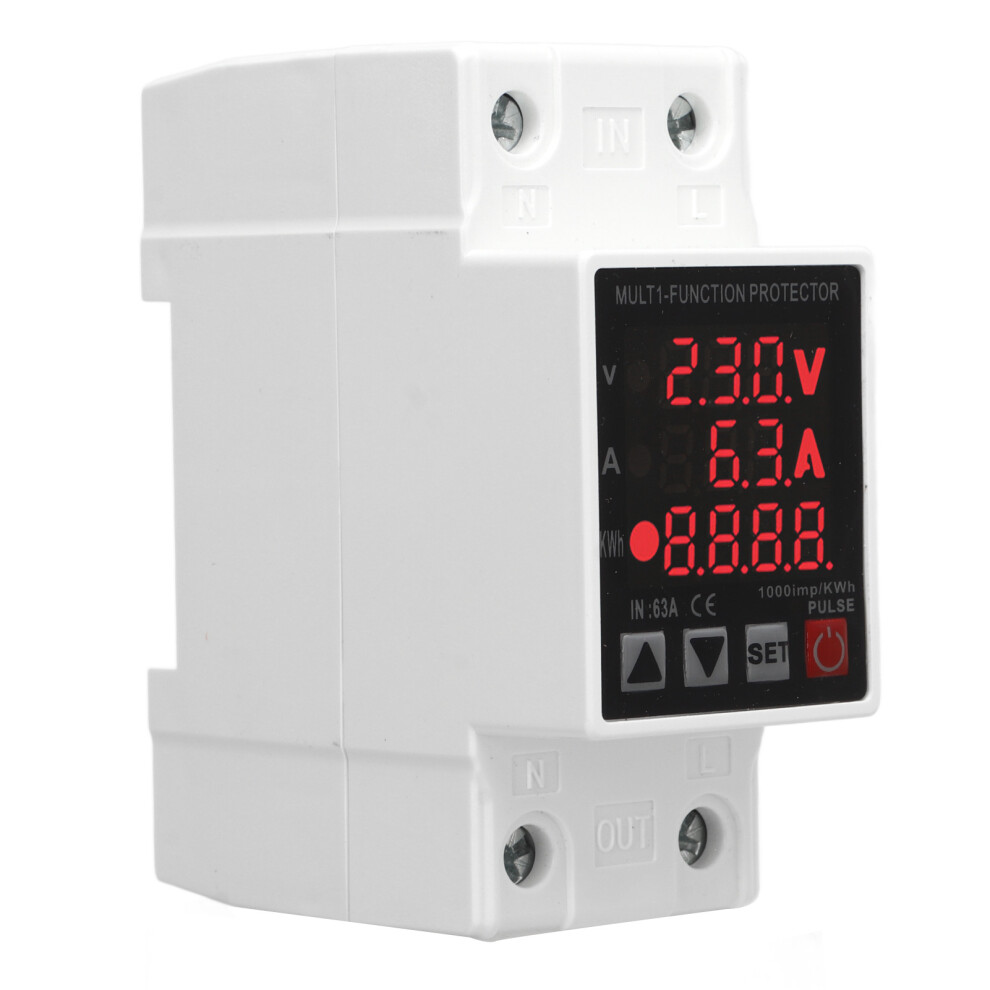

Over Under Voltage Protector Self Resetting 220V 63A

Over Under Voltage Protector Self Resetting 220V 63A Description

1、SAFE AND FLAME RETARDANT: Protector adopt PC flame retardant material, with overvoltage protection, undervoltage protection and voltage display(voltage measurement), more safe and reliable to use 2、INTELLIGENT ADJUSTMENT: Multi function protector provide safe protection for electrical appliances, manual adjustment of overvoltage, undervoltage, overcurrent protection value 3、EFFECTIVE PROTECTION: Over under voltage protective device can prevent unstable voltage frequent on and off to cause additional damage to electrical appliances, to achieve secondary protection 4、DELAYED POWER ON: The power supply will be restored automatically after 1‑600S after the voltage is stabilized, which can protect your appliances well 5、THREE DISPLAY: Current limit protector display voltage, current, KWH, more intuitive and convenient reading 6、MULTIPLE FUNCTIONS: The self resetting current protector has the functions of reset mode selection, fault query and factory recovery
Item Type: Over Under Voltage Protector
Material: PC flame retardant
Rated Power Supply Voltage: AC220V
Operating Voltage Range: AC80V-400V (single item)
Rated Frequency: 50/60Hz
Current (> A) Setting Range: 1-63A
Overvoltage (> U) Setting Range: AC230-300V
Undervoltage (< U) Setting Range: AC210-120V
KWH Protection Value: 1-9999
Rated Current: 63A
> U And < U Trip Delay: 0.5S
Reset Or Startup Delay: 1-600S
Voltage Measurement Accuracy: 1% (not more than 1% of the total range)
Rated Insulation Voltage: 400V
Output Contact: 1NO
Electrical Life: 100000
Mechanical Life: 1000000
Protection Level: IP20
Pollution Level: 3
Altitude: 2000meter
Operating Temperature: -50-55
Humidity: 50% at 40(no condensation)
Storage Temperature: -30-70
Product Features:
1. Overvoltage protection
2. Undervoltage protection
3. Voltage display (voltage measurement)
4. The overvoltage protection value is adjustable
5. The overpressure recovery value is adjustable
6. The operation time of overvoltage protection is adjustable
7. The undervoltage protection value is adjustable
8. The undervoltage recovery value is adjustable
9. The operation time of undervoltage protection is adjustable
10. The fault recovery delay time is adjustable
11. The power on delay time is adjustable
12. Reset mode selection
13. Query faults
14. Restore factory Settings
Size(LxWxT): Approx. 86 x 38 x 68mm / 3.39 x 1.5 x 2.68in
Rail Size: Approx. 36mm / 1.42in
1 x Over Under Voltage Protector
