OWON CP024 4A-400A Probe Oscilloscope Kit

OWON CP024 4A-400A Probe Oscilloscope Kit Description

1、[Quick and Accurate AC/DC Amp Oscilloscope Probe] is based on hall effect technology and is designed to be used in conjunction with multimeter for ac and dc current measurements. 2、[Max. Jaw Opening] The clamp measures the AC current in a conductor up to 23mm without interrupting the circuit. 3、[Multifunctional \u0026 Easy to Use] Range switch, used to turn on/ off the current probe as well as to select the desired,range, ZERO button, AC/DC button. 4、[Handheld Electrical Tester] AC/DC current probe oscilloscope probe, it\u0027s suitable for the electrical repair,quality assurance 5、[Portable \u0026 Widely Used] Whether you\u0027re working on home appliances, cars, motorcycles, RVs, laboratories, or industrial equipment maintenance, this AC/DC clamp meter is your trusty companion. From battery power detection to power plant maintenance and railroad repairs, it\u0027s your one-stop piece of equipment for all your measurement needs.

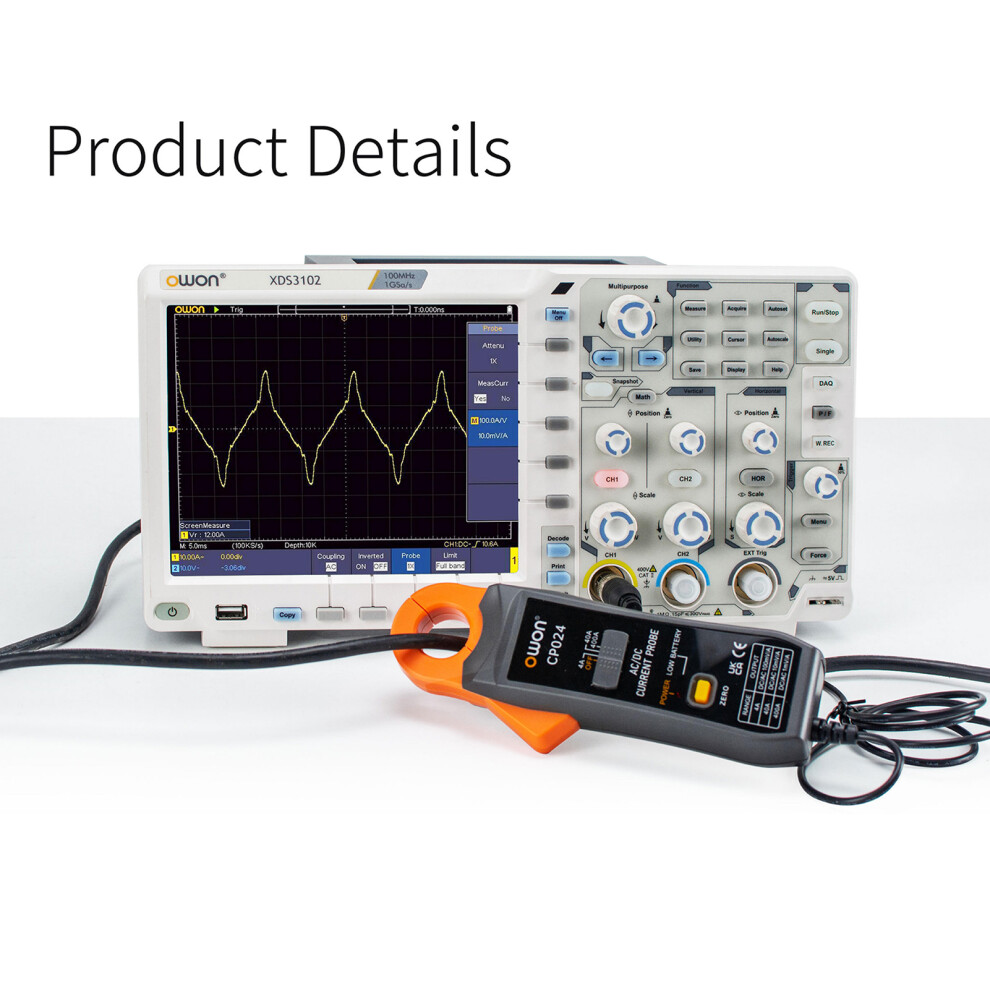

This is a mini size clamp current probe. It can convert the test current into a voltage output. As an adapter of the oscilloscope. It is very convenient to use this probe to test AC or DC current in any conductor. It is an ideal tester for maintenance and inspection work on all types of electrical equipment
Features:
[Quick and Accurate AC/DC Amp Oscilloscope Probe] is based on hall effect technology and is designed to be used in conjunction with multimeter for ac and dc current measurements.

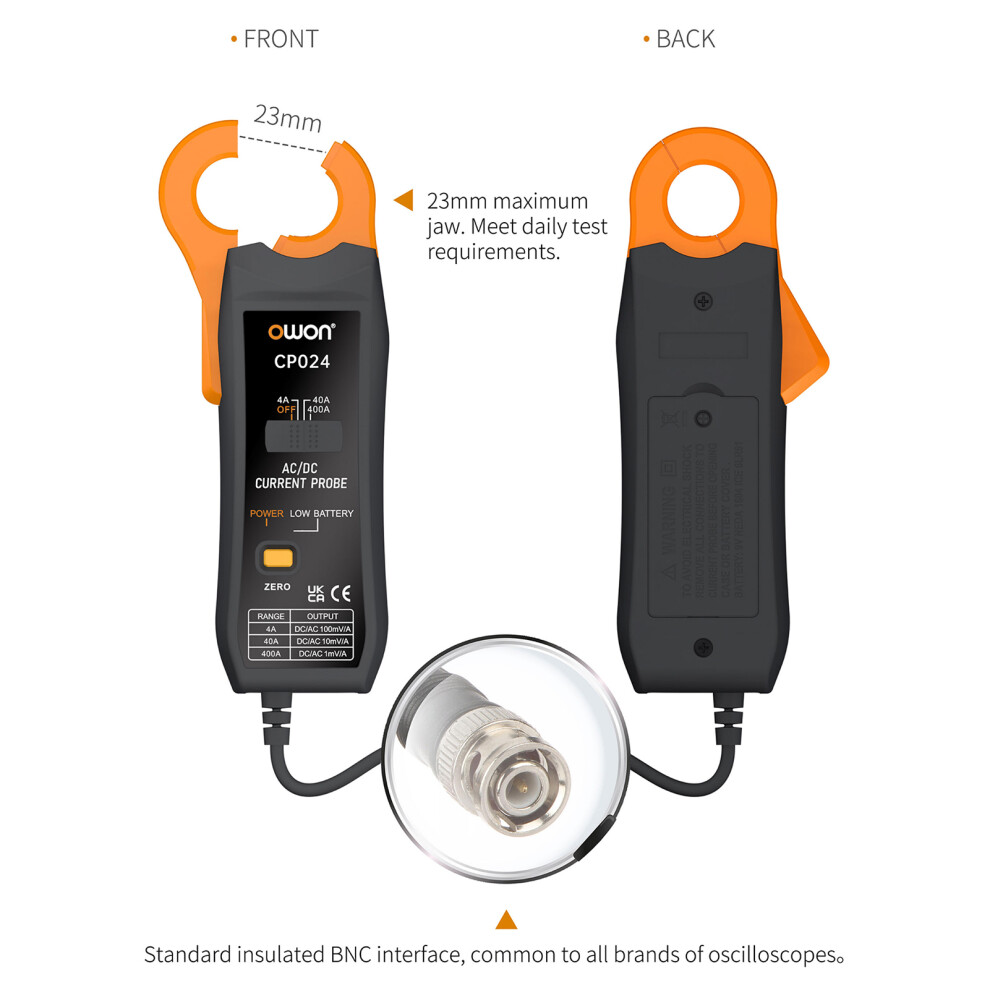

[Max. Jaw Opening] The clamp measures the AC current in a conductor up to 23mm without interrupting the circuit.

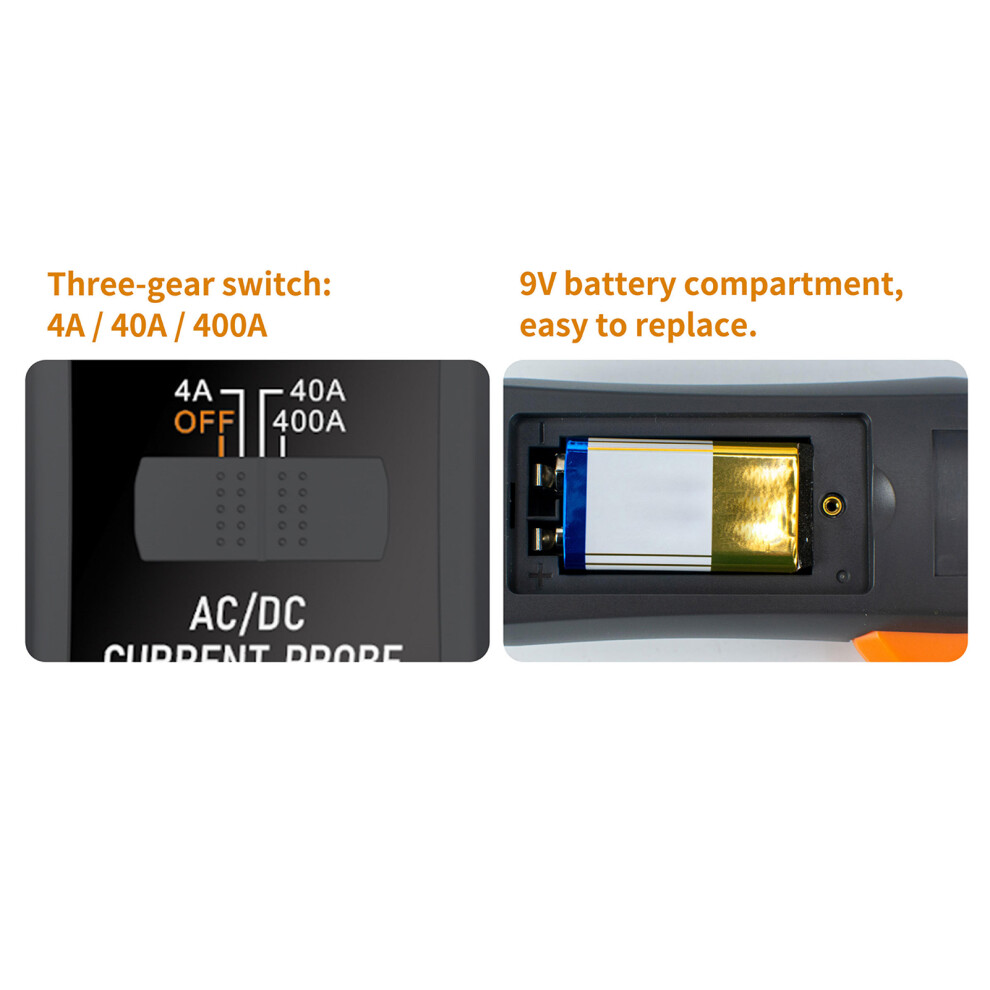

[Multifunctional & Easy to Use] Range switch, used to turn on/ off the current probe as well as to select the desired,range, ZERO button, AC/DC button.
[Handheld Electrical Tester] AC/DC current probe oscilloscope probe, it's suitable for the electrical repair,quality assurance
[Portable & Widely Used] Whether you're working on home appliances, cars, motorcycles, RVs, laboratories, or industrial equipment maintenance, this AC/DC clamp meter is your trusty companion. From battery power detection to power plant maintenance and railroad repairs, it's your one-stop piece of equipment for all your measurement needs.

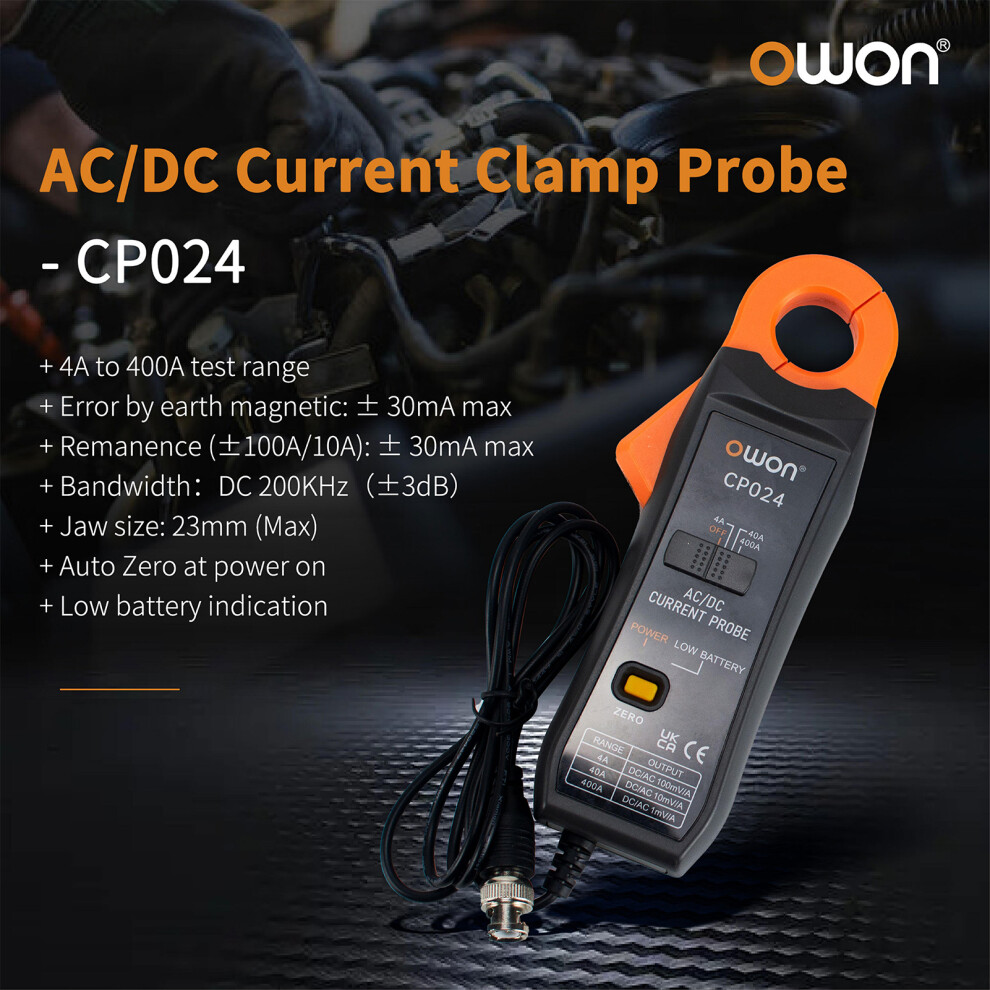

Specifications:
Material: ABS
Test Range: 4A to 400A
Error By Earth Magnetic : 30MA Max
Remanence ( 100A/10A) : 30MA Max
Bandwidth : DC 200KHZ ( 3db)
Jaw size : 23mm (Max)
Auto Zero at Power on
Low Battery Indication
Power supply: 9V 6F22 Battery (not included)
Operating Temperature: O to 50 , 70 % RH
Item Size: 180 * 68 * 32 mm / 7.09 * 2.68 * 1.26 inch
Item Weight: 250g / 8.82oz
Packing Size: 22 * 10.5 * 4.8 cm / 8.66 * 4.13 * 1.89 inch
Packing Weight: 280g / 9.88oz
Packing List:
1 * Current Probe
1 * Cloth Bag
1 * Manual (English)
1 * Current Probe
1 * Cloth Bag
1 * Manual (English)
