Panda Knomi Display Screen Customize UI OTA Firmw

Panda Knomi Display Screen Customize UI OTA Firmw Description

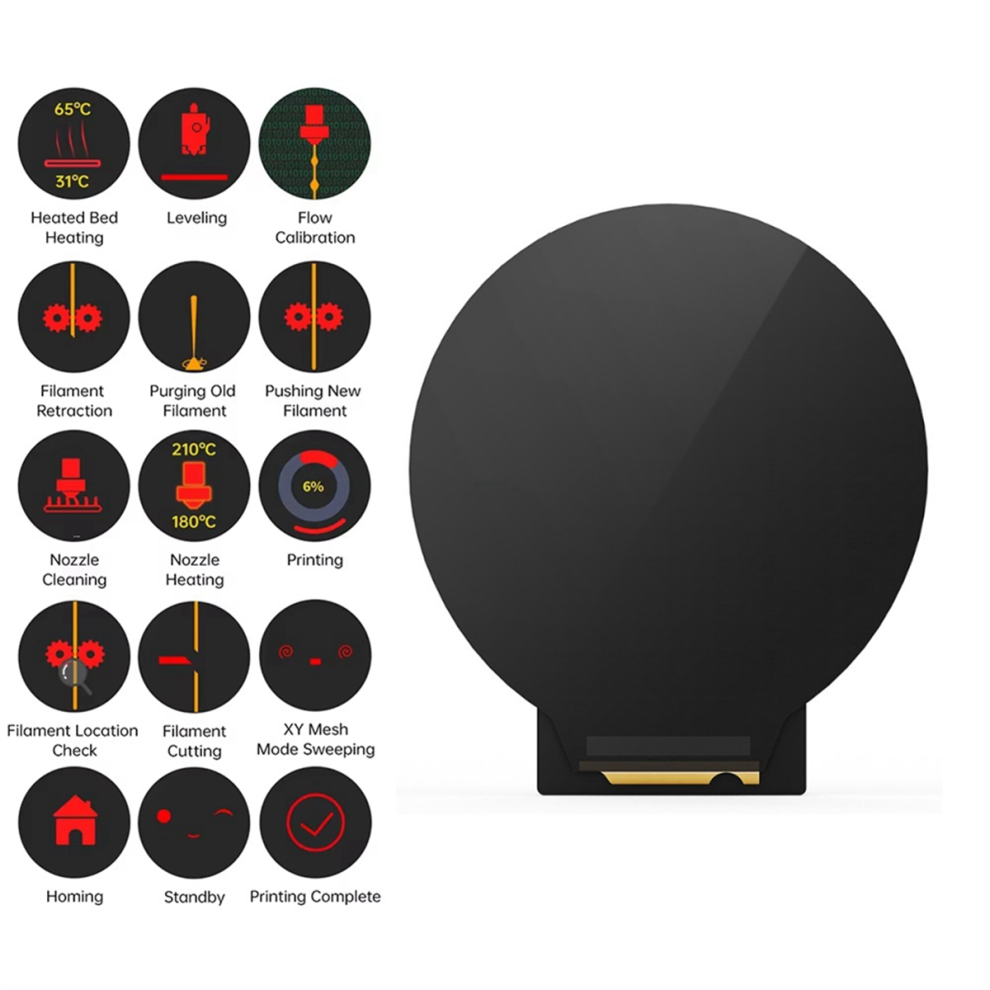

Instant Feedback. Expressive Design: Knomi's UI transforms printer monitoring into an engaging experience with its expressive features. Enjoy real-time updates and wireless convenience, ensuring your printer's status is always clear.
Customizable UI Color: Adjust the Knomi Ul color instantly to match your style or mood via the intuitive web Ul.
Upload Your Favorite GIFs: Personalize your Panda Knomi with any GIF you like for a truly printing experience! You can also download your custom theme with a single click and share it with others.

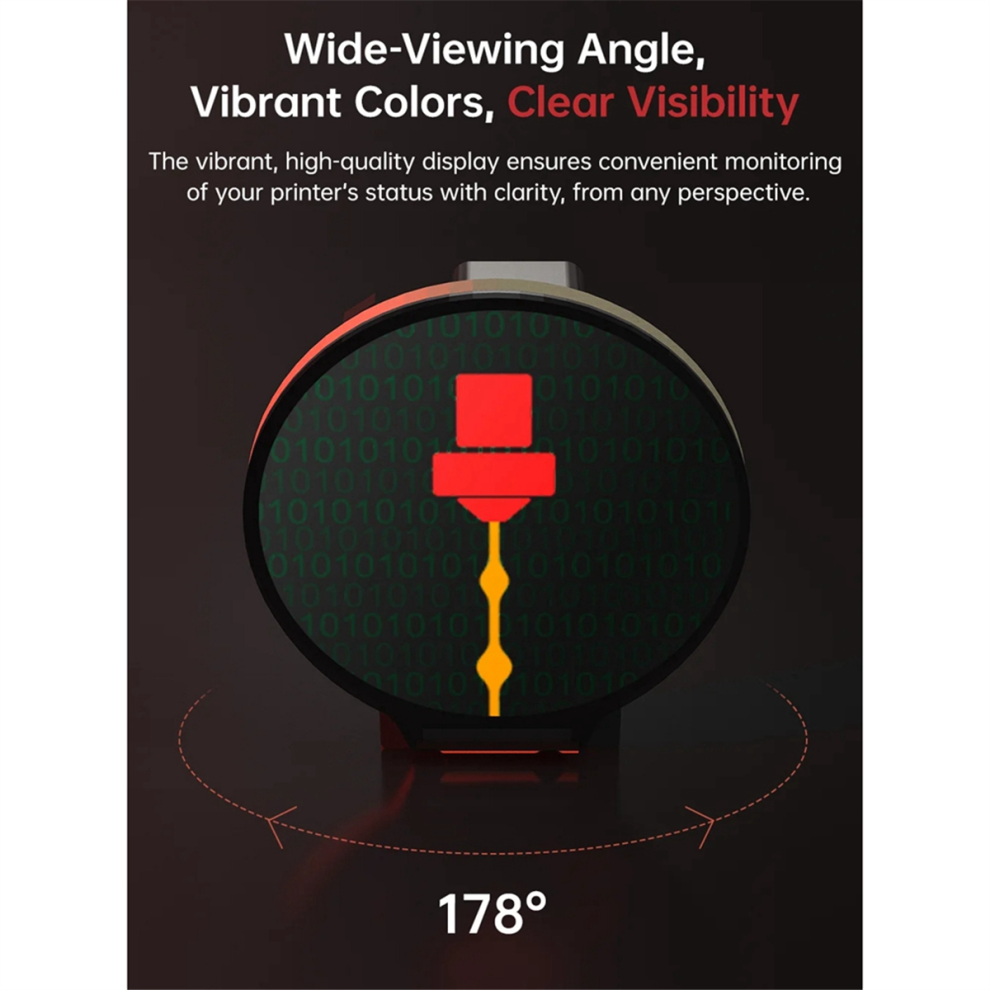

Wide Viewing Angle: Wide-Viewing Angle,Vibrant Colors,Clear Visibility. The vibrant, high-quality display ensures convenient monitoring of your printer's status with clarity, from any perspective.

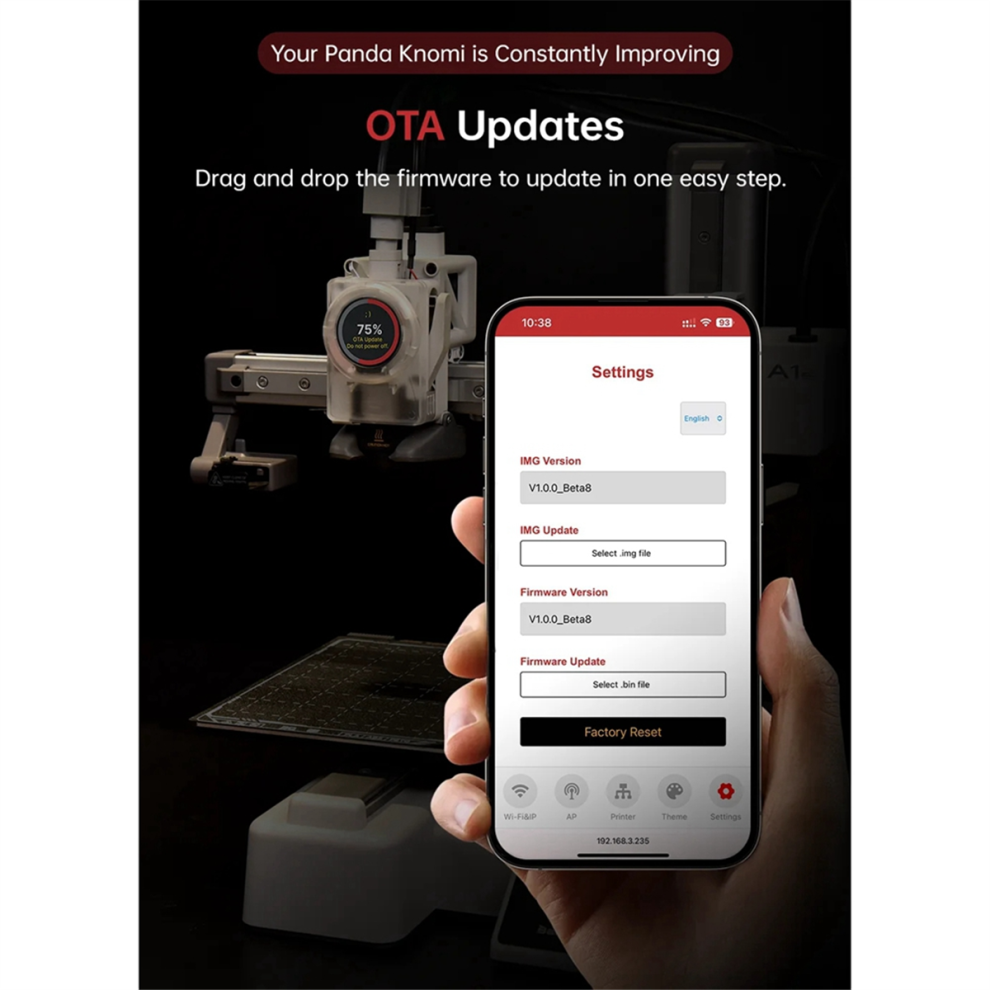

For X1 series printers. OTA Firmware Updates: Drag and drop the firmware to update in one easy step.

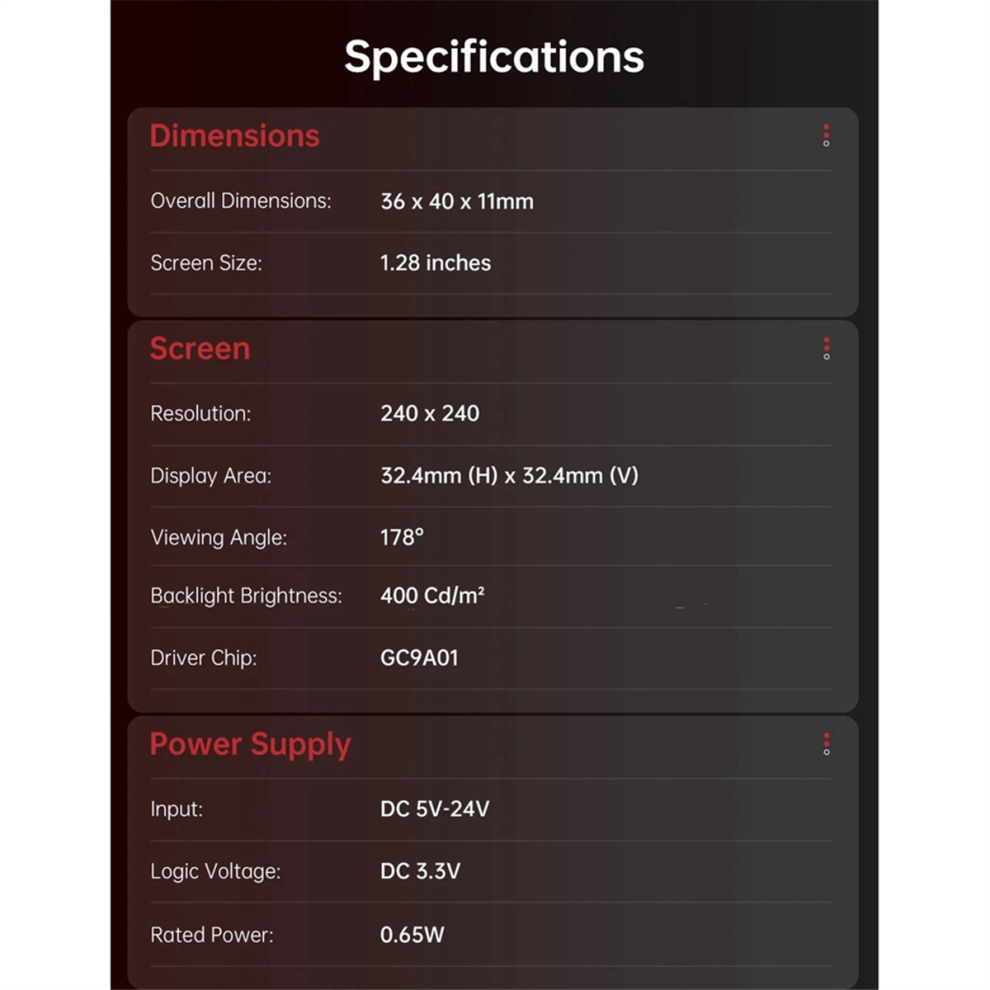

Screen Size: 1.28 inches
Resolution: 240 x 240
Display Area: 32.4mm (H) x 32.4mm (V)
Viewing Angle: 178
Backlight Brightness: 400 Cd/m²
Driver Chip: GC9A01
Input: DC 5V-24V
Logic Voltage: DC 3.3V
Rated Power: 0.65W

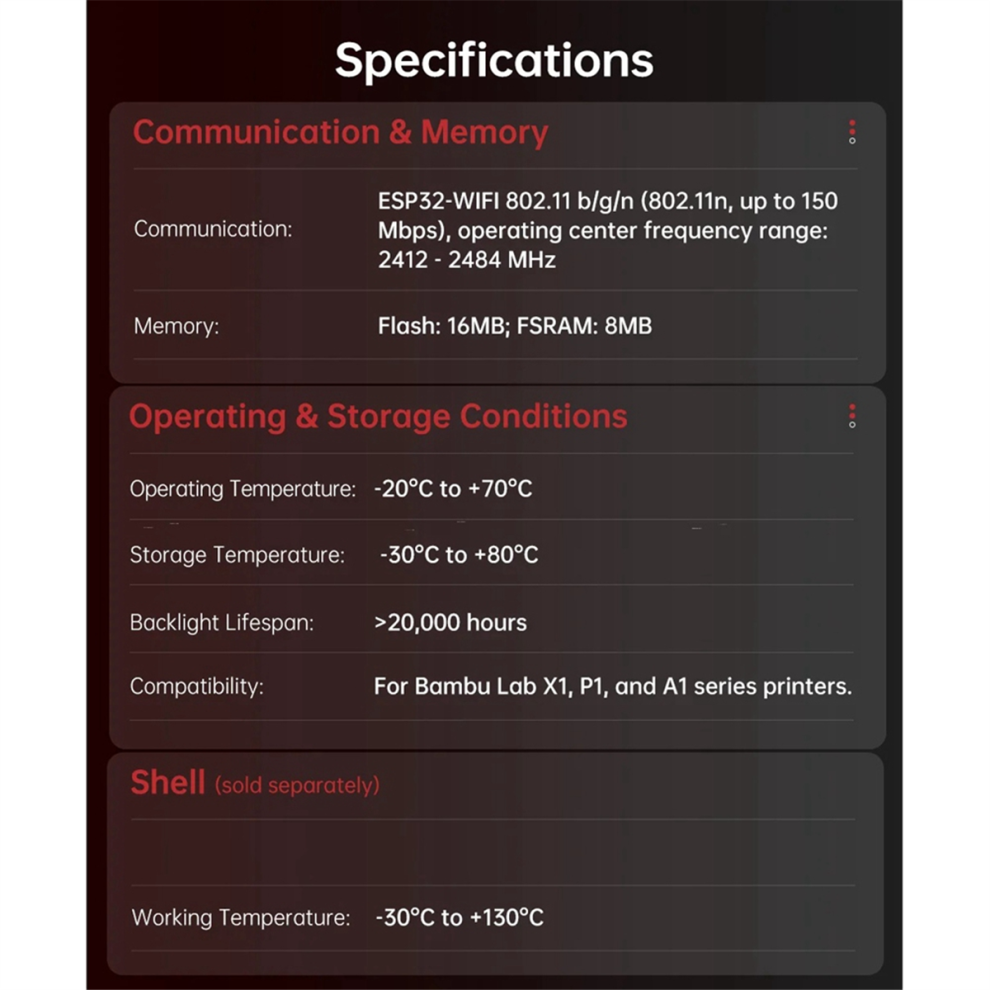

Communication: ESP32-WIFI 802.11 b/g (802.11n, up to 150 Mbps), operating center frequency range: 2412 - 2484 MHz
Memory: Flash: 16MB; FSRAM: 8MB
Operating Temperature: -20 to +70
Storage Temperature: -30 to +80
Backlight Lifespan: 20,000 hours
Compatibility: For X1 series printers

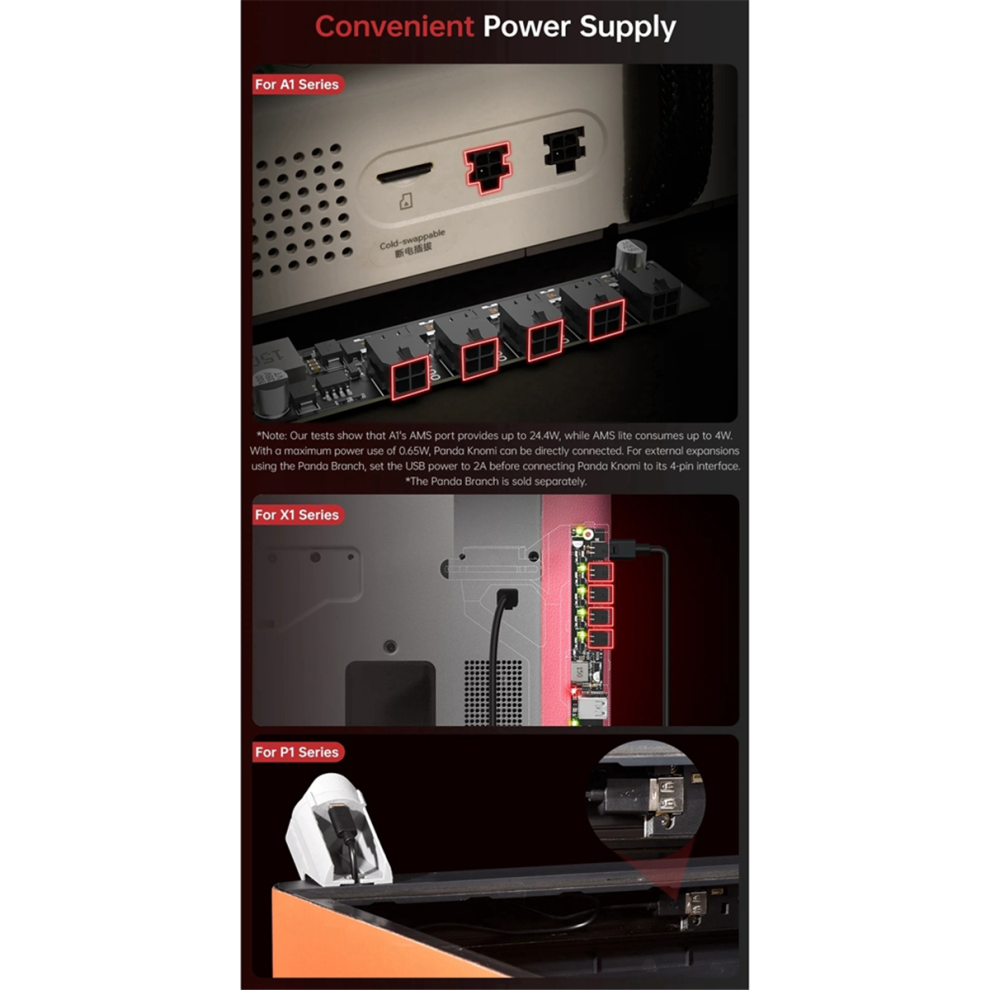

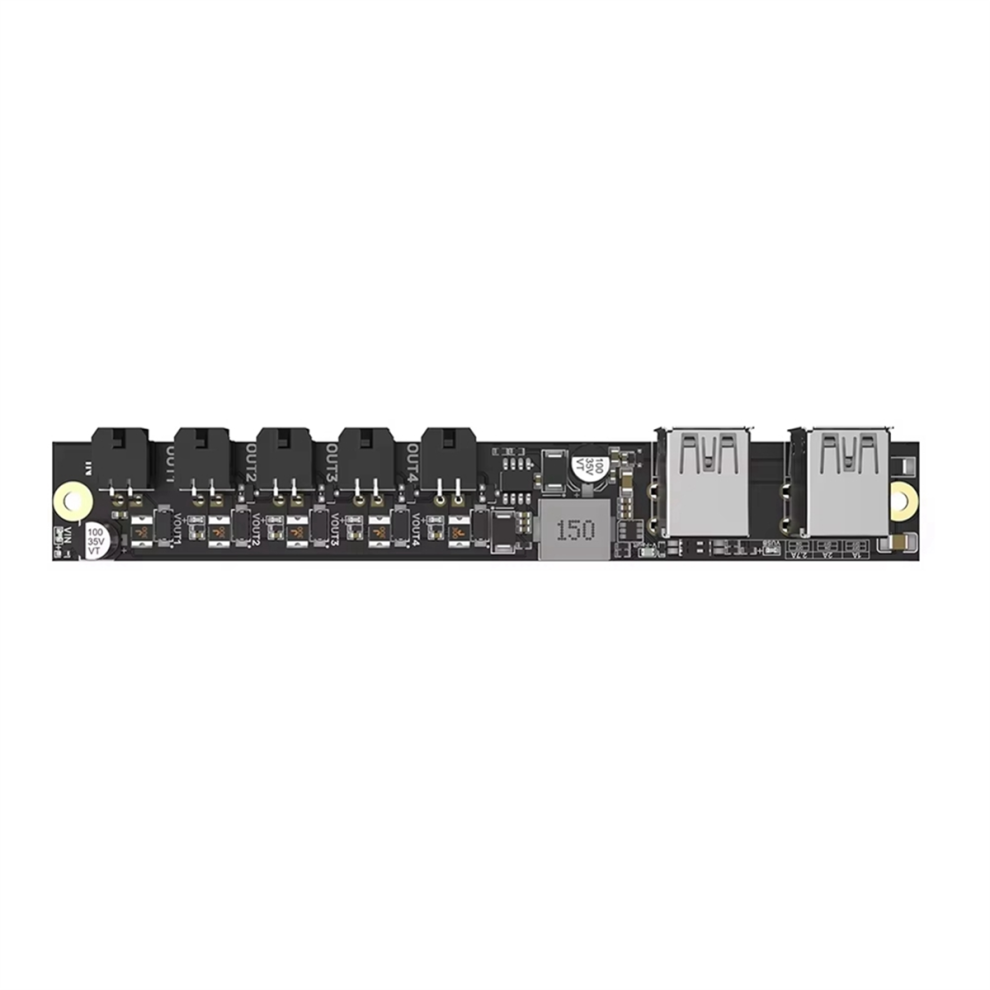

Note:Our tests show that With a maximum power use of 0.65W, Panda Knomi can be directly connected. For external expansions using the Panda Branch, set the USB power to 2A before connecting Panda Knomi to its 4-pin interface.
Colour:Black
Material:PCB+ components

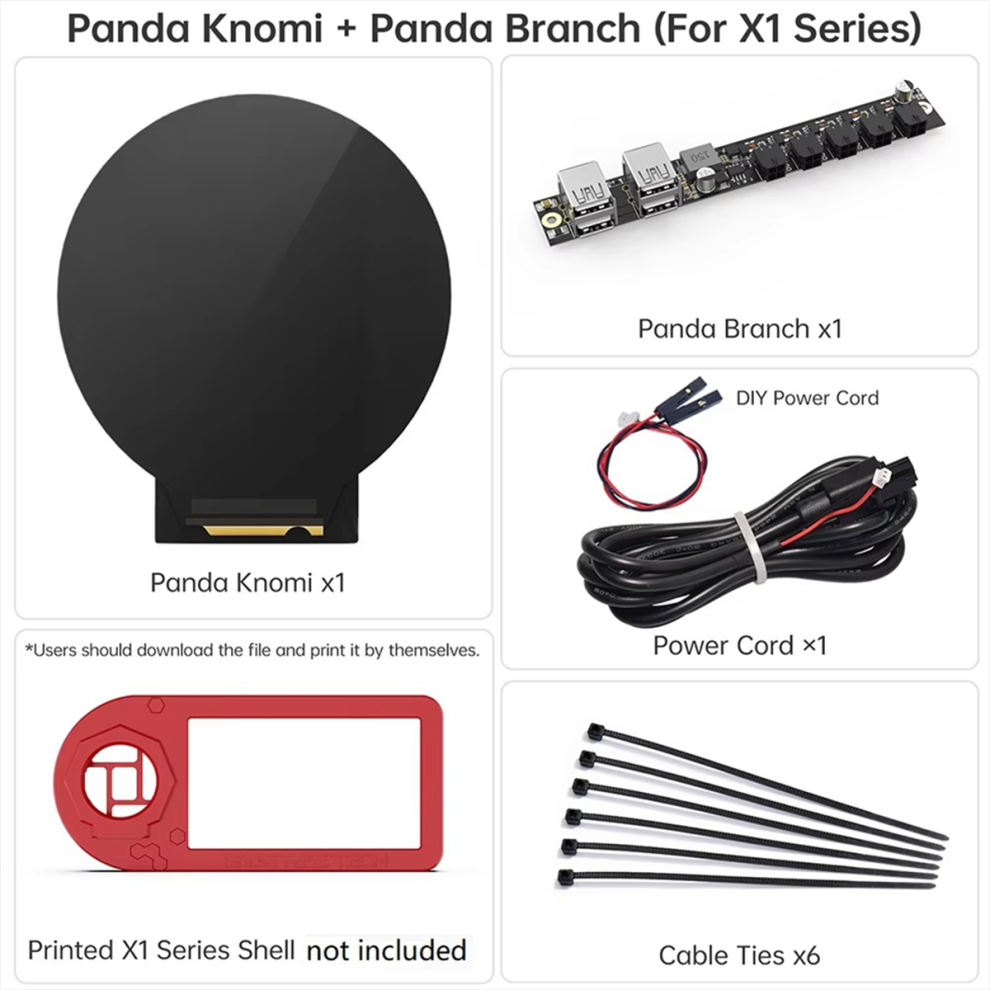

Package Contents:

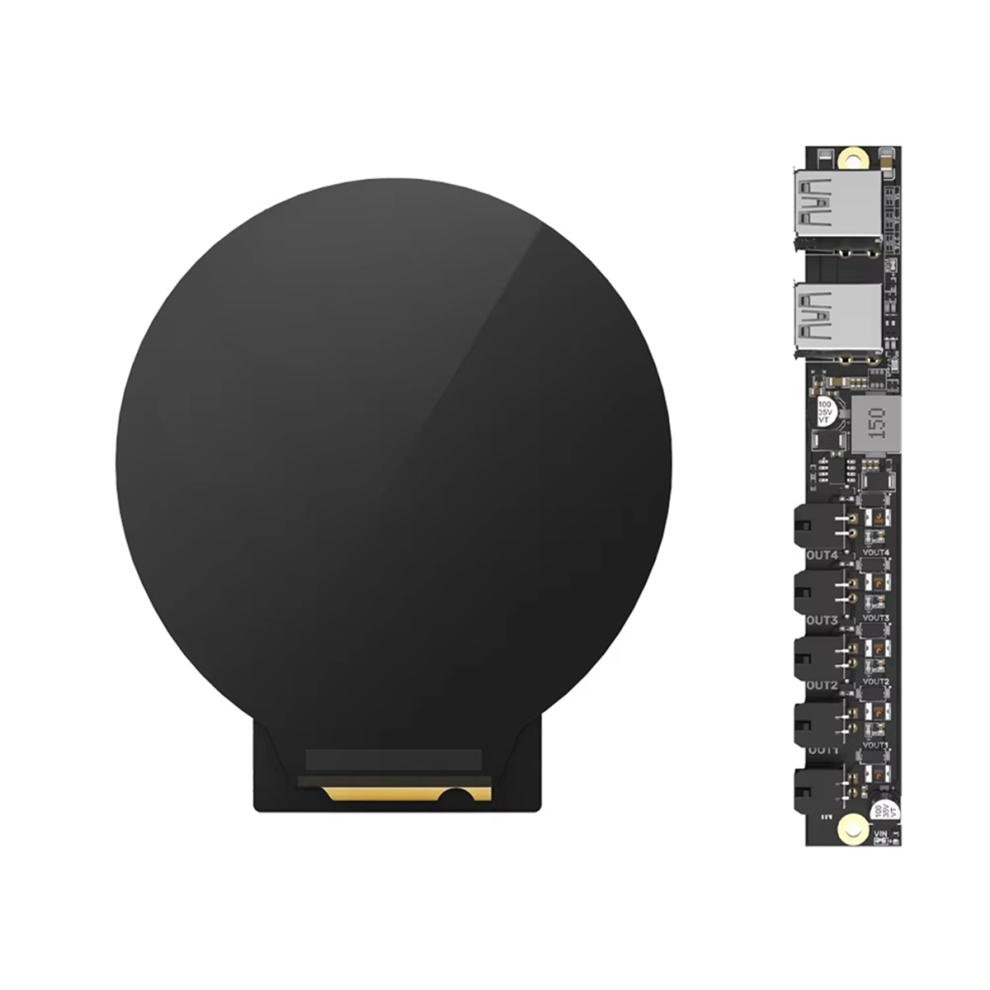

1 * Panda Knomi Display Screen
1 * Power Cord
1 * DIY Power Cord
6 * Cable Ties

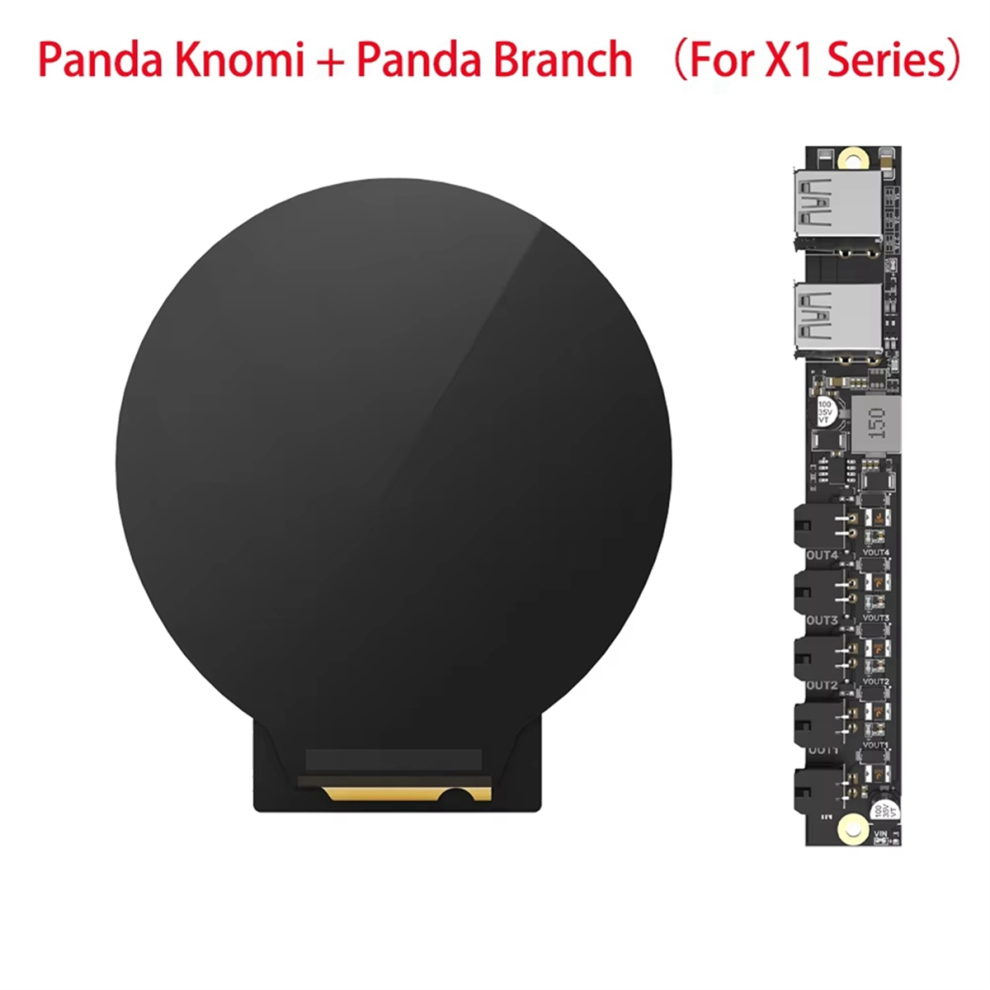

1 * Panda Branch

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
