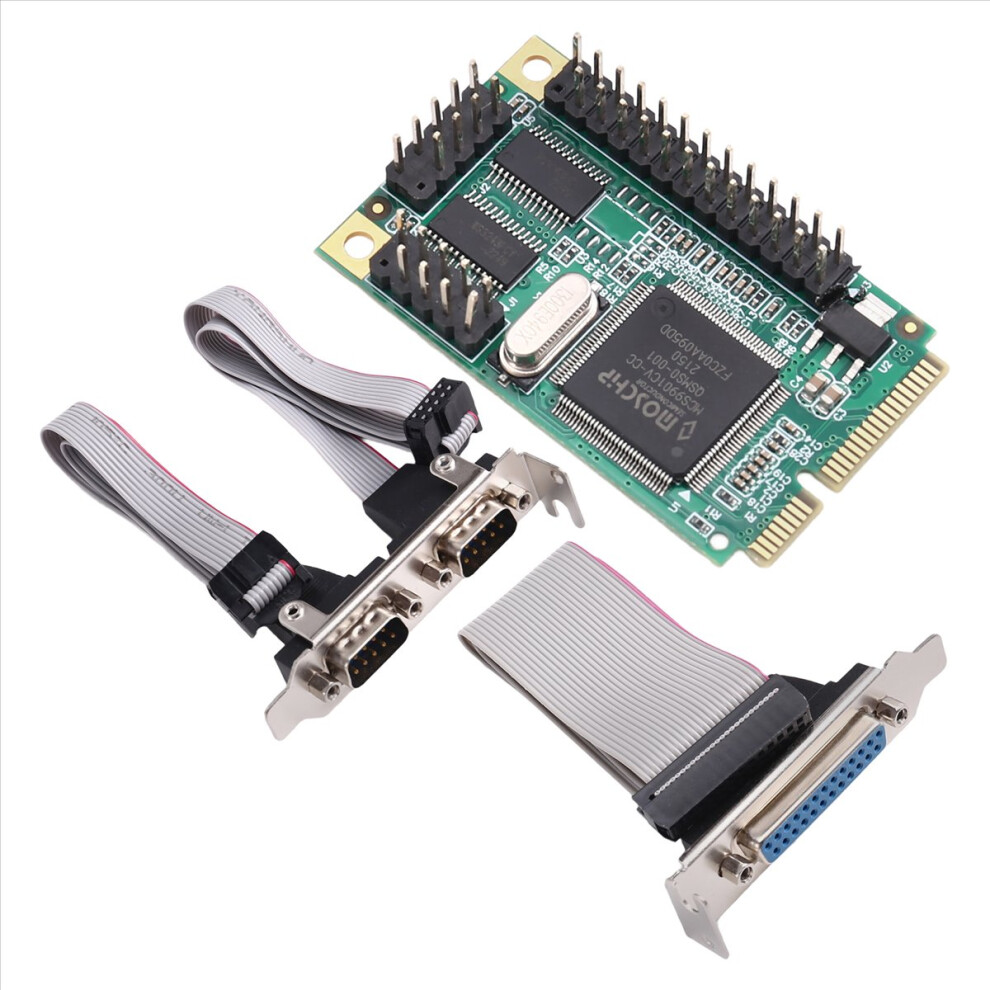

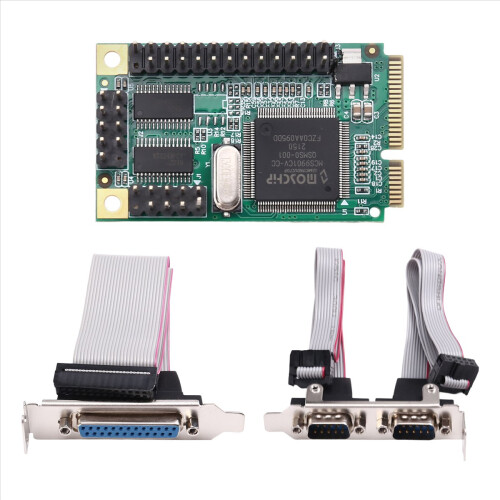

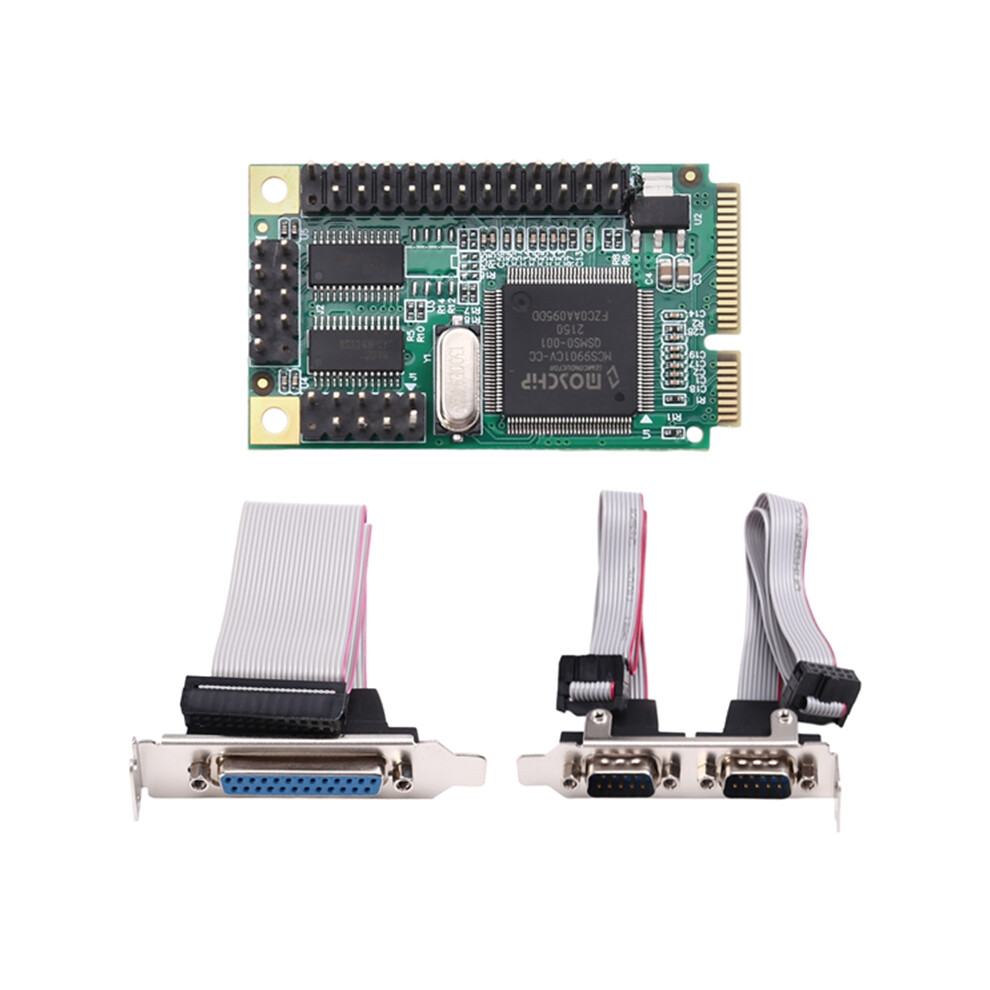

PCI-E Serial DB9 RS232 Parallel DB25 Adapter to 2 Ports

PCI-E Serial DB9 RS232 Parallel DB25 Adapter to 2 Ports Description

The Mini PCI-Express I/O card uses the PCI-Express interface standard for expansion bus, enabling this card to be installed on any embedded or Micro-system with Mini PCI-Express expansion capability. Most of the latest motherboards no longer come with legacy parallel port. By using this card, end user can add a parallel port to the computer for connecting their I/O devices. The card offers superior performance and unmatched data transfer rates.
A native PCI-Express single chip design
Supports Re-map function for legacy ports
Offers up to 1x Parallel internal ports
Fully compliant with PCI-Express Base Specification Revision 1.1

Single- (x1) PCI-Express with throughput up to 2.5Gbps
Compatible with PCI-E Mini Card Electromechanical specification revision 1.2
Compatible with Full-Mini (F1) card type form factor
Supports 10 / 8.x / 7 / Vista / XP / Server 2003-2008 32/64-bit, 2000, Linux, OS/X 10.5, and DOS 6.22
Parallel Port (IEEE 1284) Interface
IEEE 1284 compatible parallel port

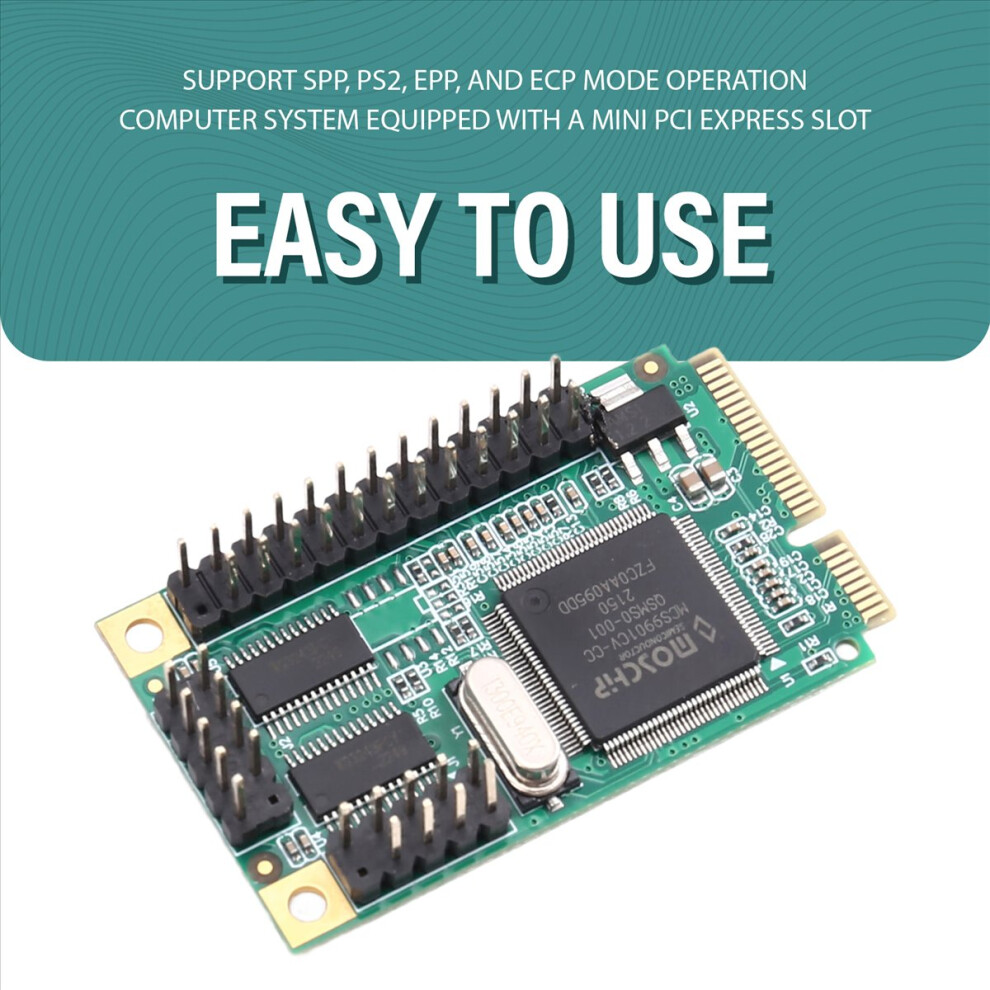

Supports SPP, PS2, EPP and ECP mode operation

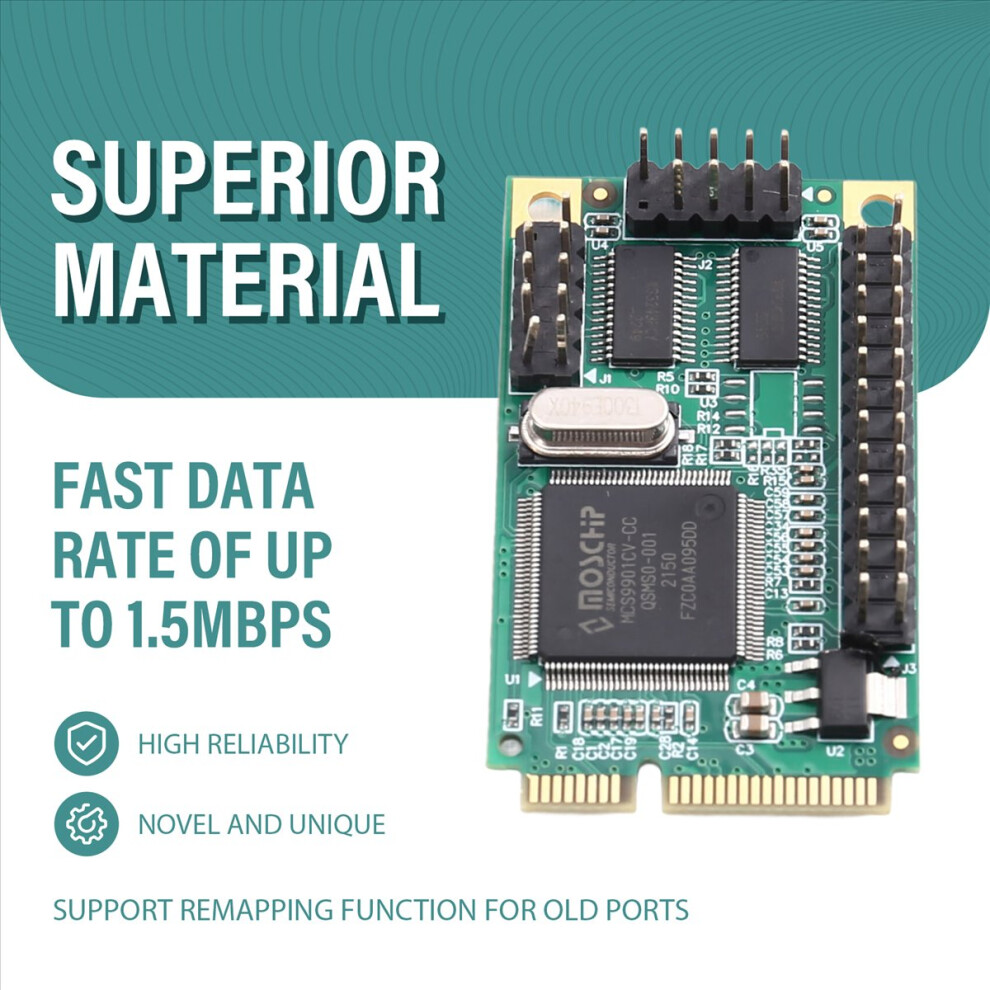

Fast data rates up to 1.5Mbps
System Requirement
Computer system with one Mini PCI-Express slot available
Properly installed one of the supported OS mentioned above
Remarks
This Parallel don't support fixed address 0x378,0X278,0X3BC.Such as softdog,programmer,emluator .
Color: As Shown
Material: PC

Package Contents:
1 x Mini PCI-Express I/O Card

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
