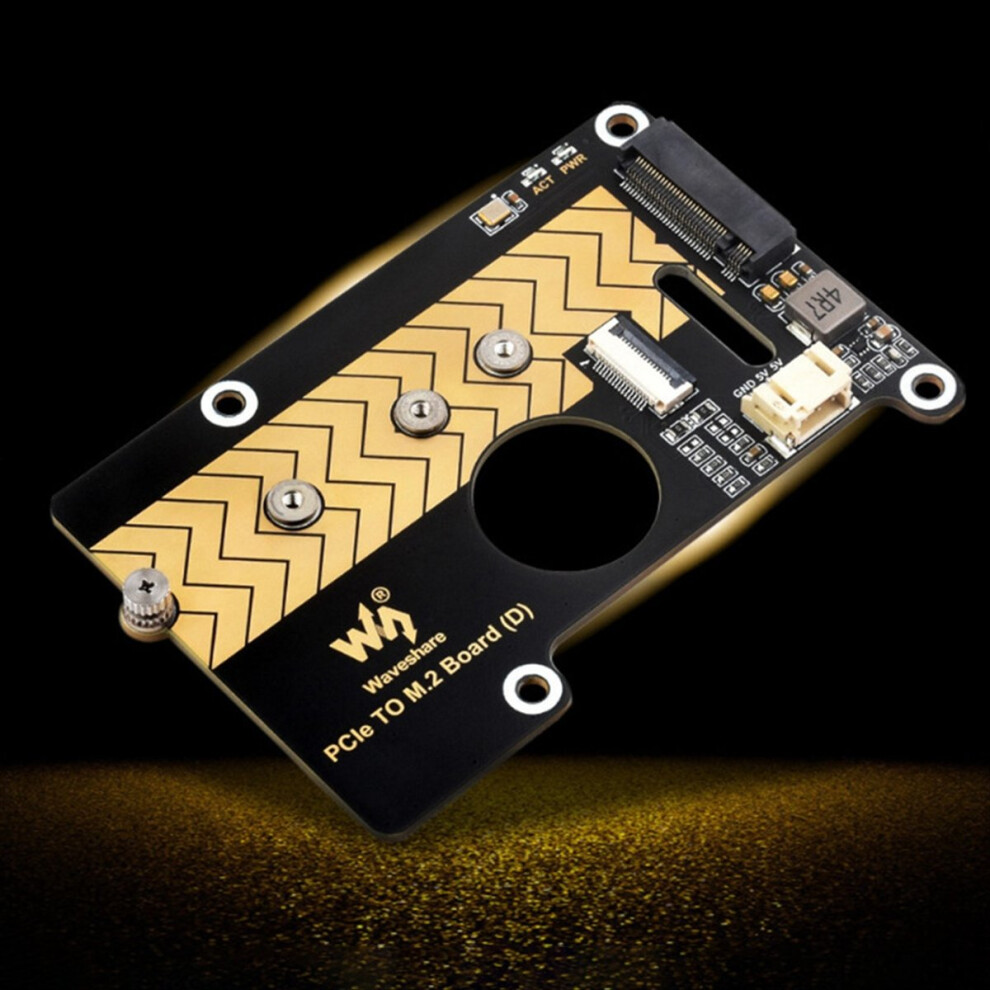

PCIe to M.2 Adapter Board for 5 8Gbps Transfer Module Hard Disk Read/Write Faster

PCIe to M.2 Adapter Board for 5 8Gbps Transfer Module Hard Disk Read/Write Faster Description

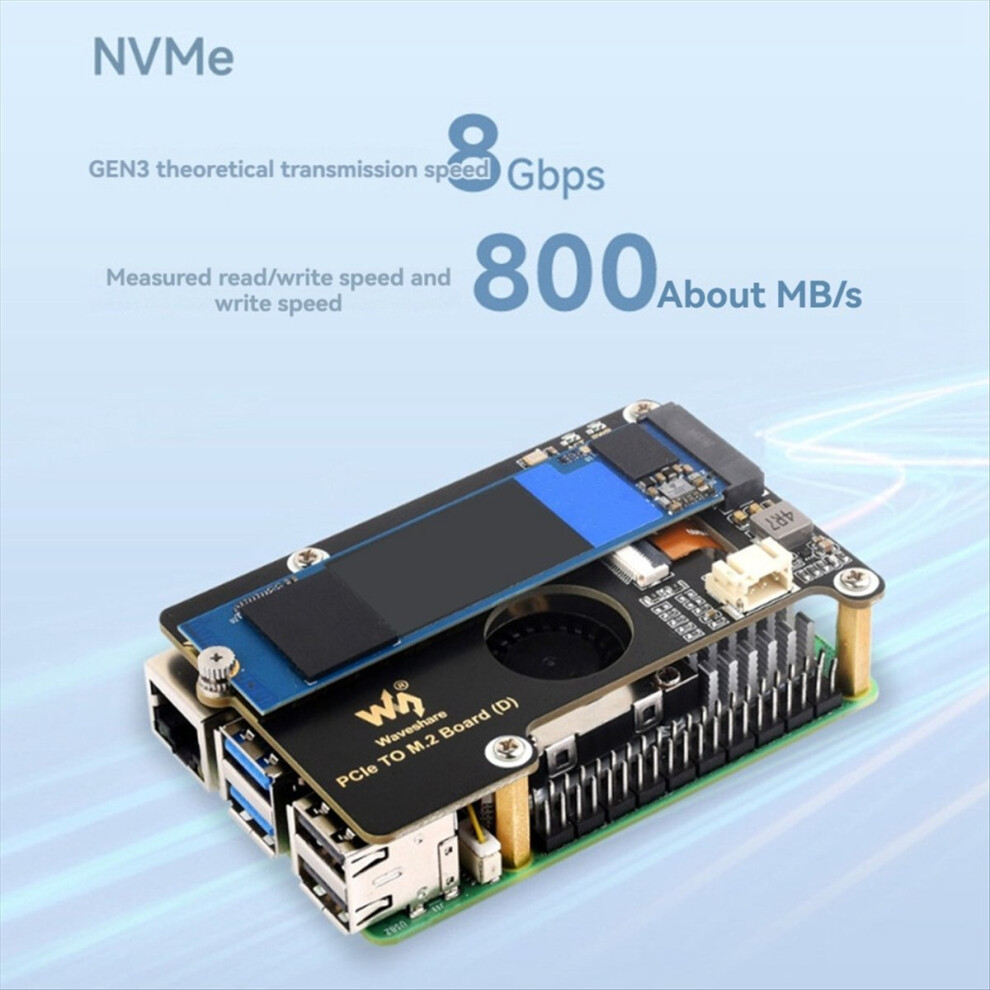

1. PCle to M.2 adapter board, specially designed for Raspberry Pi5, supports NVMe protocol M.2 interface hard drive, high-speed reading and writing, and improves work efficiency

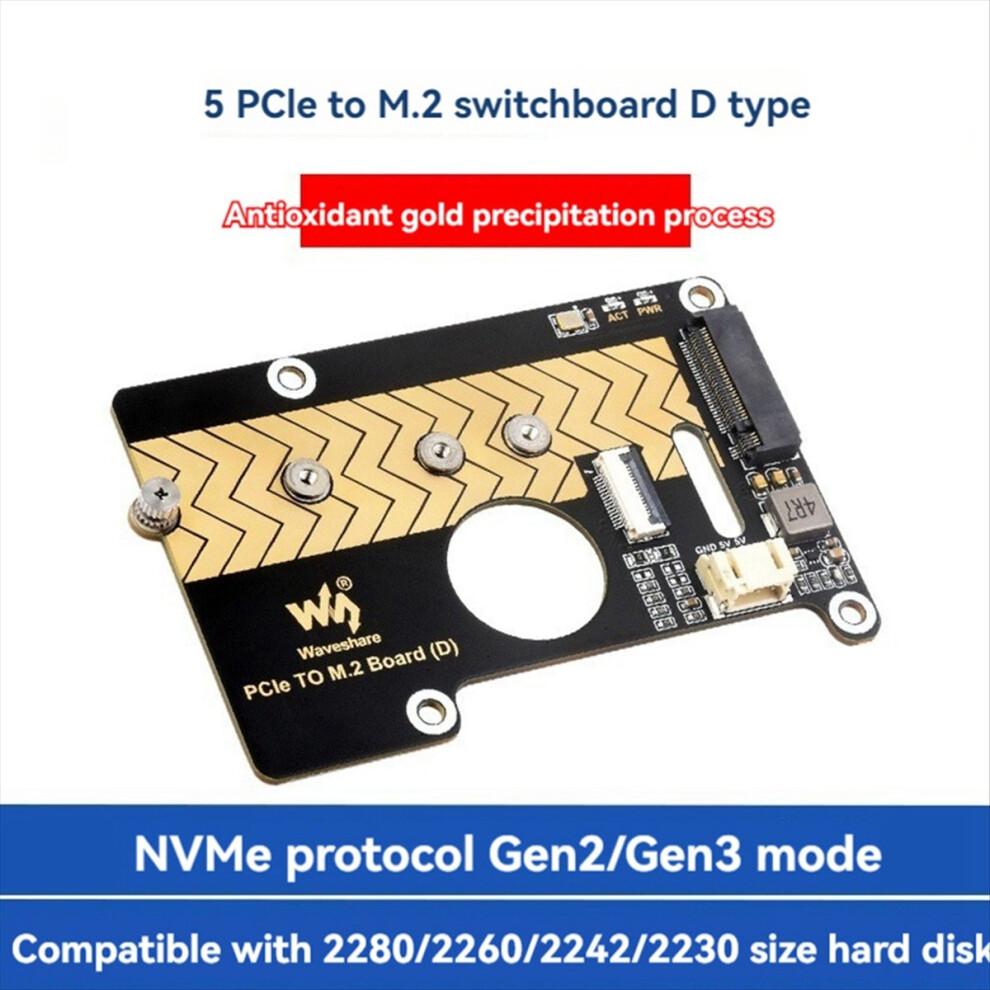

2. Improve hard drive performance, faster reading and writing speed, compatible with multiple sizes, immersion gold process to resist oxidation
3. The PI5 can be connected to the PI5 through a 16PIN cable. It is based on the 16PIN PCle interface design of the for 5 and retains the position of the fan air outlet and the for 40PIN GPIO interface.

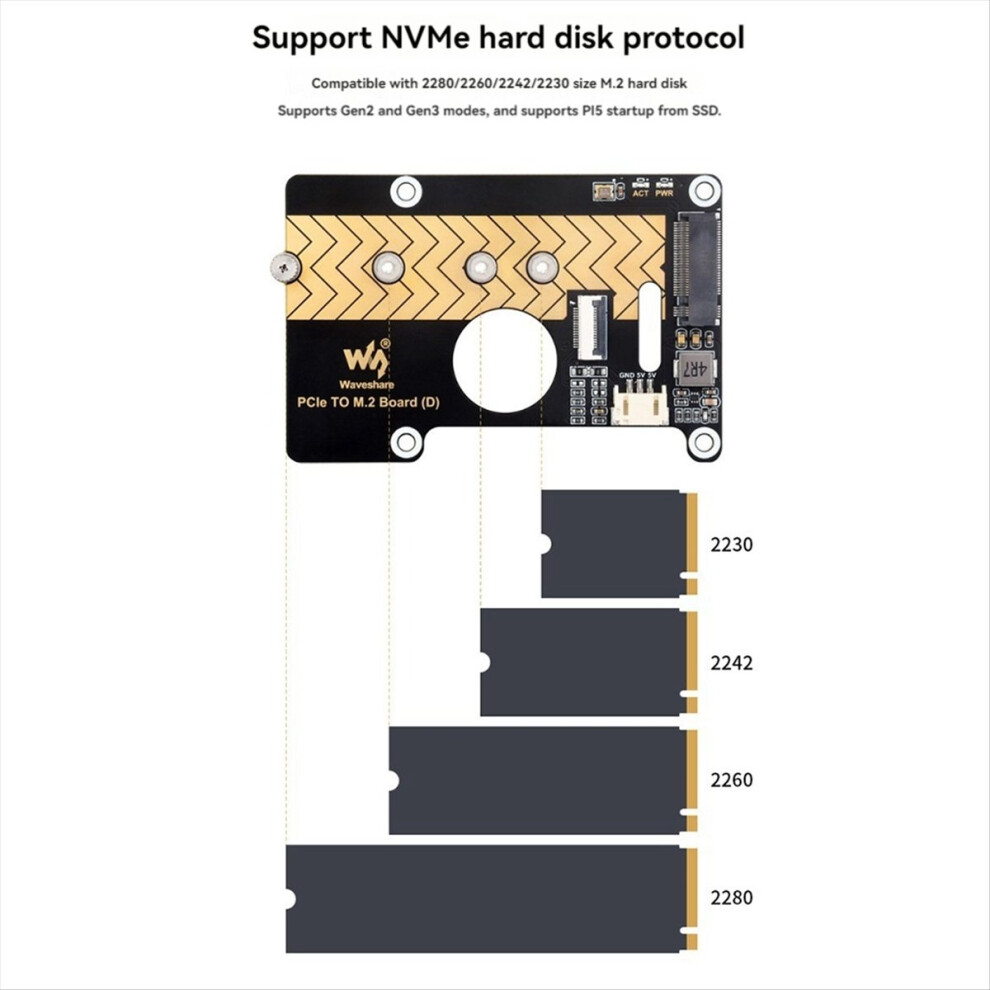

4. Supports NVMe hard drive protocol, compatible with 2280/2260/2242/2230 size M.2 hard drives, supports Gen2 and Gen3 modes, and supports booting PI5 from SSD
5. Multiple power supply options, support PCle cable power supply or 3PIN cable power supply

Specifications:PCIe TO M.2 Board (D)
Application areas:Specifically designed for 5
Note:Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Not Affect The Use.
Colour:As Shown
Material:PCB

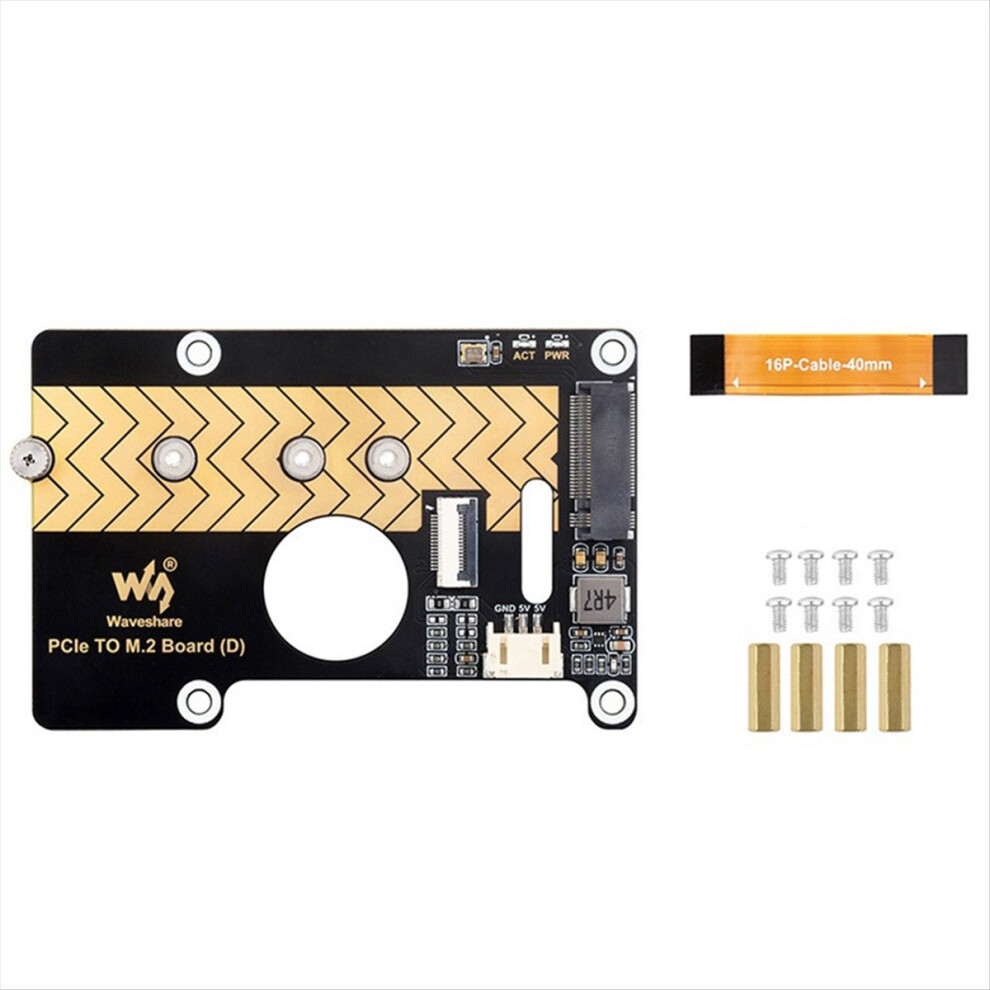

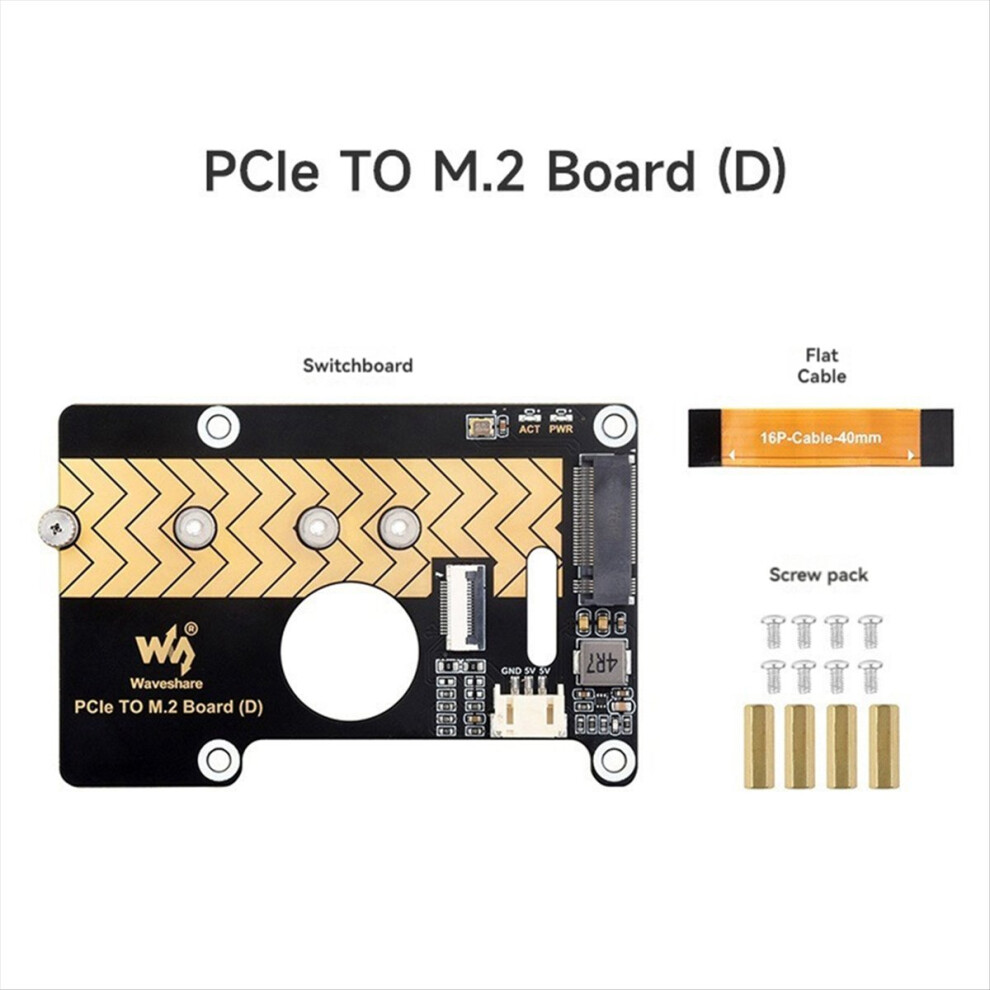

Package Contents:
1 * Pcle To M.2 Adapter Board Module
1 * 16Pin Pcle Cable
1 Set * Screw Pack Mounting Accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
