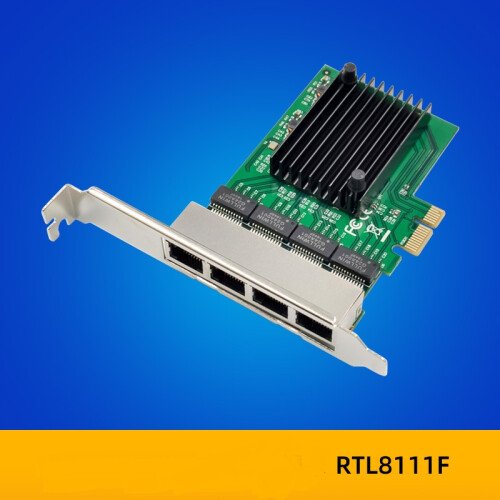

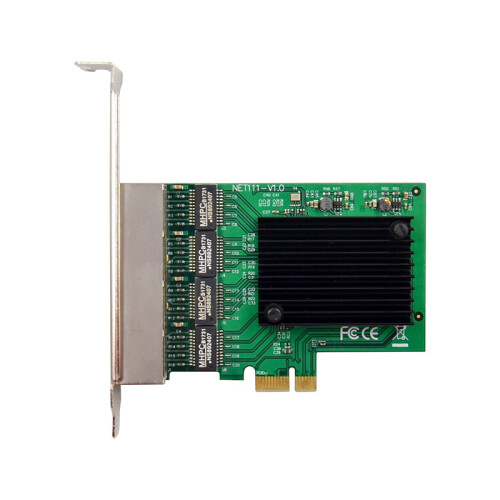

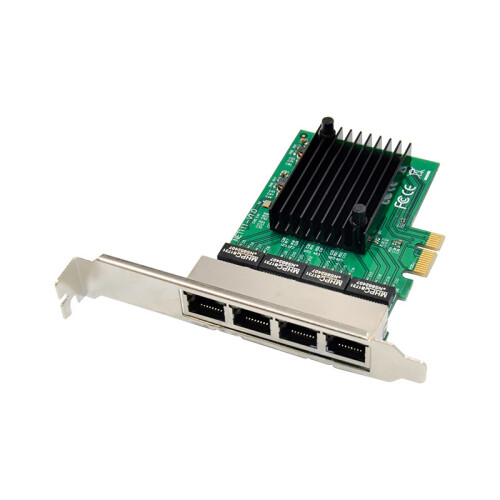

PCIe x1 RTL8111F 4-port Gigabit Ethernet Server Network Interface 100/1000Mbps

PCIe x1 RTL8111F 4-port Gigabit Ethernet Server Network Interface 100/1000Mbps Description

Features:

The SE-LG8111A-4BT PCI Express Gigabit Ethernet Card is a high-performance 10/100/1000M BASE-T Ethernet LAN solution.

Employing the RTL8111F+ASM1184e chipset design, it is ideally suited for home and office environments. This card provides a cost-effective solution for connecting to high-speed local area networks, offering data transfer rates of up to 1000Mbps over a set of four twisted copper wires, with a maximum distance of 100 metres.

It operates 100 times faster than 100/100BASE-T systems while maintaining 100% backward compatibility, allowing seamless integration into virtually any existing CAT-5 cabling infrastructure.

Specifications:

High-performance 1000BASE-T Ethernet controller card, backward compatible with 10/100BASE-T networks

10/100/1000Mbps data rate auto-negotiation operation

Compatible with existing CAT-5 UTP cabling

Fully compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab

Supports half/full-duplex modes and 802.3x flow control

Supports IEEE802.1P Layer 2 priority encoding

Supports IEEE 802.1Q VLAN tagging

Supports jumbo frames up to 9K bytes

On-chip transmit/receive buffer support

Cross-check and auto-correction operation

Supports power-down/power-saving mode

LAN wake-up and remote wake-up functionality support

4 x RJ45 Gigabit LAN ports

Supports standard and slim chassis

Technical Specifications:

Applicable Network: Gigabit Ethernet

Primary Controller: RTL8111F + ASM1184e

Bus Type: PCI Express X1, Ver 1.1

Media Interface: RJ45, Copper Cable

Transmission Rate: 10/100/1000 Mbps

Network Topology: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1P, IEEE 802.1Q VLAN; 10Base-T / 100Base-Tx / 1000Base-T

Management Functions: Supports VLAN aggregation, Wake-on-LAN (WOL), soft routing, etc.

Operating Systems: For Windows? 98SE / ME / Server 2000 / XP / Server 2003 / Vista / Win 7 / Server 2008 / Win 8 / Win 8.1 / Win 10 (32 & 64-bit), Linux, DOS

Operating Temperature: 0 ~ 55 ?? (32 ~ 131?H)

Storage Temperature: -40 to 70??C (-40 to 158??F)

Please note:

Due to logistical constraints, the packaging does not include the CD driver. Should you require the electronic version of the driver, please contact us. Thank you.

Package Contents:

1 x PCI-ERTL8111F Quad Gigabit Ethernet Card

1 x Short Bracket
