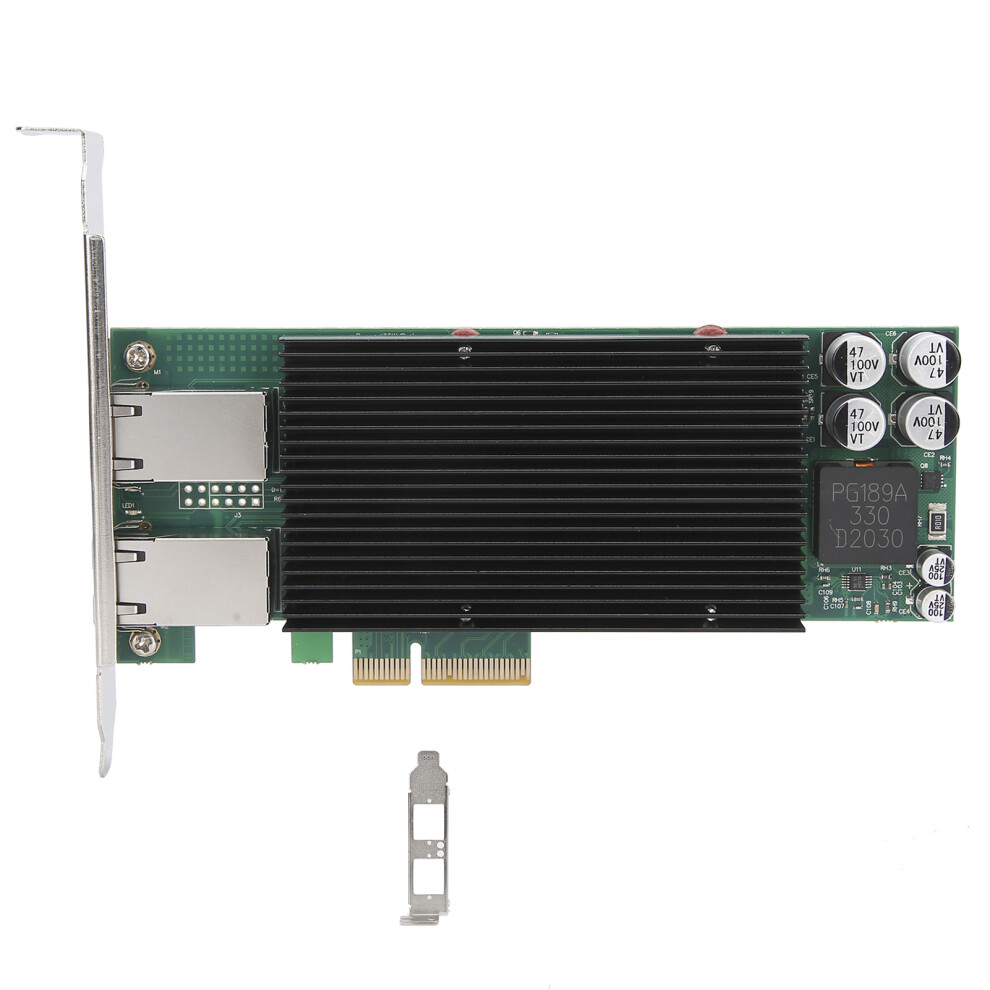

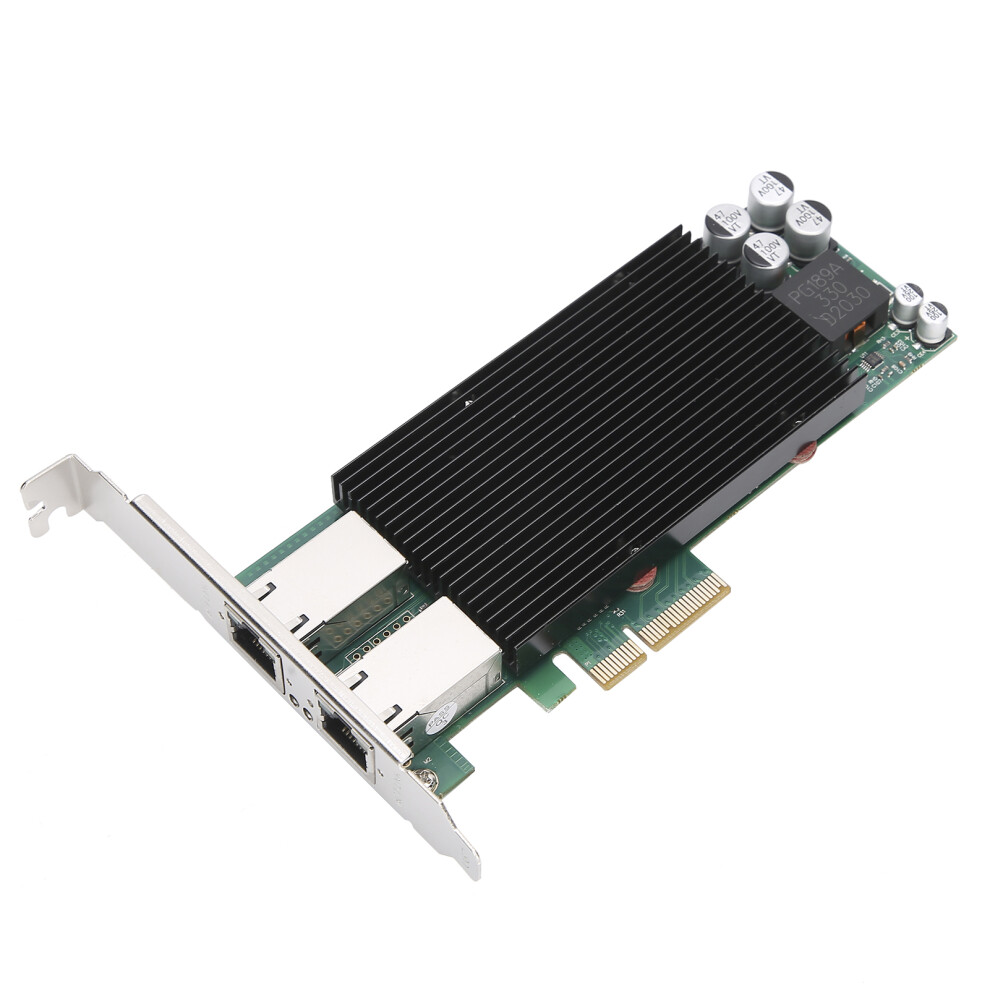

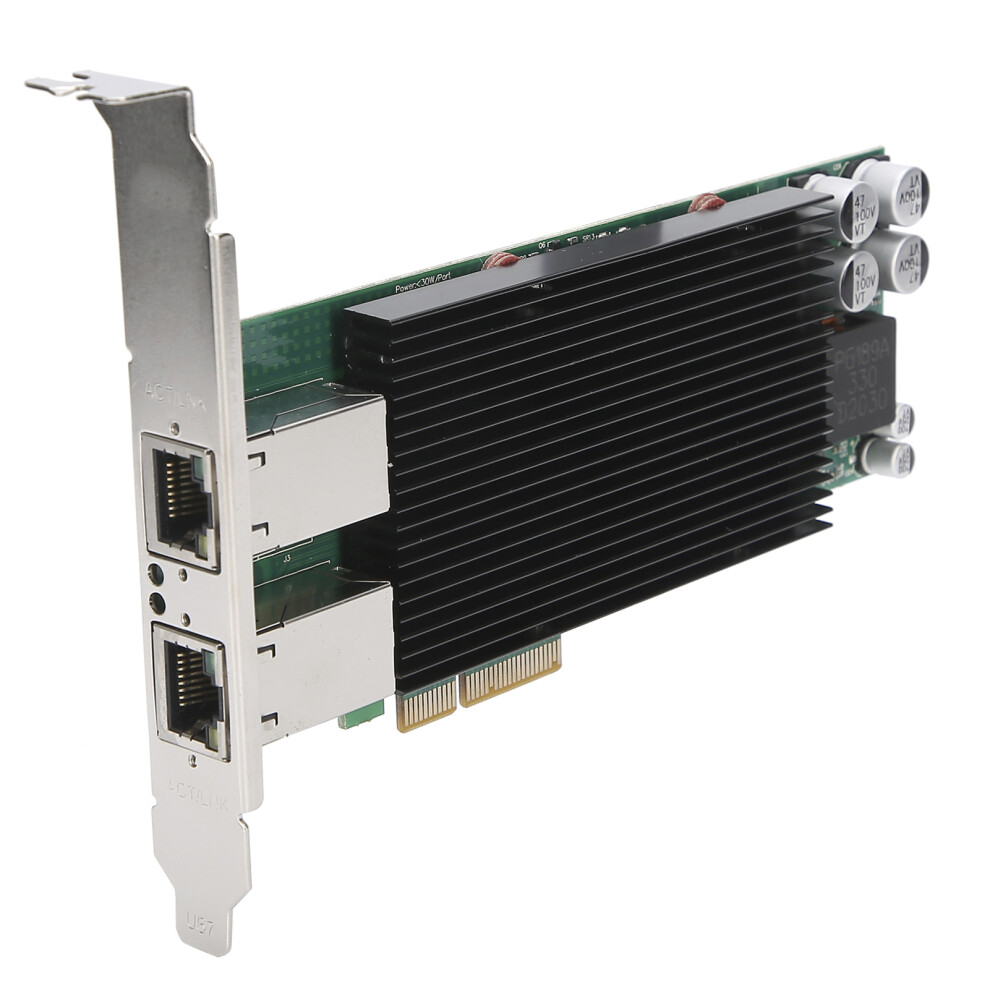

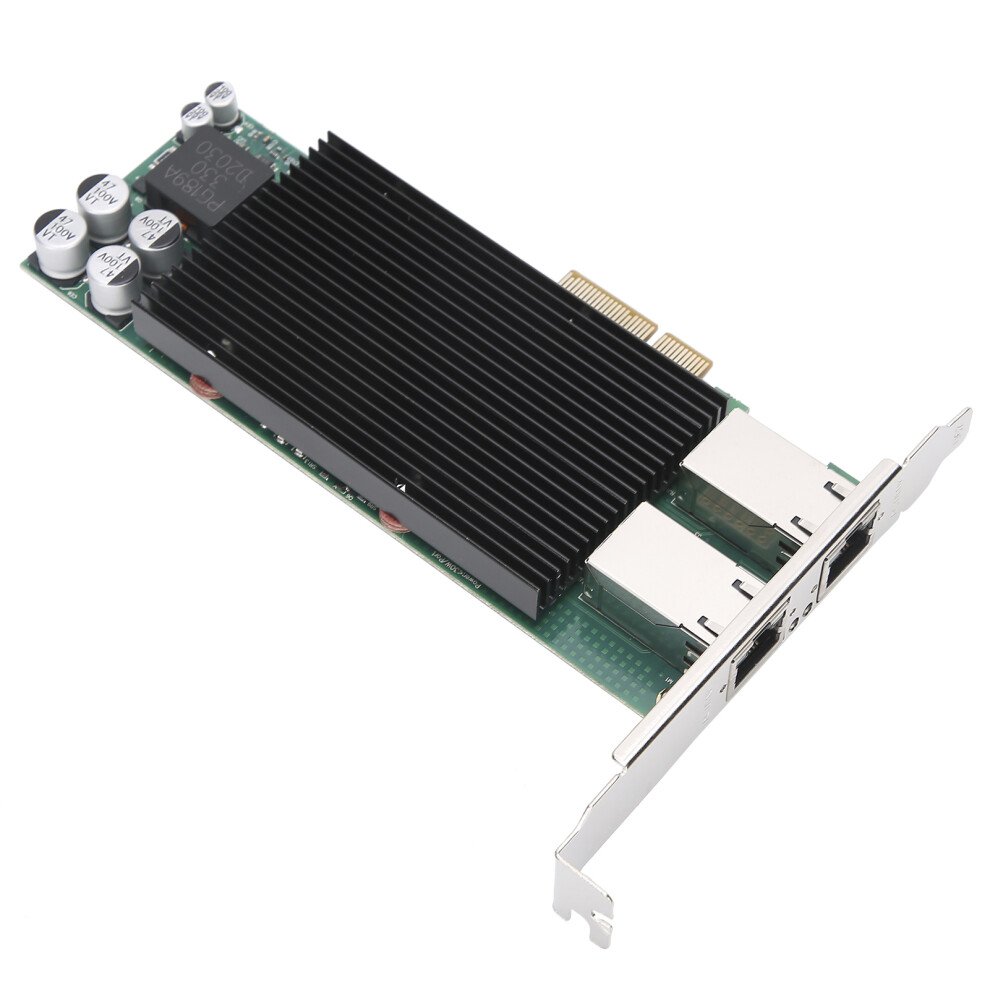

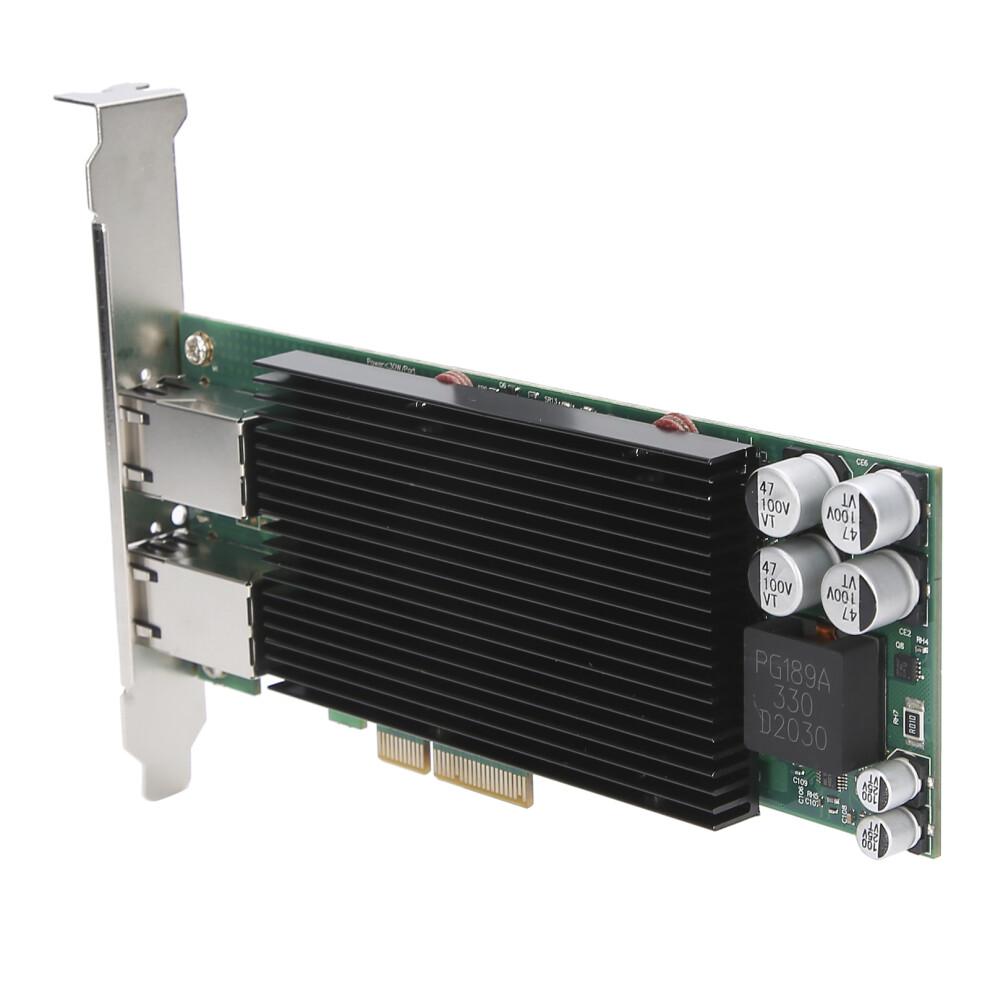

PCIe X4 Ethernet Adapter JL82576EB Gigabit Server Network

PCIe X4 Ethernet Adapter JL82576EB Gigabit Server Network Description

1、Supports PCI‑Express host interface specification V2.0 with a 2.5GT /s bus width. Using chipset for Intel JL82576EB, PCI‑Express channel X4. 2、Support dual‑port RJ45, maximum transmission speed up to 1Gbps. Conform to IEEE 802.3AB, IEEE 802.3U and IEEE802.3 specifications, IEEE 80.23AF, IEEE80.23AT network standards. 3、Each port supports up to 30W power supply, supports power supply voltage 44‑57VDC, half duplex and full duplex operation at 10/100MBP at all supported speeds, layer 2 features IEEE 802.3x flow control ‑IEEE 802.1Q VLAN. 4、Support for receiver scaling (RSS), IPV 4, IPV 6 protocols, support for jumbo frames up to 9.5K, support for UDP.TCP and IP checkups and offloads, management and RMON statistics, support for virtual machine device queues. 5、With following generation VMDQ support (8VM), interrupt throttling control limits maximum interrupt rates and increases CPU utilization. Condition: 100% Brand New Item Type: Server Adapter Material: PCB Network Type: Gigabit Ethernet POE+ image acquisition Bus Type: PCI Express X4 V2.0, compatible with X8, X16 Main Chipset: for Intel JL82576EB Transmission Medium: 2 x RJ45 (copper cable, POE power supply minimum demand CAT5) Transmission Rate: 1000/100Mbps Maximum Power: 30W/ports Network Topology: 1000BASE-T Gigabit Ethernet / 100BASE-T Fast Ethernet IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af power over ethernet IEEE 802.3af power over ethernet enhancements IEEE 802.3Q VLANs, IEEE 802.3 Full Duplex and flow control IEEE 802.3az - Energy Efficient Etherner (EEE) Support PXE, DPDK, PCI-SIG/SR-IOV, WOL, iSCSI, FCOE, giant frame Operation: 1. Insert card 2. Install the driver 1 x Server Adapter 1 x Optical Disc 1 x Manual 1 x Short Baffle
