PDM Microphone Unit SPM1423 Pulse Density Modulation Signal Automatic Voice Recording Module Programmable Module

PDM Microphone Unit SPM1423 Pulse Density Modulation Signal Automatic Voice Recording Module Programmable Module Description

Description:

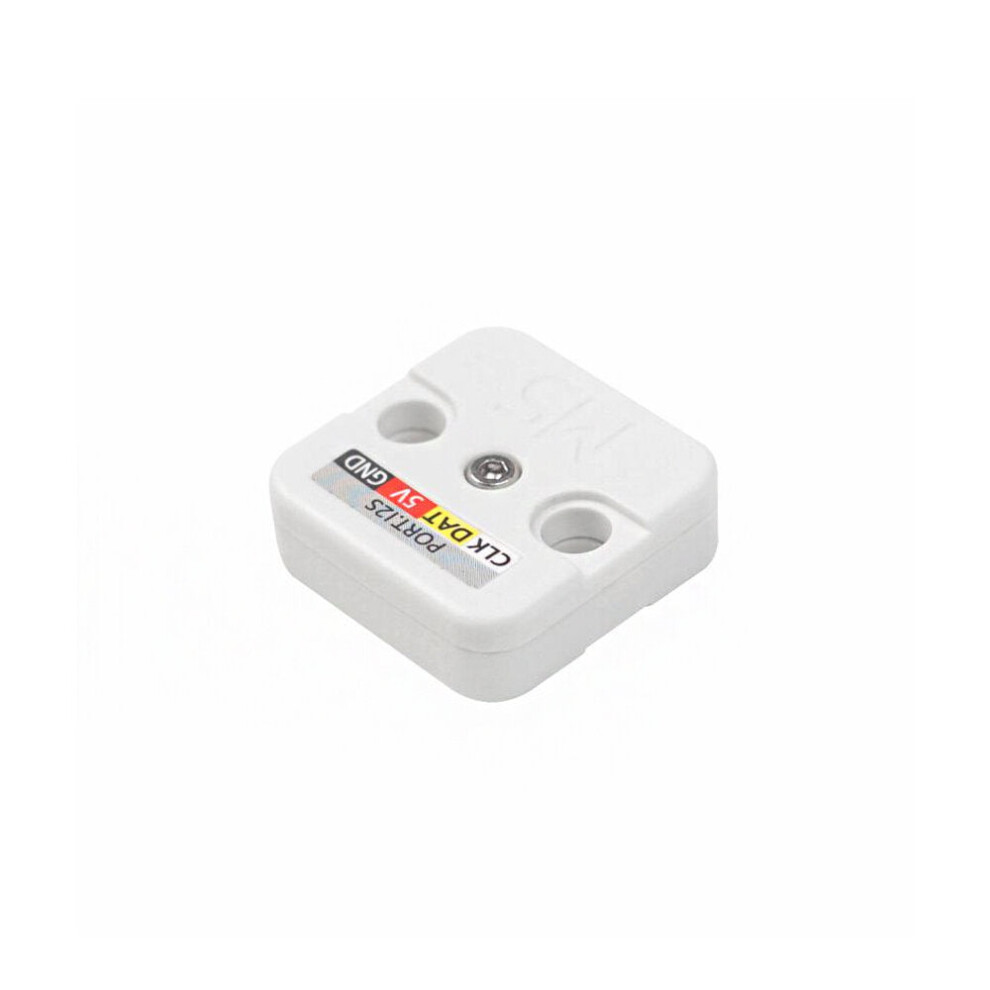

PDM mini Unit is a digital MEMS silicon-based microphone based on PDM (Pulse Density Modulation) signal. The microphone has high signal-to-noise ratio, high sensitivity, low power consumption, anti-radio frequency interference, smooth frequency response and other characteristics. It automatically switches the microphone state according to the clock frequency (power down/activate/sleep)and can be widely used for audio data collection on wearable devices and smart digital devices.

Features:

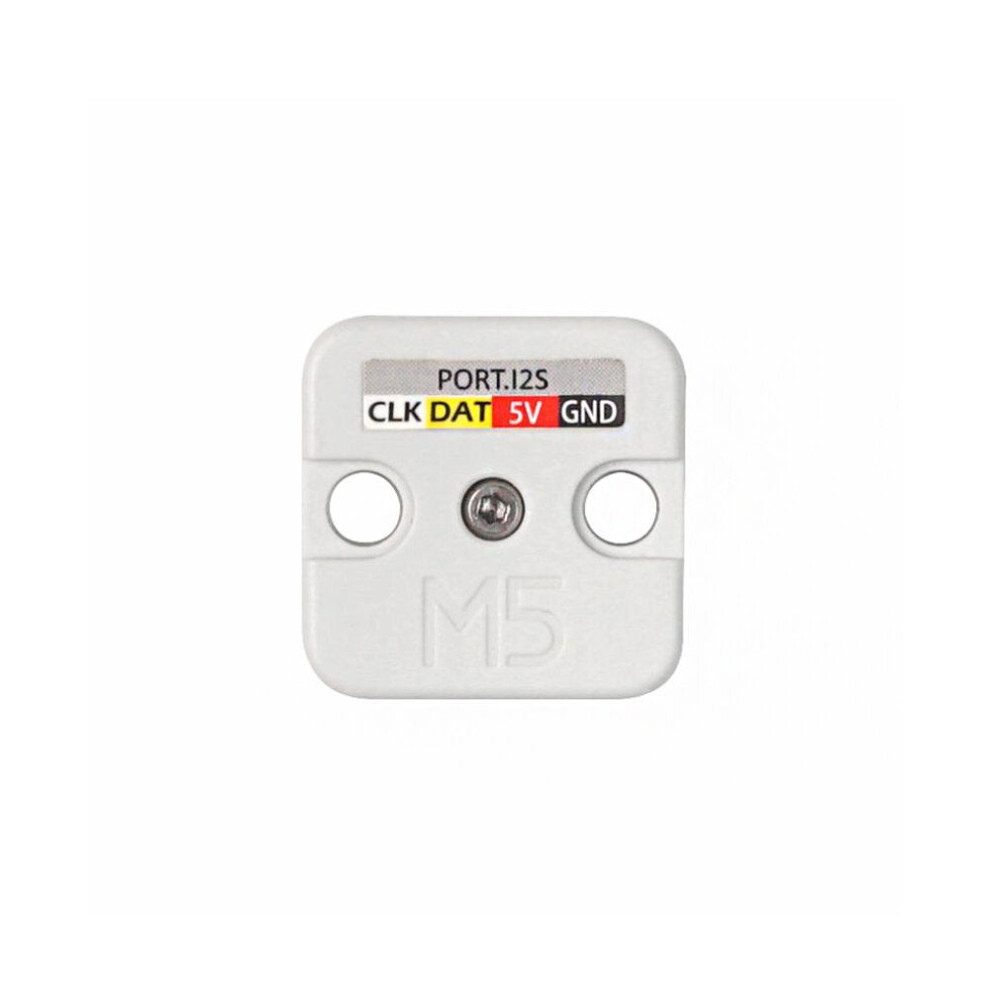

- I2S PORT,PDM encoding output (CLK/DAT).
- High sensitivity, high signal to noise ratio.
- Low power consumption.
- Anti-radio frequency interference.
- Compatible with LEGO.

Package Included:

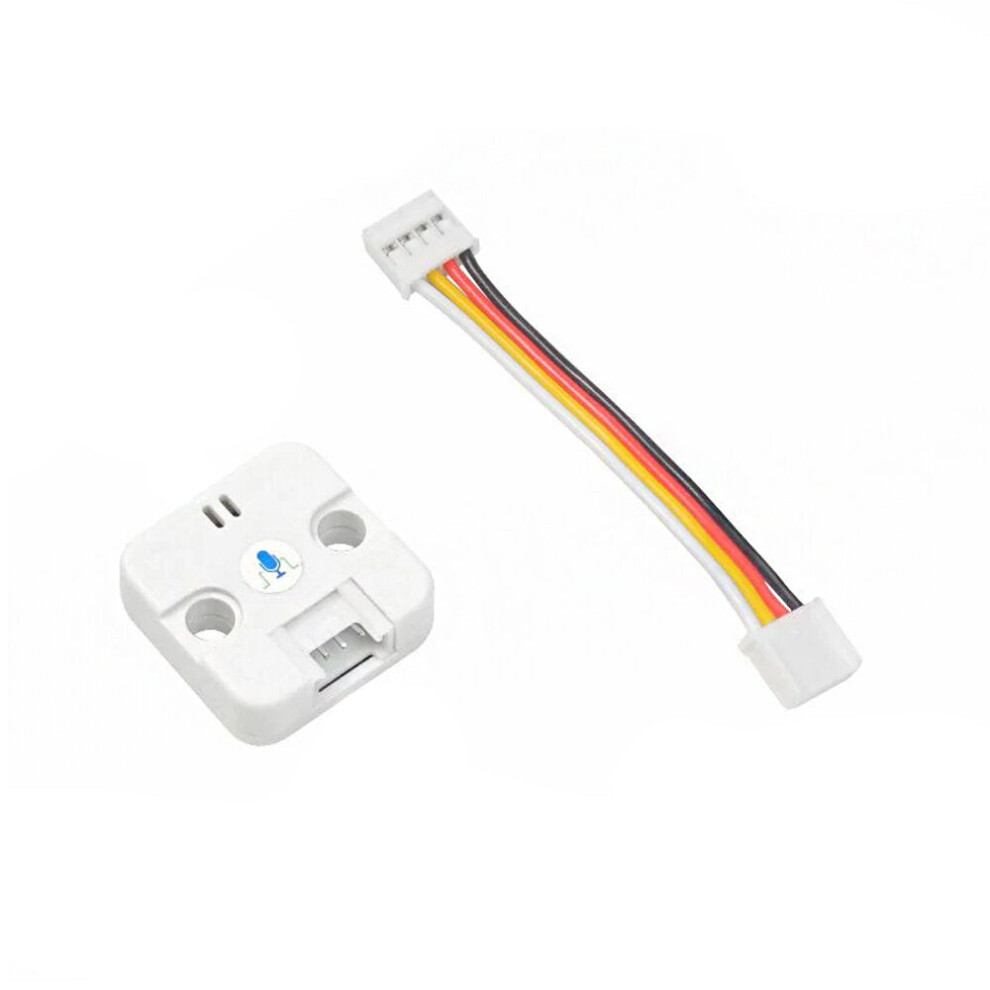

- 1x PDM mini Unit.
- 1x HY2.0 4P Cable(5CM).

Applications:
- Spectrum Analyzer.
- Recoder.
- Loudness meter.

Specification:
Sensitivity: 94dBSPL@1KHzNom.:-22dBFS.
SignaltoNoiseRatio: 94dBSPL@1KHz,A-weightedNom.:61.4dB.
TotalHarmonicDistortion: 100dBSPL@1KHzNom.:1%.
Workingvoltagerange: 1.6Vto3.6V.
WorkingCurrent: 600A.
NetWeight: 4g.
GrossWeight: 8g.

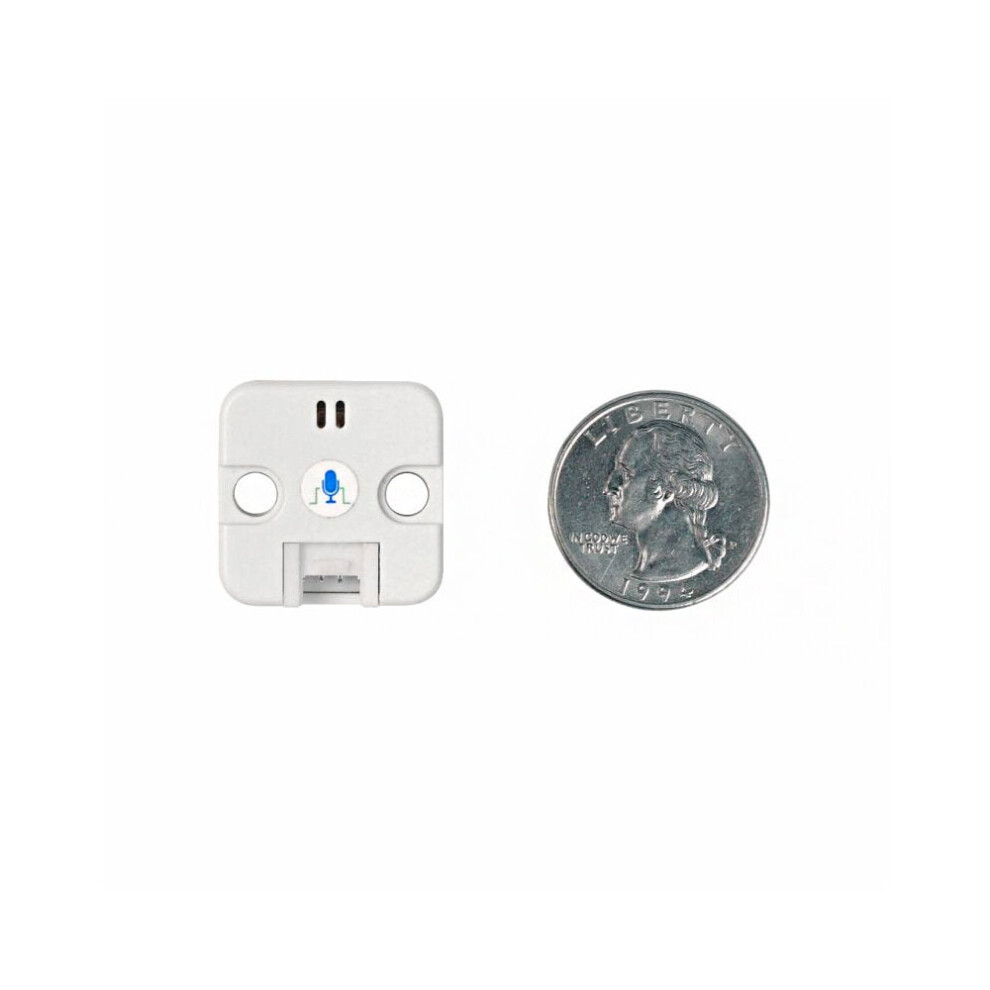

ProductSize: 24*24*13mm.
PackageSize: 35*36*18mm.
Casematerial: Plastic(PC)
