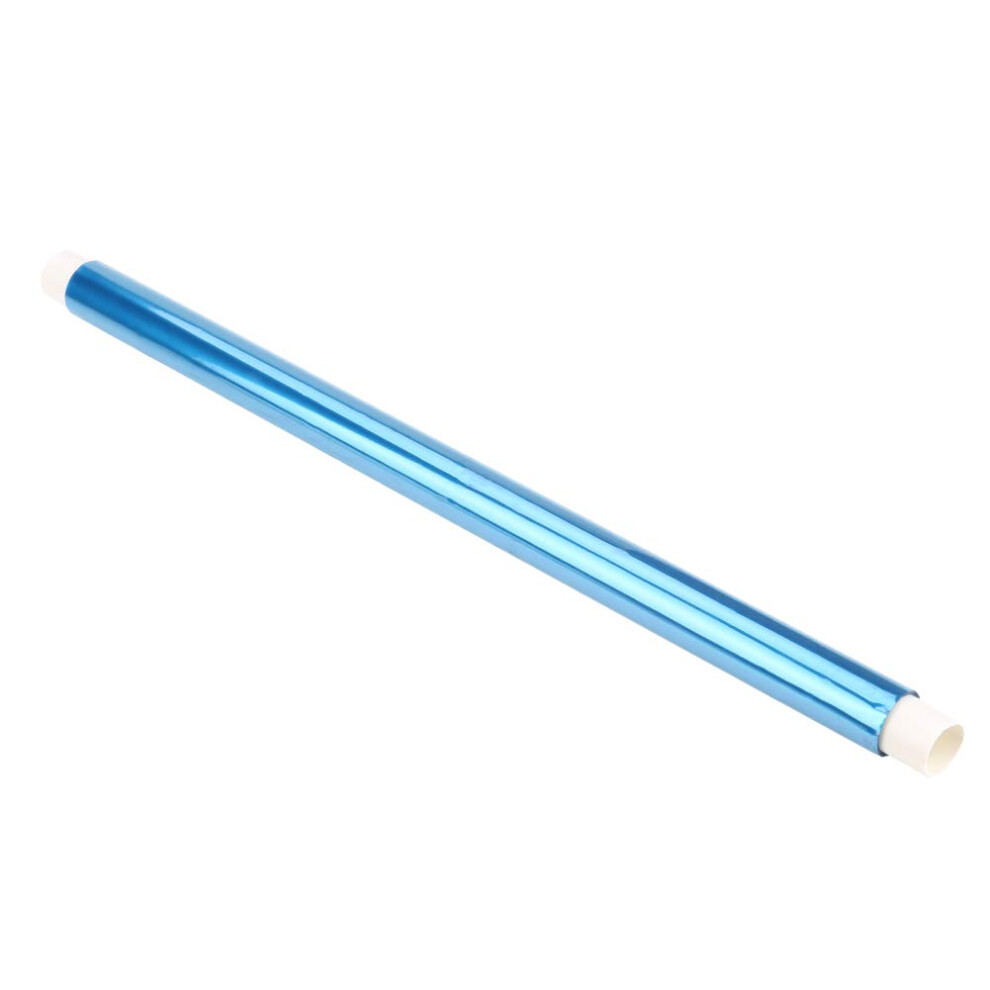

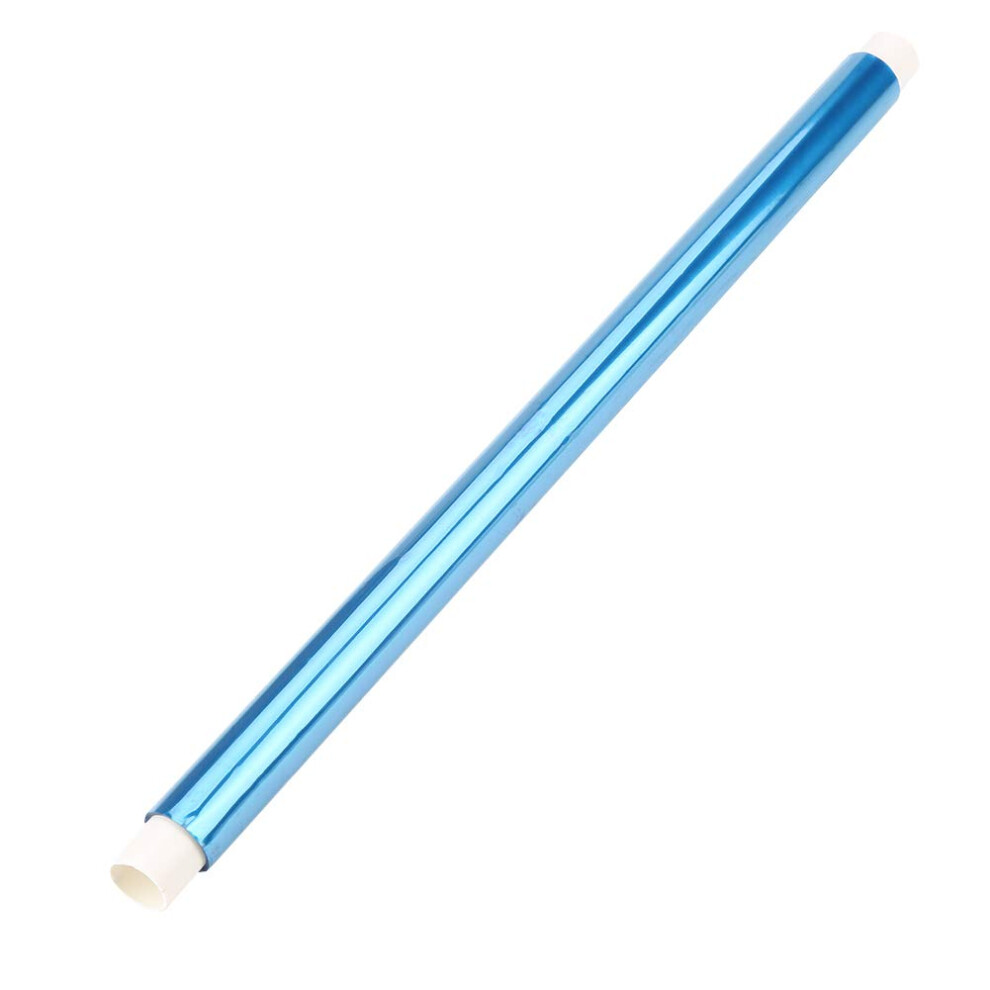

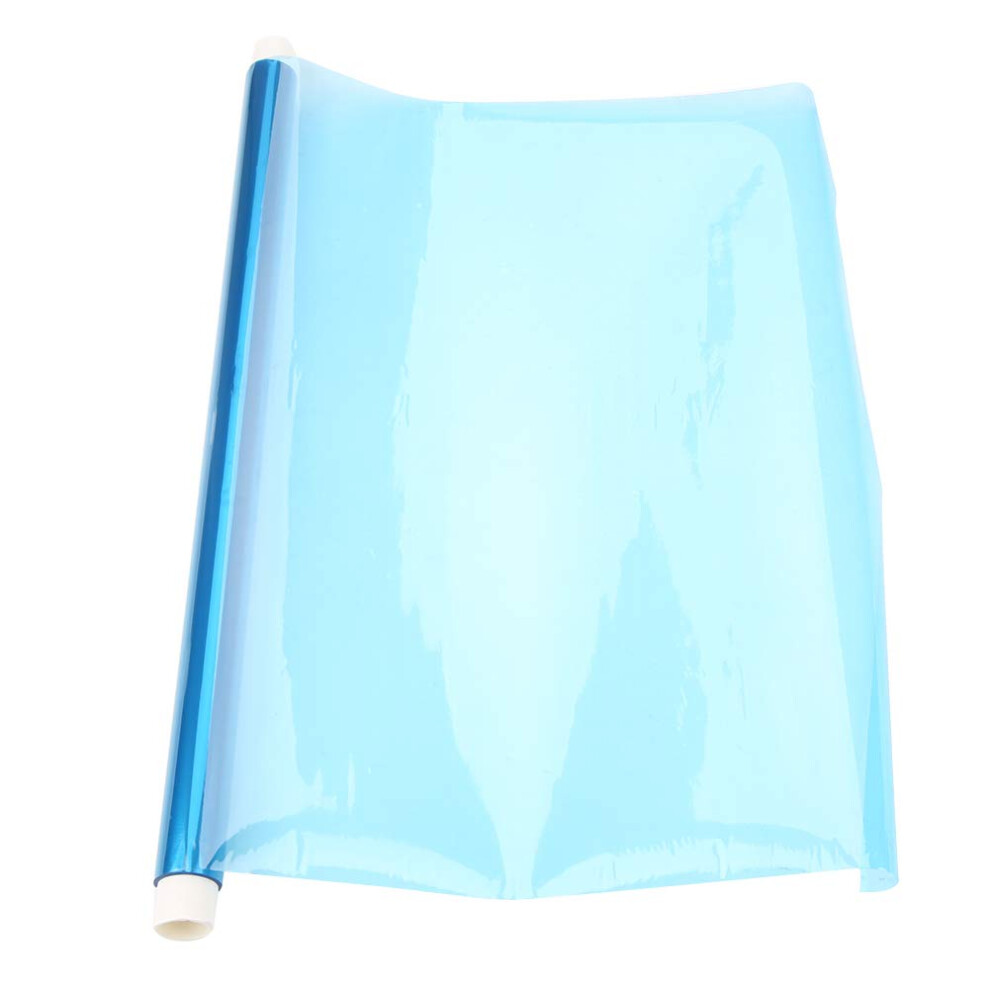

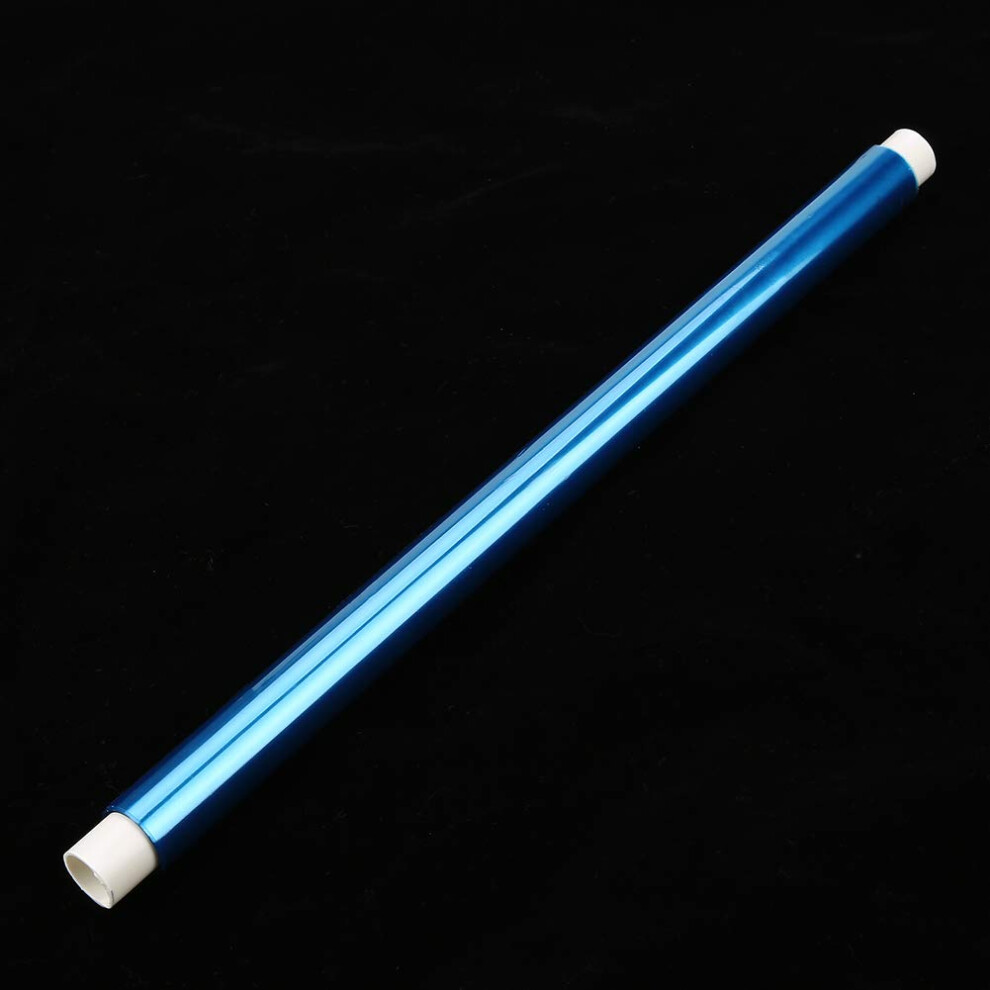

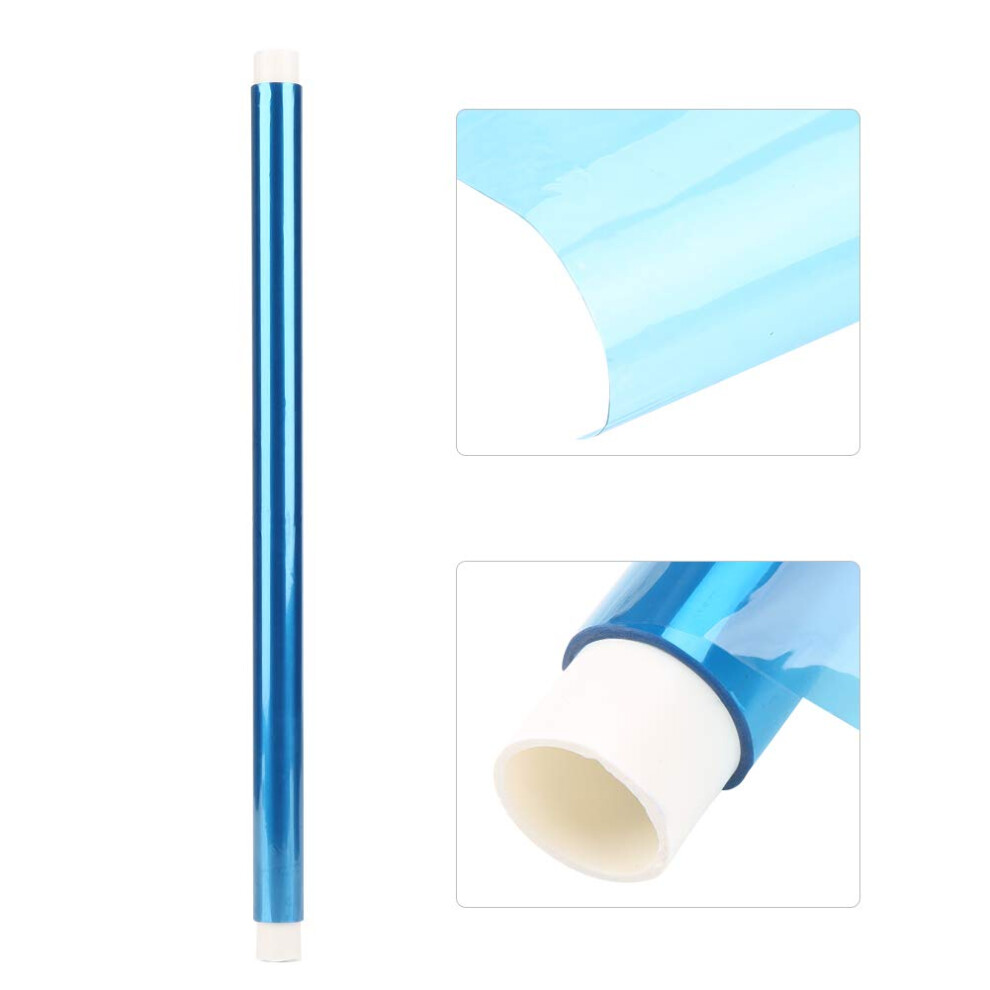

Photosensitive Dry Film for PCB Making, Precise Hole Coverage and Easy Pattern Transfer

Photosensitive Dry Film for PCB Making, Precise Hole Coverage and Easy Pattern Transfer Description

Photosensitive dry film for PCB production This photosensitive dry film simplifies PCB making and delivers consistent, professional results. It is designed for easy handling, durable performance, and reliable hole coverage during electroplating and etching. Key benefits Easy to use: Supplied with clear operating instructions so beginners can uncover, apply, expose, and develop with standard equipment such as energy saving lamps or exposure machines. Achieve results in minutes. Durable material: Built to withstand rigorous PCB production processes. The robust construction maintains performance through exposure and development without degradation. Precise hole covering: Advanced formulation provides hole coverage for electroplating and etching. Minimizes wrinkles and color errors to produce cleaner, more reliable boards. Versatile compatibility: Works with a wide range of substrate materials and common plating baths. Simply attach to the PCB surface to make it photosensitive and enable accurate circuit pattern transfer. Features and performance Function: Converts a PCB surface into a photosensitive layer for accurate pattern exposure and development. Compatibility: Suitable for use with energy saving lamps and standard exposure machines, and adaptable to various plating baths and board materials. Reliability: Consistent performance across exposure and development stages for repeatable results in prototyping and small batch production. Practical use scenarios Prototype development: Rapidly produce test or prototype boards in an electronics lab using familiar exposure equipment. Small batch manufacturing: Apply for short run PCB production where consistent hole coverage and resistance to process stress are required. and modification: Use in shops for board modifications, selective plating, and rework where precise masking is needed. How to use Remove protective film, align and attach the dry film to the PCB surface. Expose the film using an energy saving lamp or an exposure machine per the provided instructions. Develop the pattern and proceed with etching or electroplating as required. What makes it stand out User friendly instructions reduce setup time and errors. Durable composition preserves film integrity during processing. hole coverage improves plating outcomes and reduces rework. This photosensitive dry film is a practical choice for engineers, technicians, hobbyists, and professionals who need a reliable, easy to use material for PCB exposure, etching, and electroplating tasks.
