PICkit 3 Debugger Programmer Emulator, USB, Compact Size, Universal Compatibility

PICkit 3 Debugger Programmer Emulator, USB, Compact Size, Universal Compatibility Description

PICkit3 PIC KIT3 Debugger Programmer Emulator PIC Controller M99
Description

The PICkit 3 allows debugging and programming of PIC(R) and dsPIC(R) Flash microcontrollers using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE), and it does this all at a most affordable price point. It can program a large range of PIC chips, including the PIC10F, 12F, 16F, PIC18F, 24F/H, dsPIC and PIC32 (future) families. Additionally it is firmware upgradeable, and Microchip regularly releases new firmware to support new PIC chips.

Included in this package is the PICKit 3 Programmer/Debugger, PICkit 3 Programming Software(via download), the MPLAB IDE Software(via download), and an A to mini-B USB cable. Please note that this is the PICkit 3 programmer only (Microchip part number PG164130), and does not include any demo boards!

Microchip part number PG164130. For details, see product page on Microchip's site.


Features:

USB (Full speed 12 Mbits/s interface to host PC)

Real-time execution

MPLAB IDE compatible (free copy included)

Built-in over-voltage/short circuit monitor

Firmware upgradeable from PC/web download

Totally enclosed

Supports low voltage to 2.0 volts (2.0v to 6.0v range)

Diagnostic LEDs (power, busy, error)

Read/write program and data memory of microcontroller

Erase of program memory space with verification

Freeze-peripherals at breakpoint

Program up to 512K byte flash with the Programmer-to-Go


Supported Devices:

PIC10F

PIC10F200, PIC10F202, PIC10F204, PIC10F206, PIC10F220, PIC10F222

PIC12F

PIC12F508, PIC12F509, PIC12F510, PIC12F519, PIC12F609, PIC12HV609, PIC12F615, PIC12FHV615PIC12F629, PIC12F635, PIC12F675, PIC12F683

PIC16F

PIC16F505,PIC16F506,PIC16F526,PIC16F54,PIC16F57,PIC16F59,PIC16F610,PIC16FHV610,PIC16F616, PIC16FHV616PIC16F627, PIC16F628, PIC16F627A, PIC16F628A, PIC16F648A, PIC16F630, PIC16F631, PIC16F636,PIC16F639,PIC16F676,PIC16F677,PIC16F684,PIC16F685,PIC16F687,PIC16F688,PIC16F689, PIC16F690,PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F722, PIC16F723, PIC16F724, PIC16F726, PIC16F727, PIC16F716,PIC16F737, PIC16F747, PIC16F767, PIC16F777, PIC16F785, PIC16FHV785,PIC16F84A,PIC16F87,PIC16F88,PIC16F818,PIC16F819,PIC16F870,PIC16F871,PIC16F872, PIC16F873, PIC16F874,PIC16F876, PIC16F877, PIC16F873A, PIC16F874A, PIC16F876A, PIC16F877A, PIC16F882, PIC16F883, PIC16F884, PIC16F886, PIC16F887,PIC16F913, PIC16F914, PIC16F916, PIC16F917, PIC16F946, PIC16F1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16F1938, PIC16F1939, PIC16LF1933, PIC16F1934, PIC16F1936, PIC16F1937,PIC16LF1938, PIC16LF1939

PIC18F

PIC18F242, PIC18F252, PIC18F442, PIC18F452,PIC18F248, PIC18F258, PIC18F448, PIC18F458

PIC18F1220, PIC18F1320, PIC18F2220, PIC18F2320,PIC18F1230, PIC18F1330,PIC18F2221, PIC18F2321

PIC18F2331, PIC18F2410, PIC18F2420, PIC18F2431,PIC18F2423,PIC18F2450, PIC18F2455, PIC18F2458, PIC18F2480,PIC18F2510, PIC18F2515, PIC18F2520, PIC18F2523,PIC18F2525,PIC18F2550, PIC18F2553, PIC18F2580, PIC18F2585,PIC18F2610, PIC18F2620, PIC18F2680,PIC18F2682, PIC18F2685,PIC18F4220, PIC18F4221,PIC18F4320, PIC18F4321, PIC18F4331,PIC18F4410, PIC18F4420, PIC18F4423,PIC18F4431, PIC18F4450, PIC18F4455,PIC18F4458, PIC18F4480,PIC18F4510, PIC18F4515, PIC18F4520, PIC18F4523

PIC18F4525, PIC18F4550, PIC18F4553, PIC18F4580,PIC18F4585,PIC18F4610, PIC18F4620, PIC18F4680

PIC18F4682, PIC18F4685,PIC18F6310, PIC18F6390, PIC18F6393,PIC18F6410, PIC18F6490, PIC18F6493

PIC18F6520, PIC18F6525, PIC18F6527, PIC18F6585,PIC18F6620, PIC18F6621, PIC18F6622, PIC18F6627

PIC18F6628, PIC18F6680,PIC18F6720, PIC18F6722, PIC18F6723PIC18F8310, PIC18F8390, PIC18F8393

PIC18F8410, PIC18F8490, PIC18F8493,PIC18F8520, PIC18F8525, PIC18F8527, PIC18F8585,PIC18F8621, PIC18F8620,PIC18F8622,PIC18F8627,PIC18F8628,PIC18F8680,PIC18F8720,PIC18F8722,PIC18F8723,PIC18F24J10, F25J10, F44J10, F45J10,PIC18LF24J10, LF25J10, LF44J10, LF45J10,PIC18F24J11, F25J11, F44J11, F45J11

PIC18LF24J11, LF25J11, LF44J11, LF45J11,PIC18F26J11, F46J11,PIC18LF26J11, LF46J11,PIC18F24J50, F25J50, F44J50, F45J50,PIC18LF24J50, LF25J50, LF44J50, LF45J50,PIC18F26J50, F46J50,PIC18LF26J50, LF46J50

PIC18F63J11, 63J90, 64J11, 64J90PIC18F65J10, 65J11, 65J15PIC18F65J50, 65J90PIC18F66J10, 66J11, 66J15, 66J16,PIC18F66J50, 66J55, 66J60, 66J65,PIC18F66J90,PIC18F67J10, 67J11, 67J50, 67J60,PIC18F67J90,PIC18F83J11, 83J90, 84J11, 84J90,PIC18F85J10, 85J11, 85J15, 85J50,PIC18F85J90,PIC18F86J10, 86J11, 86J15, 86J16,PIC18F86J50, 86J55, 86J60, 86J65,PIC18F86J90,PIC18F87J10, 87J11, 87J50, 87J60,PIC18F86J90,PIC18F96J60, 96J65,PIC18F97J60,

PIC18F13K22, LF13K22, F14K22, LF14K22PIC18F13K50,14K50,PIC18F23K20,24K20,25K20,26K20PIC18F43K20, 44K20, 45K20, 46K20

PIC24F

PIC24F04KA200, 04KA201,PIC24F08KA101, 08KA102,PIC24F16KA101, 16KA102,PIC24FJ16GA002, 16GA004,PIC24FJ32GA002, 32GA004,PIC24FJ32GA102, 32GA104,PIC24FJ32GB002, 32GB004,PIC24FJ48GA002, 48GA004,PIC24FJ64GA002, 64GA004,PIC24FJ64GA102, 64GA104,PIC24FJ64GB002, 64GB004,PIC24FJ64GA006, 64GA008, 64GA010,PIC24FJ64GB106, 64GB108, 64GB110,PIC24FJ96GA006, 96GA008, 96GA010,PIC24FJ128GA006, 128GA008, 128GA010,PIC24FJ128GA106, 128GA108, 128GA110,PIC24FJ128GB106, 128GB108, 128GB110,PIC24FJ192GA106, 192GA108, 192GA110,PIC24FJ192GB106, 192GB108, 192GB110,PIC24FJ256GA106, 256GA108, 256GA110,PIC24FJ256GB106, 256GB108, 256GB110

,PIC24HJ12GP201, 12GP202,PIC24HJ16GP304,PIC24HJ32GP202, 32GP204,PIC24HJ32GP302, 32GP304

,PIC24HJ64GP202, 64GP204,PIC24HJ64GP206, 64GP210, 64GP506,PIC24HJ64GP502, 64GP504, 64GP510

,PIC24HJ128GP202, 128GP204,PIC24HJ128GP206, 128GP210, 128GP306,PIC24HJ128GP310,PIC24HJ128GP502, 128GP504,PIC24HJ128GP506, 128GP510,PIC24HJ256GP206, 256GP210, 256GP610

dsPIC30

dsPIC30F1010,dsPIC30F2010, 2011, 2012,dsPIC30F2020, 2023,dsPIC30F 3010, 3011, 3012

dsPIC30F3013, 3014,dsPIC30F4011, 4012, 4013,dsPIC30F5011, 5013, 5015, 5016,dsPIC30F6010A, 6011A, 6012A

dsPIC39

dsPIC39F6013A, 6014A, 6015

dsPIC33

dsPIC33FJ12GP201, 12GP202,dsPIC33FJ16GP304,dsPIC33FJ32GP202, 32GP204,dsPIC33FJ32GP302, 32GP304

dsPIC33FJ64GP202, 64GP204,dsPIC33FJ64GP206, 64GP306, 64GP310,dsPIC33FJ64GP706, 64GP708, 64GP710

dsPIC33FJ64GP802, 64GP804,dsPIC33FJ128GP202, 128GP204,dsPIC33FJ128GP206, 128GP306, 128GP310,

dsPIC33FJ128GP706, 128GP708, 128GP710,dsPIC33FJ128GP802, 128GP804,dsPIC33FJ256GP506, 256GP510, 256GP710

dsPIC33FJ06GS101, 06GS102, 06GS202,dsPIC33FJ16GS402, 16GS404,dsPIC33FJ16GS502, 16GS504


dsPIC33FJ12MC201, 12MC202,dsPIC33FJ16MC304,dsPIC33FJ32MC202, 32MC204,dsPIC33FJ32MC302, 32MC304

dsPIC33FJ64MC202, 64MC204,dsPIC33FJ64MC506, 64MC508, 64MC510,dsPIC33FJ64MC706, 64MC710,dsPIC33FJ64MC802, 64MC804,dsPIC33FJ128MC202, 128MC204

dsPIC33FJ128MC506, 128MC510,dsPIC33FJ128MC706, 128MC708, 128MC710

dsPIC33FJ128MC802, 128MC804,dsPIC33FJ256MC510, 256MC710

dsPIC32

PIC32MX320F032H, 320F064H,PIC32MX320F128H, 320F128L,PIC32MX340F128H, 340F128L,PIC32MX340F256H

PIC32MX340F512H,PIC32MX360F256L, 360F512L,PIC32MX420F032H,PIC32MX440F128L, 440F128H

PIC32MX440F256H,PIC32MX440F512H,PIC32MX460F256L, 460F512L

11 Series Serial EEPROM Devices

11LC/AA010,11LC/AA020,11LC/AA040,11LC/AA080,11LC/AA160

24 Series Serial EEPROM Devices

24LC/AA/C00,24LC/AA01B, 02B, 04B, 08B,24LC/AA16B, 32A,24LC/AA/FC64, 128, 256, 512,24LC/AA/FC1025

25 Series Serial EEPROM Devices

25LC/AA010A, 020A, 040A,25LC/AA080A, 080B, 160A, 160B,25LC/AA320A, 640A,25LC/AA128, 256, 512, 1024

93 Series Serial EEPROM Devices

25LC/AA/C46A, 46B, 46C,25LC/AA/C56A, 56B, 56C,25LC/AA/C66A, 66B, 66C,25LC/AA/C47A, 76B, 76C

,25LC/AA/C48A, 86B, 86C

MCP250xx CAN Devices

MCP25020, 25025,MCP25050, 25055


Specification:

Color: As the pictures show

USB cable Length: 149.5cm / 58.9inch

6-pin Double-headed Needle Length: 22cm / 8.7inch

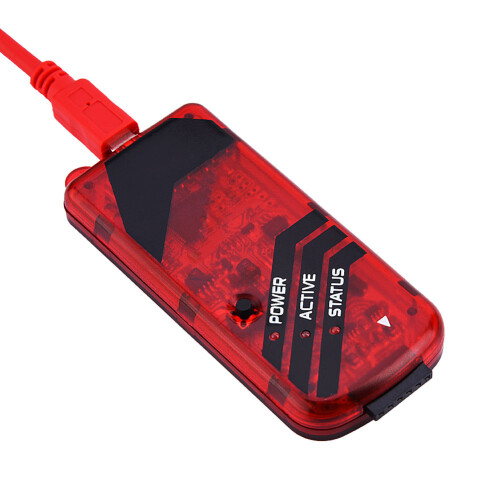

PICkit3 Emulator Size: 9.3 x 4cm / 3.7 x 1.6inch

Package Weight: 98g

Quantity: 1pc

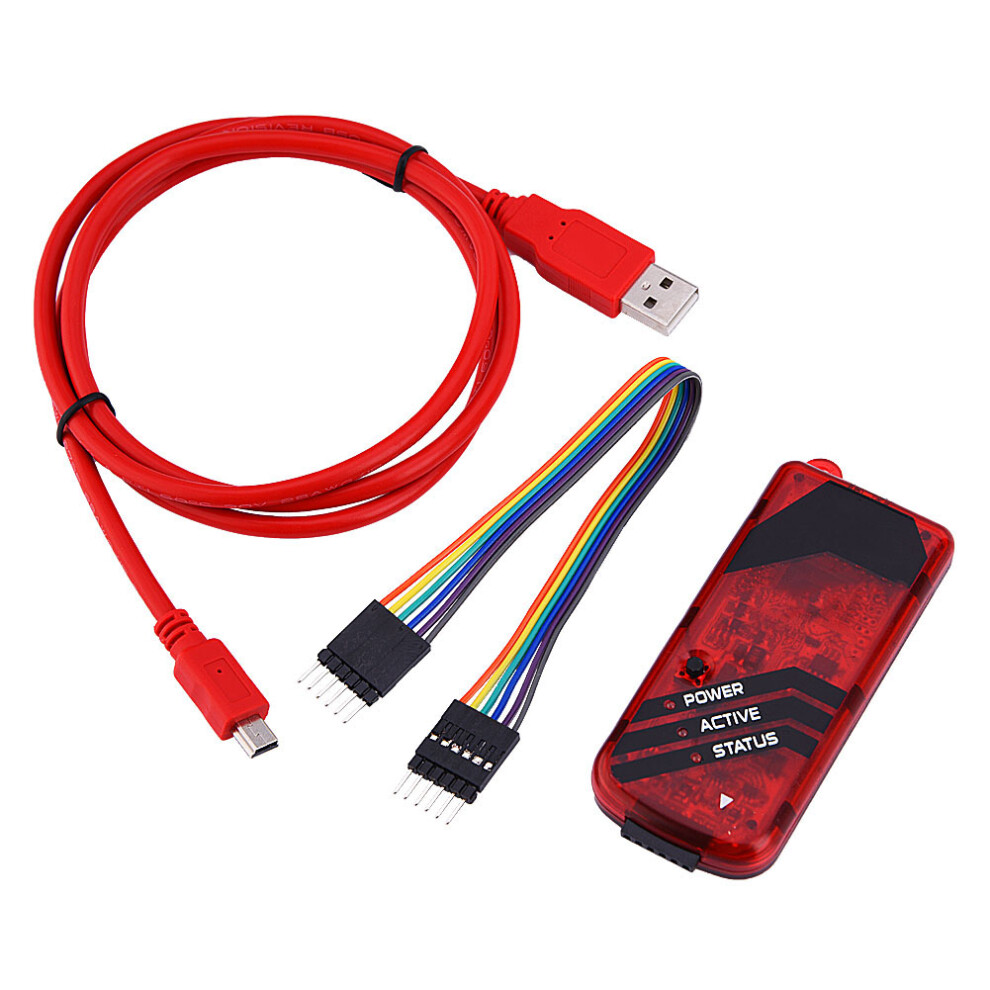

Package included:

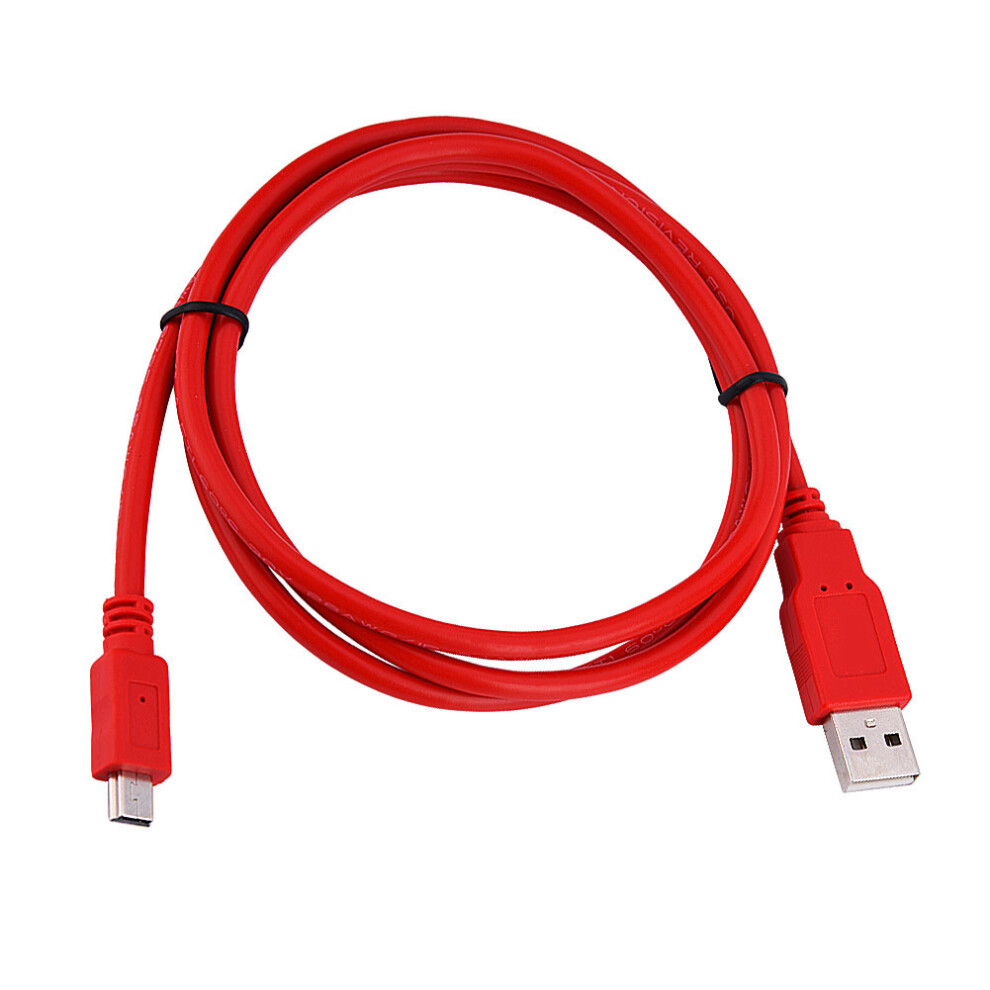

1 x USB Cable

1 x 6-pin Double-headed Needle

1 x PICkit3 Debugger Programmer Emulator


Note:

1. Please allow 1-3cm error due to manual measurement. Thanks for your understanding.

2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
