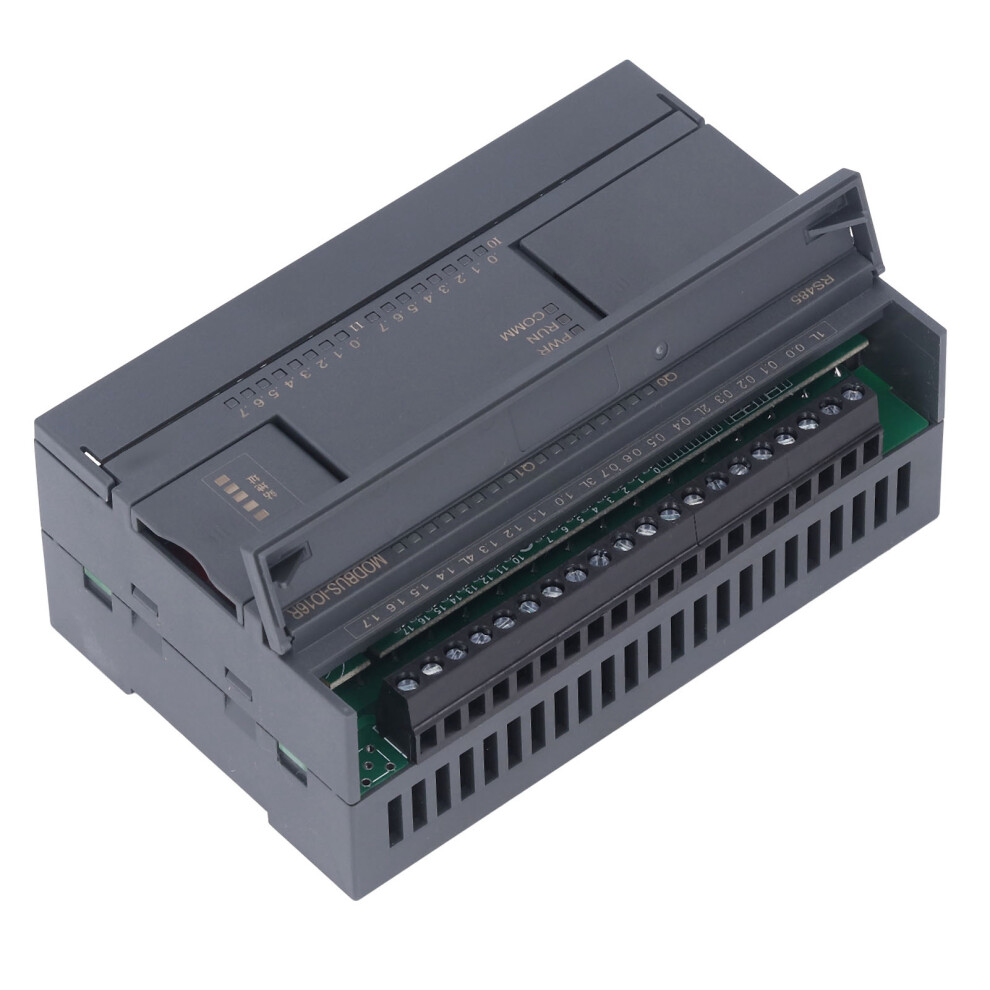

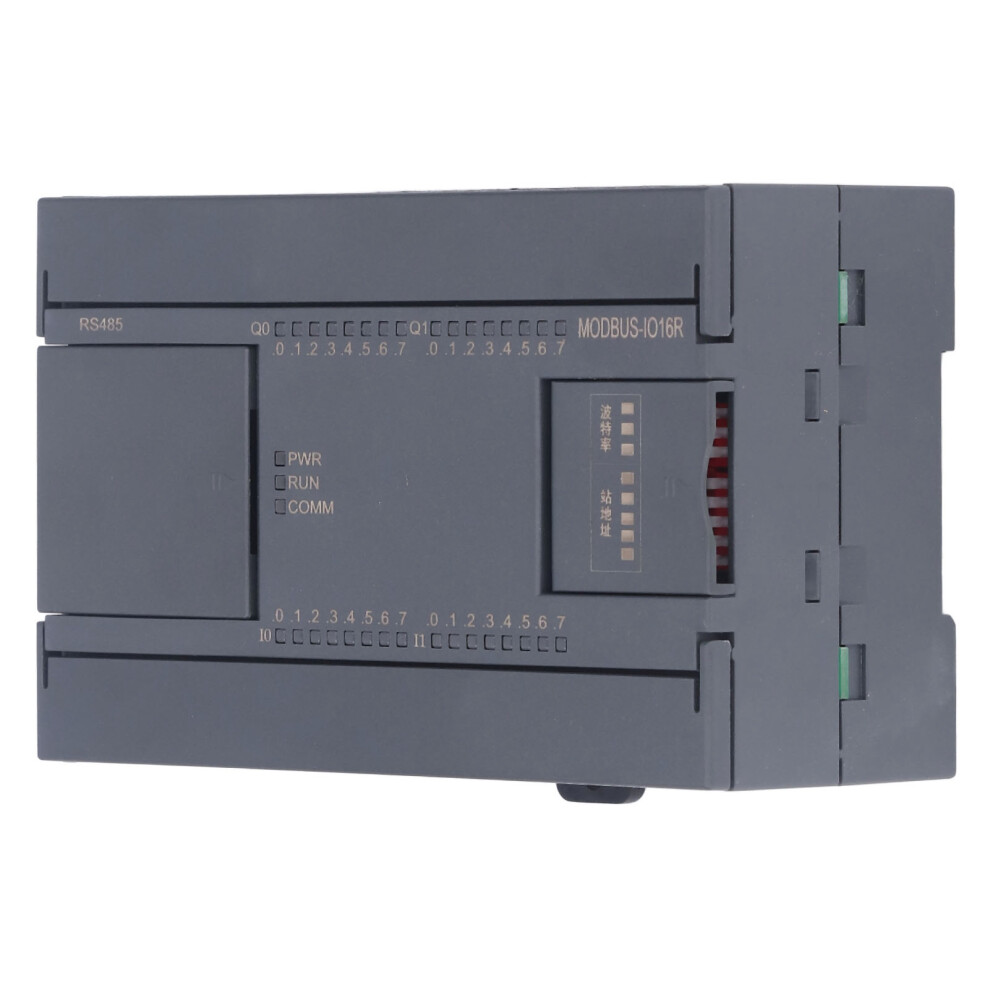

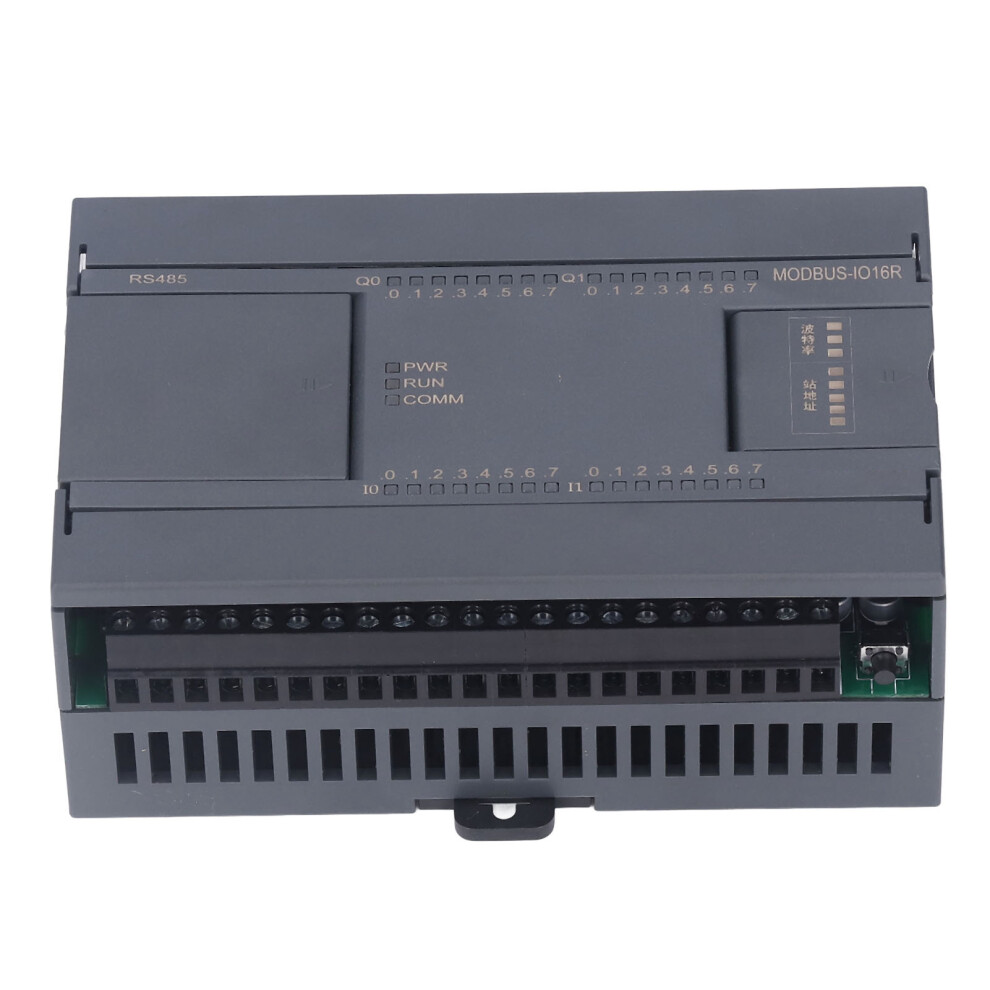

PLC Control Board 16-Point I/O RS485 DC24V

PLC Control Board 16-Point I/O RS485 DC24V Description

1、16 Inputs and Outputs: The industrial control board adopts 16 channels of optocoupler isolated digital input and output, and has 16 channels of input status indicators 2、Anti Reverse Polarity Protection: The power circuit of the industrial control board adopts anti reverse connection design, with anti reverse connection protection polarity 3、RS485 Communication: The industrial control board adopts RS485 RTU standard communication, which can be networked with PLC, etc. 4、ABS Housing: The housing of this industrial control board is made of high quality ABS, has high strength, provides long service life 5、Wide Application: The PLC controller is widely used in signal acquisition and control of industrial field equipment, the dedicated upper computer can set the module parameters and save permanently
Item Type: PLC Industrial Control Board
Material: ABS, PCB
Input Point Number: 16 channels
Digital Input: Optocoupler isolated input
Input Signal Type: Switch contact signal or level signal
Input Signal Valid Range: DC20-28V
Output Point Number: 16 channels
Output Type: Relay output, normally open contact
Output Capacity: 2A per point, 8A per 4 points

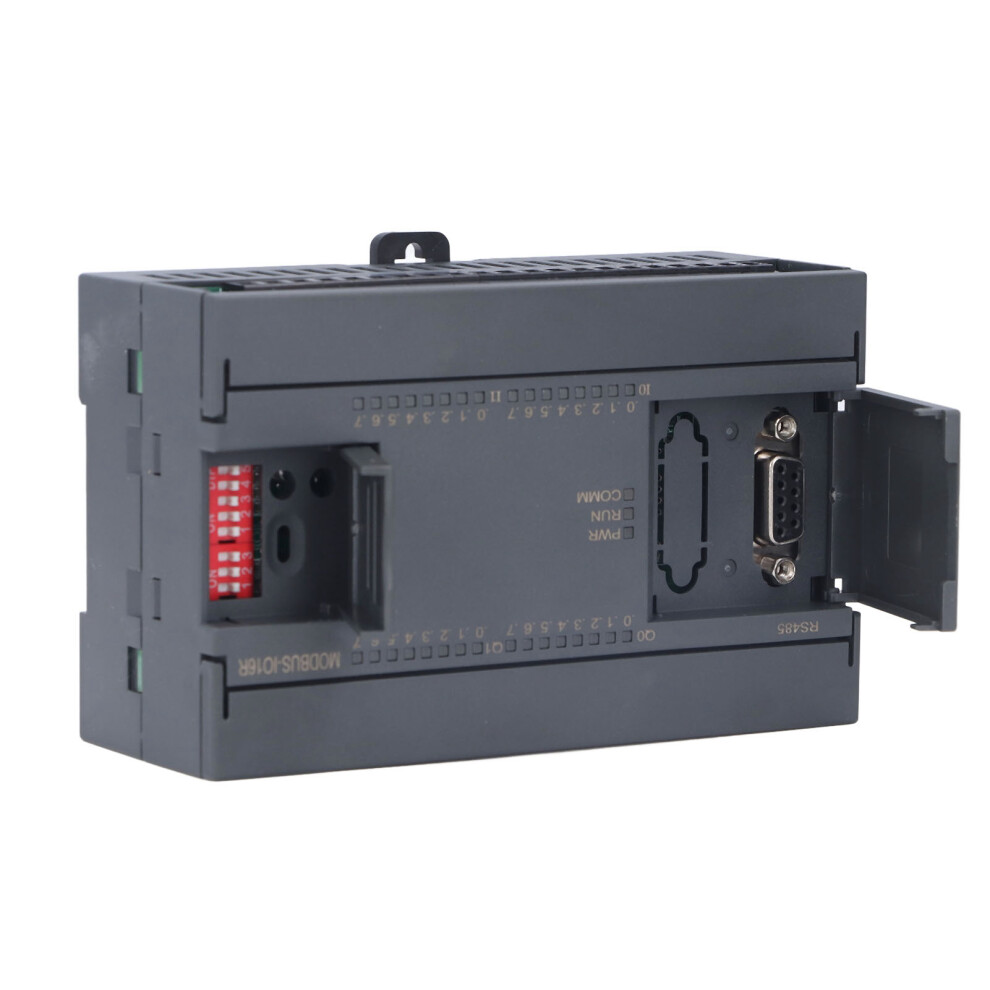

Interface Type: RS485, DB9 male
Baud Rate: 4800-115200
Communication Format: RTU 8 bit data, 1 bit stop, no parity (configurable)
Address Range: 1-254
Power Consumption: 2W-4W
Surge Protection: 600W
Working Temperature: -20 to +70
Storage Temperature: -40 to +85
1 x
PLC Industrial Control Board
