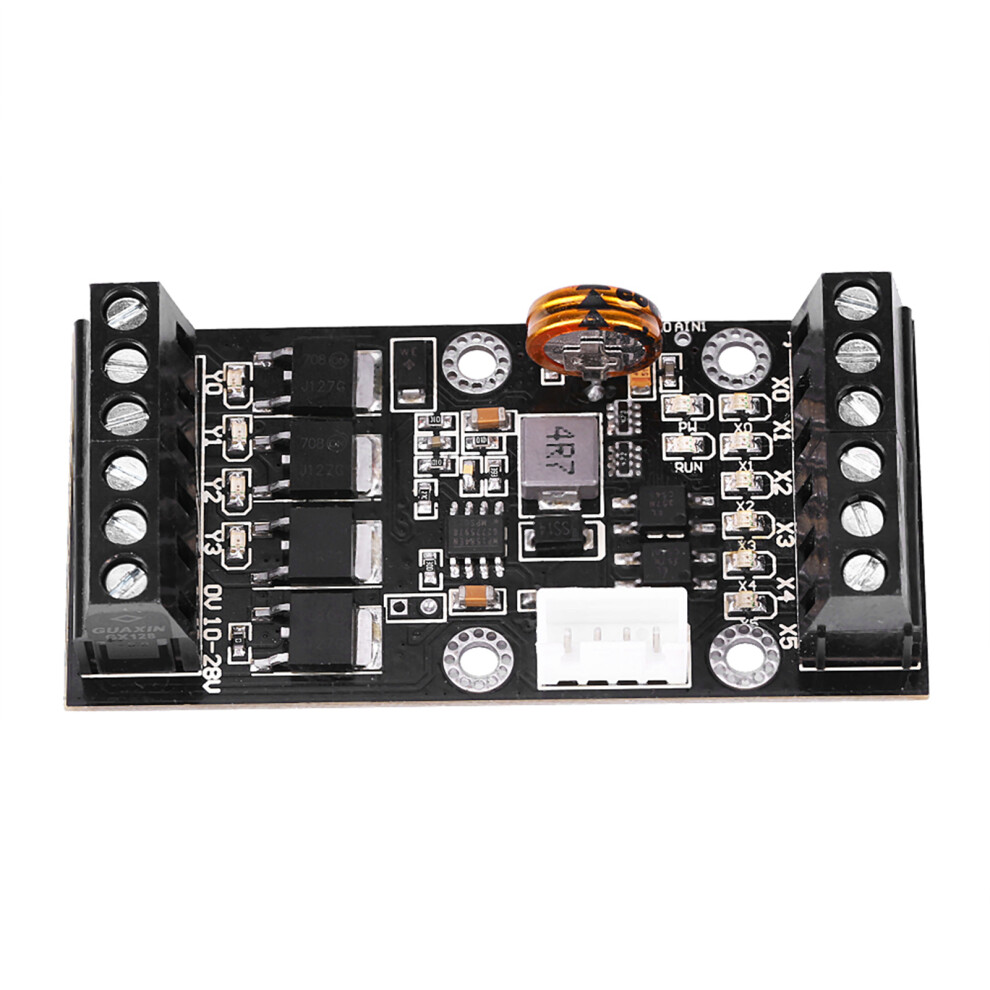

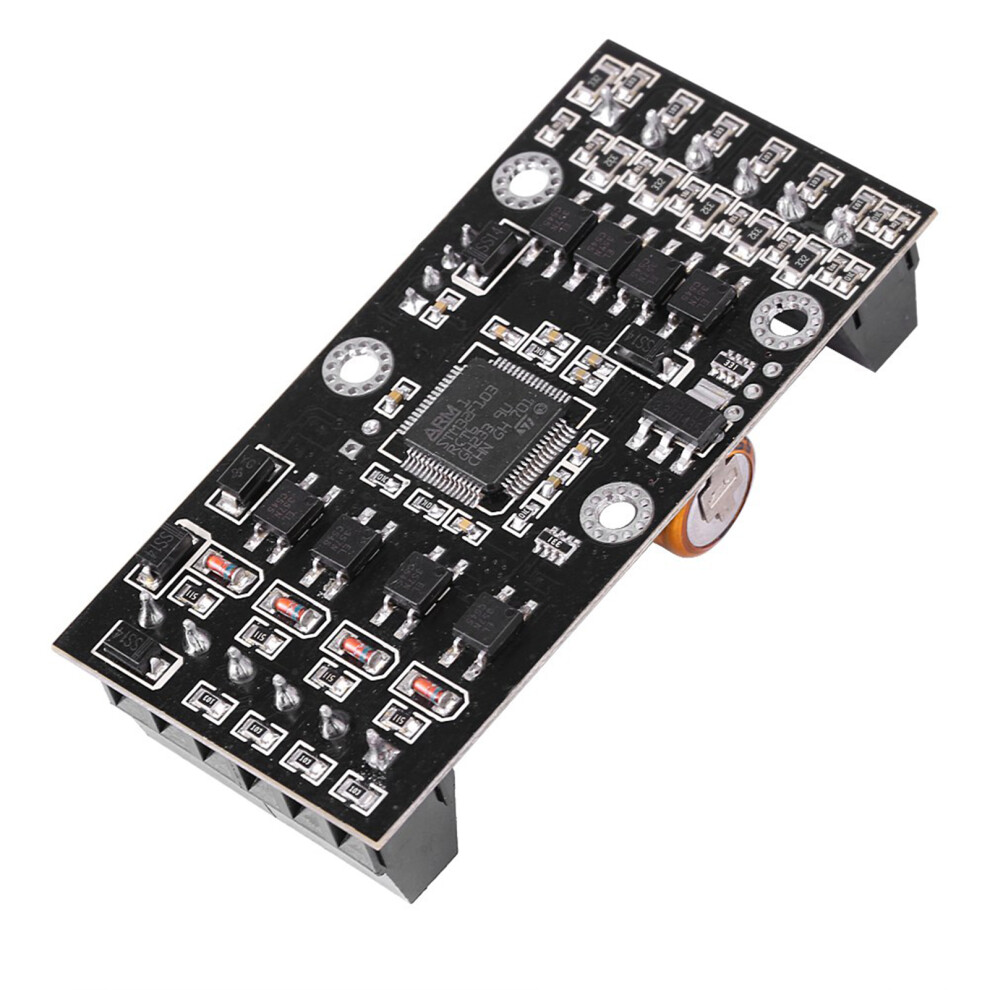

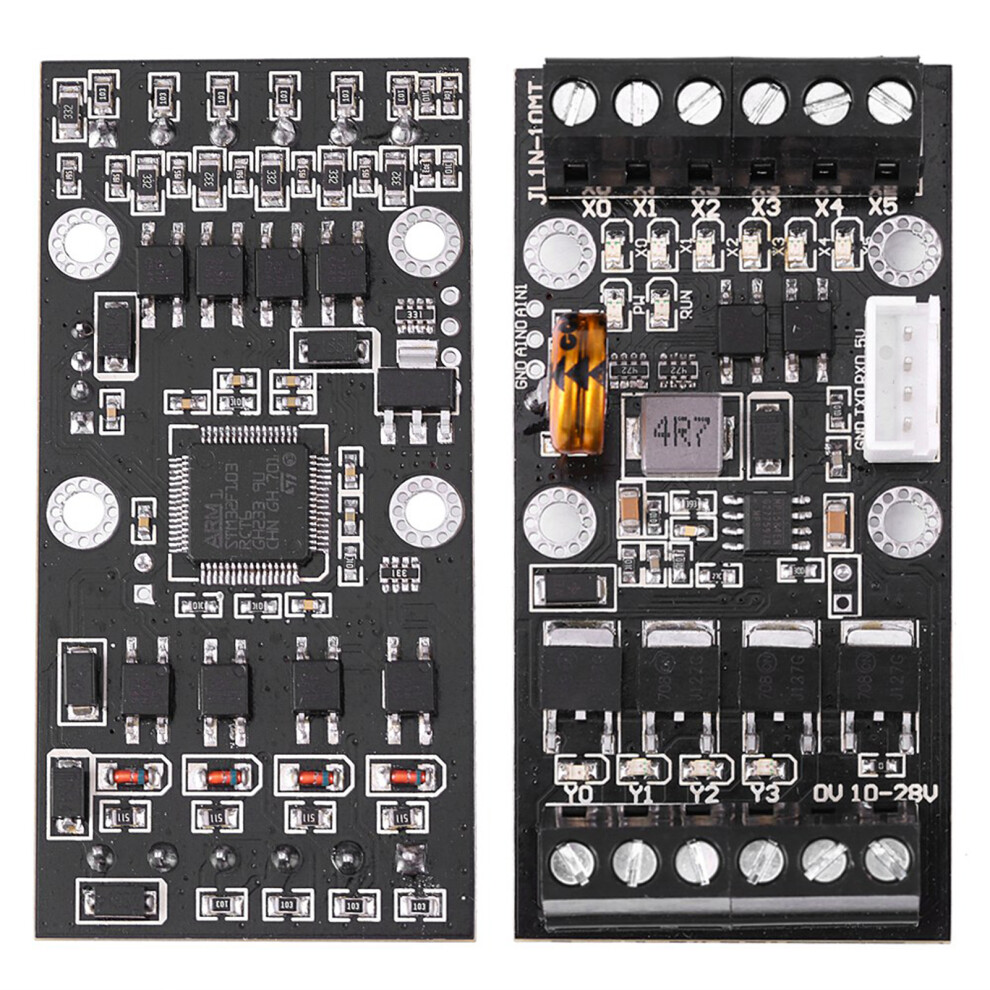

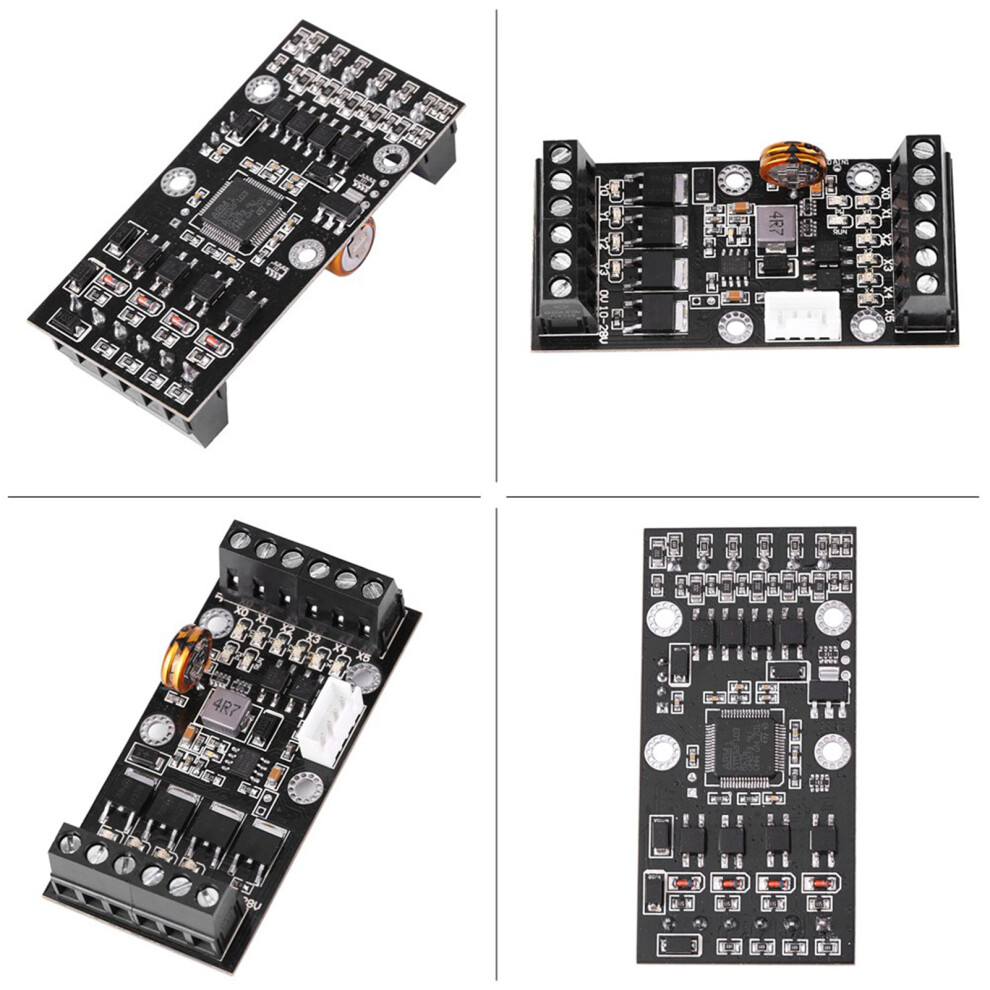

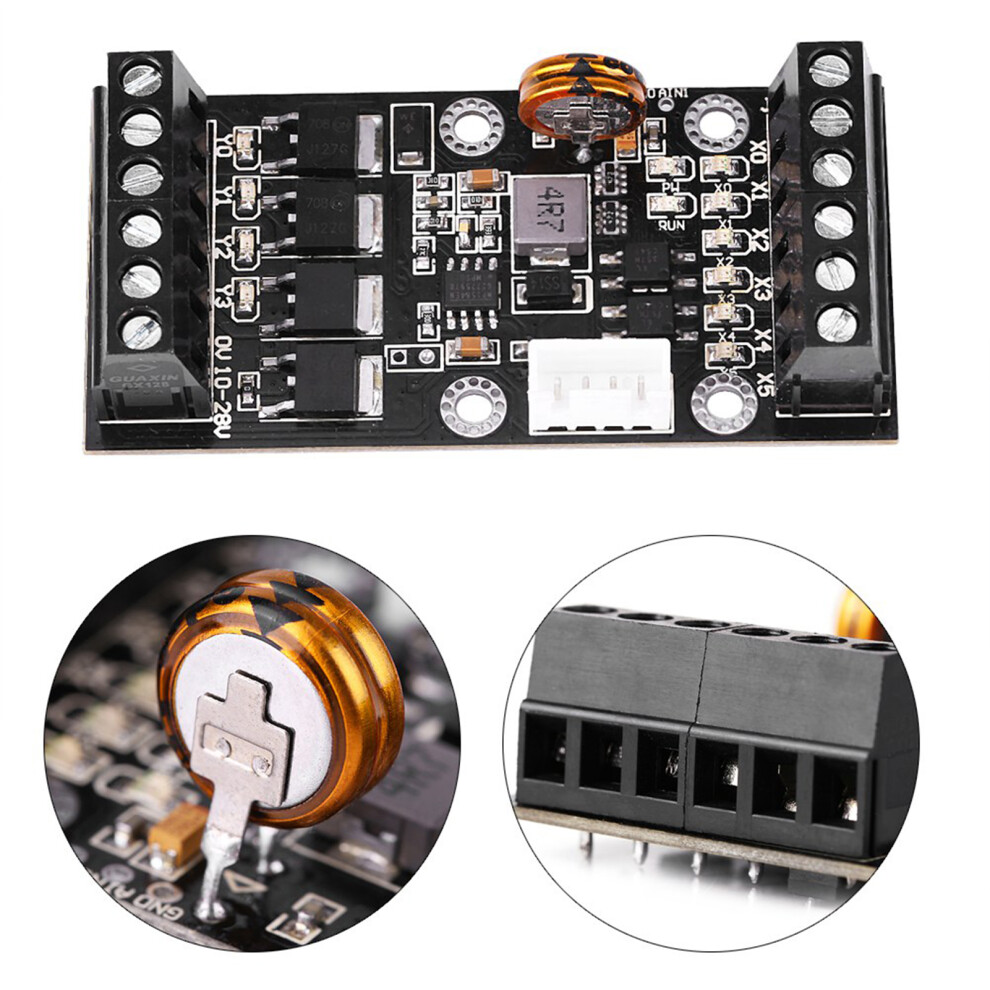

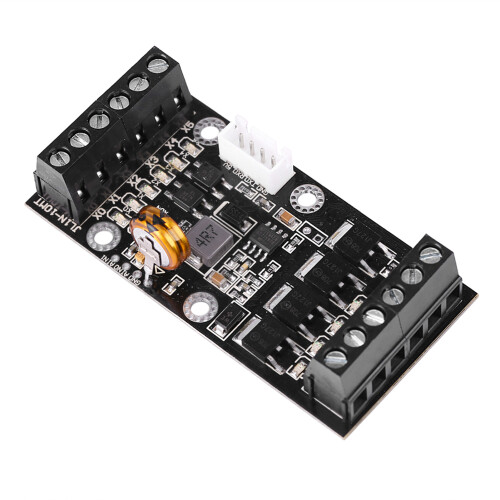

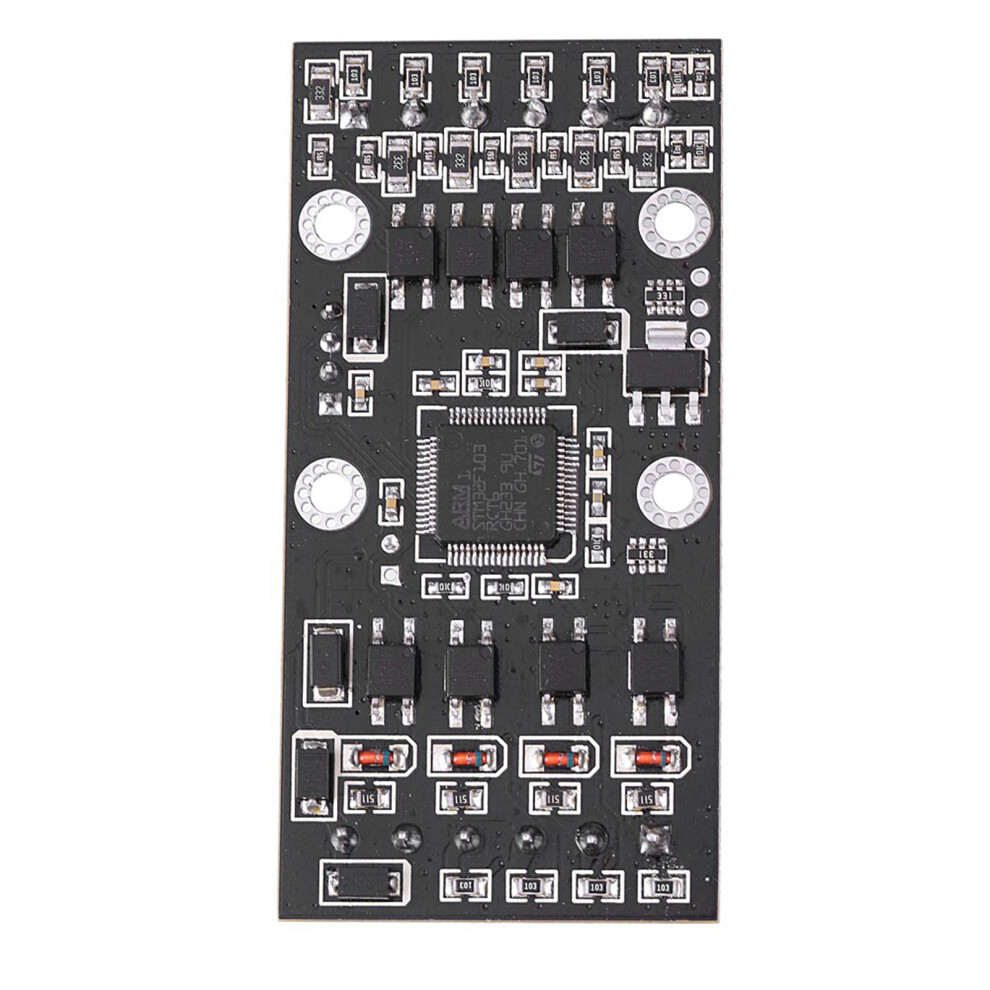

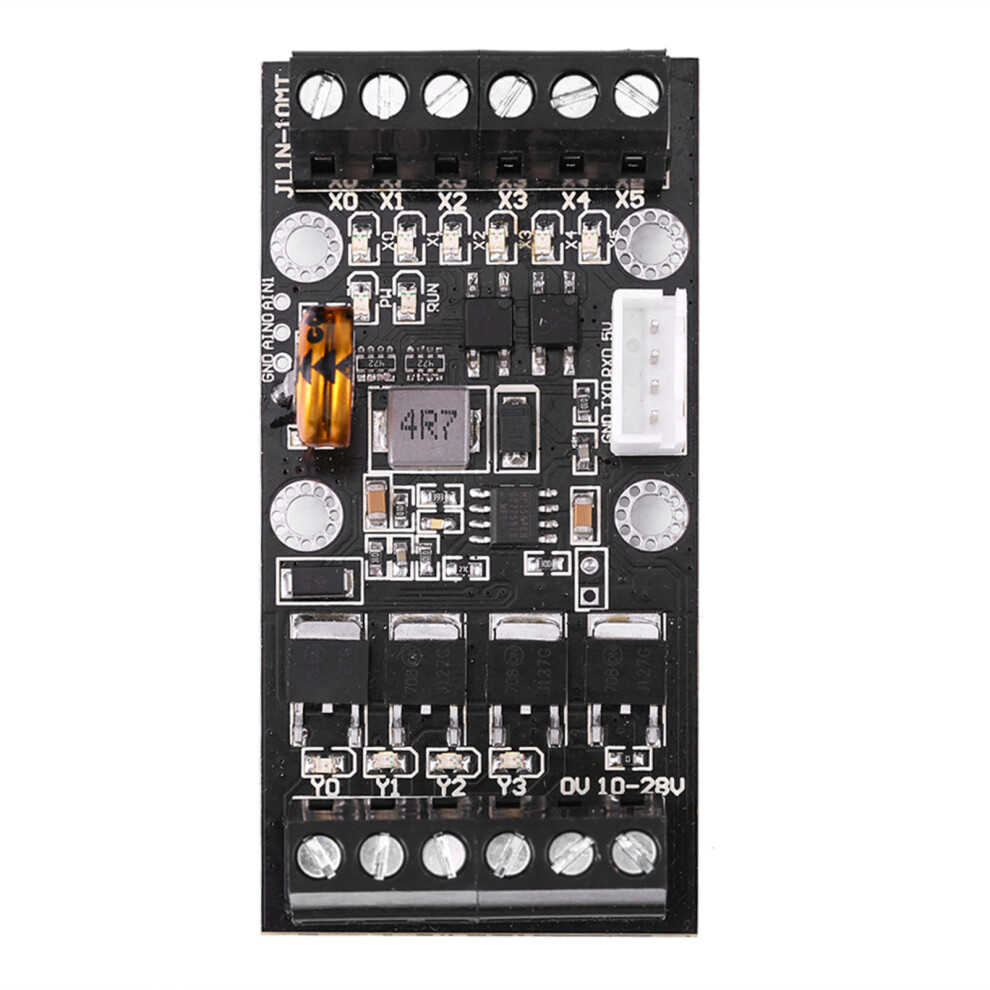

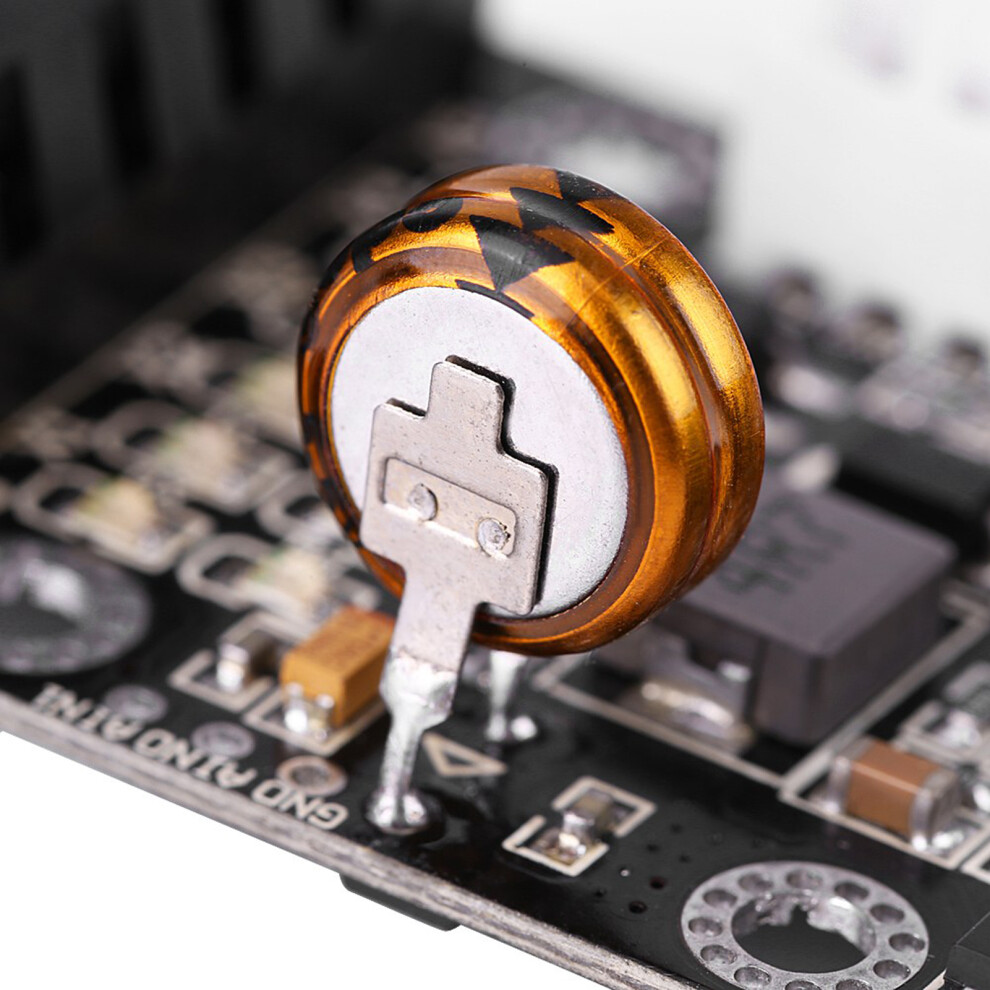

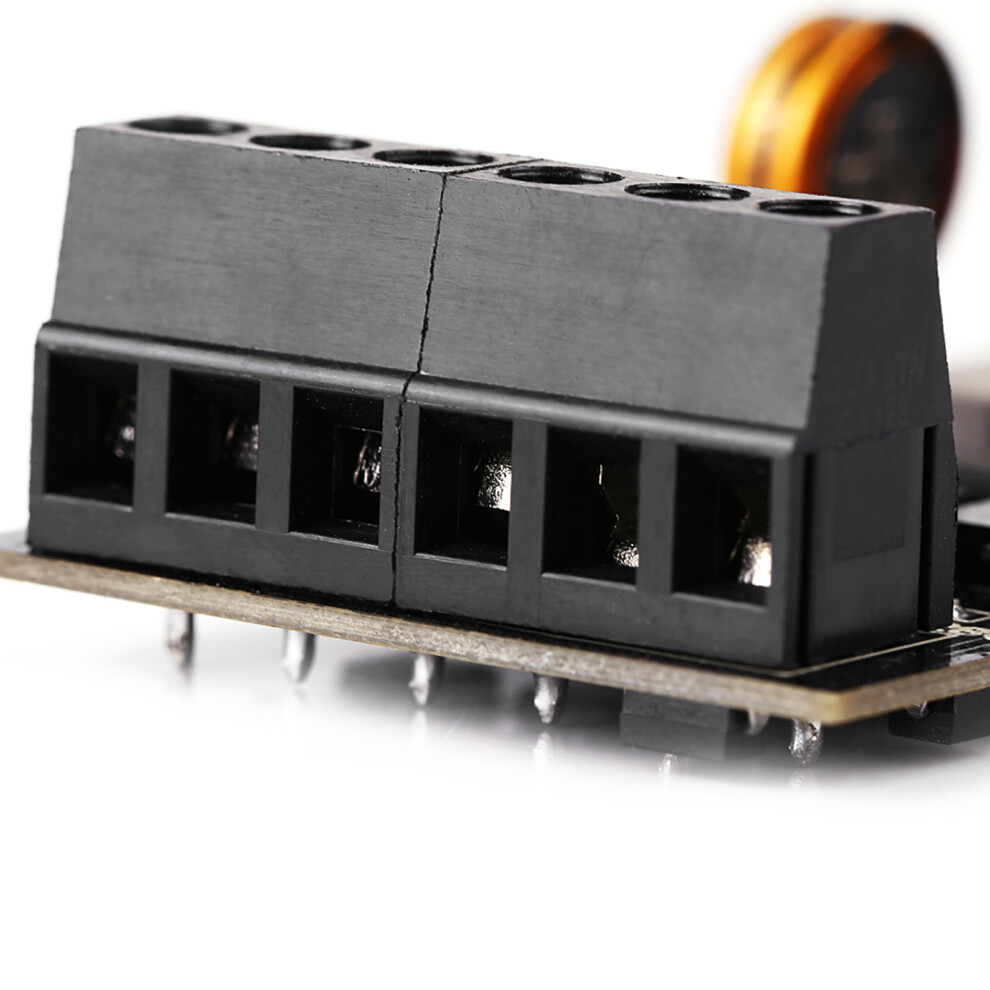

PLC Industrial Control Board Programmable Logic Controller JL1N‑10MT Module

PLC Industrial Control Board Programmable Logic Controller JL1N‑10MT Module Description

PLC Industrial Control Board Programmable Logic Controller JL1N‑10MT Module

Features:

This programmable logic controller uses industrial-grade 32-bit MCU with strong anti-interference and faster speed.


The PLC board directly uses GX programming software for ladder diagram, written to the PLC directly, can monitor online.


It supports super encryption, as long as input password under
PLC state, there is no read function.


Stable and reliable performance, build-in watchdog timer circuit, effectively ensures module long time work.


Widely used in all
kinds of industrial automatic control, such as metallurgy, chemical,
plastics, textile, food, packaging, printing, building materials,
carpentry, central air conditioning, environmental protection equipment
and industrial single process control equipment in industrial assembly
line, various kinds of machine tools.


Specifications:

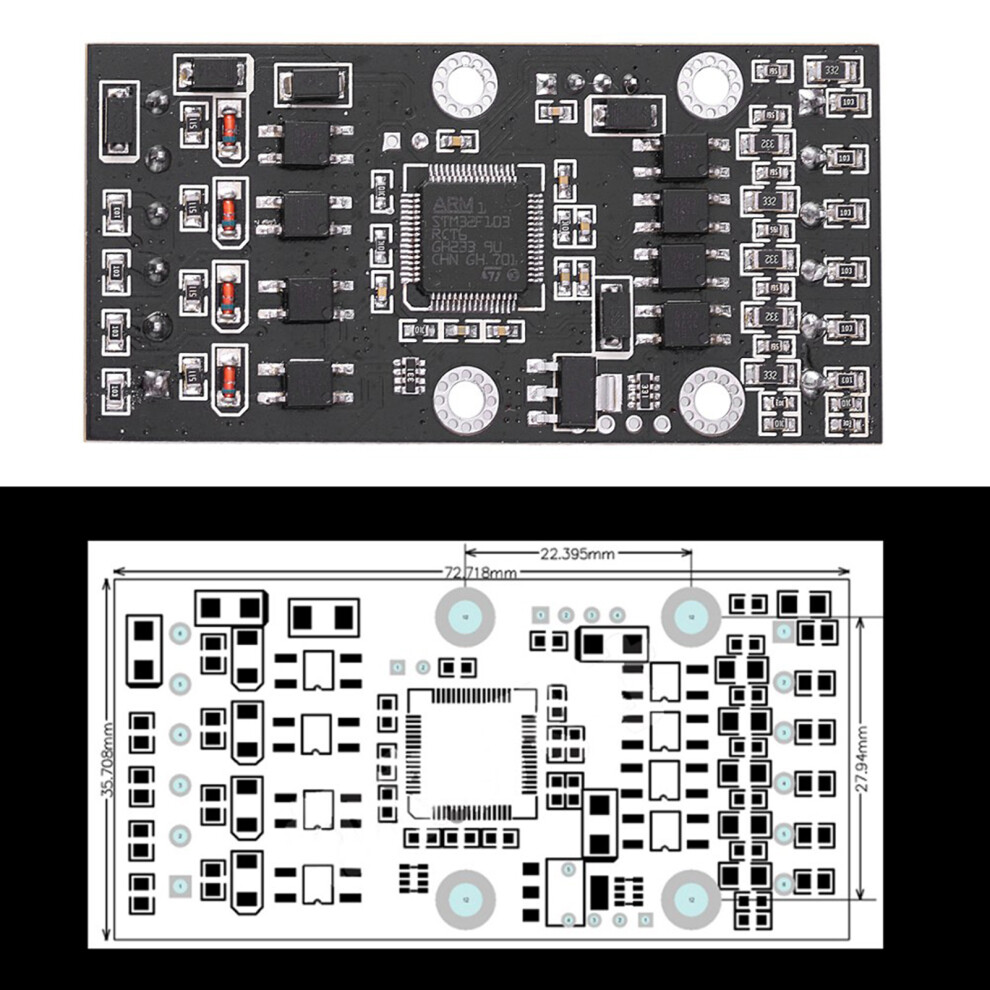

Size: 72*35*20mm/2.83*1.37*0.78in



Auxiliary Relay


Normal Use


M0~M383




Power Failure Hold


M384~M1535




Special Use


M8000~M8255




State


Hold Use


S0~S999




Timer


100MS


T0~T199
(0.1~3,276.7 seconds)




10MS


T200~T245
(0.01~327.67 seconds)




1MS accumulative



T246~T249


Power failure hold





100MS accumulative



T250~T255


Power failure hold





Counter


16-bit Add Mode


C0~C15 (0~32767)




16-bit
Add Mode
(Power Failure Hold)


C16~C199




High
Speed Counter
(Power Failure Hold)


C200~C255




Data
Register


16-bit Common Use


D0~D127




16-bitPower Failure Hold


D128~D5029




16-bit
Special Use(AD)


AD0 conversion result directly save at D5000




16-bitSpecial Use(AD)


AD1 conversion result directly save at D5010



*Input high speed pulse C235, C251 function compatible with JL1N.
*Y0 Y1 can send maximum 10K pulse, function compatible with JL1N.
*Output point is open collector output, rated current is 5A, can directly drive DC solenoid valve, no need of external relay.
Notes:
1, When using GX Developer programming software, USB-TTL adapter board is needed to connect this board and computer.
4, If connecting this PLC to touch screen or text screen, a external 232-TTL module is required

Basic Sequential Control Commands:
LD, LDI, OUT, AND, ANI, OR, ORI, LDP, LDF, ANDP, ANDF,
ORP, ORF, ORB, ANB, MPS, MRD, MPP, MC, MCR, INV, PLS,
PLF, SET, RST, OUT, RST, NOP, END , CALL, CJ , FEND
SRET, STL, RET
Data Processing Command:
ZRST, DECO, ENCO, SUM, BON, MEAN, SQR, SWAP
High Speed Processing Command:
SPD, PLSY, PWM, PLSR, HSCS, HSCR
Positioning Command:
PLSV, DRVI, DRVA
Convenient Command:
ALT, INCD
Contact Comparison Command:
LD=, LD>, LD<, LD<>, LD, LD,AND=, AND>, AND<, AND<>, AND, AND, OR=, OR>, OR<, OR<>, OR, 0R
All commands support 32-bit commands and trigger commands

Package Includes:
1 x PLC
