PM02 V3 Power Module Supply Plug From PIX32 4 Mini

PM02 V3 Power Module Supply Plug From PIX32 4 Mini Description

The PM02 is an to provide your and Pix32 with clean power from a LiPo battery as well as current draw and battery voltage measurement via a 6-position cable
Onboard switching regulator outputs 5.2V at 3A for up to 10S LiPo batteries
The power module comes fully assembled with connectors and wrapped in shrink tubing for protection
The power module is designed to power , Pix32, RC receivers and accessories (GPS, radio). It is not designed for servo power
GH terminals are also compatible with for Pixhawk4 and for Pixhawk4 mini

Maximum input voltage: 60V
Maximum current sense: 120A
Configured for 5V ADC for voltage and current measurements
BEC regulated output 5.2V and 3A maximum
6-position Molex cable plugs directly into /Pix32's 'PM' connector
6-position GH cable plugs directly into Pixhawk4/Pixhawk4 mini 'PM' connector
(Due to different batches, the printed words on the product be different, which does not affect use)
Colour:As Shown
Material:plastic

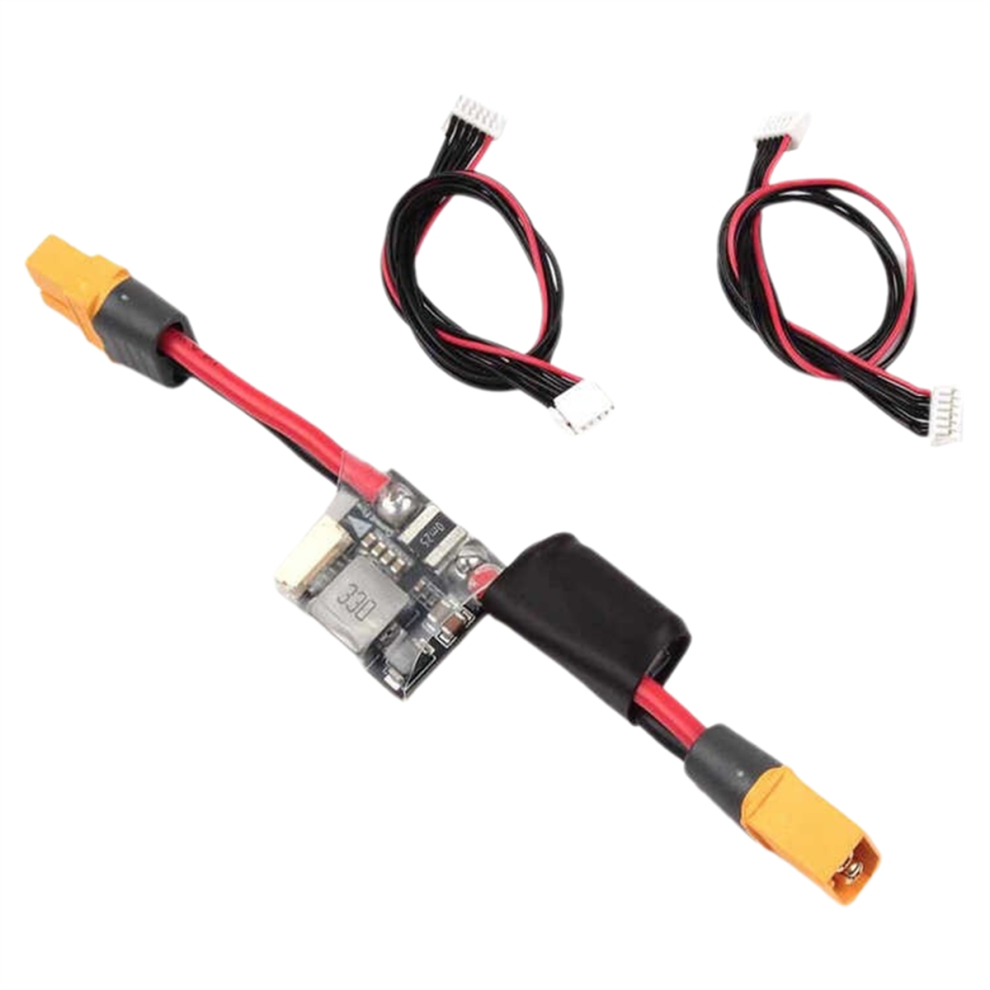

Package Contents:
1 Module
1 x Molex 6-position cable
1 x GH 6-position cable
1 x English manual

Only the above package content, other products are not included.
